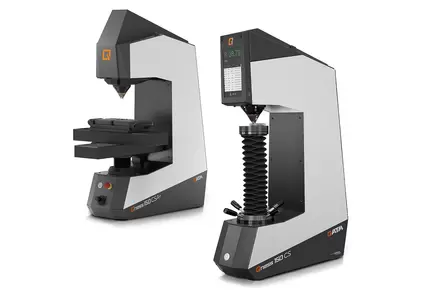

QNESS 150 CSA+

The Qness 150 CSA+ incorporates the best of all proven concepts and practices

Categories:
Hardness Testers, Rockwell Hardness Testers

Description
Details
Materials
Documents
Videos
Review

Description

PRODUCT ADVANTAGES

• Large test force range (1kg – 250kg)
• Automatic 3-axis control
• Short cycle times
• Identical sample tests
• Robust, welded steel frame
• Infinitely adjustable test table height

FEATURES

• Controlled force application (1kg to 250kg)
• Machine versions to serve all applications and test piece size
• Direct depth-gauge-system (0.05μm resolution)
• Robust welded steel frame and sheet steel covers

No need for long retooling breaks due to inaccessible test points. The clamping head can be removed via 2 screws. Now, even test points in hard-to-reach contours can be accessed with ease.

The height of the test table is infinitely adjustable (position can be fixed) via the play-free roller-bearing spindle guide – ideal for fully automatic series and progression tests on parts with identical test height. The test sequence is performed without clamping. Individual tests can also be carried out with the patented, swivelling downholder clamp.

The automatic XY slide with high-precision positioning drive enables extensive test series and hardness curves. External joystick for controlling the axis. Usable support surface: 180 x 200 mm, Traverse path: X 220 / Y 220 mm.

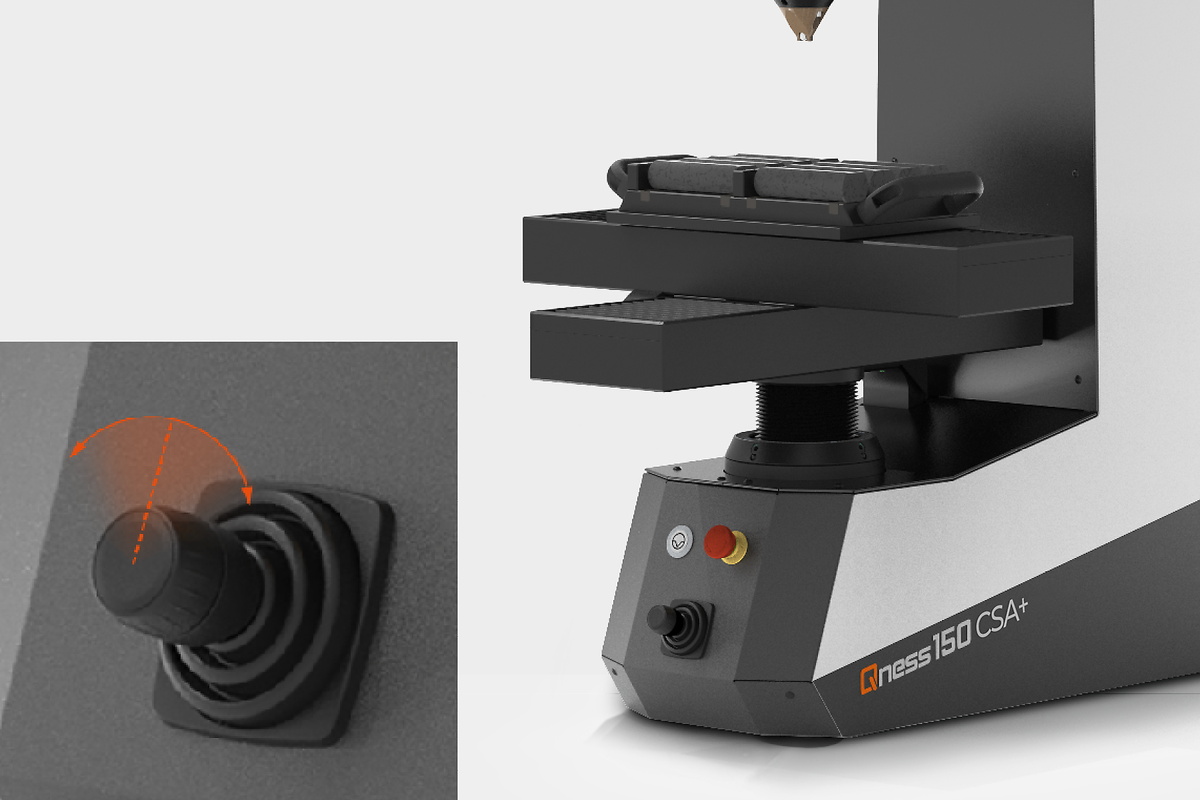

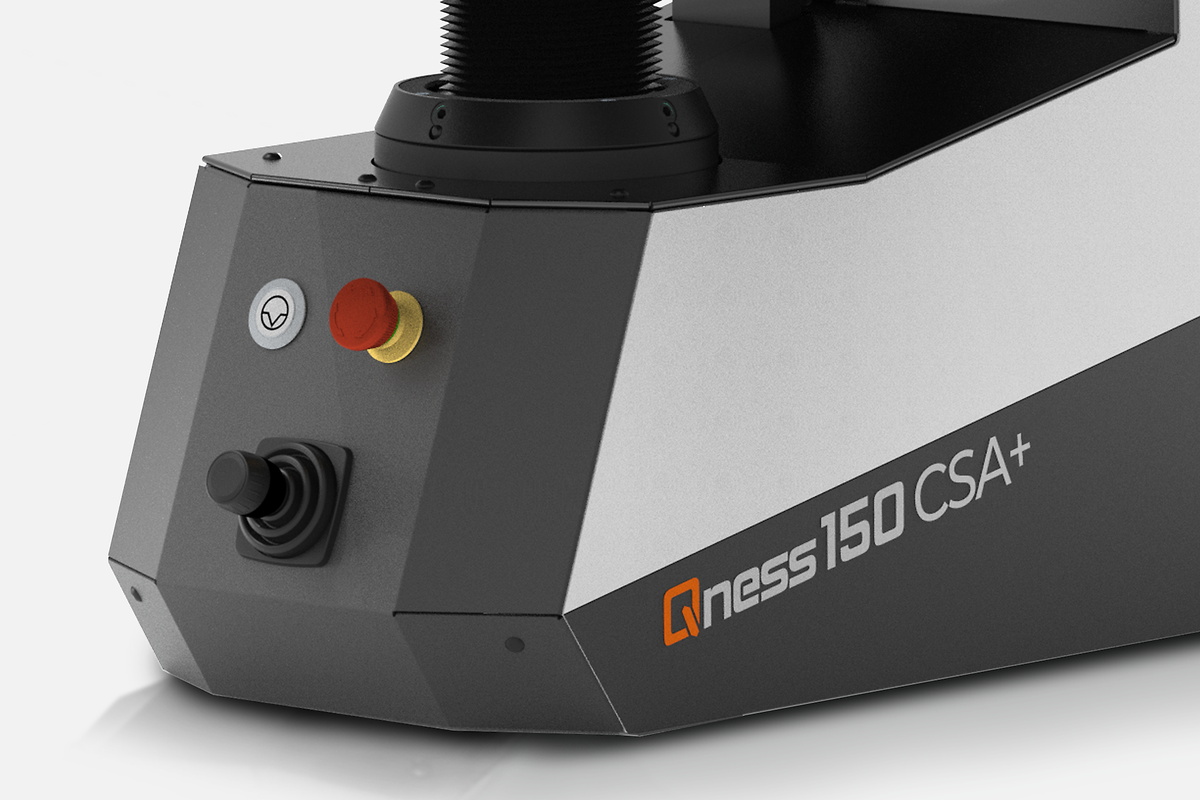

Fully automatic and robust XY slide with high-precision positioning drive. Dynamic joystick to control all 3 axes (XYZ). Usable support surface 200 x 180 mm.

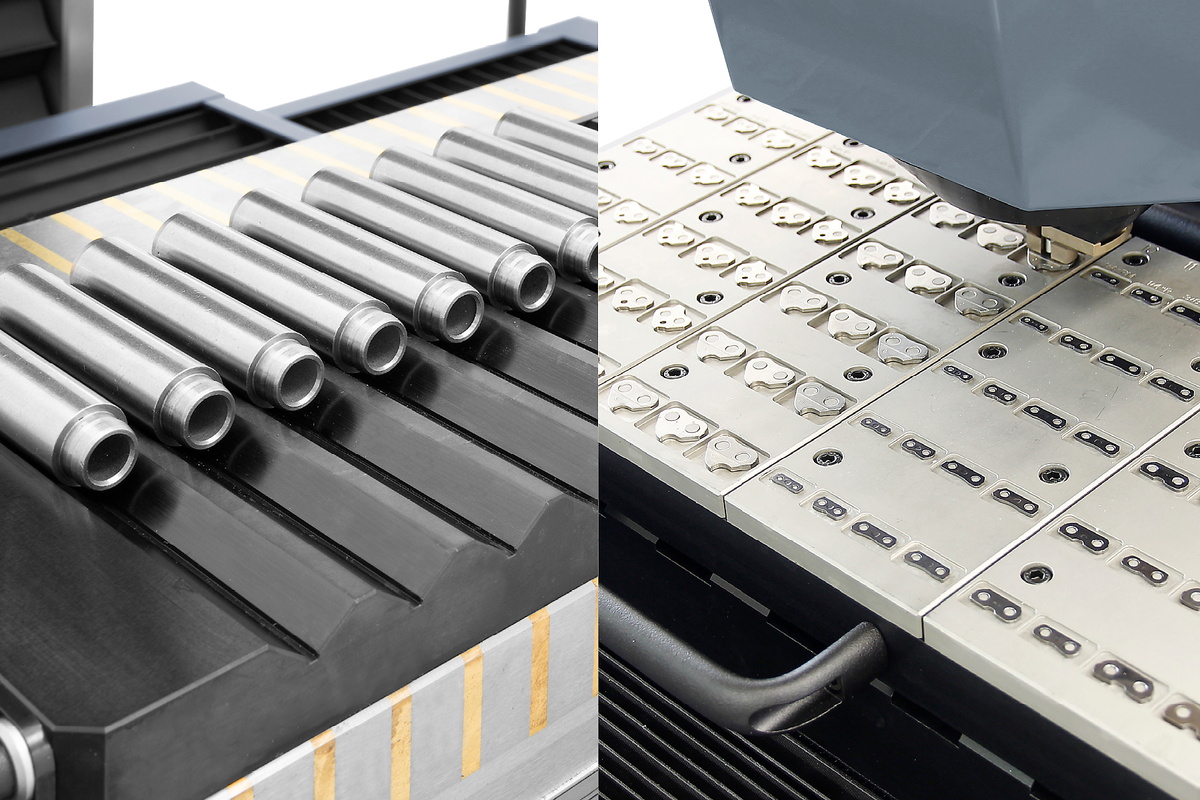

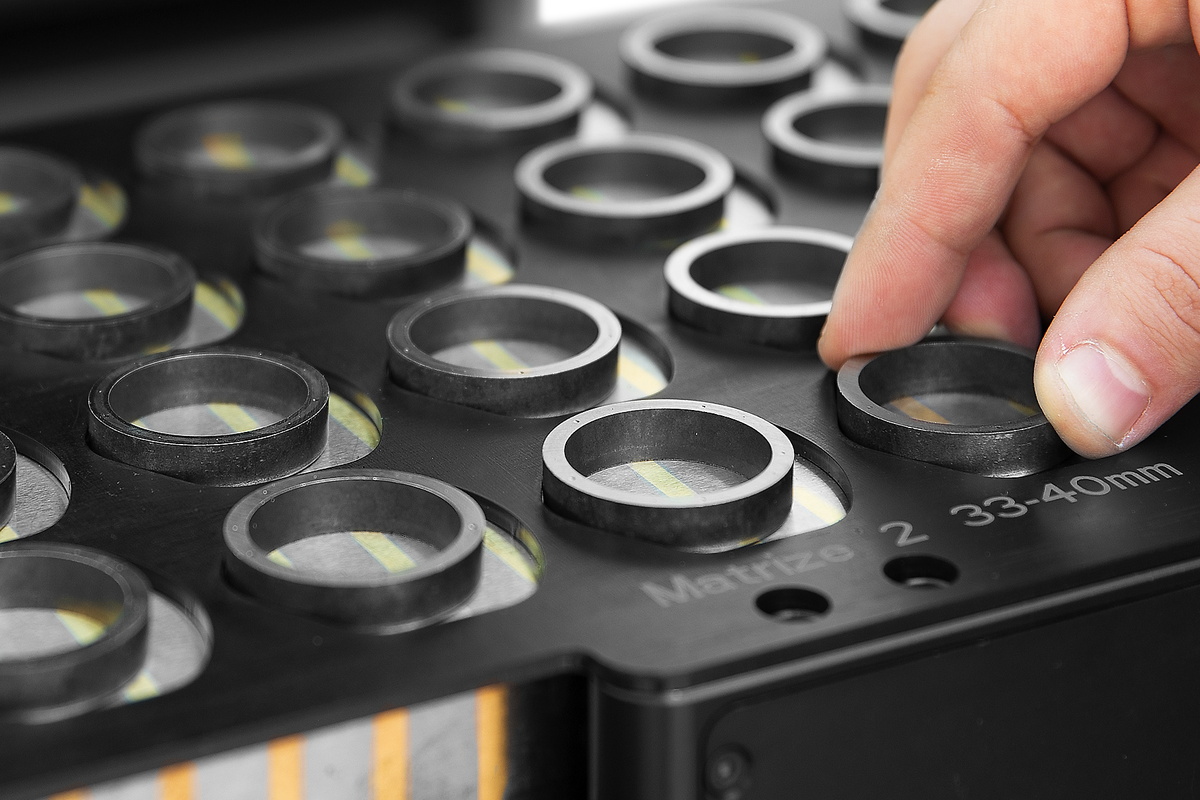

An entire range of relevant data, such as test patterns, test methods and user fields can be activated via pre-defined sample magazines. QATM can provide the most suitable clamping setup, matrices and cassette systems for every requirement.

Ultimate ease of use with 5 megapixel colour camera for recording the entire sample for a perfect overview and documentation in the protocol. It is standard in the CSA+ versions to record the entire table surface as sample image.

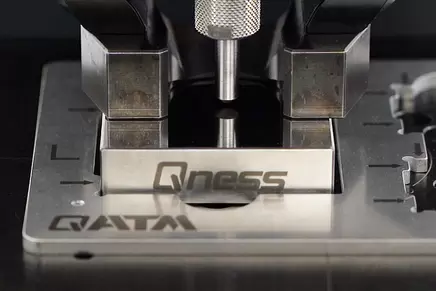

High-performance induction motor facilitates an ideal workpiece clamping force. Clamping power is adapted to the test method and is automatically set to be greater than the test force. Operators do not need to set levels and can rely on the device to guarantee safe, optimized adaption.

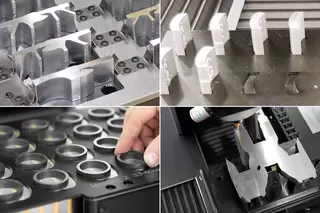

QATM is the right stop for advice on complex requirements and clamping devices! It would be our pleasure to advise, devise, customize and implement a solution for you. Only the right component clamping solution can guarantee reliable results.

QATM configures the Rockwell hardness tester Qness 150 CS and CSA+ with a direct, ultra-precise HEIDENHAIN depth-gauging system, positioned exactly on the axis of the indenter. This omits measurement inaccuracies caused by deformation in the system. Another unbeatable benefit: Indenting depth can be gauged directly – and can be easily calibrated in accordance with the latest Rockwell norms.

Brand QATM

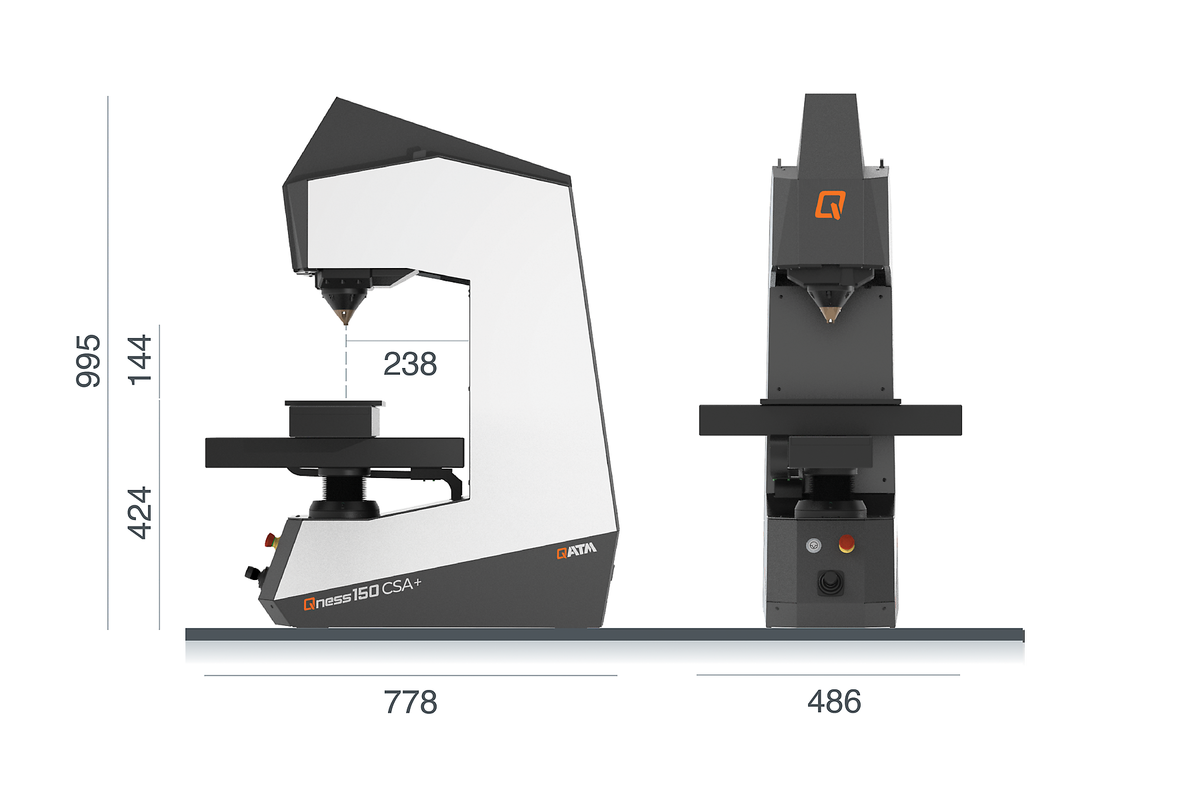

Test force range 1 - 250 kg (9.81 - 2450 N)
Height adjustment motorized
Test height 140 mm
Throat depth 238 mm
Test table 180 x 200 mm
Max. workpiece weight 100 kg
Weight of basic device 140 kg
Test sequence fully automated / electronic force application
Software Qpix Control 2
Interfaces 1x RJ45 (Ethernet)

Documents

Download Brochure
