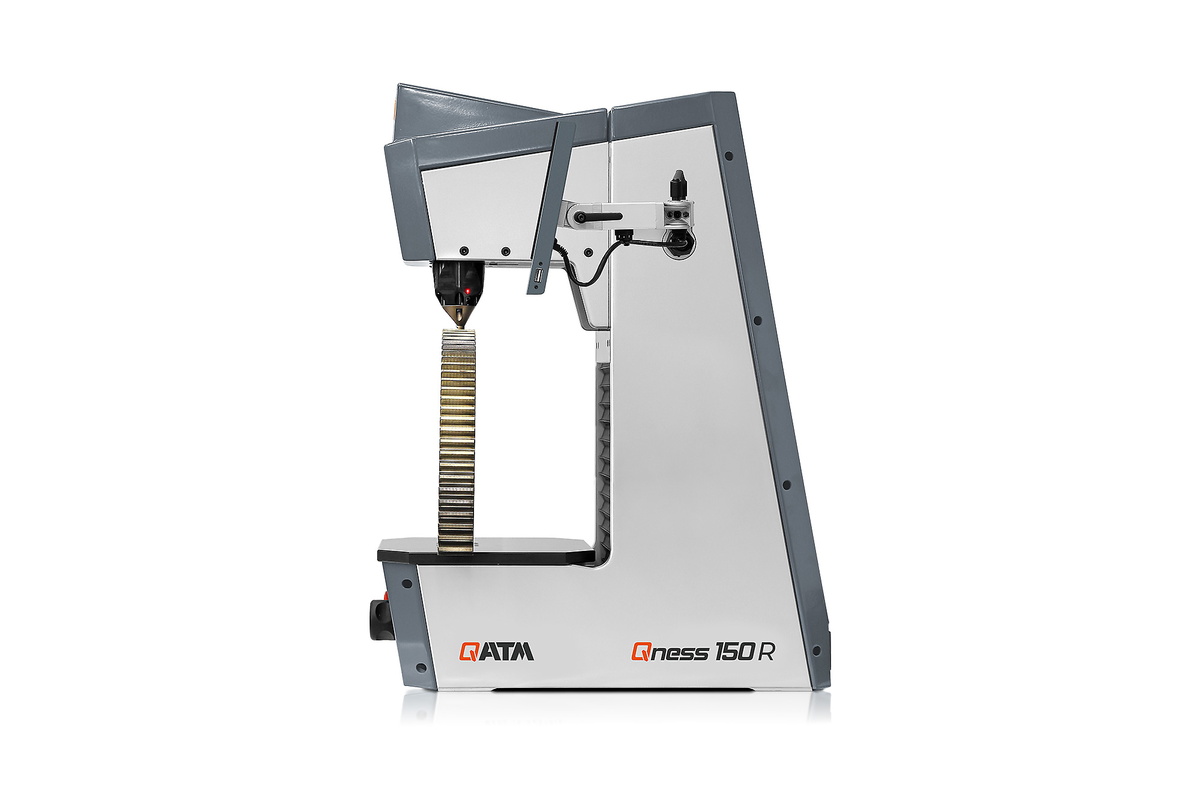

QNESS 150 R

The Qness 150 R incorporates the best of all proven concepts and practices

Categories:
Hardness Testers, Rockwell Hardness Testers

Description
Details
Materials
Documents
Videos
Review

Description

FEATURES

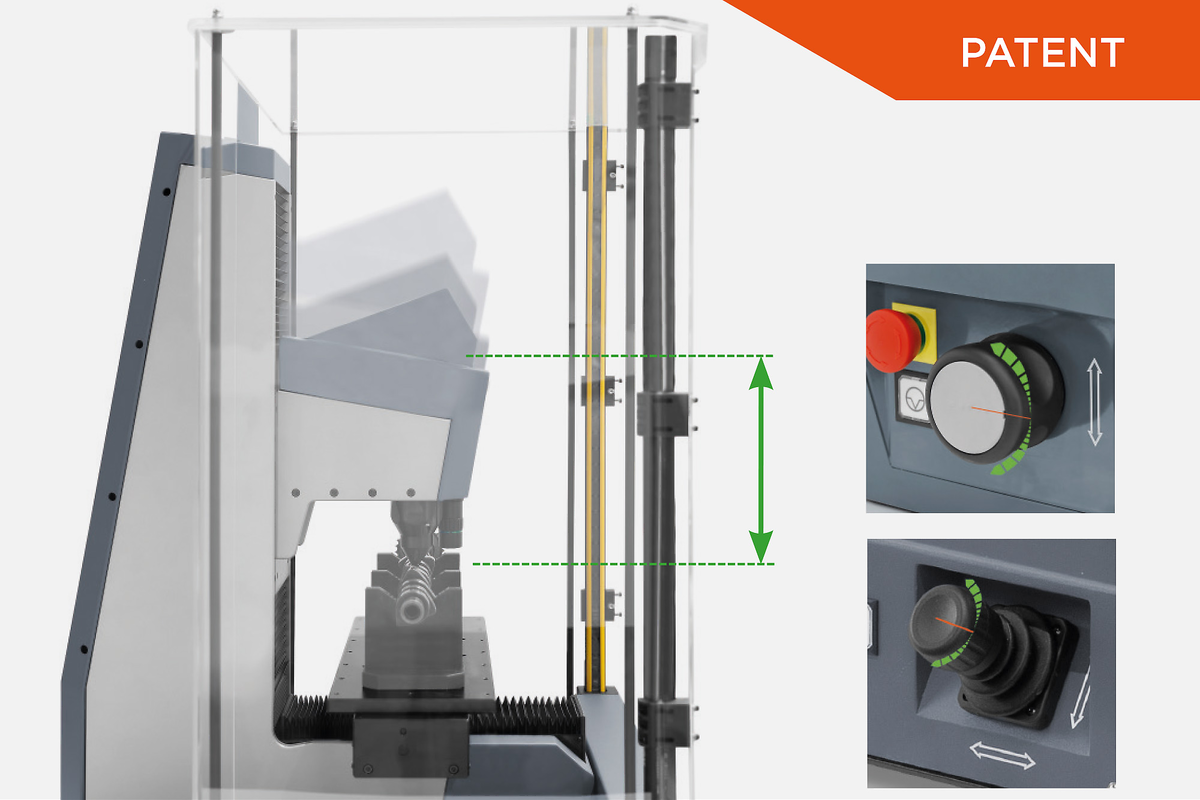

The compact Rockwell hardness tester in combination with the electronic movement control allows quick, accurate and sensitive positioning of the test head. Forceless, precise and collision-proof positioning of the head by turning the control knob (6mm/s) – even automatically with Q150A or A+, if required.

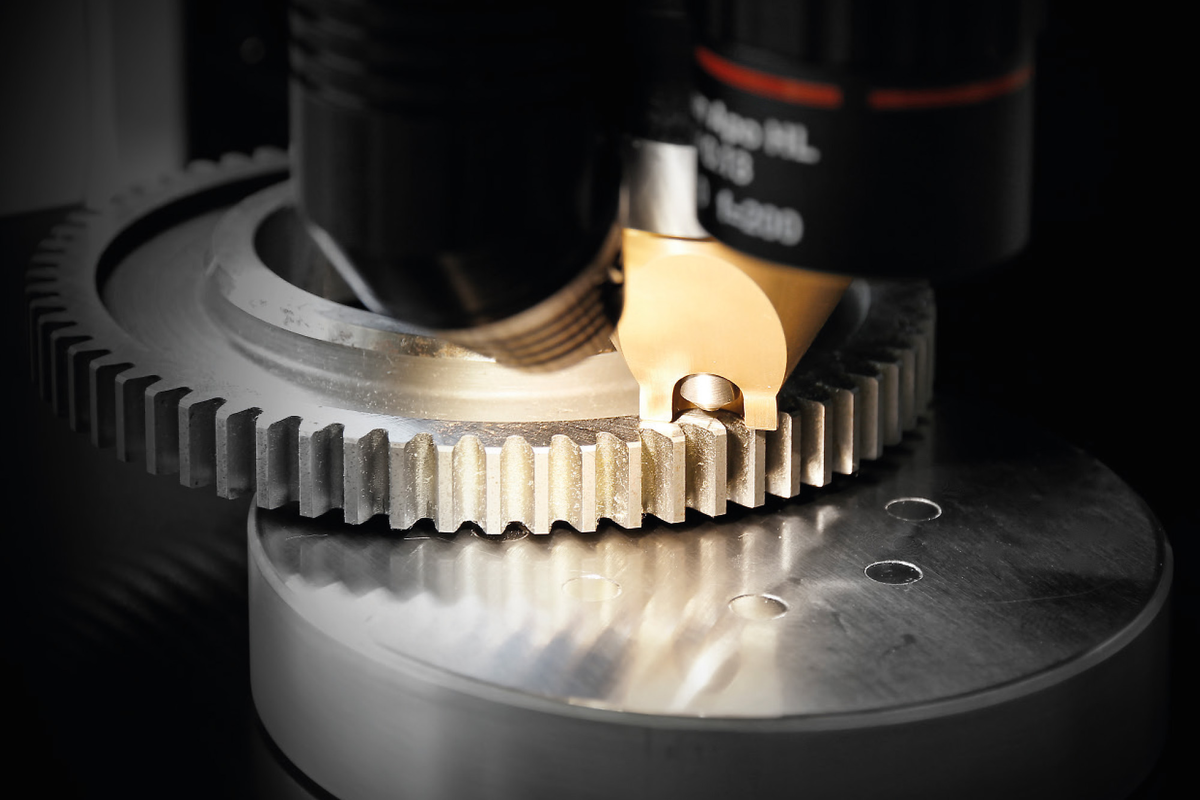

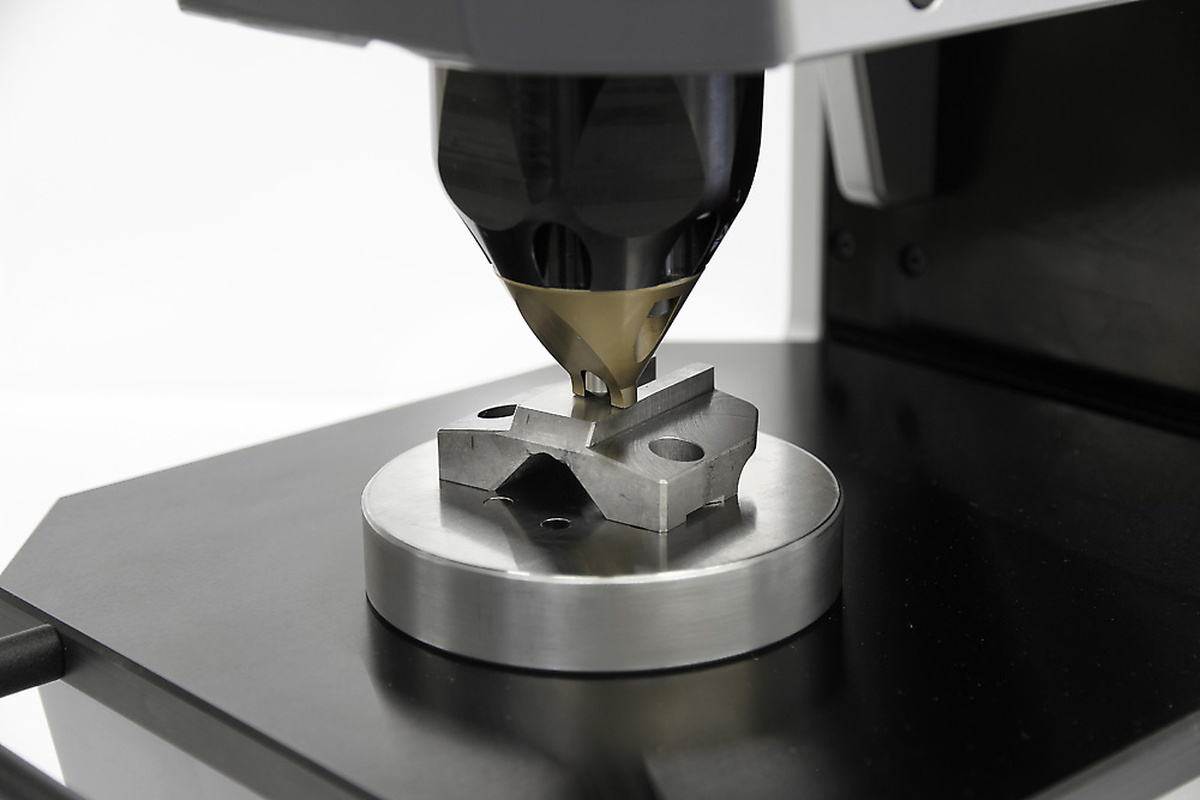

The integrated working room lighting allows an accurate positioning of the penetrator. (Standard on Rockwell Hardness tester Q150R)

The entire Rockwell hardness tester range can be customized. Send us your specifications and you will immediately receive a customized solution that works.

Completely connected in high performance with the integrated Windows PC with SSD hard disk even in the base model Q150R in standard equipment. Customized data connection and integration of the Rockwell hardness tester into production lines possible up to request.

• Across-the-line software design
• Numerous statistic functions: bar graph, progression, histogram
• Measurement value list to export as „Excel“ (CSV via export conﬁgurator)
• Standardized detail information to each indentatio

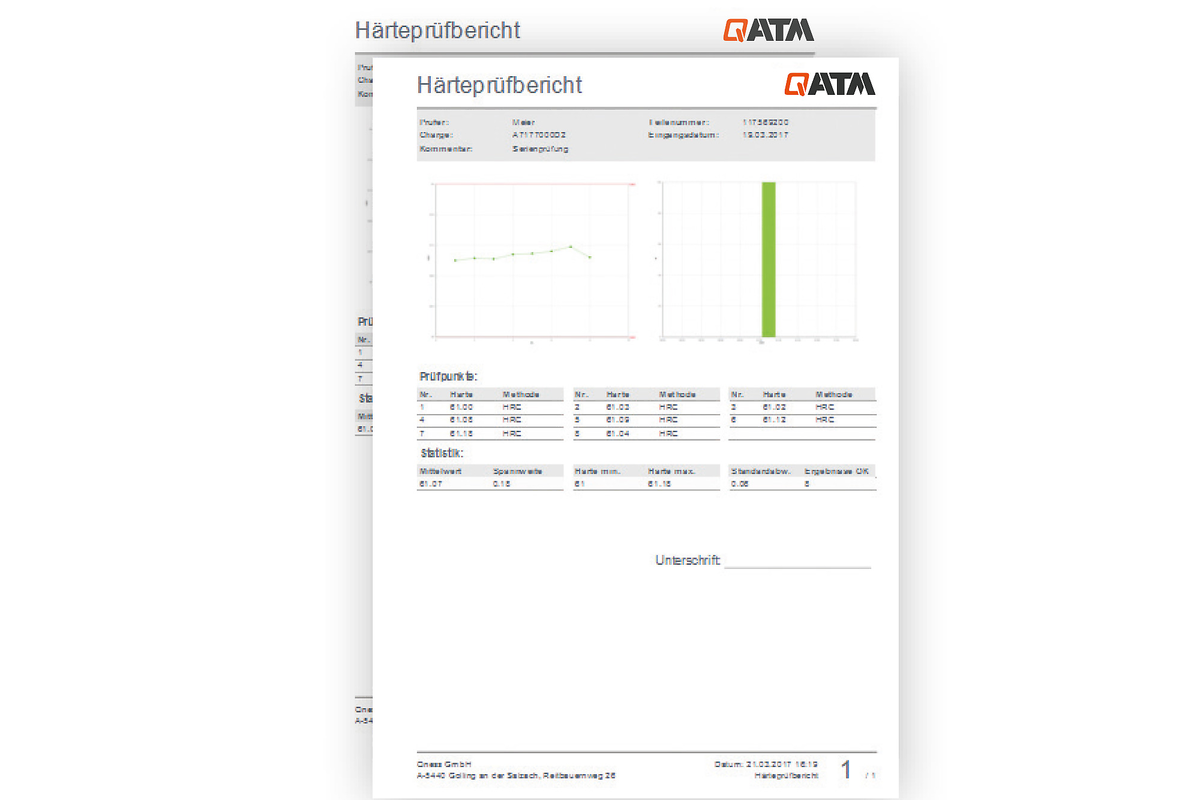

• A4 protocol as PDF / direct print
• User management with different security access levels to the hardness tester

Brand QATM
Test force range 1 - 250 kg (9.81 - 2450 N)

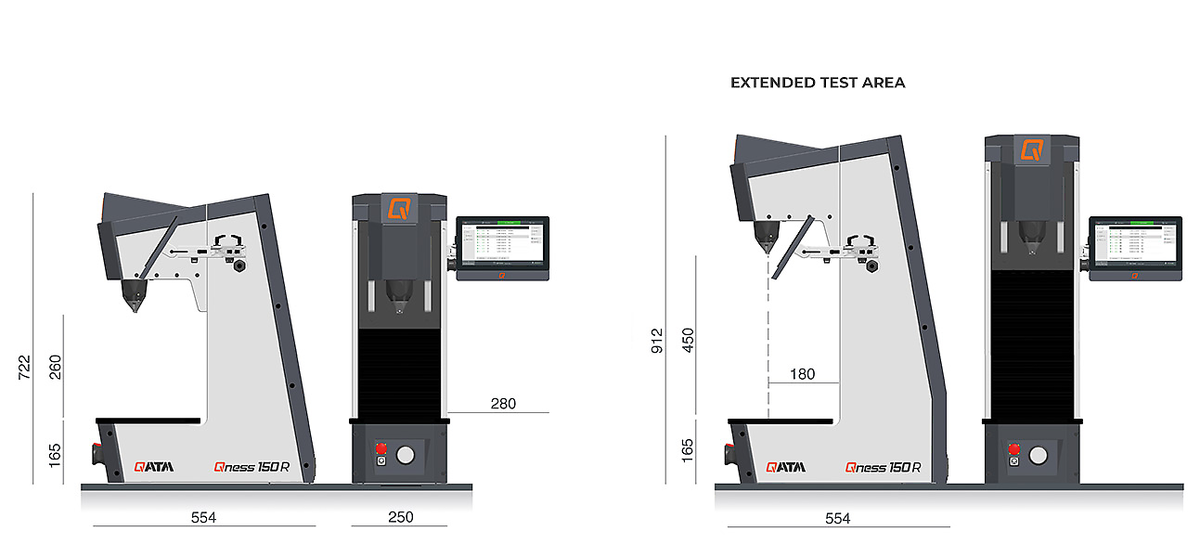

Test height / Throat depth 260 mm / 180 mm

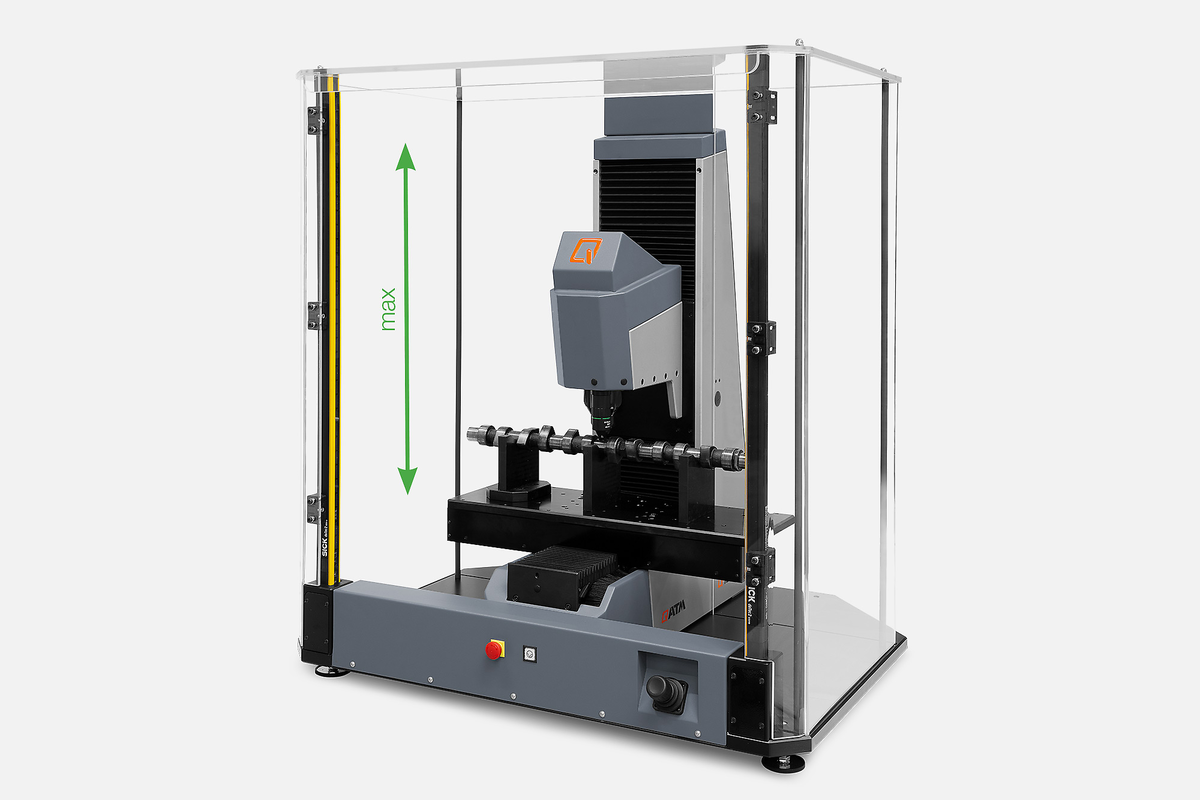

Test height extension (option) 450 mm
Height adjustment 180 x 200 mm
Test anvil / Cross slide 250 x 260 mm
Weight of basic device 95 kg
Test sequence fully automated / electronic force application
Software Qpix T2R

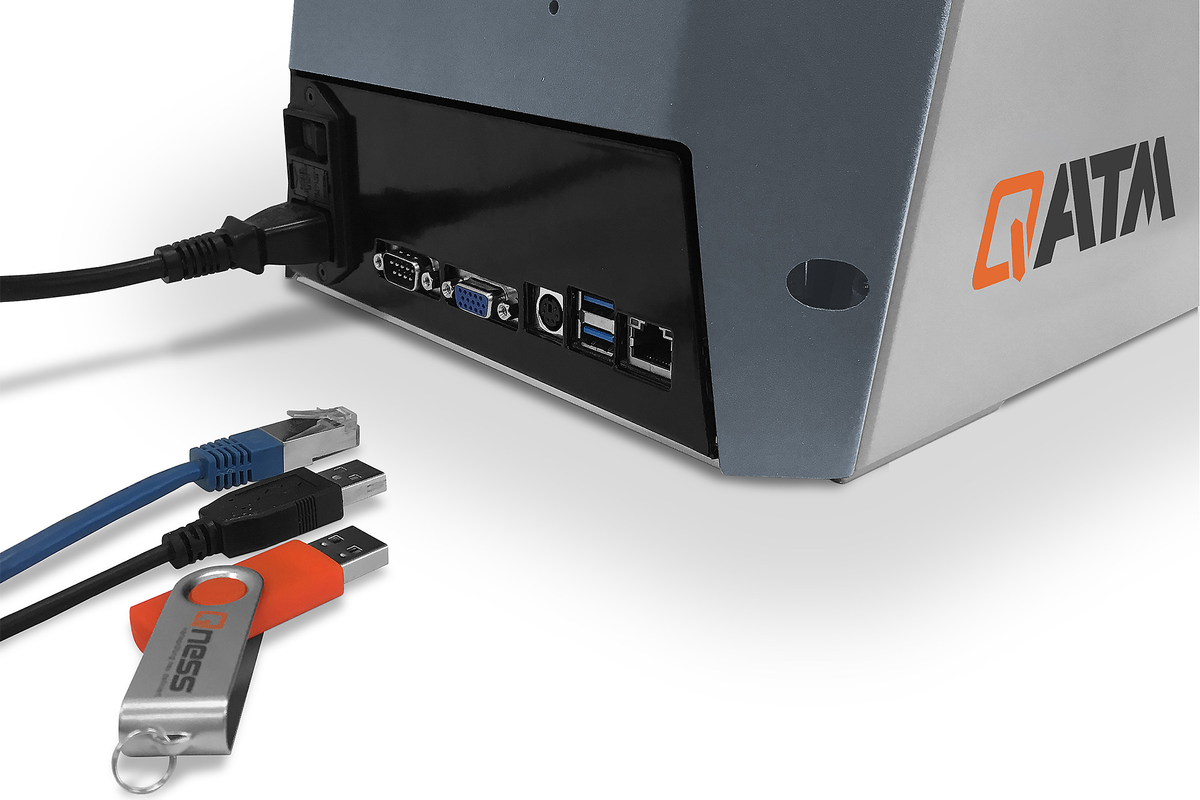

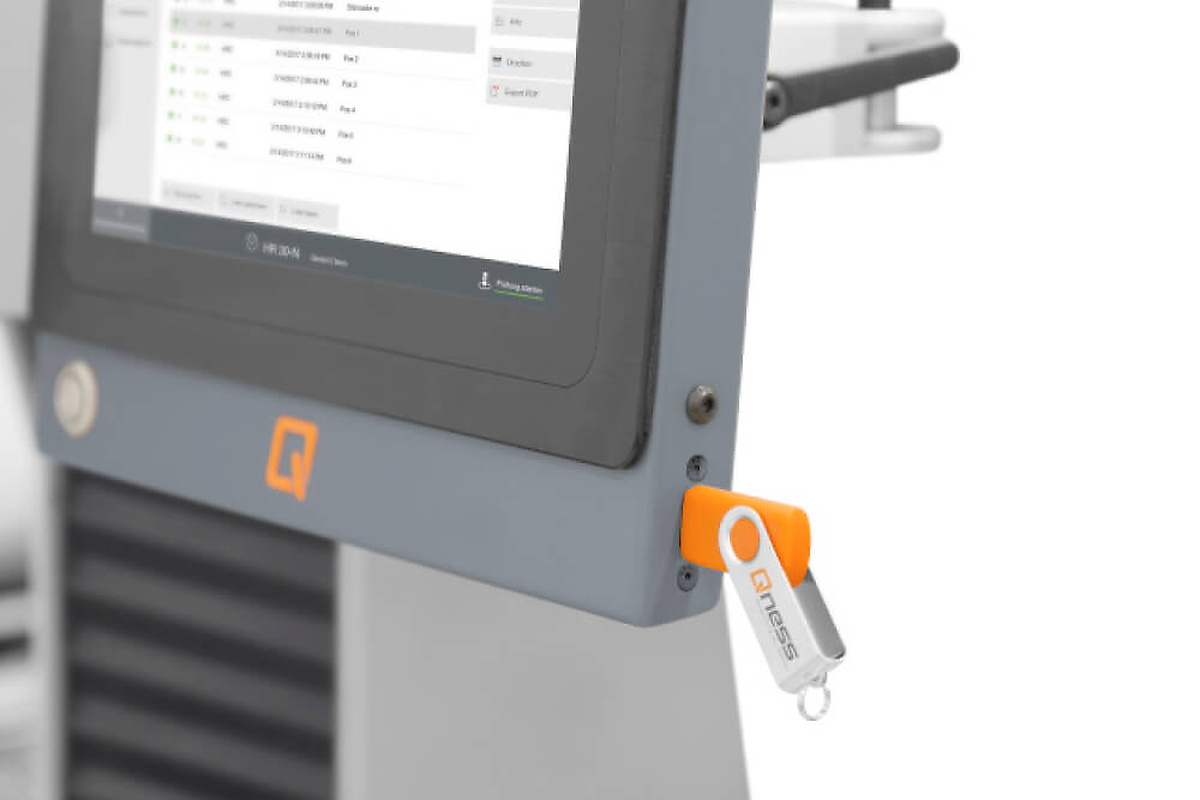

Interfaces 3x USB, 1x Ethernet, 1x RS232
Max. work piece weight 100 kg
Power supply 230~1/N/PE, 110~1/N/PE
Max. power consumption ~ 240 W
