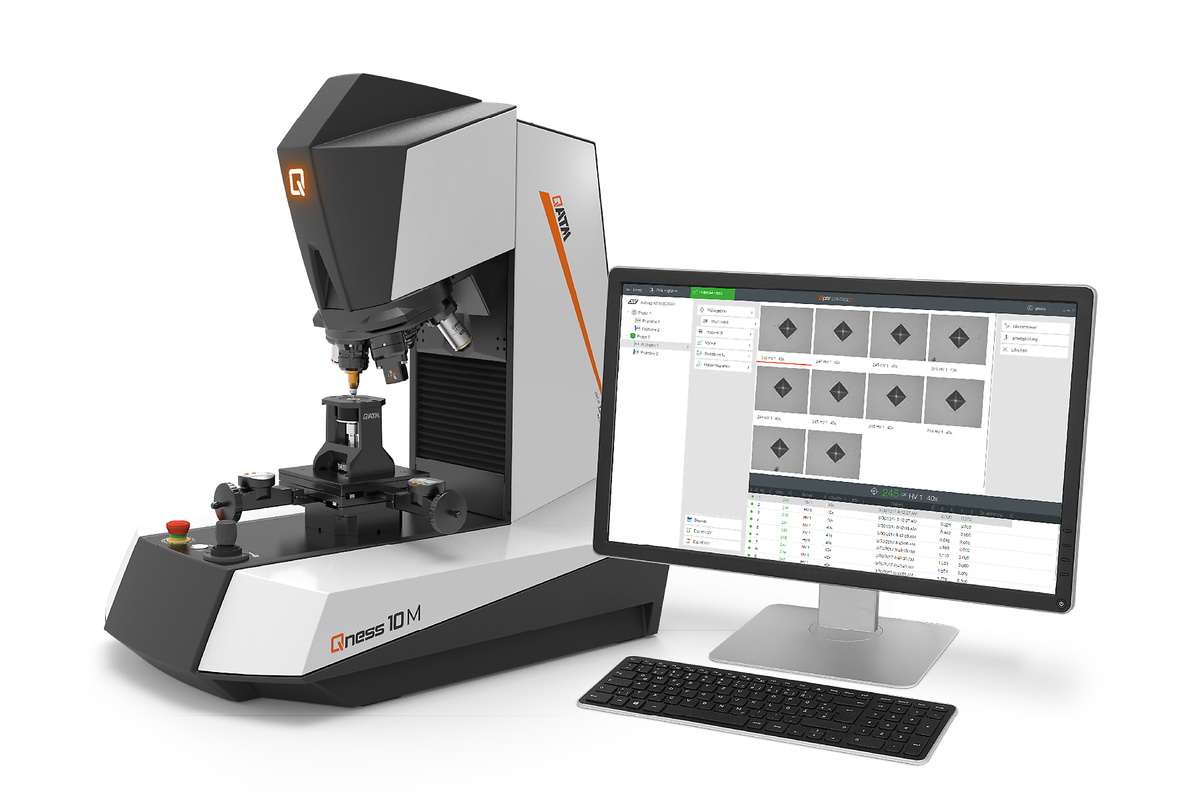

QNESS 10/60 M

hardness tester series Qness 10 / 60 takes micro hardness testing to a whole new level

Request a quote
  • Description
  • Details
  • Materials
  • Documents
  • Videos
  • Review

Description

PRODUCT ADVANTAGES

• Semi-automated
• Wide test force range (0.25 g – 62.5 kg)
• Ready to Test package, includes: ASTM+DAkkS certified Vickers diamond, 5x / 50x lenses

• Dynamic test turret with 8-position tool changer
• Qpix Control2 M Software including INSPECT microscopy features
• Digital XY cross slide with data feedback
• Controlled automatic Z axis

1800x1200px-vorlage-qness-10-60

FEATURES

llproductsqness60mevofeaturestestspacelightninghl
Test space lightning
llproductsqness60evogeneralfeaturesverticalhl
Vertical concept with 2 Z-axes
llproductsqness60evogeneralfeaturestoolchangerhl
8-Position tool changer
llproductsqness60aevonewinnovativenewrockwelltestmethodhl
New Rockwell Test Method
llproductsqness60aaevoinnovativeaddonscaliperhl
Digital caliper

All devices are equipped with the new LED work space lighting: Simplified positioning of samples for single-piece tests.

There are decisive benefits in distributing vertical movement across 2 axes. Via the first Z-axis there is dynamic motion control, allowing the indenter to be positioned towards the test surface quickly and conveniently at up to 30mm/s. The additional second Z-axis in the QATM system offers a high-resolution positioning system for greater precision in force application and focusing.

Up to 8 different test diamonds or lenses can be mounted to the ultra-modern turret of the Vickers / Knoop / Brinell hardness tester. The compact structure is angled at 20° to guarantee excellent test room visibility.

The newly developed hardness testing modules serve as modular indenter holders enabling plug-and-play retrofitting of Brinell and Knoop test equipment at any time after delivery.

In addition to the Vickers, Knoop and Brinell optical methods, Rockwell measurements can now also be carried out with the new micro hardness testers. A special Rockwell test module has been developed for this purpose.

The digital caliper is compatible with the Qpix Control2 system and reads the dimensions, height and diameter of components wirelessly and at the push of a button, entering them into the software. The test head height control in the A+ hardness tester enables the test height to be reached completely automatically with no need for manual input.

llproductsqness60mevofeaturesdigitalcrosshl

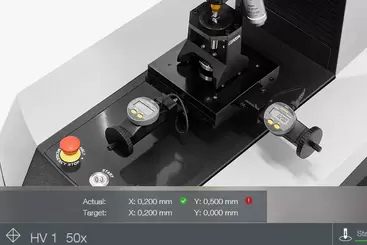

Digital cross slide with data feedback
llproductsqness60aevorevolutionarysampleholderhl

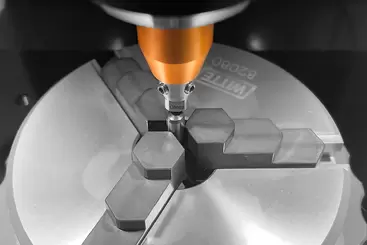

Maximum versatility
llproductsqness60aaevofeaturespioneeringoptimizedhl

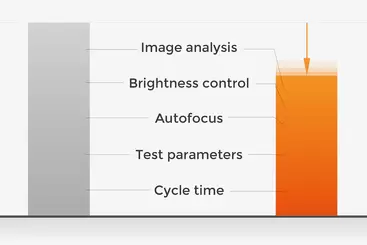

Optimized performance and silenced design
llproductsqness60mevofeaturesbasicfunctionshl
Comprehensive range of basic functions
llproductsmicrohardnesstestersa-a-plus-seriessoftware-featuressurface-recognitionheadline

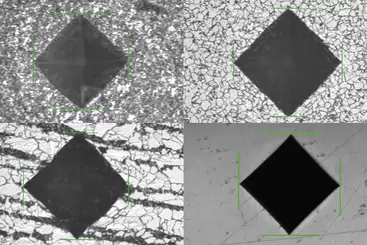

Surface Indentation Recognition

Enables serial predefinition of test programs with fixed numbers of test points. If required, also with a manual slide, digital micrometer spindle and positional return – as used for manual CHD progressions.

Unsurpassed in single-piece testing and limited series tests on items of all sizes: Simple operability and optional additions for microscopy make QATM Qness 10/60 M a unique, high-quality, all-round package.

Optimized testing parameters and shorter intervals for serial autofocus, brightness regulation and image analysis, facilitate unbeatable cycle times during everyday operation involving hardness testing devices of the new micro hardness tester product line; and it’s even faster than the previous model. A further benefit of the new machine concept is the emphasis on reduced noise emissions in operation and motion, making it particularly suitable for laboratory work.

Several labour-saving features are already included in the QATM base model:

•  Optimized autofocus system

•  Automatic brightness regulation

•  Automatic image evaluation for hardness testing with multiple evaluation modes



The Qpix Control2 M-Version of the intuitively-operated software is included with the Qness 10/60 M to provide sophisticated functionality tailored to the requirements of semi-automatic hardness testing devices. Clearly organized batch management and the effective use of templates from a broad span of testing projects, test result structuring and a complete range of background project information. The easily-generated templates include all the required information on test patterns, test methods, item names and user field details.

llproductsmicrohardnesstestersa-a-plus-seriestechnical-dataheadline
  • Brand QATM
  • Test force range Qness 10 M: 20 gf - 10 kgf (0.196 - 98.07 N) Qness 60 M: 0.25 gf - 62.5 kgf (0.00245 - 612.92 N)
  • Test method Vickers, Knoop, Brinell, Rockwell (option)
  • Test sequence Fully automated / electronic force application
  • Z-axis Dynamic, automated (CAS-Technic)
  • Z-axis travelling distance 150 mm (5.91“); Option: 260 mm (10,2“)
  • Throat depth 170 mm (6.69“)
  • Tool positions 8-fold motorized tool changer max. 3 hardness testing modules, max. 7 lenses
  • Camera system 5 Mpixel - CMOS color, USB3.0
  • Optical system Upright microscope with Koehler lighting
  • Aperture diaphragm motorized
  • Lenses XLED 2x, 2.5x, 5x, 10x, 20x, 50x, 100x
  • Lens types Standard (Achromat) and High Quality (Semi-apochromat) for hardness testing and microscopy XLED for optimised Brinell hardness testing
  • Field of view (acc. to equipment) 0.074x0.055 mm (100x) to 2.80x2.10 mm (XLED 2)
  • Test anvil / XY cross slide Option: manual cross slide; Reduces test height by 26 mm
  • Table size Ø 100 mm (3.94“) (cross slide: 135 x 135 mm)
  • Traverse path at cross slide X 25, Y 25 mm (0.98 x 0.98“); Option X 50 x Y 50 mm (1.97 x 1.97“)
  • Control elements Emergency stop, Start button, Joystick Z-axis
  • Software Qpix Control2 "M"
  • Max. workpiece weight 50 kg (110 lbs)
  • Weight of basic device 55 kg (121.3 lbs)
  • Included basic equipment Indenter Vickers ASTM + DAkkS; Lens 5x, 50x
  • Interfaces 1 x USB 3.0
  • Power supply 100 – 240 V ~1/N/PE, 45-65 Hz
