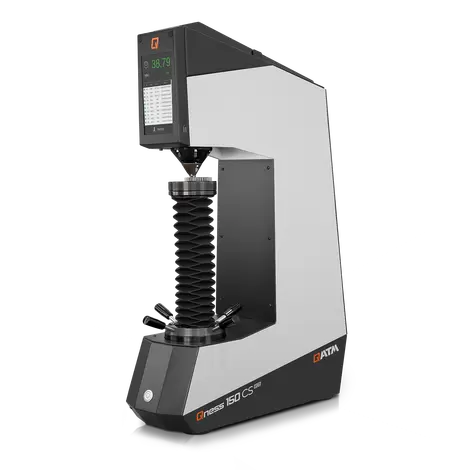

QNESS 150 CS

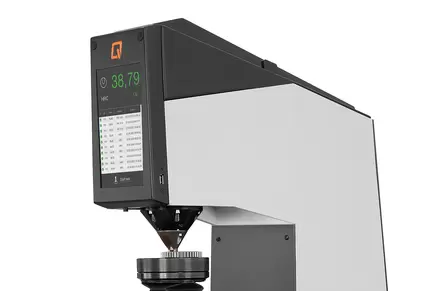

Qness 150 CS combines high-quality workmanship with maximum operation simplicity

Categories:
Hardness Testers, Rockwell Hardness Testers

Description
Details
Materials
Documents
Videos
Review

Description

PRODUCT ADVANTAGES

• Large test force range (1 kg – 250 kg)
• Direct depth gauging system
• Robust, welded steel frame
• High-quality steel sheet covers
• Integrated LED workspace lighting
• Capacitive 7” touch screen display

FEATURES

• Controlled force application (1kg to 250kg)
• Machine versions to serve all applications and test piece size
• Direct depth-gauge-system (0.05μm resolution)
• Robust welded steel frame and sheet steel covers

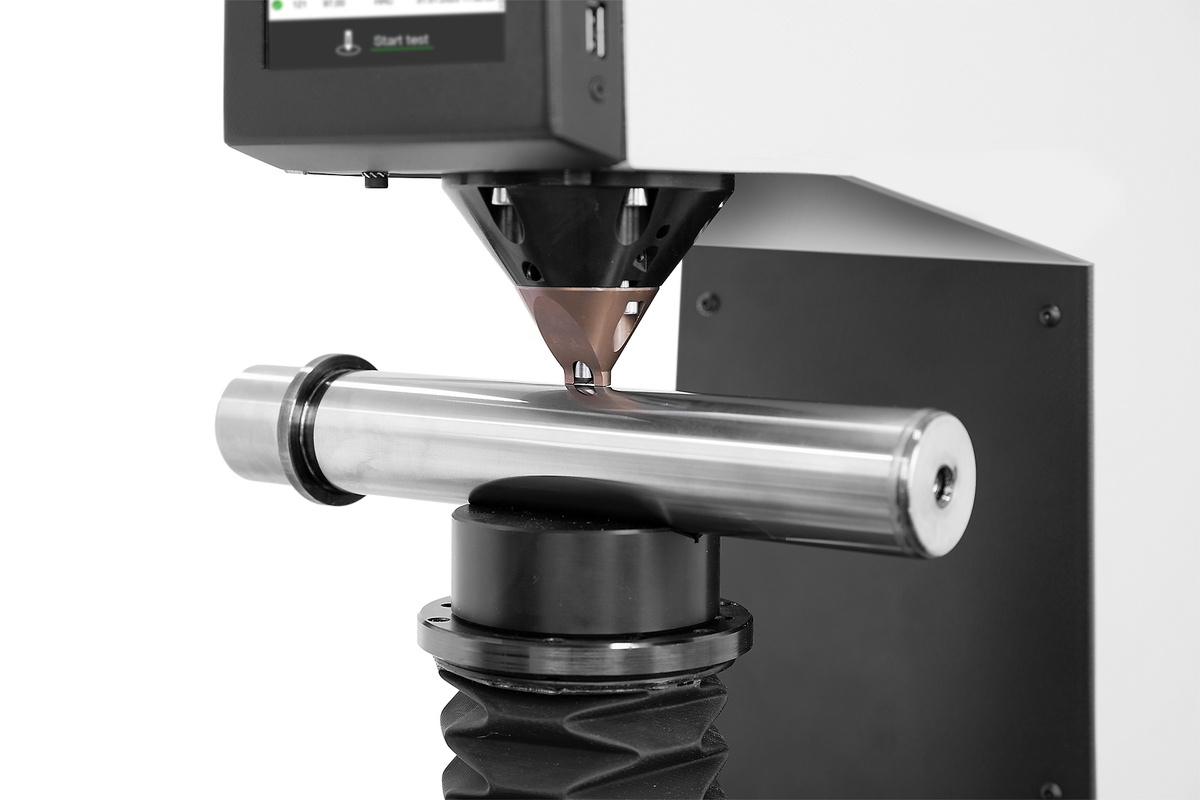

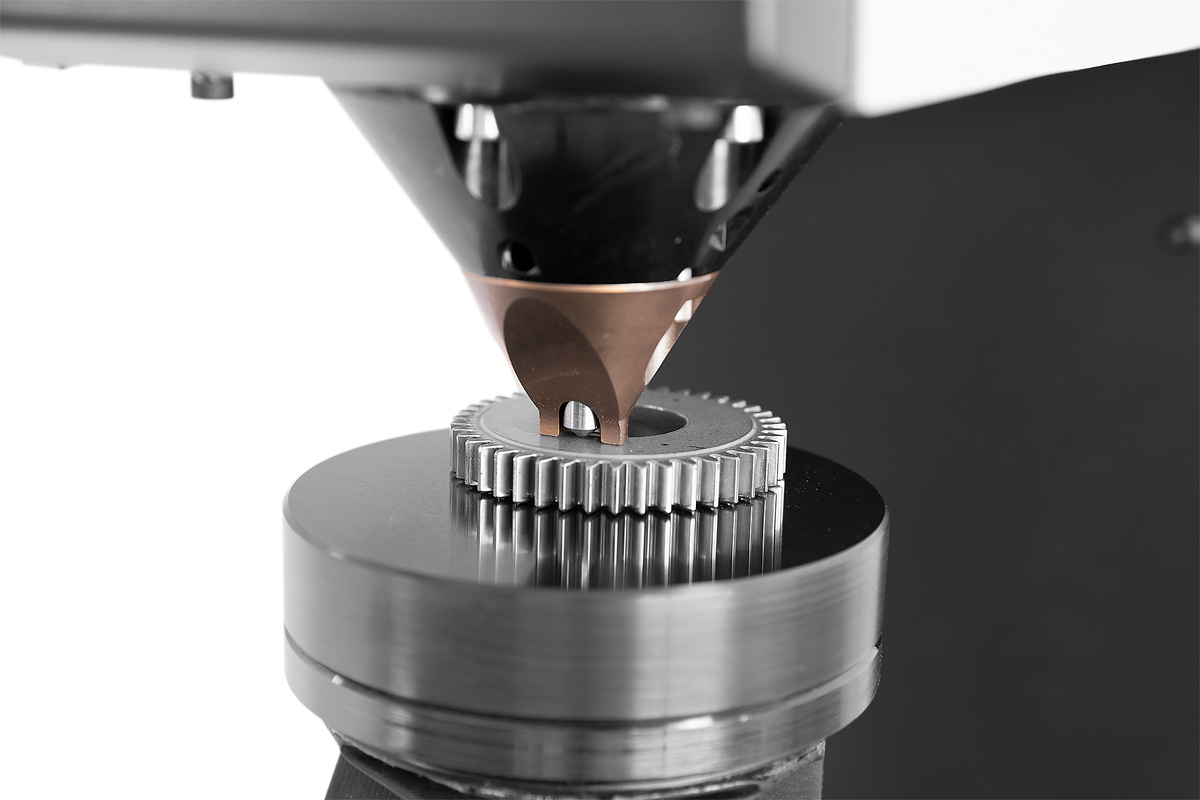

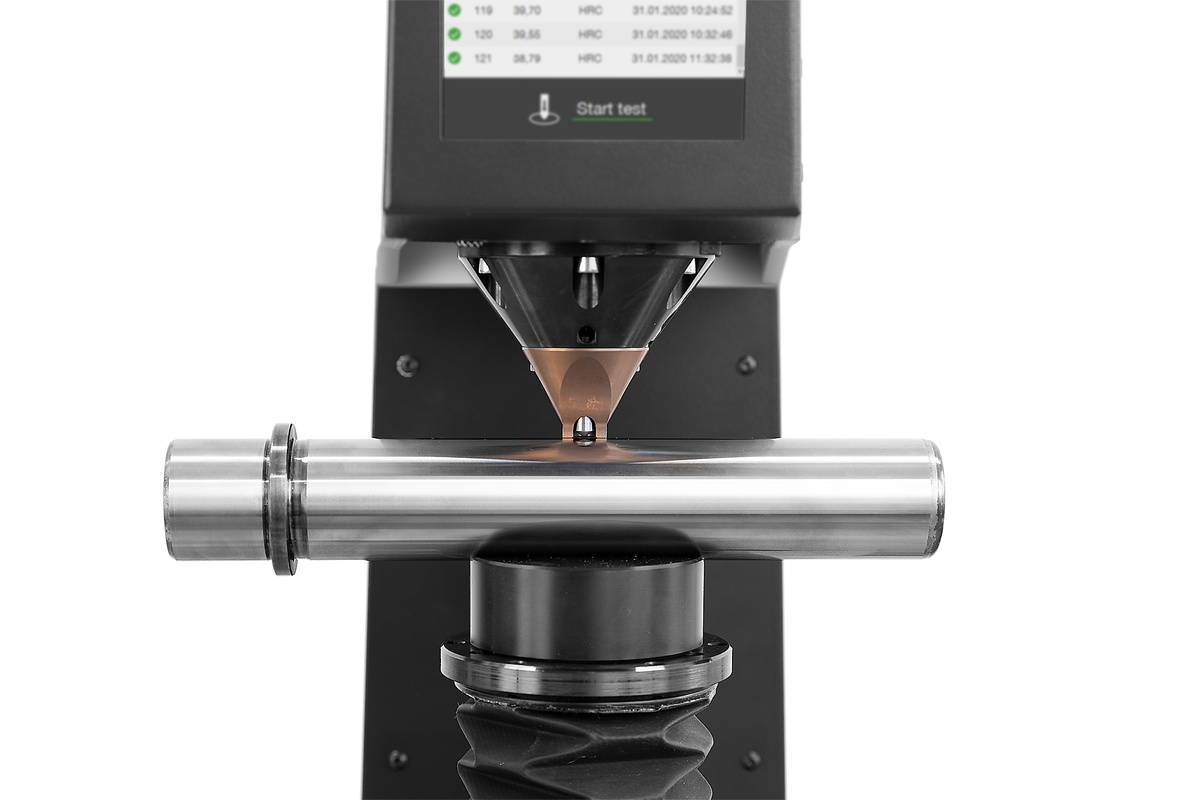

No need for long retooling breaks due to inaccessible test points. The clamping head can be removed via 2 screws. Now, even test points in hard-to-reach contours can be accessed with ease.

Unmatched in its class! We know how important a long-serving superior-quality device can be and guarantee excellent quality from our new Rockwell hardness tester series. Developed and manufactured in Austria!

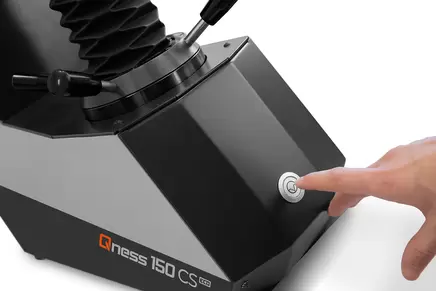

Simple and rapid start via the start button at the front of the Rockwell hardness tester (particularly when wearing gloves) or via touchscreen control.

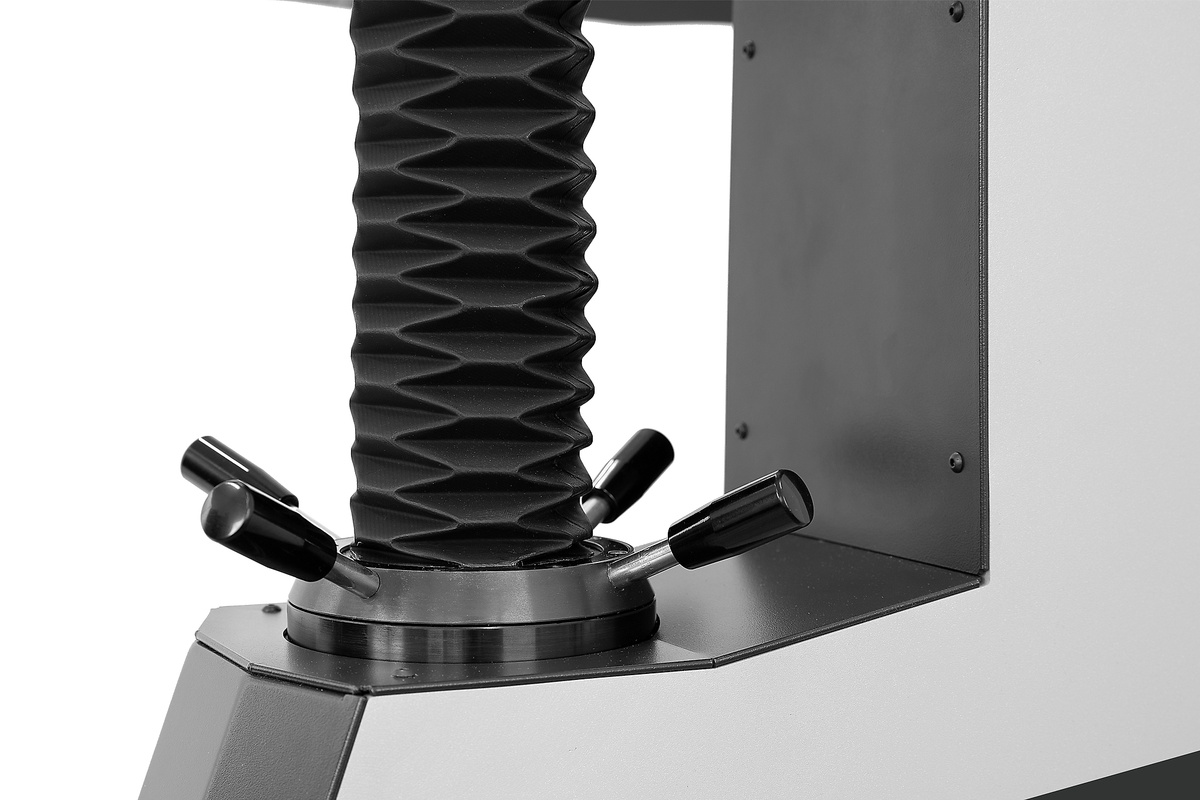

Via stable, ultra-precise roller-bearing spindle guide. Solid, nomaintenance structure. Each Rockwell hardness tester is available with a Ø25 mm table mount (optional ¾” adapter available) facilitating the use of a wide range of test tables and devices.

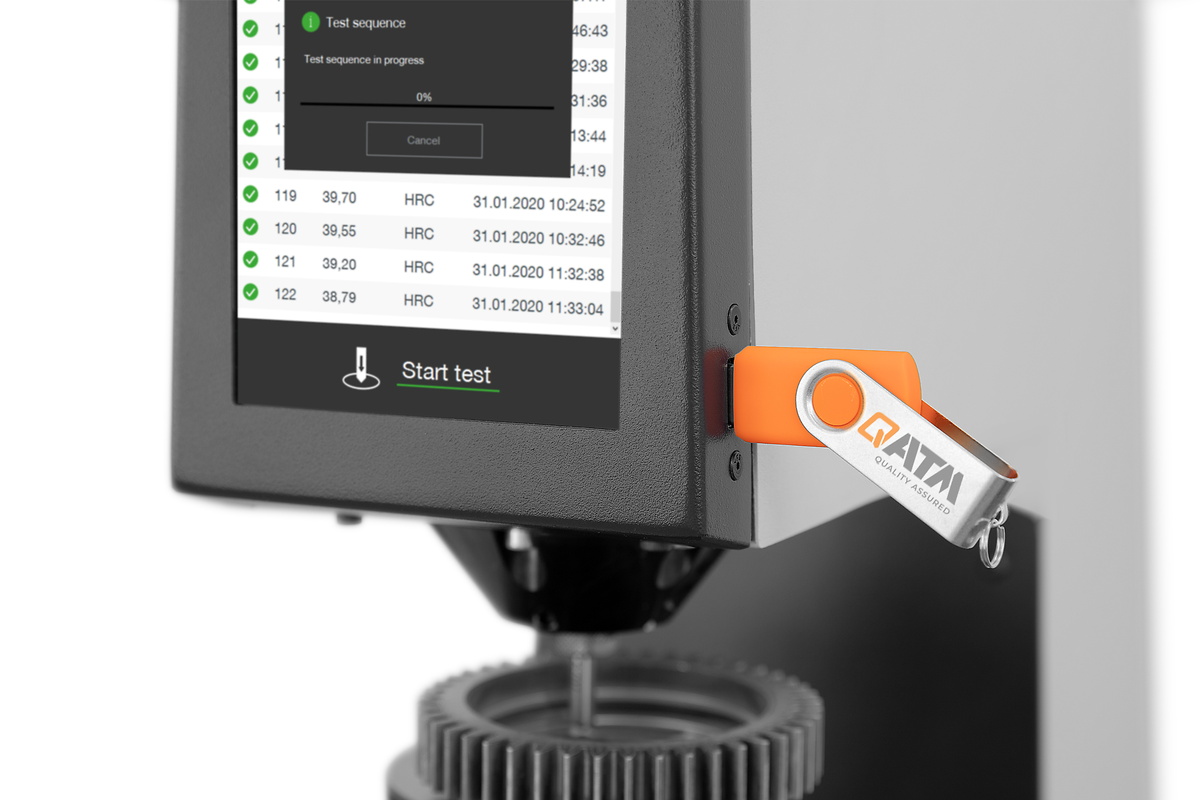

Test results and all related information can be transferred to other data storage mediums via the USB port at the side.

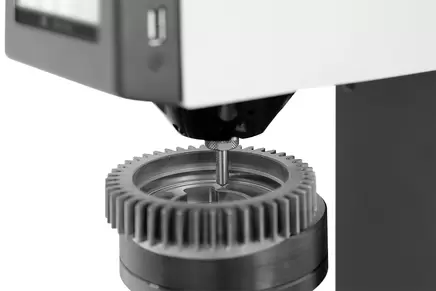

Built-in LED workspace lighting simplifies the precise positioning of the test piece, thus enhancing operating convenience.

QATM configures the Rockwell hardness tester Qness 150 CS and CSA+ with a direct, ultra-precise HEIDENHAIN depth-gauging system, positioned exactly on the axis of the indenter. This omits measurement inaccuracies caused by deformation in the system. Another unbeatable benefit: Indenting depth can be gauged directly – and can be easily calibrated in accordance with the latest Rockwell norms.

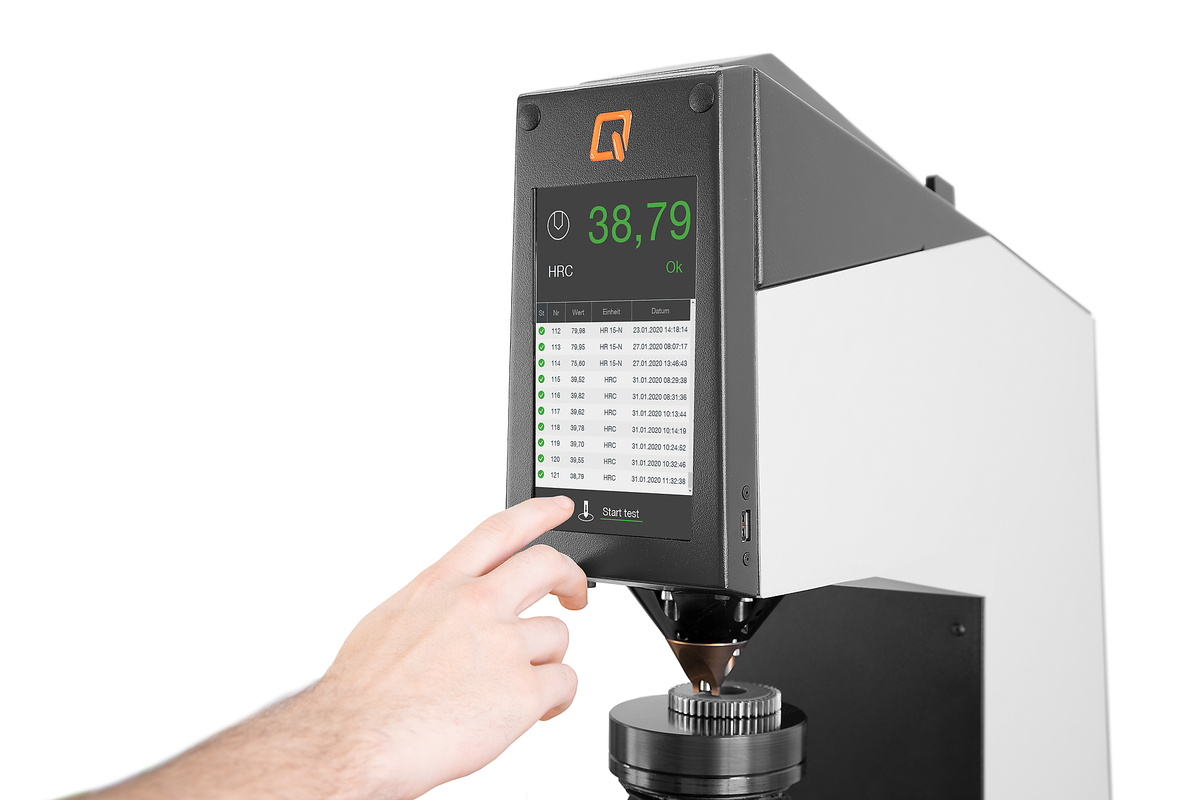

We have developed a 7” color display with a robust sheet steel frame for the new Rockwell hardness tester series. The display uses capacitivetouch technology and has been optimized to guarantee operational precision and rapid reaction times. The new Qpix TE software guarantees simple operation with larger buttons and a more modern and intuitive software interface.

Features:

• Extra-large, clearly-visible presentation of test results
• High-/low-quality evaluation of results featured in green and red according to the tolerance levels set
• Test results list for 999 values
Statistics overview (min/max/range/cp/cpk/average)
• Conversion
Surface corrections
• Simple test method changeover
• Wide range of operating languages
• Password protected area for expanded range of settings

Brand QATM

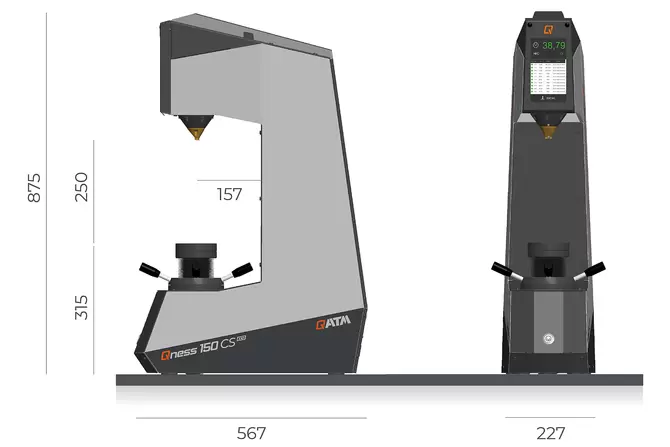

Test force range 1 - 250 kg (9.81 - 2452 N)
Height adjustment manual / spindle
Test height 250 mm
Throat depth 157 mm
Test table ø 100 mm
Max. workpiece weight 100 kg
Weight of basic device 77 kg
Test sequence fully automated / electronic force application
Software Qpix TE
Display 7" capacitive touch (color)
Interfaces 1x USB
Power supply 100 - 240 V, ~1/N/PE, 45 - 65 Hz
Max. power consumption ~60 W
Accessories Additional indenters, hardness test bocks, machine pedestal, prisms

Documents

Download Brochure
