OPAL 410

The OPAL 410 is a fully hydraulic, water cooled hot mounting press for mounting sample

Request a quote
  • Description
  • Details
  • Materials
  • Documents
  • Videos
  • Review

Description

PRODUCT ADVANTAGES

• Automatic hot mounting press
• Fully hydraulic, water cooled
• Bayonet closure
• Automatic program cycle
• Mould assembly easy to change
• Solid aluminium case construction, powder coated

llproductnamea01b01a

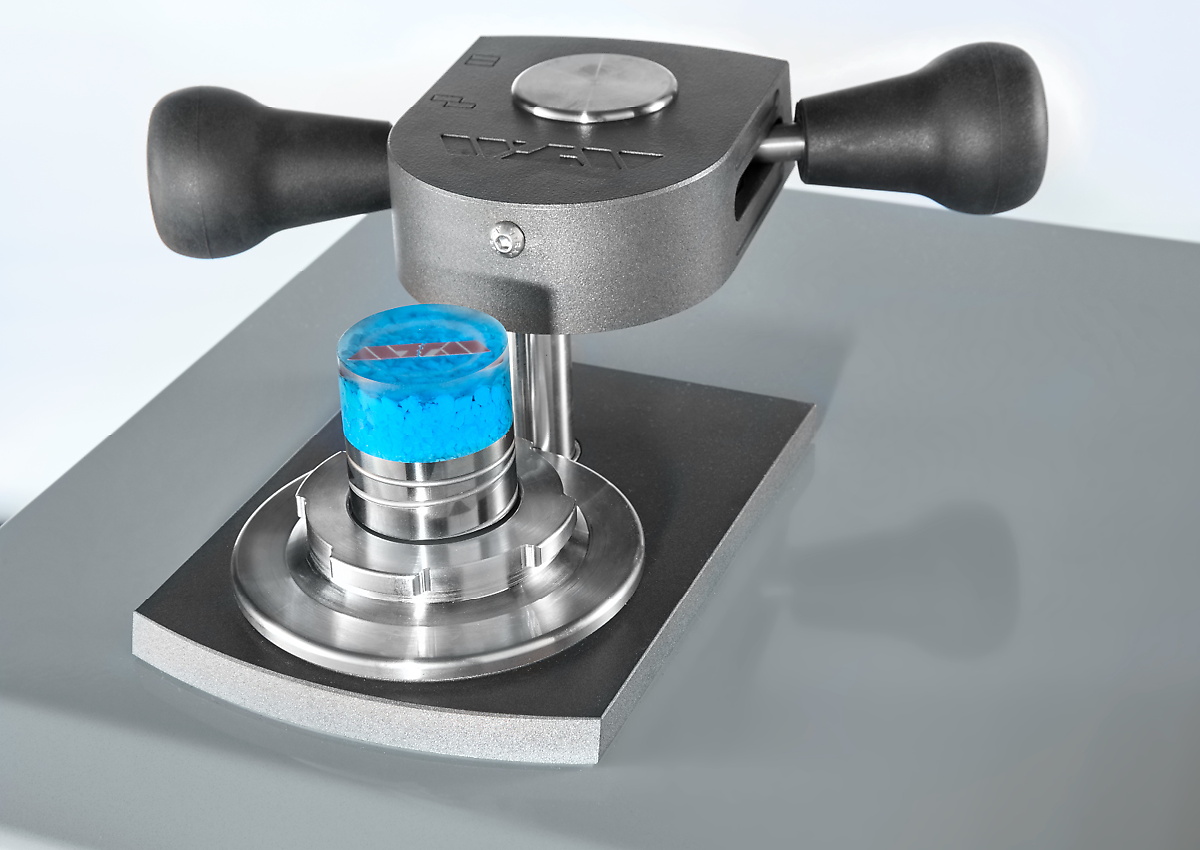

SIMPLE OPERATION
The bayonet connection enables
easy loosening and swinging to
the side. Externally accessible
closure components are PTFEcoated. After pressing the start key, the fully automatic program is executed with the preselected parameters. The parameters can be changed and adjusted during the mounting process.

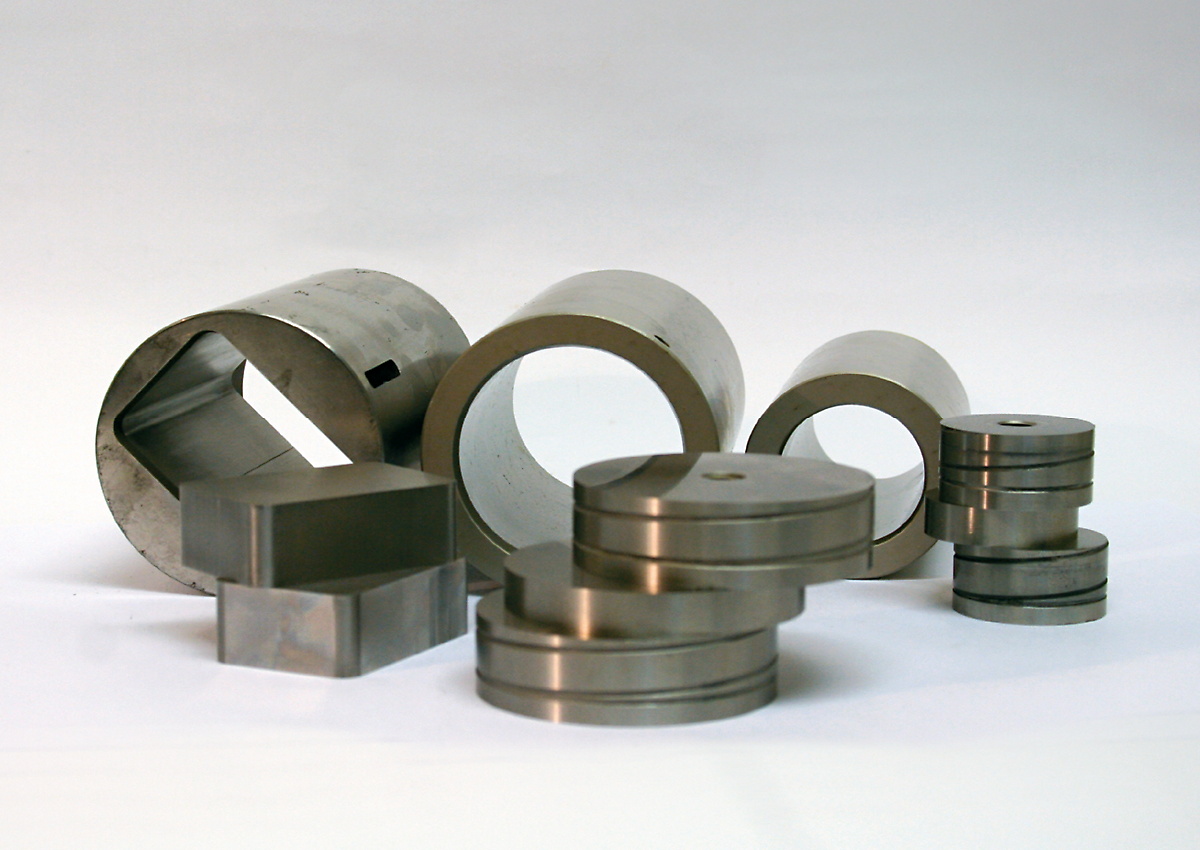

MOULD ASSEMBLIES
Our comprehensive selection of mould assemblies from Ø 25.2 – 40 mm enables optimum mounting of your sample. Two mounts can be produced simultaneously with the use of a
spacer.

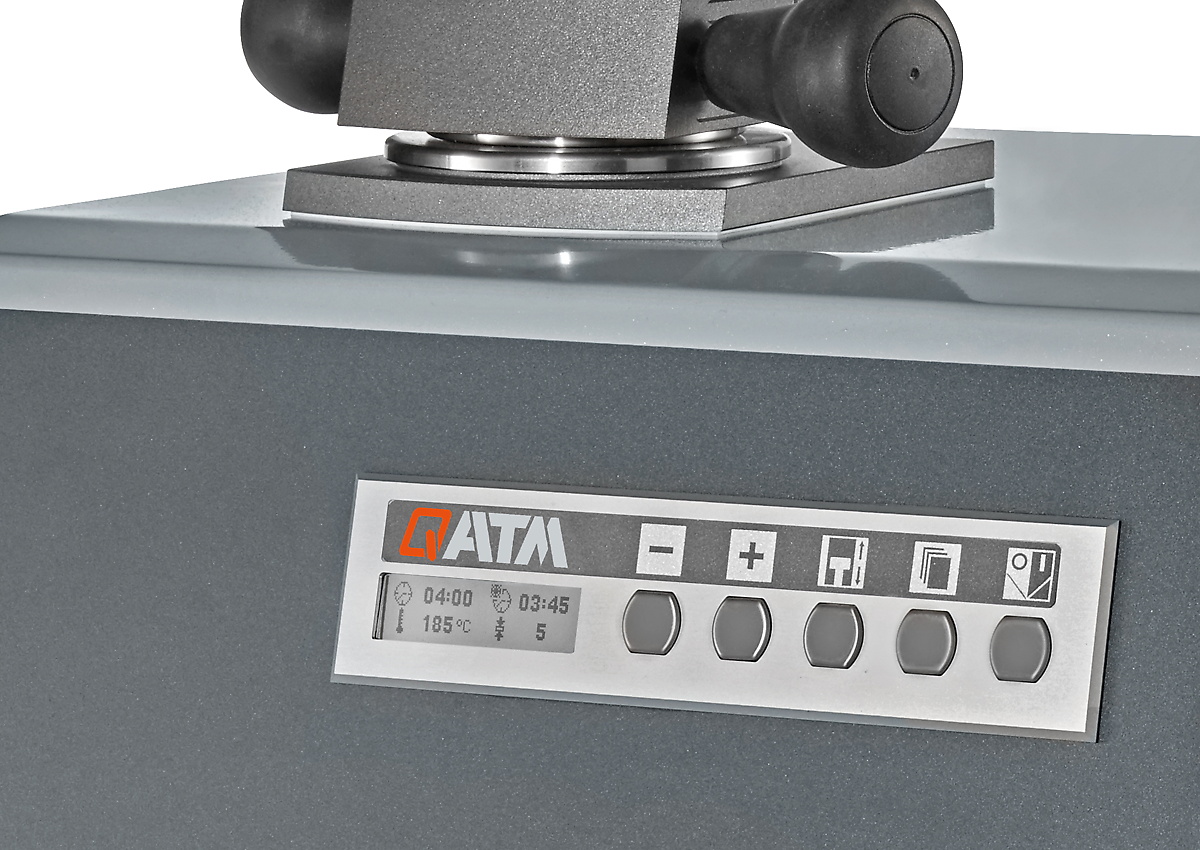

ELECTRONIC CONTROL
With its clear LCD operation panel you can easily control the hot mounting press.

HEATING
Our high-power heating system gives a very short warm-up time.

COOLING WITH WATERSAVING FUNCTION
The mounting process is either cooled with continuous or pulsed water flow. Thereby, a considerably lower water consumption can be achieved by pulsed cooling.

PRESSURE CONTROL
Besides the standard operation, you can choose between six pressures depending on sample diameter.

1200x850px-vorlage-opal-410-dimensions-1
  • Brand QATM
  • Mold assembly ø 25.2 - 40 mm (6 different sizes)
  • Closure system bayonet
  • Thermostate range 20-200°C
  • Heating time variable 0-30 min
  • Cooling time variable 0-30 min
  • Max. pressure in mold assembly depending on mold assembly's size 450 bar
  • Connection power 3.1 kVA
  • Heating power 4x 500 W

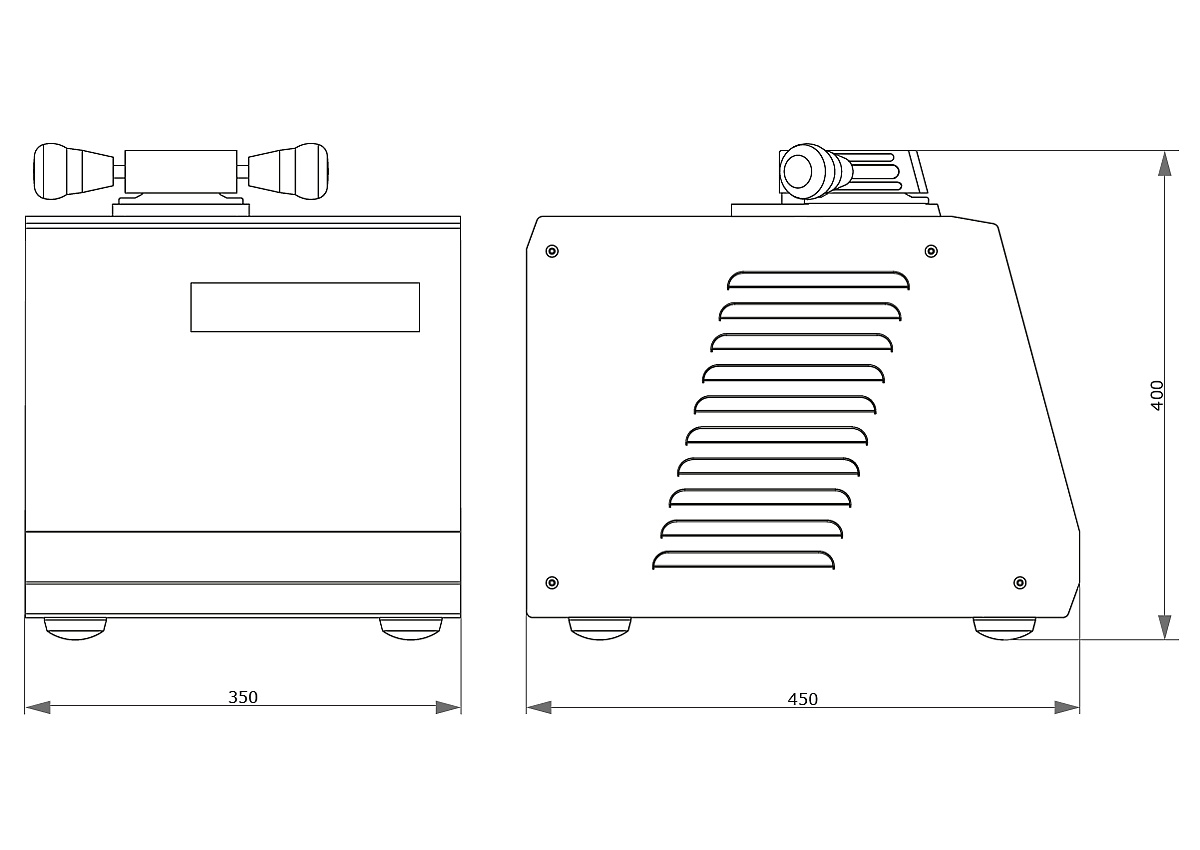

  • W x H x D 350 x 400 x 450 mm / 13.78 x 15.75 x 17.72 in
  • Weight ~ 40 kg
