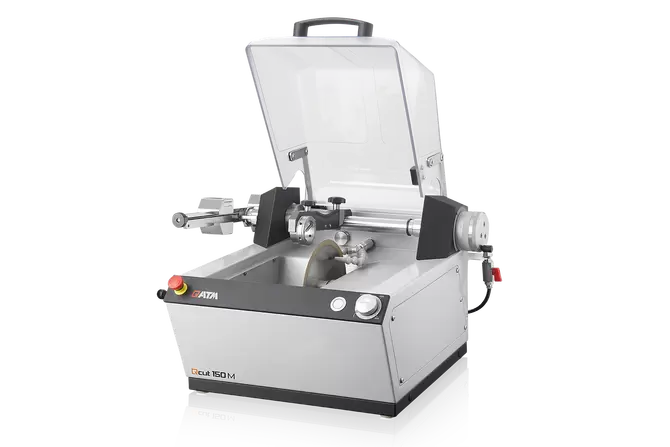

QCUT 150 M

The Qcut 150 M is a manual precision cut-off machine with manual cross feed and cutting discs

Categories:
Benchtop Cut-off Machines, Cut-off Machines

Description
Details
Materials
Documents
Videos
Review

Description

PRODUCT ADVANTAGES

• Precision cut-off machine
• Solid stainless steel housing, powder coated
• Manual Y-axis (vertical movement)

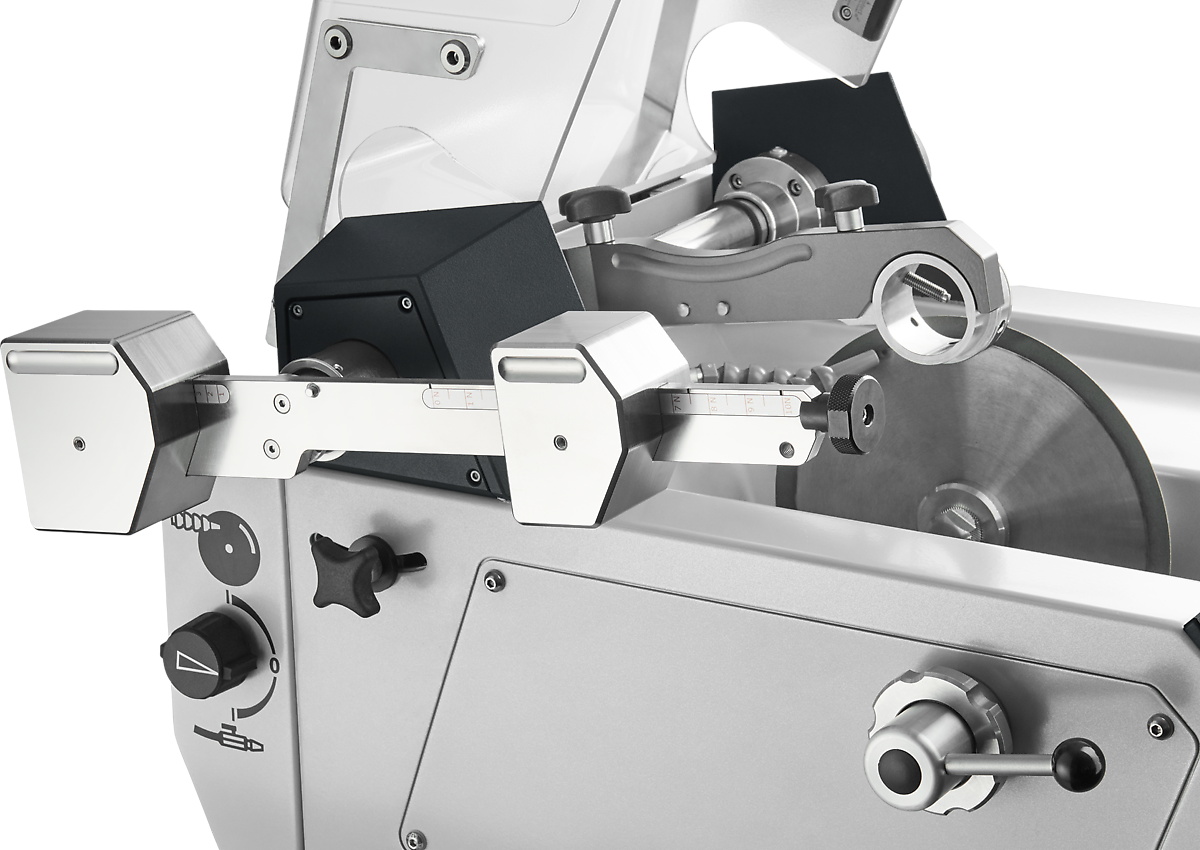

• Swivel arm with variable load
• Manual Z-axis with scale
• Variable speed
• Table attachment (accessory)
• 4 different cooling systems availabe
• LED illumination of cutting chamber
• Soft-closing hood

FEATURES

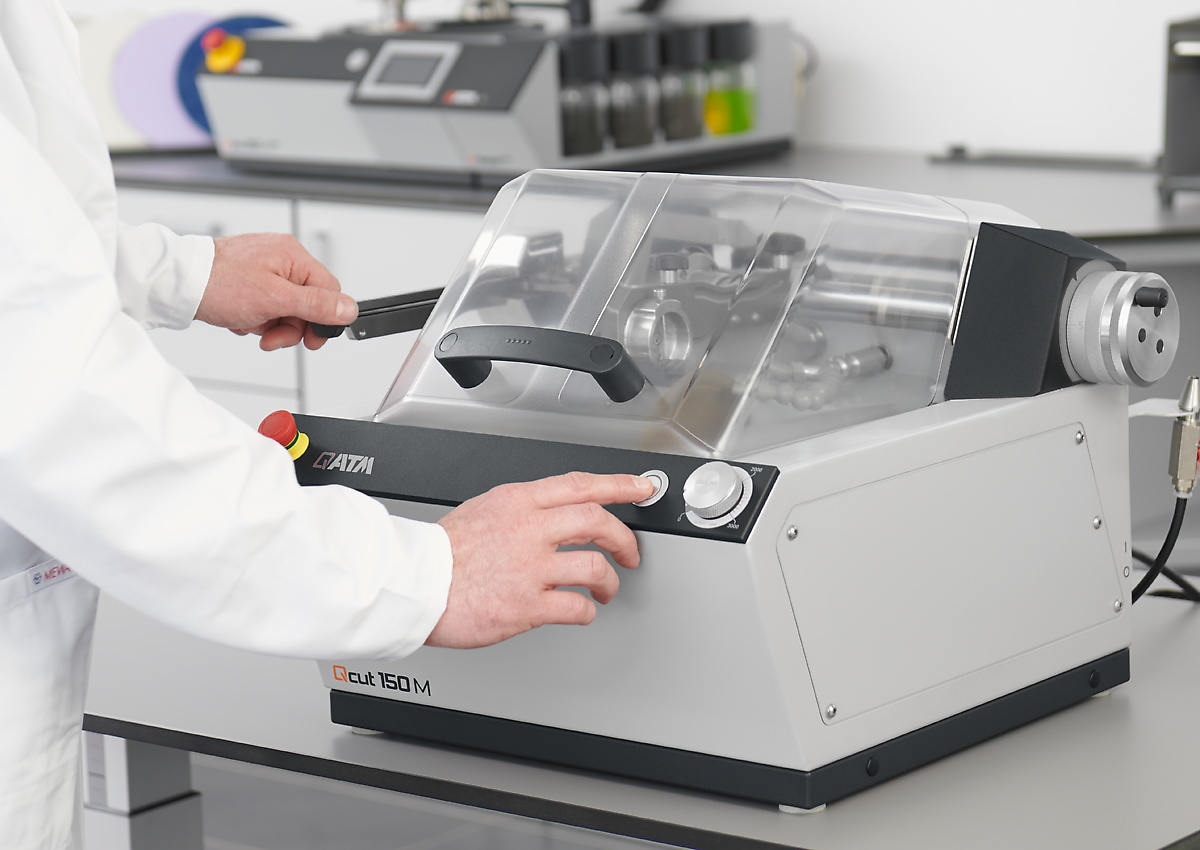

The powder-coated stainless steel housing is the stable basis of the compact precision cut-off machine. The robust machine design integrates many clearly and ergonomically positioned functions. The cutting chamber, which is equipped with LED lighting, is covered with a transparent protective hood with a soft-close function.

The cutting force can be set manually depending on the sample geometry and sample material, which ensures precise and deformation-free cutting of particularly sensitive materials and samples.

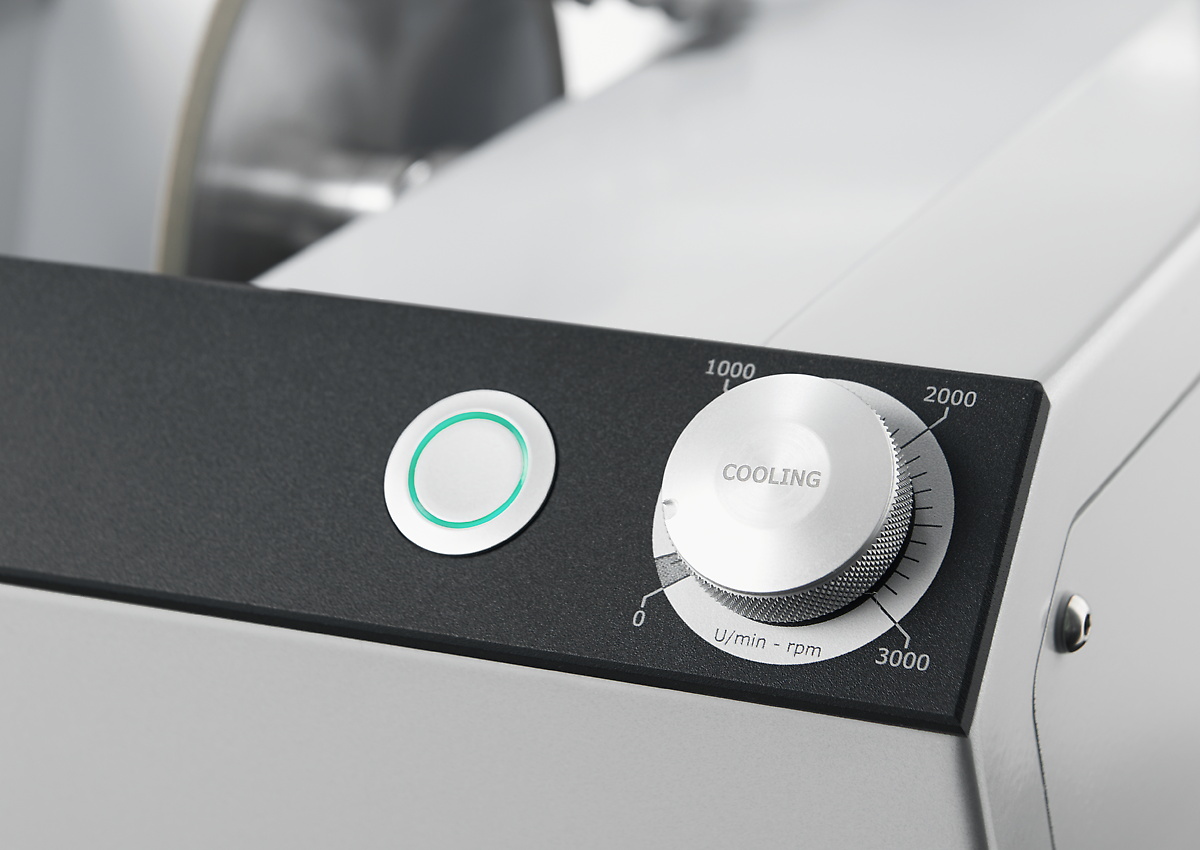

The rotations speed of the precision cutting wheel is infinitely variable adjustable in the range of 150 – 3000 rpm using the rotary knob. Therefore, diamond cutting wheels, diamond cup wheels and corundum cutting wheels can be used for a wide variety of applications. The cutting process is started and ended with the QATM start-stop button.

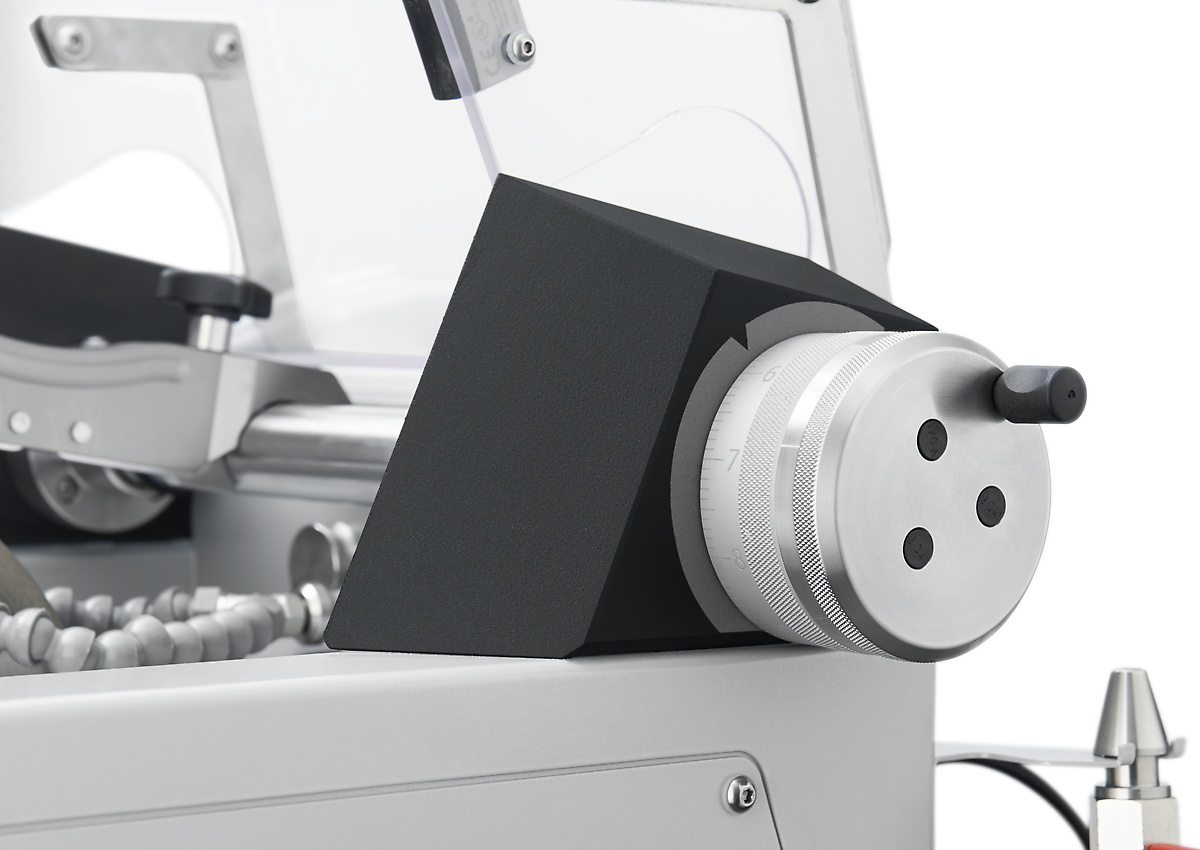

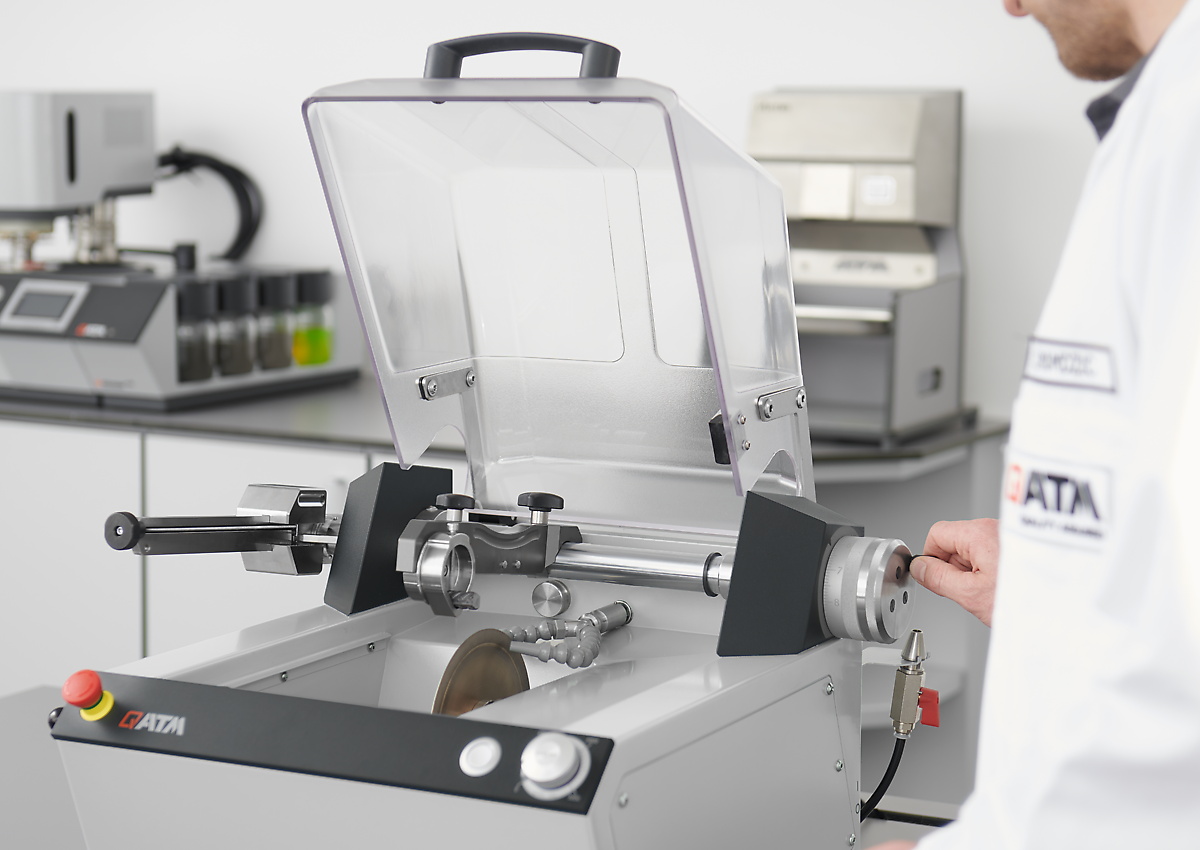

The Qcut 150 M is equipped with a manual Z-axis. For parallel cuts or defined grinding with a diamond cup wheel, the specimen can be fed up to 25 mm across.

The use of the adaptive rotation axis leads to an even more uniform cutting pattern and reduces the risk of the cut-off wheel running. This reduces the effort required for later plane-parallel grinding of the sample.

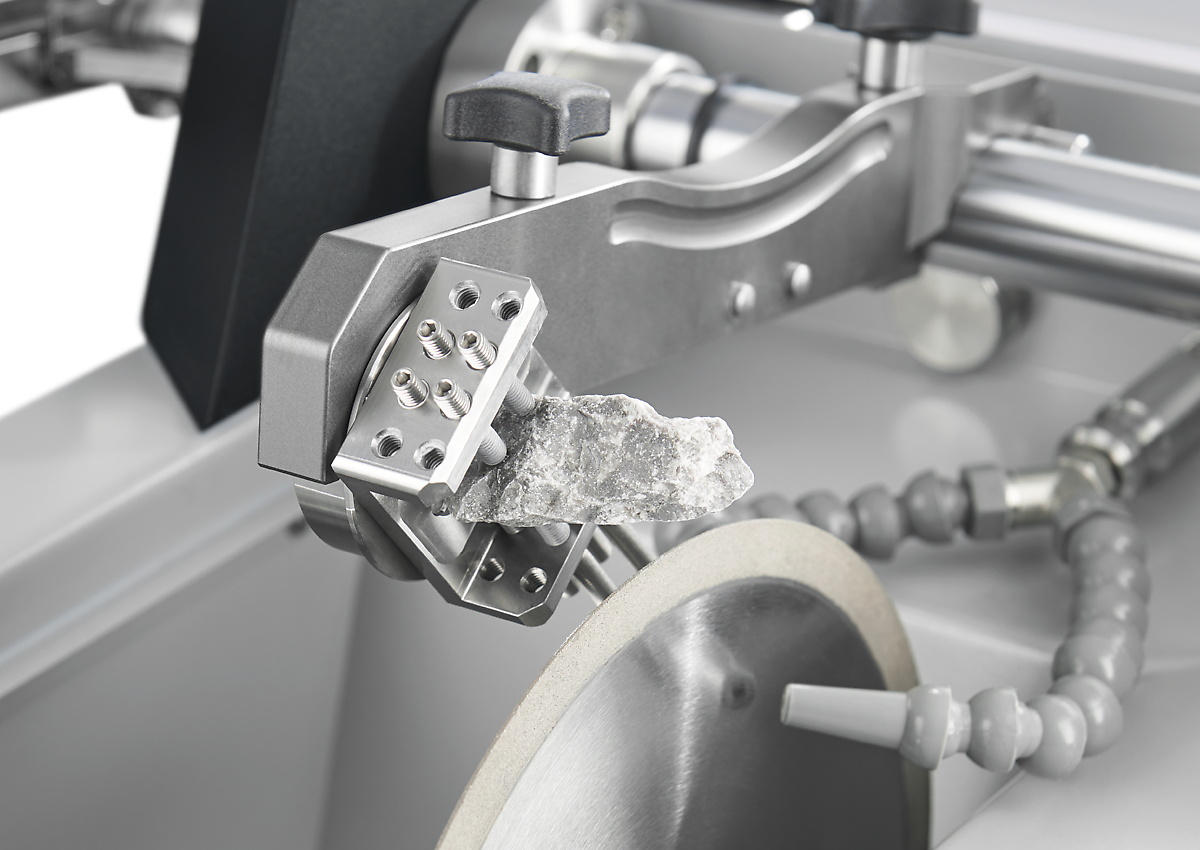

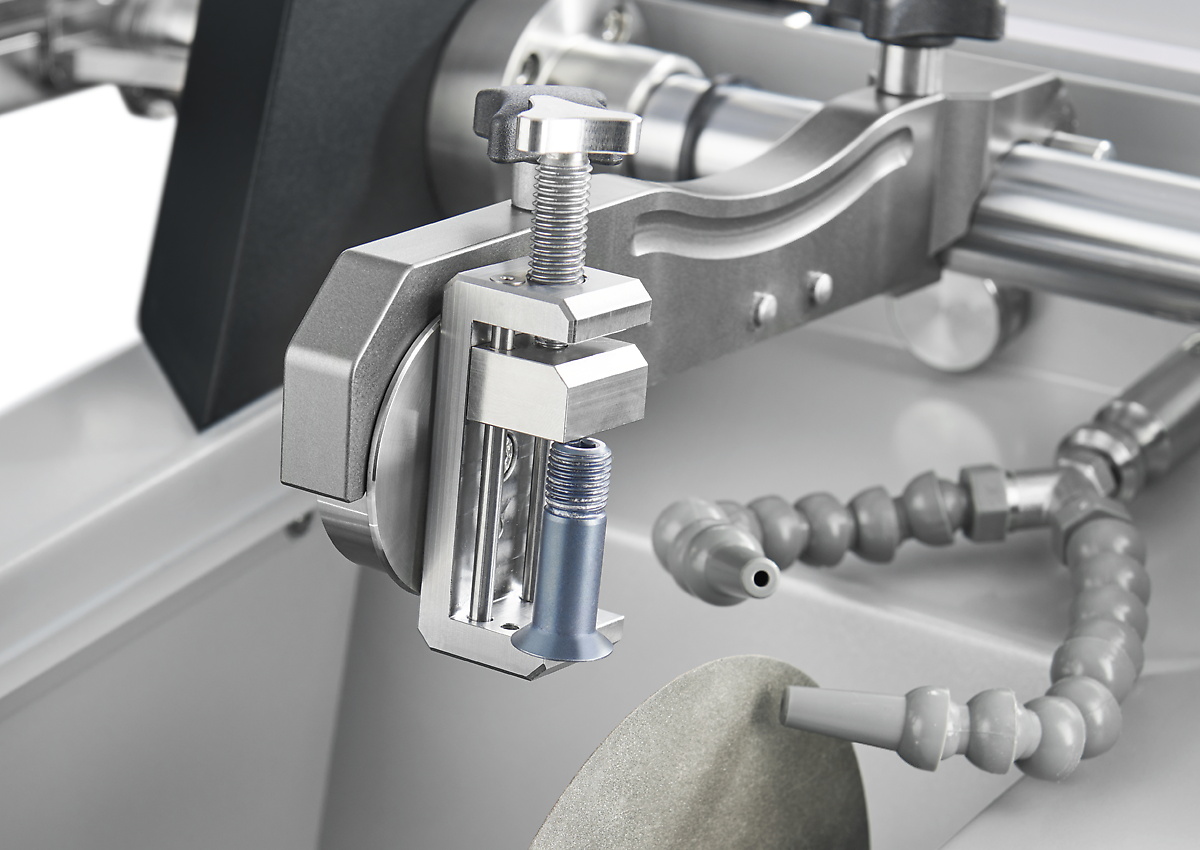

EXTENSIVE RANGE OF CLAMPING TOOLS

With the help of a suitable clamping tool from the extensive range of accessories, mounted or non-mounted samples up to a size of Ø 40 mm can be clamped in the cutting machine comfortably.

Larger samples such as PCBs and plate material can be quickly and manually cut with the table top that can be mounted without additional tools.

Brand QATM
Cut-off wheel ø 75 - 203 mm/8"
Variable speed 150 - 3000 rpm
Max. cutting capacity ø 40 mm
Arbour size ø 12.7 mm
Variable adjustable cutting force 0 - 10 N
Feed manual
Y-axis (vertical movement) 120 mm (manual)
Z-axis manual (parallel cut) 25 mm (manual)
Motor power 0.37 kW (S1)
Connection power 0.75 kVA
W x H x D 591 x 391 x 590 mm / 23.27 x 15.39 x 23.23 in
Weight ~ 45 kg (depends on equipment)

Documents

Download Brochure QCUT 150M
