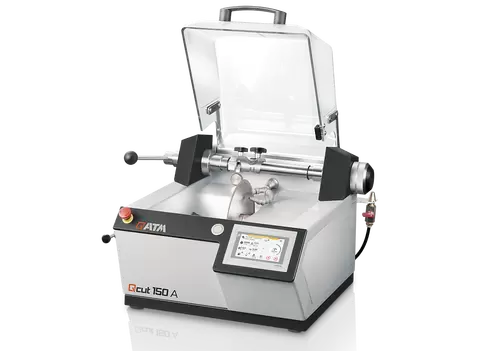

QCUT 150 A

The Qcut 150 A is a flexible precision cut-off machine which is used with cut-off wheels up

Categories:
Benchtop Cut-off Machines, Cut-off Machines

Description
Details
Materials
Documents
Videos
Review

Description

PRODUCT ADVANTAGES

• Up to 5 different modes: manual, automatic feed, force-controlled feed, grinding mode, cutting with table attachment (depending on machine configuration)
• Manual cross feed
• Zone cutting function

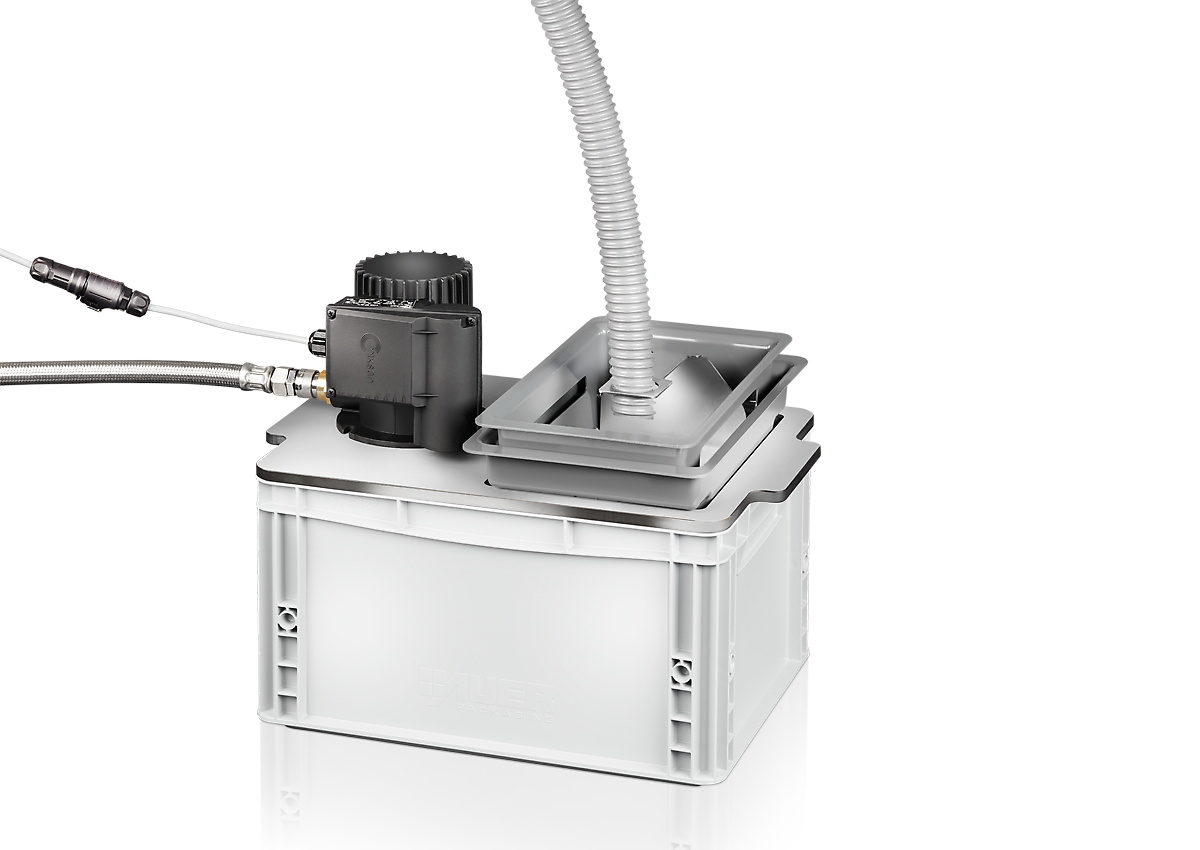

• 4 different cooling systems availabe
• Dressing device
• Intuitive QATM software with integrated database

FEATURES

The cutting force gets precisely controlled by an integrated force-sensor. It keeps the cutting force constant by adjusting the feed rate automatically throughout the cutting process.

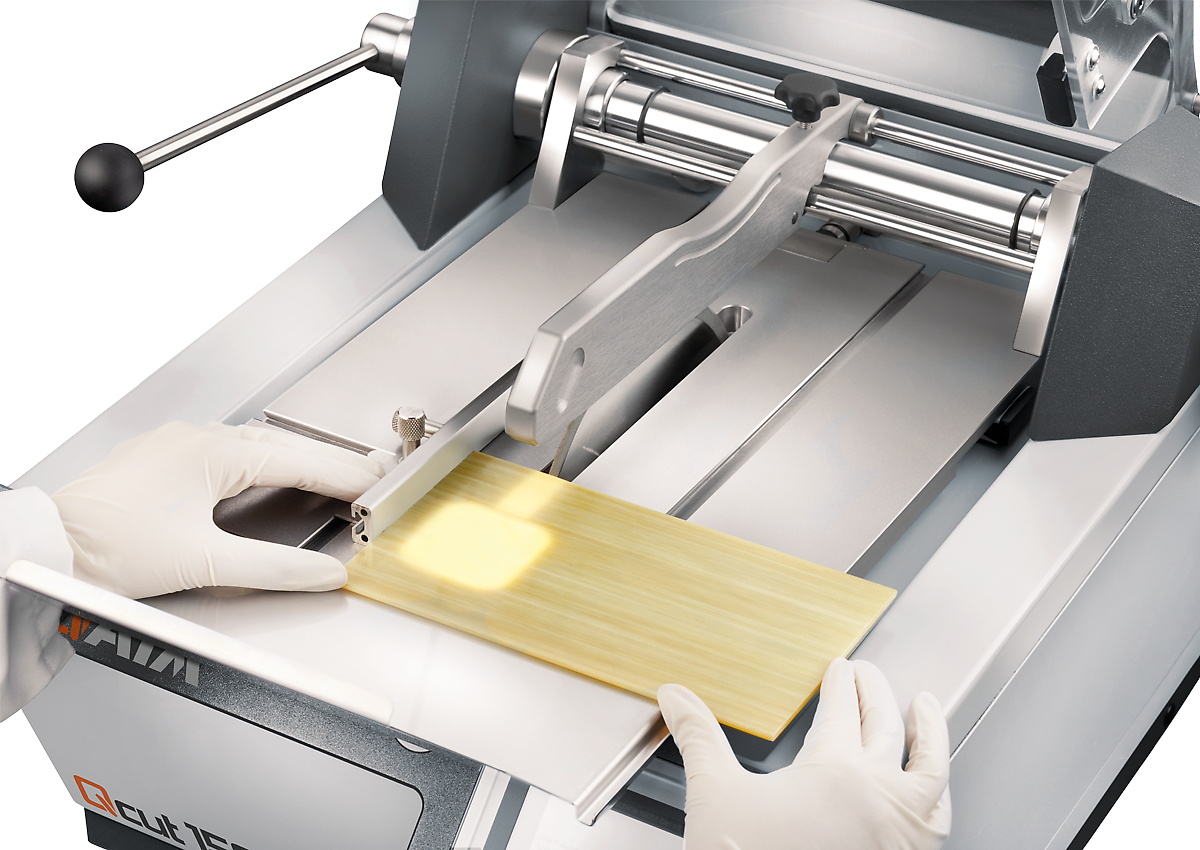

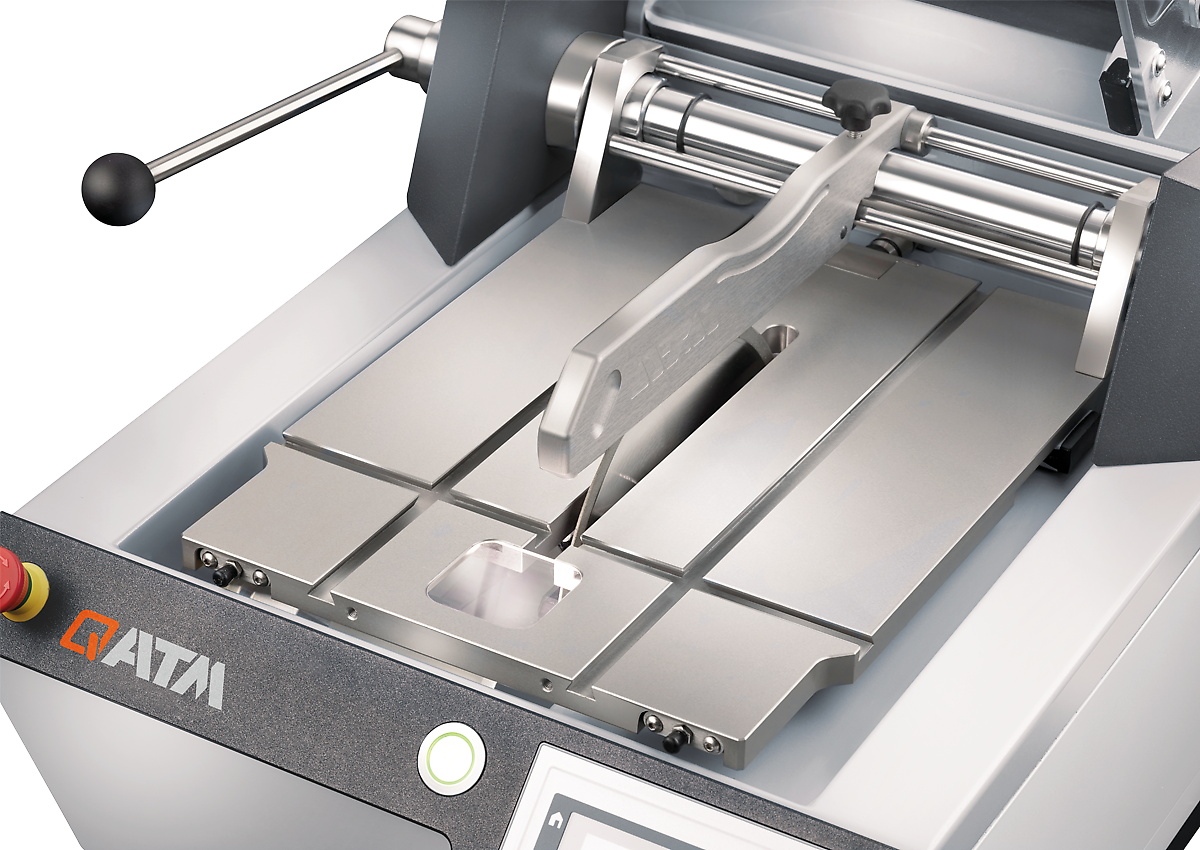

With the tool-free mountable table attachment PCBs, plate material or large samples can be quickly sectioned manually.

The new functionality “zone cutting” allows for setting feed rate or cutting force individually for single sections of the specimen for one cutting operation. Material deformation and warming are thus reduced, making the cutting process more effective.

The Qcut 150 M is equipped with a manual Z-axis. For parallel cuts or defined grinding with a diamond cup wheel, the specimen can be fed up to 25 mm across.

In grinding mode, samples can be grinded down with a cup wheel manually or semi-automatically (Target preparation).

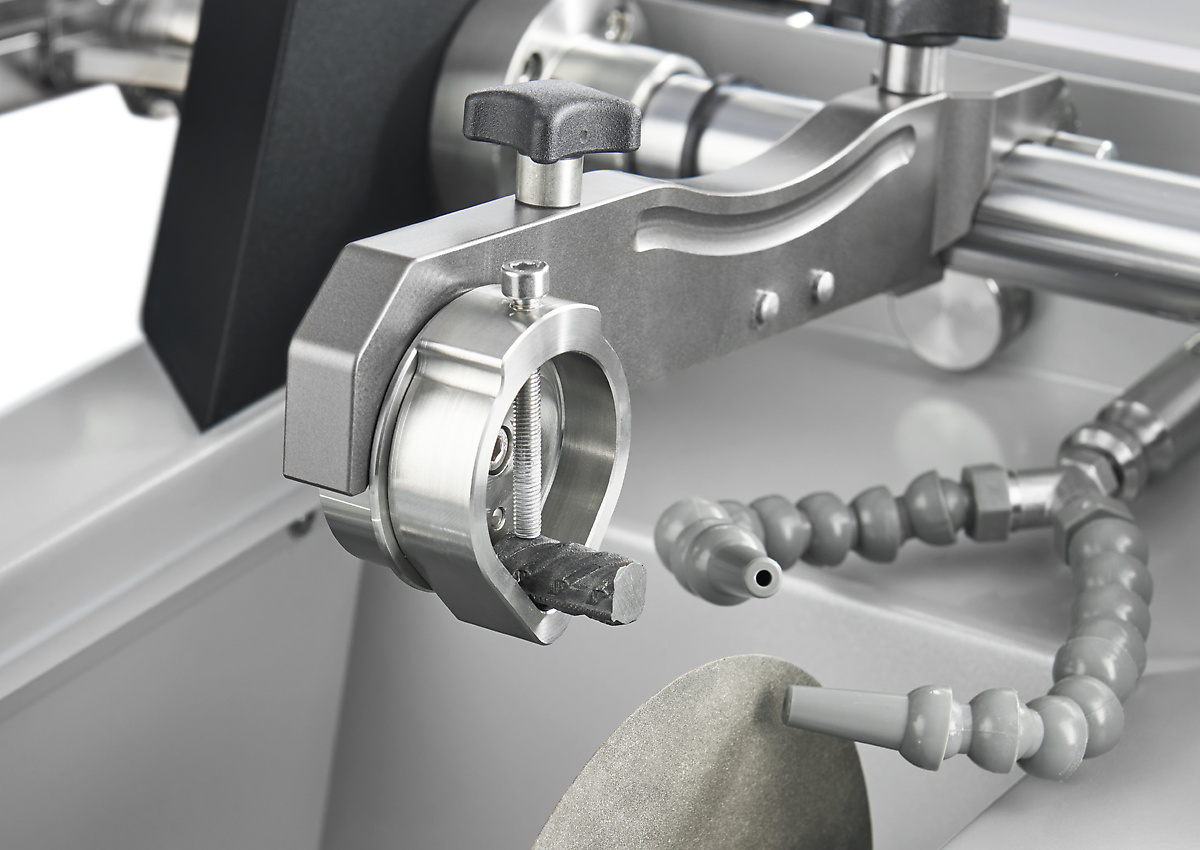

EXTENSIVE RANGE OF CLAMPING TOOLS

With the help of a suitable clamping tool from the extensive range of accessories, mounted or non-mounted samples up to a size of Ø 40 mm can be clamped in the cutting machine comfortably.

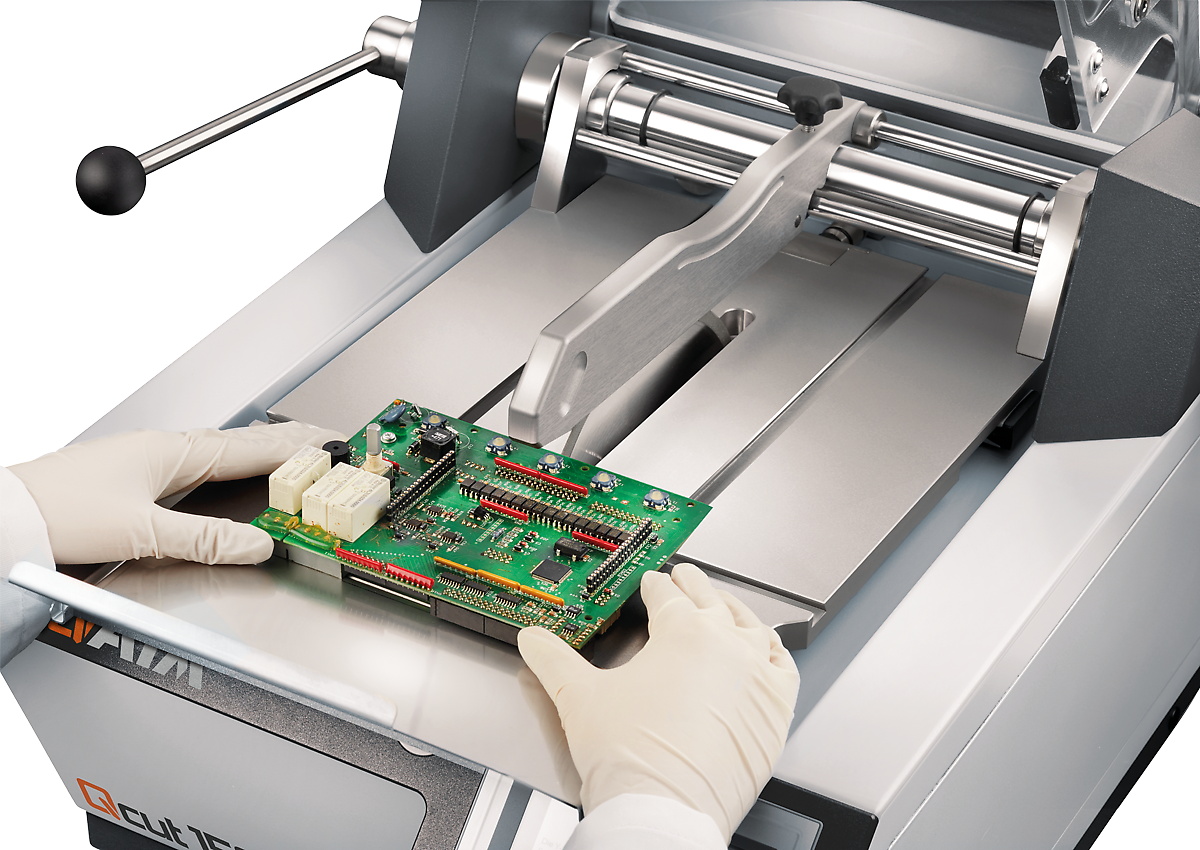

Larger samples such as PCBs and plate material can be quickly and manually cut with the table top that can be mounted without additional tools.

Brand QATM
Cut-off wheel ø 75 - 203 mm/8"
Variable speed 150 - 3000 rpm
Max. cutting capacity ø 40 mm
Arbour size ø 12.7 mm
Variable adjustable cutting force 0 - 10 N
Feed 0,01 - 20 mm/s (automatic)
Y-axis (vertical movement) 120 mm (manual)
Z-axis manual (parallel cut) 25 mm (manual)
Motor power 0.37 kW (S1)
Connection power 0.75 kVA
W x H x D 545 x 391 x 566 mm / 21.46 x 15.39 x 22.28 in
Weight ~ 45 kg (depends on equipment)

Documents

Download Brochure QCUT 150 A
