QMOUNT

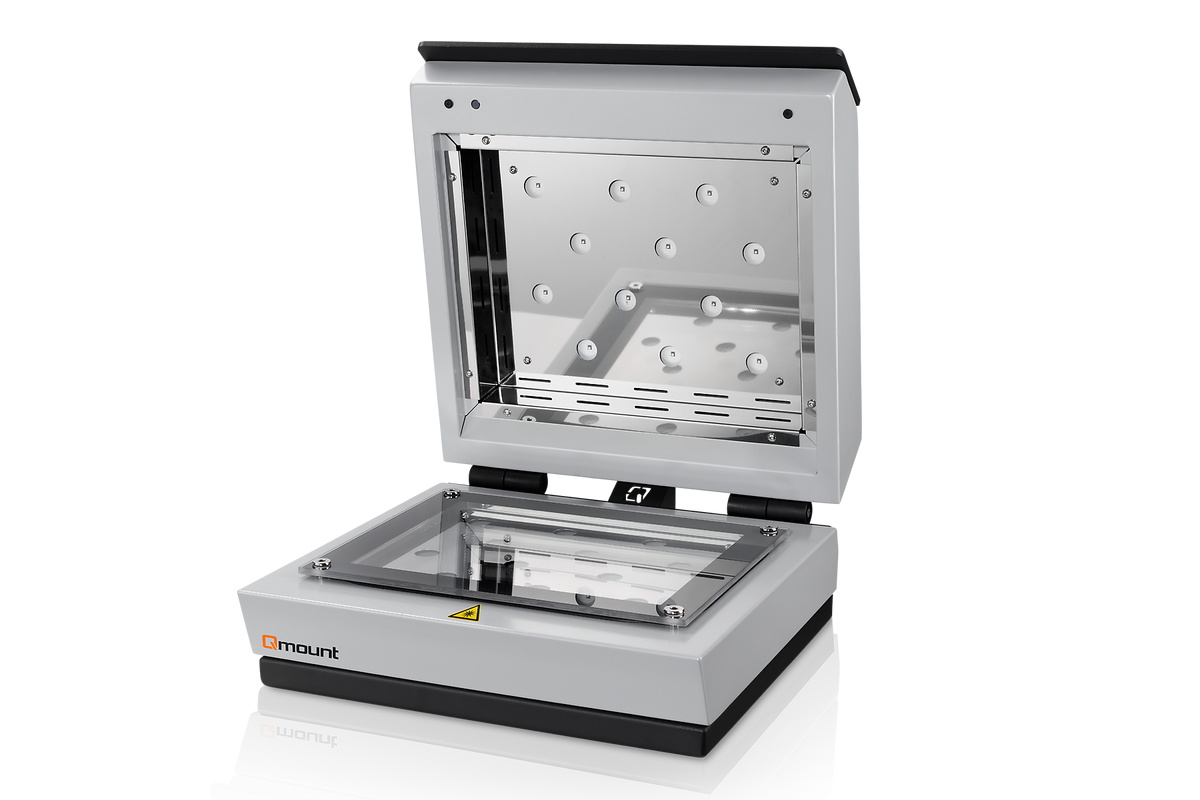

The Qmount is a modern device for the light-curing-based mounting of materialographic samples.

Categories:
Mounting, UV Mounting Devices

Description
Details
Materials
Documents
Videos
Review

Description

PRODUCT ADVANTAGES

• UV mounting in the shortest possible time (60 seconds)
• Highly efficient, long-life LED technology
• Robust machine design
• Easy handling
• Connectable suction unit (optional)

FEATURES

The integrated ventilation guarantees low polymerisation temperatures of approx. 70 – 90 ° C. A robust design with a powder-coated aluminum housing and high-quality components enable high sample volumes. The hood is equipped with cushioned hinges to close it gently.

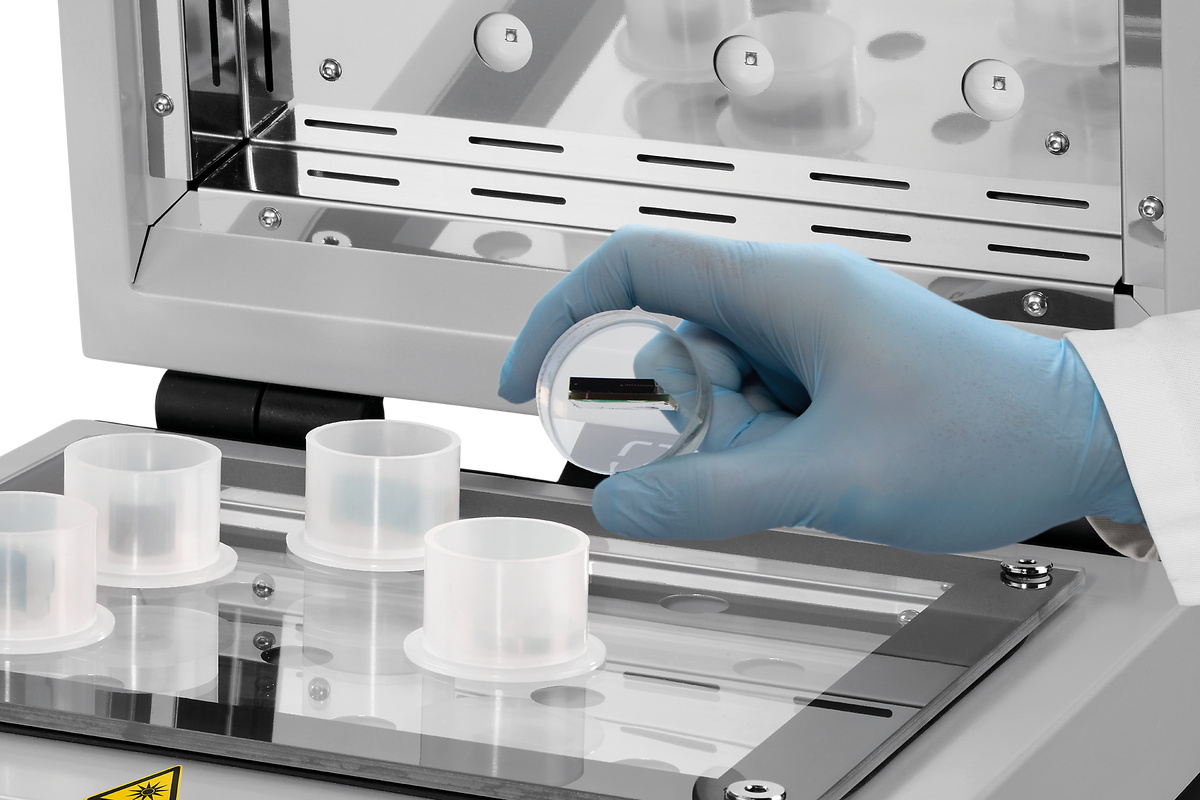

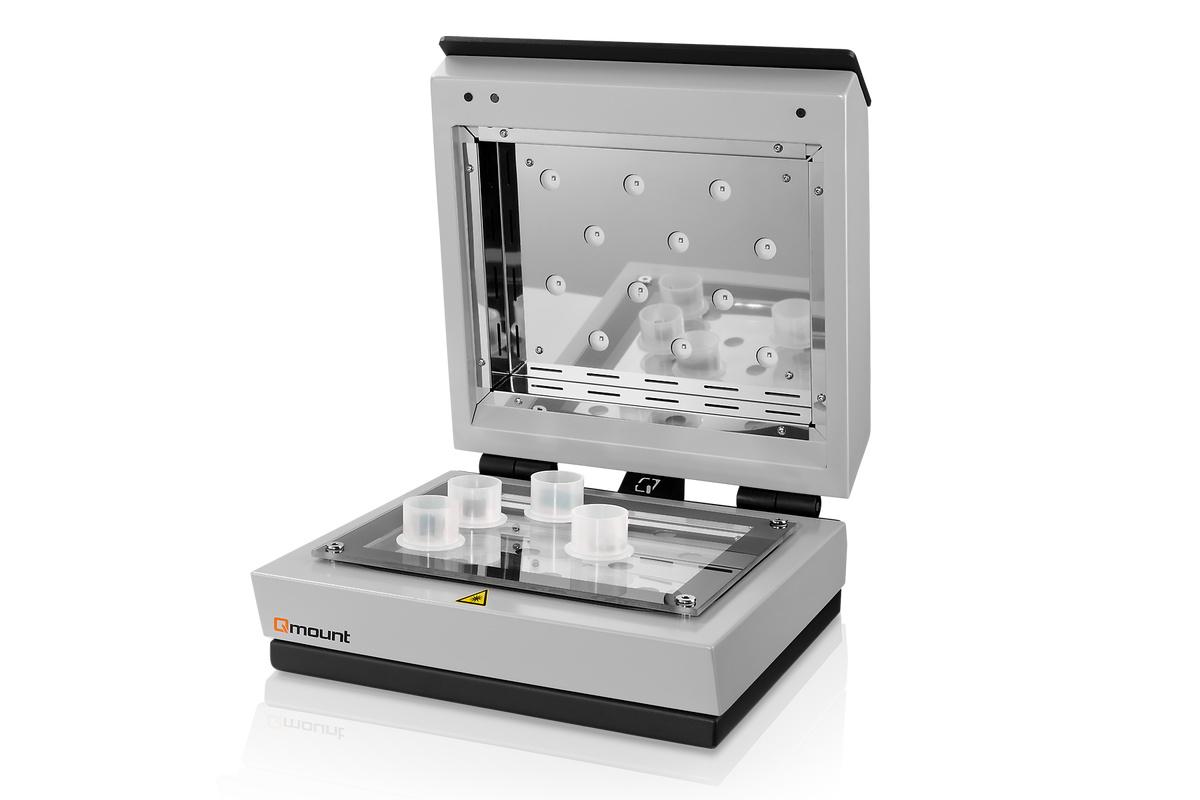

The device contains a scratch-resistant glass plate (200 x 260 mm) which enables the simultaneous curing of up to 12 samples with a diameter of 40 mm. The work area is easy to clean due to the simple design.

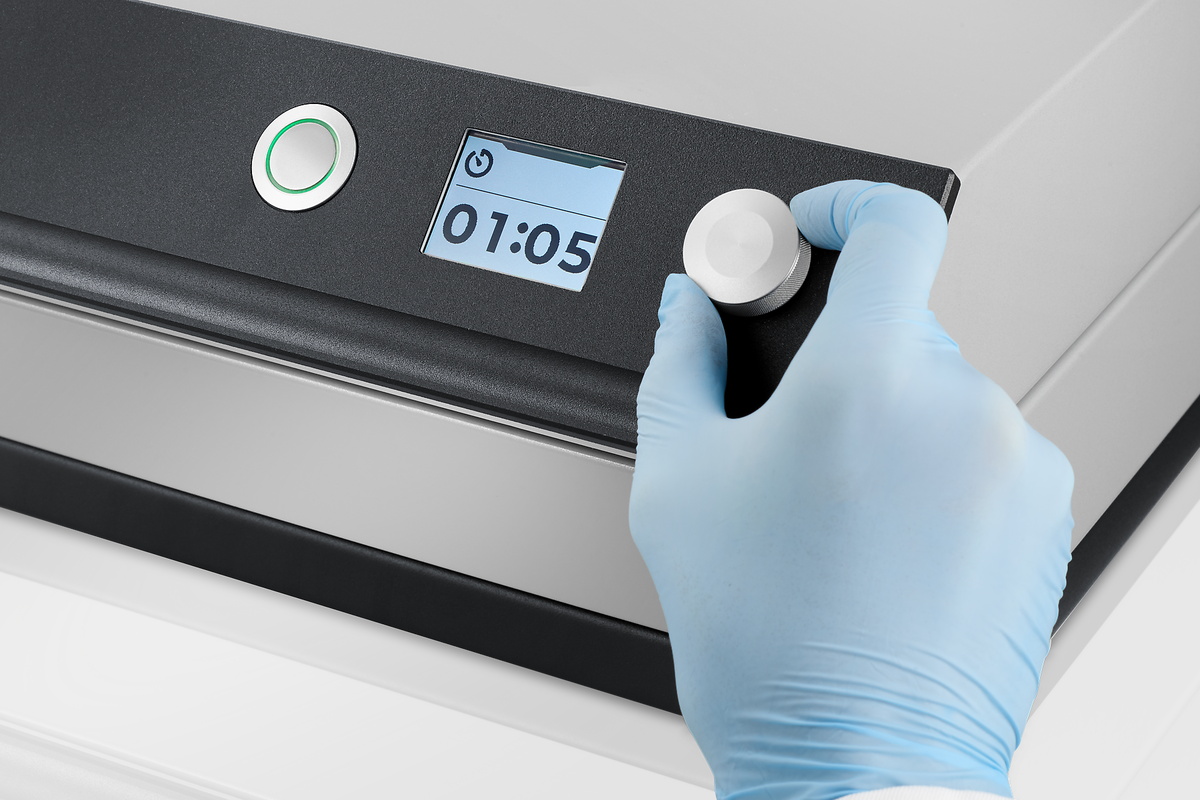

The process parameters are clearly shown on a color display and can be continuously adjusted using a rotary knob. The mounting process is started, paused or ended using the QATM start-stop button. An acoustic signal informs the user at the end of the process.

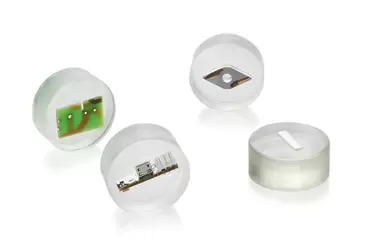

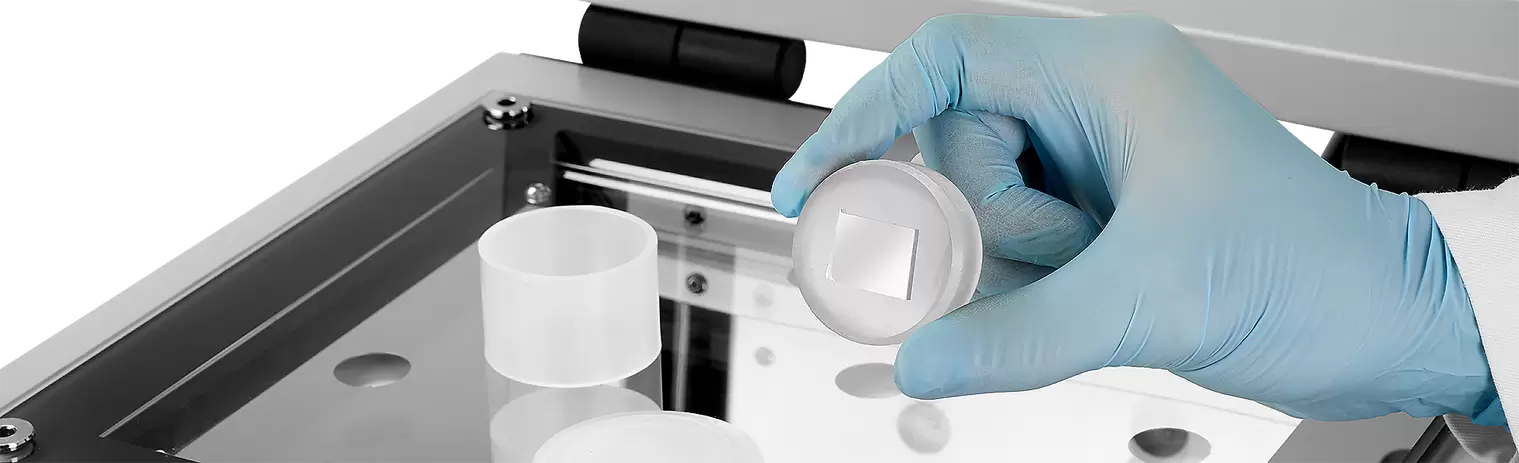

Due to the very short process times, the Qmount opens up the possibility of producing transparent, materialographic standard mountings of various materials very quickly and cost-effectively.

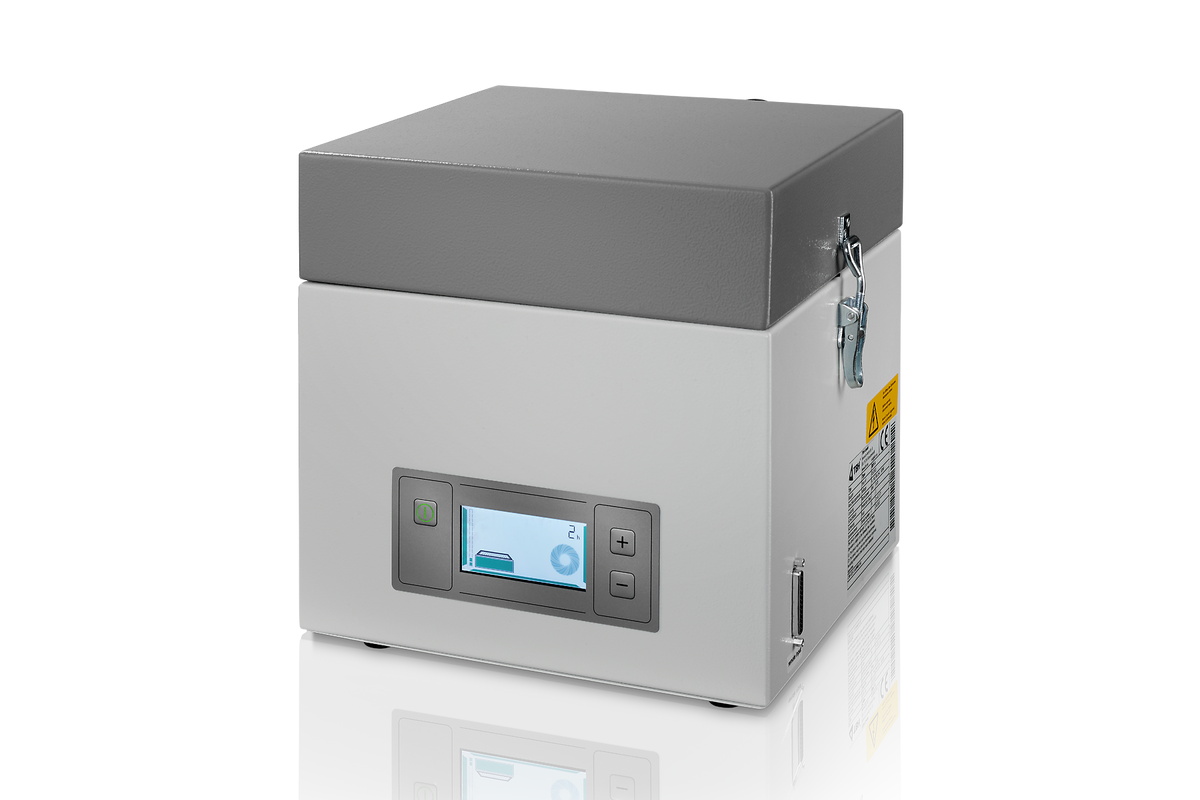

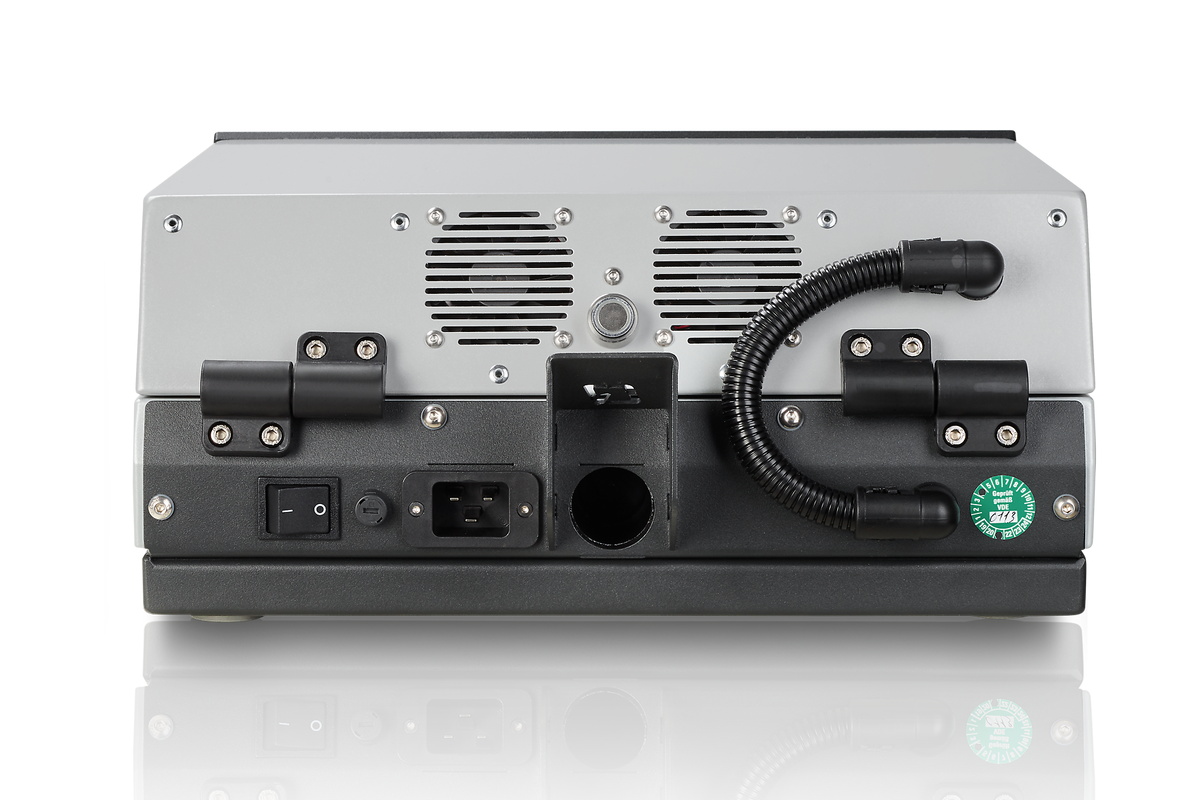

As standard, the device is equipped with a connection for external suction to filter the vapors and odors and to increase work safety. A suitable suction device with activated carbon filter is available in the QATM accessories.

MOUNTING IN A SHORT TIME

The compact laboratory device is equipped with specially developed and durable LED boards, which irradiate the samples highly efficiently with UV radiation of a very narrowly tolerated wavelength range (emission maximum at lambda = 365 nm) and allow standard samples to cure within 60 seconds.

Brand QATM
Max. sample support surface 200 x 260 mm / 7.87 x 10.24 in
Max. sample height 40 mm
Wavelength 365 nm
Adjustable curing time 0 - 100 min
Polymerization temperature (depending on application) 70- 90 °C
Connection voltage 100 - 240 V 50/60 Hz (1Ph/N/PE)

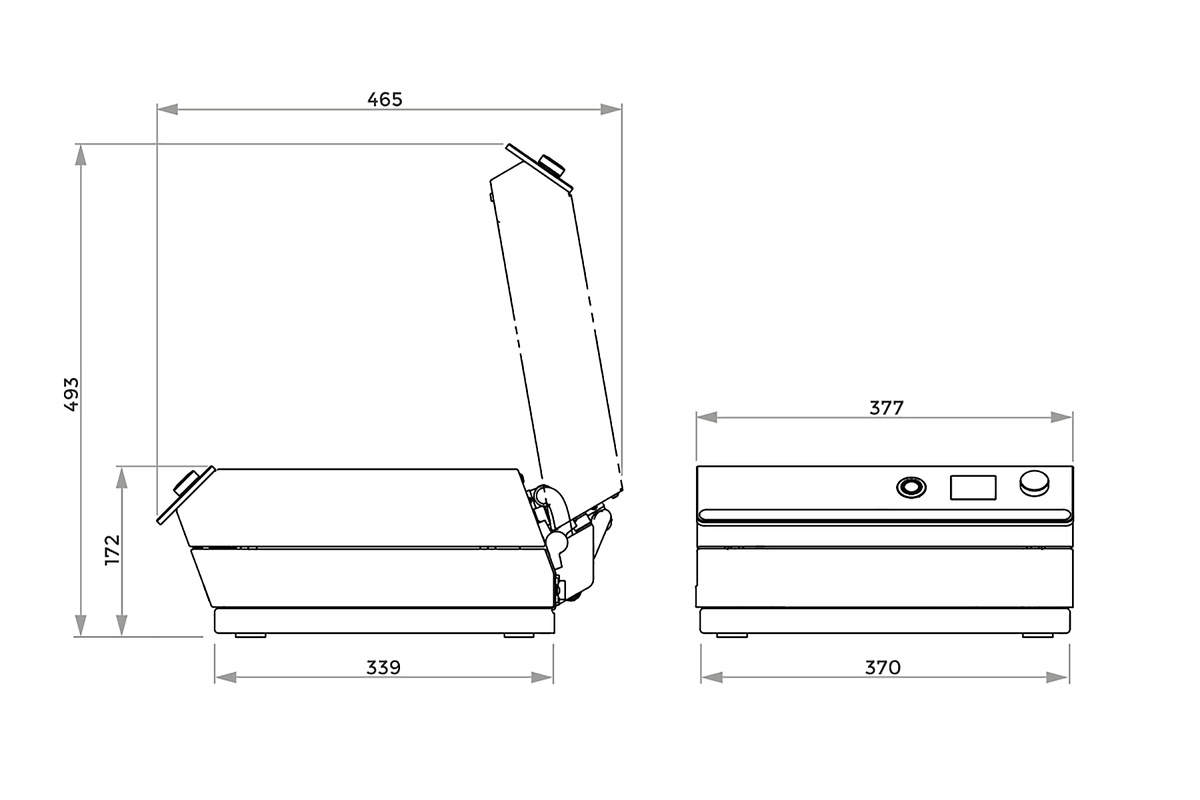

Dimensions (WxHxD) 377 x 172 x 436 mm / 14.84 x 6.77 x 17.17 in
Weight (depending on equipment) 14,5 kg

Documents

Download Brochure QMOUNT
