QPRESS 50

The Qpress 50 is a modular hot mounting press for fast and simultaneously independent mounting

Request a quote
  • Description
  • Details
  • Materials
  • Documents
  • Videos
  • Review

Description

PRODUCT ADVANTAGES

• 7” touch screen user interface with intuitive QATM user software
• Sliding closure with comfortable one-hand operation
• Dust Guard removes fine dust to improve safety
• Fast mounting
• High modularity for both simultaneous and independently controlled mounting
• User account management with different access rights
• Pre-installed preparation methods and consumables
• Powder coated steel housing

1800x1200px-vorlage-qpress-50-2

FEATURES

llproductsqpress50newfeaturesslidinghl
IMPROVED SLIDING CLOSURE
llproductsqpress50newfeaturesusersafetyhl
USER SAFETY
llproductsqpress50newfeatureseasytooperatehl
EASY TO OPERATE
llproductsqpress50newfeaturesfastmountinghl
FAST MOUNTING CYCLE
1800x1200px-vorlage-qpress-50-5
HIGHLIGHTS

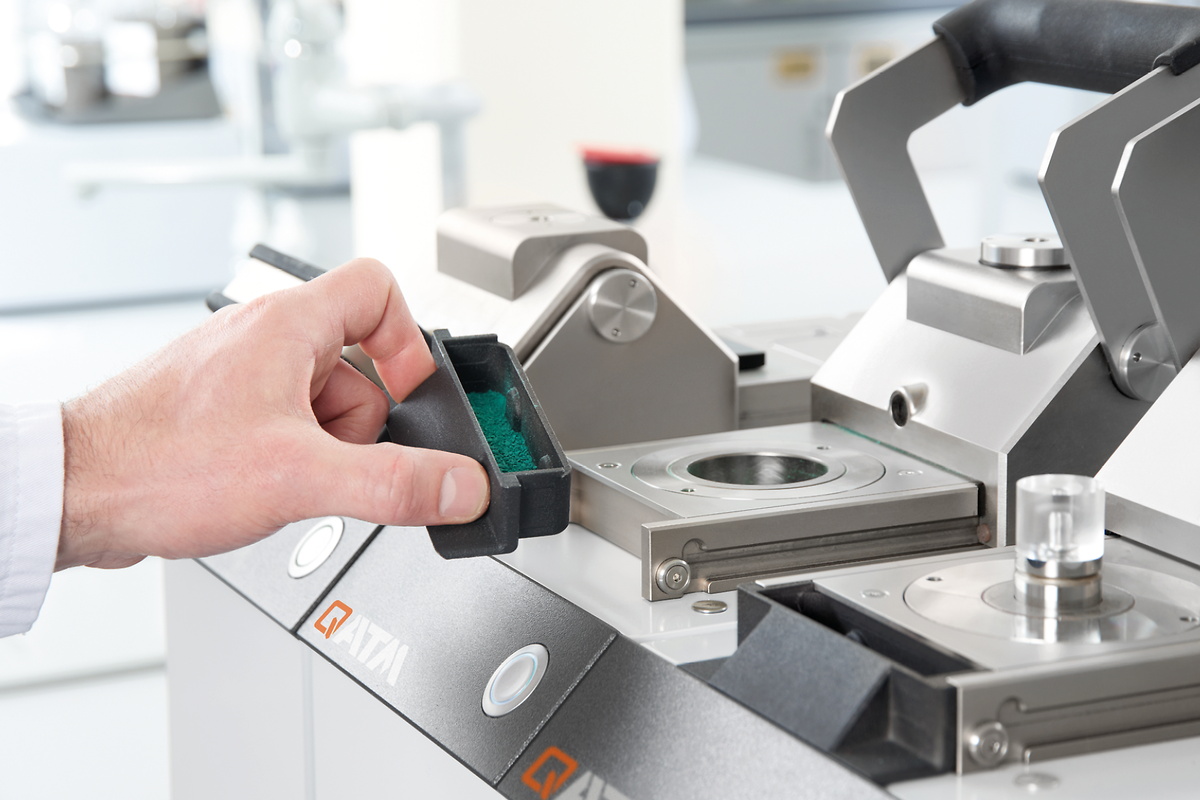

One-hand sliding closure with integrated suction nozzle. When the mold is closed, excess granulate is pushed into a removable compartment (dirt trap). The sliding closure can be lifted off to clean the upper flask.

An integrated exhaust device (Dust Guard) protects the operator from inhaling expired fine dust during filling the moulds with mounting resin.

The multi-functional button indicates the selected mounting unit, the operation state of the pressing unit and facilitates the operation of the whole unit. The 7“ touch display with control software consists of pre-installed mounting methods, consumables and offers the storage of more than 200 user-defined mounting methods.

The Qpress 50 is designed for fast mounting including a pre-heat function and safes significantly time compared to other hot mounting presses.

– High modularity to meet specific customer needs
– Dust Guard removes fine dust to improve safety
– Innovative design of heating/cooling unit guarantees precise and energy-efficient mounting process
– Basic unit supports all additional pressing units
– Pre-heat function reduces cycle time
– Adjustable cooling power and a choice of cooling modes reduce water consumption

EXCELLENT MODULARITY TO MEET YOUR NEEDS

QPRESS 50-2 – FOR MEDIUM QUANTITY OF MOUNTS
The Qpress 50-2 is the perfect choice for small and medium quantities of mounts. The basic unit includes one pressing unit and can be extended with one additional mounting unit at any time. The units are operated independently and simultaneously.

1800x1200px-vorlage-qpress-50-11
llproductsqpress50newsuperiorityhl

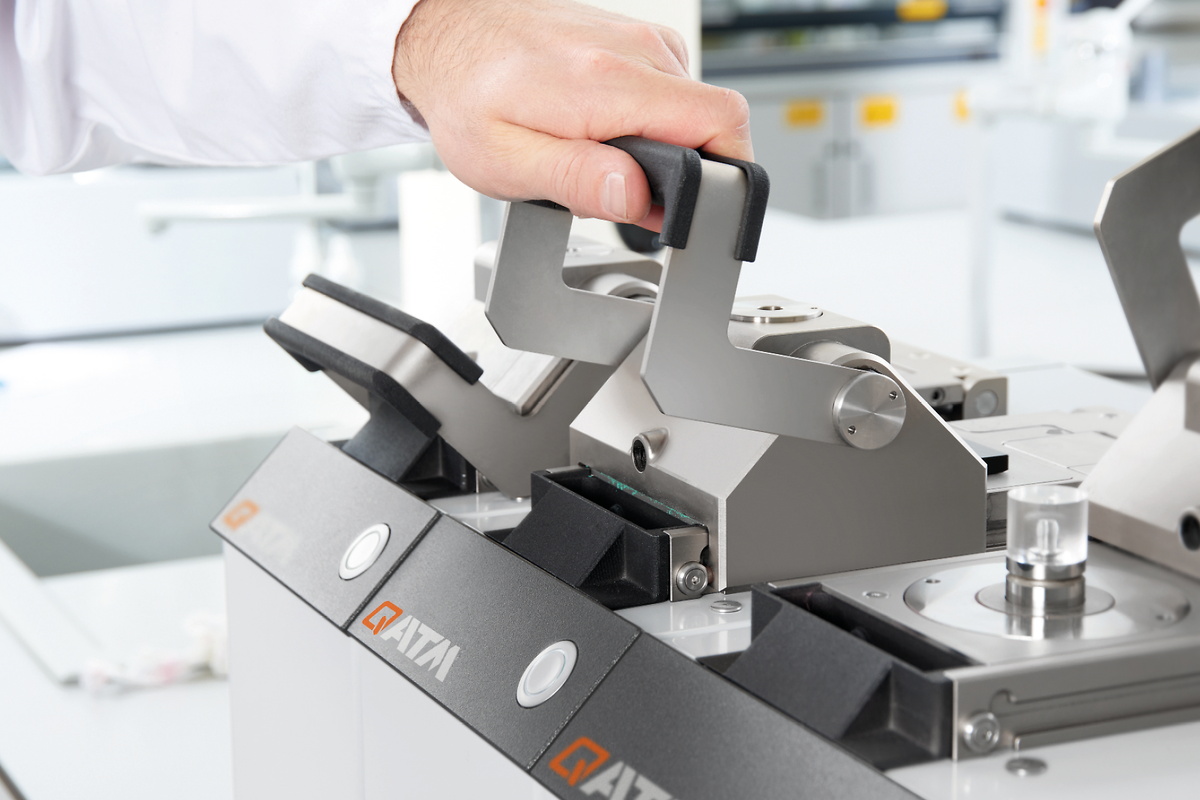

1. Sliding closure

One-hand operation
Innovative design
Safety closure under pressure
Easy to operate
Removable for cleaning upper ram
Includes dirt trap

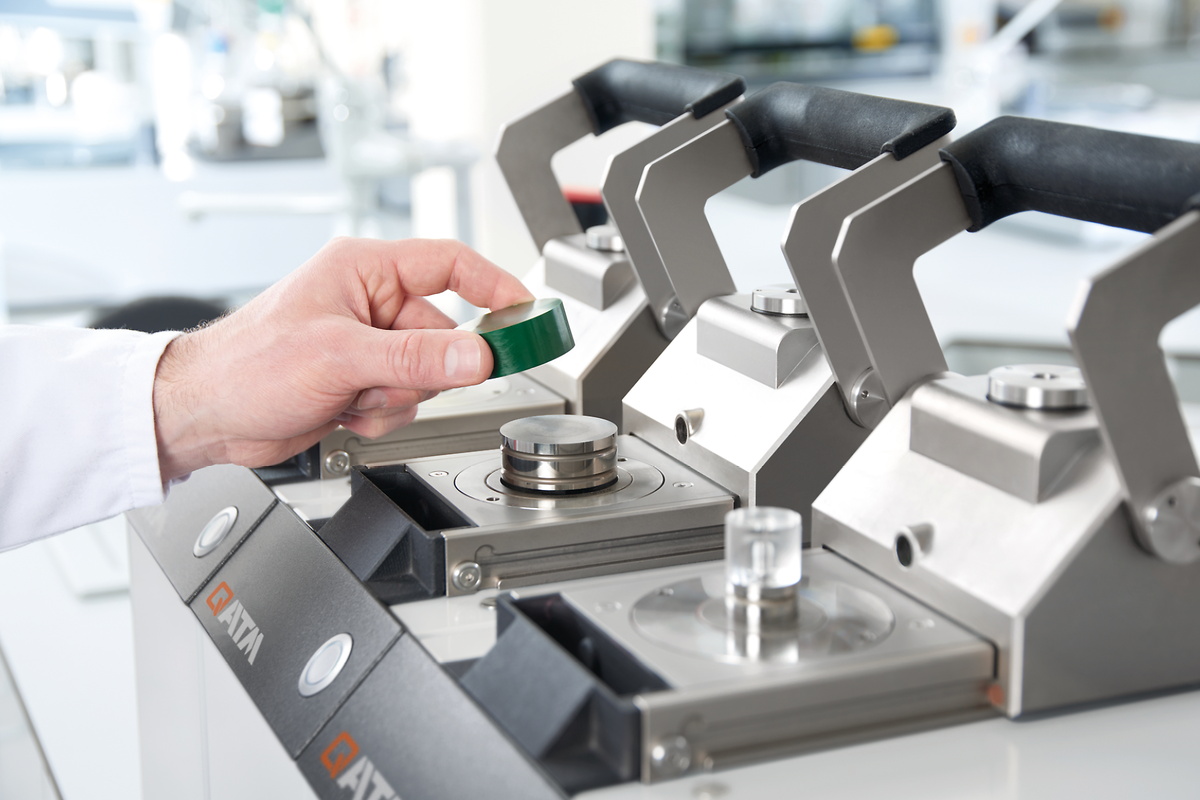

2. Mounting

Fast mounting
4 different pressure modes
Highly precise temperature control
Adjustable heating/ cooling power

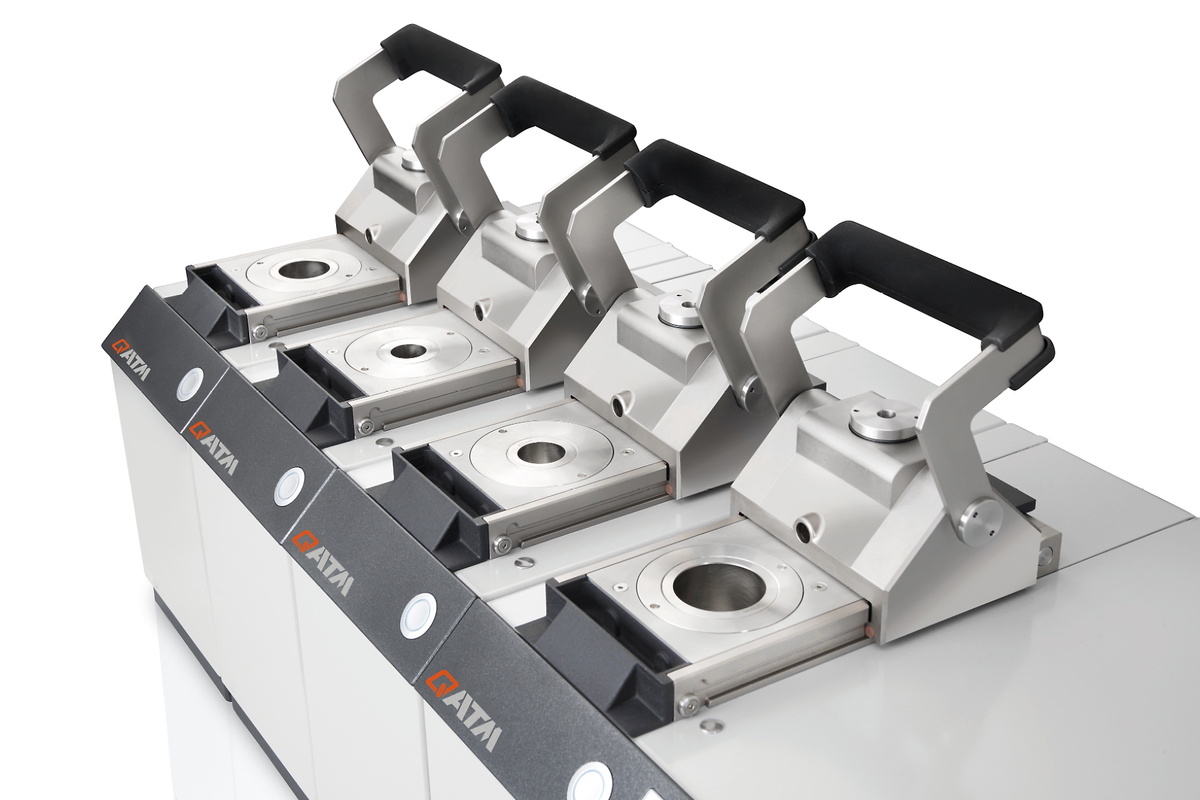

3. Modularity

Up to three different mount sizes
Simultaneous mounting
Independently controlled
Status indication by the multifunctional button

4. Control interface

7” color touch screen
Intuitive control software
Pre-installed preparation methods for QATM consumables
Smart control modularity
Assistance function for easy use of the additional pressing units

5. Pre-heat function

Pre-heating of mould
Reduces cycle time
Pre-heat temperature can be set manually

6. Dust Guard

Vacuums fine dust of mounting material
Integrated in design of sliding closure

1800x1200px-vorlage-qpress-50-17b
  • Brand QATM
  • Max. number of pressing units 2/4 Qpress 50-2: up to 2 Qpress 50-4: up to 4
  • Mould cylinder ø 25.2 - 50 mm (6 different sizes)
  • Closure system slide closure
  • Thermostate range 20-200°C
  • Heating time adjustable
  • Cooling time adjustable
  • Max. pressure in mould cylinder depending on mold assembly's size 250-350 bar
  • Connection power (basic unit) 1.6 kVA
  • Connection power (additional pressing unit) 1.5 kVA
  • Heating power 1200 W
  • W x H x D (basic unit) 402 x 382 x 563 mm / 15.83 x 15.04 x 22.17 in
  • W x H x D (additional pressing unit) 187 x 382 x 449 mm / 7.36 x 15.04 x 17.68 in
  • Weight ~ 50 kg
