Farsoon eForm: Advanced SLS 3D Printer for Precision Polymer 3D Printing
Accessible industrial Plastic Laser Sintering machine for your additive manufacturing needs.
-
Technology:
SLS
-
Materials:
Plastic Nylon Powders
In stock
-
Categories:
3D printers, Business 3D Printers, Education, Engineering, Jigs&Fixtures, Nylon, Plastic Powder, SLS
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description

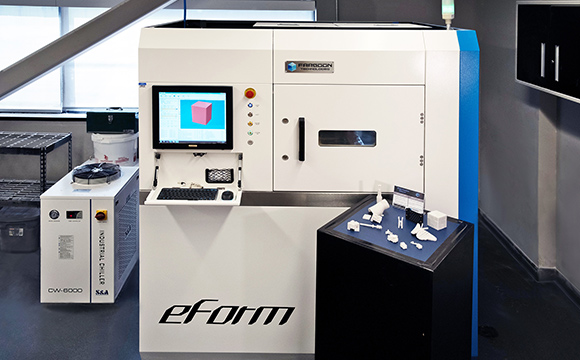

Introducing Farsoon eForm: A High-Performance SLS 3D Printer
The Farsoon eForm is a cutting-edge SLS laser 3D printer designed for industrial 3D SLS printing with exceptional material flexibility. With robust small-batch manufacturing capabilities, this selective laser sintering 3D printer produces high-quality, repeatable parts that meet the highest industry standards. Whether you are new to 3D printing polymer technologies or looking to expand your plastic manufacturing production, the eForm ensures optimal productivity, economy, and reliability.

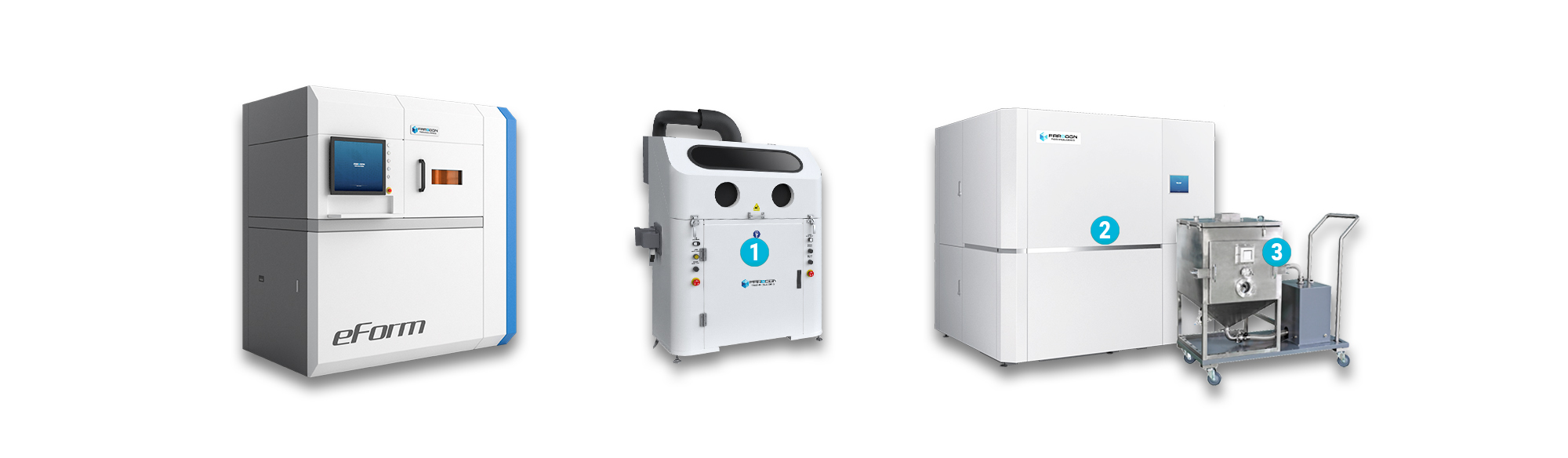

1 – Breakout Station
2 – Powder Management System (PMS)
3 – Powder Delivery Unit (PDU)
The build cartridge is moved to breakout station via the conveyor system. The Breakout Station is fully enclosed and is accessed through multiple glove boxes on the front and back of the station allows the capability of multiple operators while retaining a clean working environment. The built-in air-guns allow for gentle powder removal and detailed cleaning.
Integrated with multiple powder handling process including used powder recycle & storage, new powder supply, high-speed mixing, and powder sieving, the robust PMS system enables a streamlined material workflow with minimum down-time of the 3D printing machines, with improved throughput and lower cost per part.
The PMS system can also be paired with a mobile Powder Delivery Unit (PDU) which transports the prepared powder directly to the printers. Once there the PDU’s integrated pump transfers the powder into the printer’s powder feed cartridge.
Farsoon eForm Industrial Plastic Sintering Machine Advantages
Temperature capable up to 190°C
Versatile build envelope
9.8 × 9.8 × 12.5 in / 250 × 250 × 320 mm
Industrial 30-watt CO2 laser
Production Interface

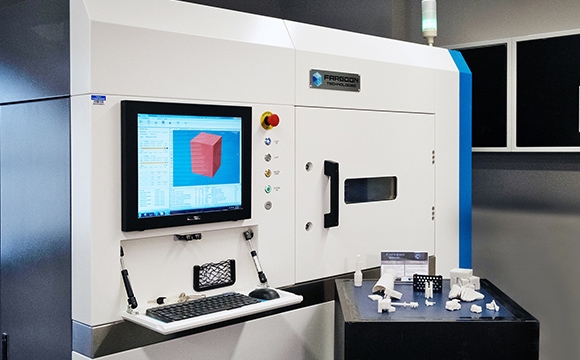

The eForm features an intuitive touchscreen-based UI for easy operation. This makes SLS 3D printing more accessible for users of all experience levels.
Comprehensive Software

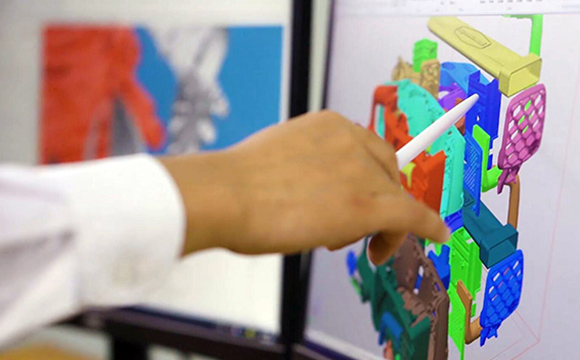

The eForm includes a suite of powerful, self-developed software tools for build preparation, machine control, and process optimization. The system remains fully compatible with third-party software and materials, ensuring flexibility in polymer 3D printing workflows.
Cost-Effective Performance
As an entry-level 3D printer SLS system, the eForm delivers industrial-grade performance at an affordable cost. It offers high-resolution SLS 3D prints with detailed precision and functional part production.
Industrial Applications of the eForm 3D Printer for Nylon, PEEK, and TPU
The eForm plastic laser sintering system is a high value proposition system with all the functionality and power of our industrial level systems. This makes the eForm an ideal option from new users entering the industrial additive space to seasoned users looking for multiple machines that are material specific.
Guide for DDH Surgery
Machine: eForm
Material: FS3300PA
The 3D printed surgical guide is used in DDH Surgery (Developmental dysplasia of the hip) requires a high level of operational precision. Designed from CT scan imaging data and produced on Farsoon’s eForm system, the surgical guide helps doctors with patient communication and physical practice in advance; it also enables faster, more accurate position for the depth and angle of the implant during the surgery, reducing overall operation time and complications compared to the traditional surgery.

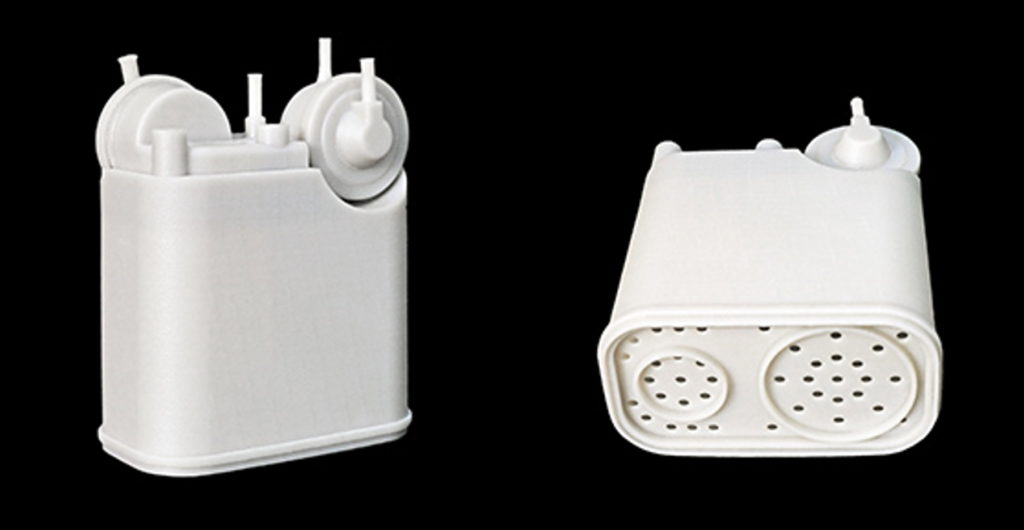

Automotive Carbon Canister
Machine: eForm
Material: FS3401GB
Designed to optimize the fuel efficiency of the vehicle, the carbon canister features a complexed structure that requires a long design to market cycle and high prototyping cost with traditional molding. With advanced additive technology the new canister is able to achieve easier and faster design iteration as well as improved fuel efficiency. The new design parts can be produced within one day; it also passes the functional test of maintaining a pressure of 1.5 Bar for 1 minute without any leakage.
eForm Technical Data
| Technical Data | eForm |
| External Dimensions （L×W×H） | 1735×1205×1975 mm ( 68.3×47.4×77.8 in ) |
| Build Cylinder Size1（L×W×H） | 250×250×320 mm ( 9.8×9.8×12.6 in ) |
| Net Weight | Approx. 1700KG ( 3747.9 lb ) |
| Laser Type | CO2 laser, 1×30W |
| Scanner | High-precision galvo system |
| Scanning Speed | Max. 7.6 m/s ( 24.9 ft/s ) |
| Max. Chamber Temperature | 190°C ( 374℉ ) |
1 The functional build volume depends on the parts/materials
- Brand Farsoon Technologies
- External Dimensions (L×W×H） 1735×1205×1975 mm (68.3×47.4×77.8 in)
- Build Volume 9.8x9.8x12.6 in / 250x250x320 mm
- Net Weight Approx. 1700 kg (3747.9 lb)
- Laser Type CO2 laser, 1×30W
- Scanner High-precision galvo system
- Layer thickness 0.06~0.3 mm (0.0024-0.0118 in)
- Volume Build Rate2 Up to 0.8 L/h
- Scanning Speed Max. 20 m/s (65.6 ft/s)
- Max. Chamber Temperature 190°C ( 374℉ )
- Thermal Field Control Eight-zone heater & Intelligent temperature control systems
- Temperature Regulation Continuous real-time build surface temperature monitoring & optimization
- Operating system 64 bit Windows 10
- Software BuildStar, MakeStar®
- Data File Format STL
- Key Software Features Open machine key parameters, real-time build parameter modification, three-dimensional visualization, diagnostic functions
- Inert Gas Protection Nitrogen
- Power Supply EUR/China: 400V±10%, 3~/N/PE, 50/60Hz, 32A, US: transformer sold with machine
- Operating Ambient Temperature 22-28°C (71.6-82.4℉)
- Material FS3150CF, FS3250MF, FS3300PA, FS3401GB, FS4100PA, Ultrasint® PP nat 01
- Technology SLS
- Printing Materials Plastic Nylon Powders
Materials
- FS3150CF
- FS3250MF
- FS3300PA
- FS3401GB
- FS4100PA
- Ultrasint® PP nat 01
