Farsoon Flight® 403P-2 Series – Advanced SLS 3D Printer for Industrial Applications
Maximized Plastic LPBF Production speed & Turn-over rate With Flight® Technology Dual-laser Configuration
-
Technology:
SLS
-
Materials:
Plastic Nylon Powders
In stock
-
Categories:
3D printers, Business 3D Printers, Engineering, Jigs&Fixtures, Manufacturing, Nylon, Plastic Powder, SLS
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description

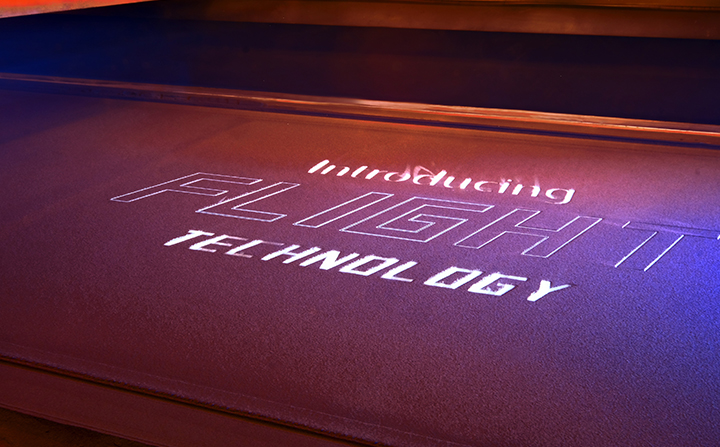

FIBER
Equipped with powerful fiber lasers instead of standard CO2 lasers, the Flight® HT403P SLS 3D printer delivers significantly increased power to the powder bed. This robust and stable fiber laser system ensures improved laser longevity, essential for ROI in manufacturing applications. The selective laser sintering 3D printer is ideal for high-performance polymer 3D printing, including nylon 3D printing.

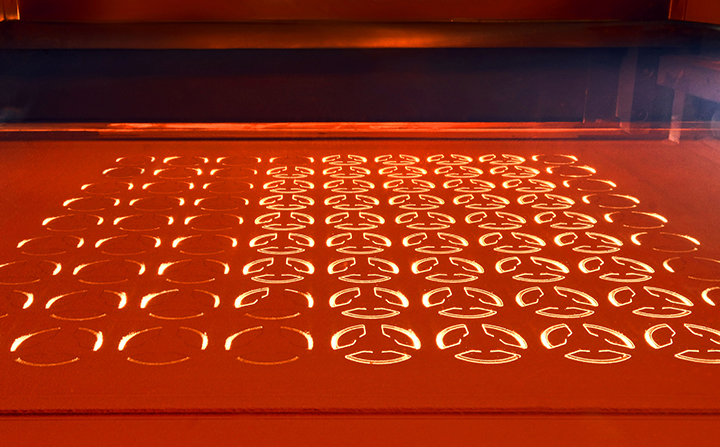

FAST
With enhanced laser power, improved energy distribution, and a smaller laser spot size, Flight® Technology achieves full sintering of powder in a significantly shorter time. Featuring scanning speeds over 20m/s (66 ft/s) and a large build volume, the SLS laser 3D printer optimizes production speed for 3D printing polymer materials, pushing additive manufacturing productivity to new heights.
OPEN PLATFORM
Like all Farsoon systems, the Flight® HT403P offers fully open machine parameters and material choices. The selective laser sintering printer supports a wide range of processable materials, offering the flexibility needed for future SLS 3D printing applications in industries like automotive, aerospace, and consumer products. This flexibility allows 3D printing with nylon, polypropylene 3D printing, and peek 3D printing.
DUAL-LASER CONFIGURATION
For faster production turnaround, the dual-laser configuration uses two powerful 300-watt fiber lasers and dynamic optical systems, creating ultra-fine laser spots with fast scanning speeds. This setup provides 50-90% higher production volume rates than single-laser systems and 3-4 times higher production yield compared to a CO2 laser SLS 3D printer.
FIBER
Equiped with powerful fiber lasers in place of the standard CO2 lasers, Flight® HT403P is capable of delivering greatly increased power to the powder bed. Due to the more robust and stable nature of a fiber laser system, Flight® Technology also provides improved laser longevity which is key when considering ROI for manufacturing applications.
DUAL-LASER CONFIGURATION
To further increase the manufacturing turn-over rate, the dual-laser configuration for Flight® technology takes advantage of two powerful 300-watt Fiber lasers and two dynamic optical systems, creating two ultra-fine laser spots with fast scanning speed. The new dual-laser configuration can offer significantly 50-90% higher production volume rate compared to the single laser configuration of Flight® Technology, and 3 to 4 times production yield compared to a single CO2 laser machine.
OPEN PLATFORM
Like all Farsoon systems, FLIGHT® HT403P is offered with fully open machine parameters and unlocked matreial choices. In addition with its increased power and energy absorption characteristics Flight® Technology will be capable of accessing a much different range of process-able materials and operational flexibility as compared to standard laser sintering systems, which allows for increased freedom for future AM material and application development.
FAST
With robust laser power, improved energy distribution to the material, and smaller laser spot size, Flight® Technology is able to achieves the full sintering of powder in a significant short amount of time. With scanning speed of over 20m/s (66 ft/s) as well as the large build volume, Flight® HT403P is able to achieve extreme sintering speeds that pushes the additive manufacturing productivity to a new level.

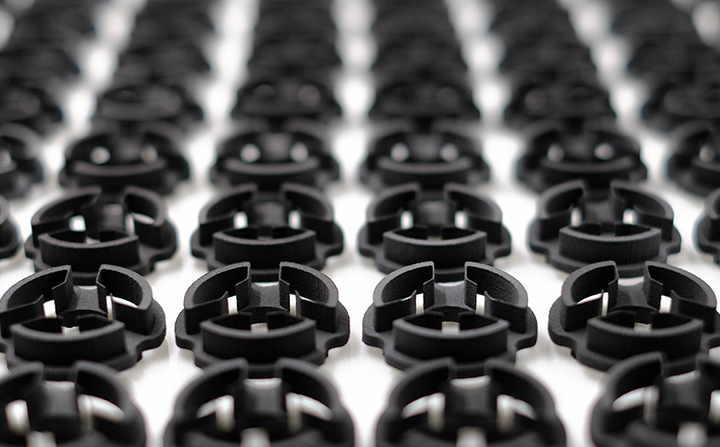

Industrial Applications with FLIGHT® 403P-2 Series
The optimal performance of FLIGHT® 403P-2 Series combining extreme sintering speed and high feature resolution has opened up many potential markets and applications for true series production, such as electronic components, robotics, specialized tools & models, battery units, filter modules as well as many consumer products.

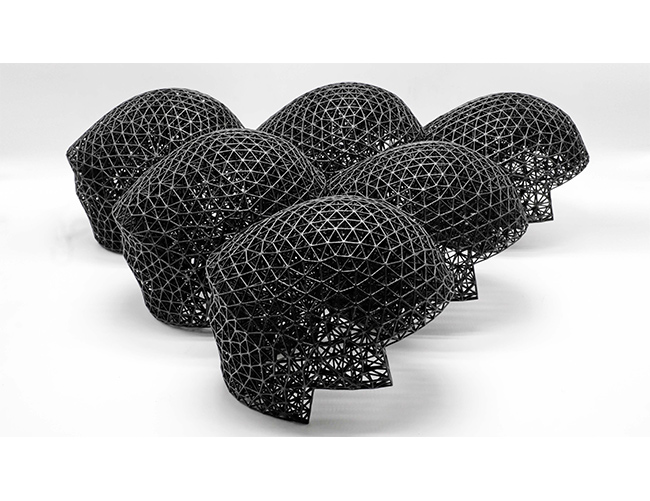

Machine: FLIGHT® HT403P-2 Dual-laser system Material: Wanhua Chemical Group, WF-PU95AB TPU material Build Time: 2 helmet linings produced in 7.5 hours
The bobsled helmet lining is fabricated with Wanhua Chemical’s specialized TPU material developed for the superb performance under the extreme temperature and produced by Farsoon’s dual-laser FLIGHT® Technology to achieve greatly improved impact strength, fully customized design, and accelerated design to manufacturing process.

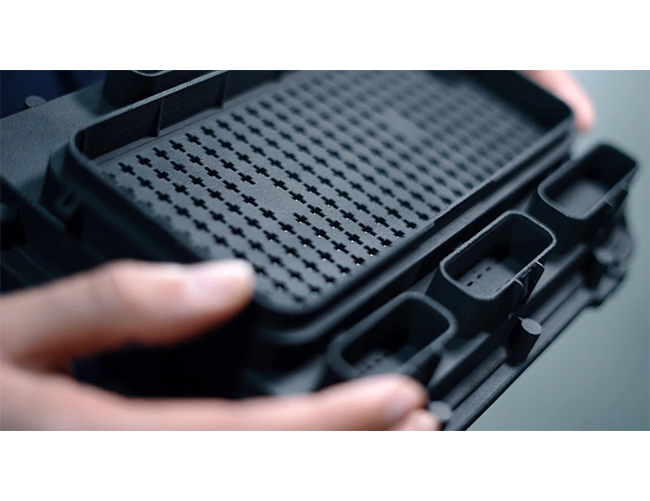

Machine: FLIGHT® HT403P-2 Dual-laser system Material: FS3300PA-F (PA12 with carbon black) Partner: Huilian 3D
This object of interest is a Fuse box used in passenger automotive functional verification. Featured with complicated detail structures like snaps and slots, the prototyping production of the fuse box requires multiple machining-assembly process with traditional manufacturing. Using FLIGHT® Technology Dual-laser system, Huilian 3D is able to produce high-quality parts and achieve accelerated manufacturing process from design iteration to functional prototyping.
- Brand Farsoon Technologies
- External Dimensions (L×W×H） 2470×1500×2145 mm ( 97.2×59.1×84.4 in )
- Build Volume 15.7x15.7x17.7 in / 400x400x450 mm, 15.7x15.7x21.3 in / 400x400x540 mm
- Net Weight Approx. 3060 KG (6746.1 lb)
- Laser Type Fiber Lasers, 2×300W
- Scanner High-precision three-axis galvo system
- Volume Build Rate2 Up to 9 L/h
- Layer thickness 0.06~0.3 mm (0.0024-0.0118 in)
- Scanning Speed Max. 20 m/s (65.6 ft/s)
- Max. Chamber Temperature 190°C ( 374 ℉ ), 220°C ( 428 ℉ )
- Thermal Field Control Multi-zone heater & intelligent temperature control systems
- Temperature Regulation Continuous real-time build surface temperature monitoring & optimization
- Operating system 64 bit Windows 10
- Software BuildStar, MakeStar®
- Data File Format STL
- Key Software Features Open machine key parameters, real-time build parameter modification, three-dimensional visualization, diagnostic functions
- Power Supply EUR/China: 380-400V, 50/60Hz, three-phase, US: transformer sold with machine
- Operating Ambient Temperature 22-28°C (71.6-82.4℉)
- Material FS3201PA-F, FS3300PA-F, FS3401GB-F, LUVOSINT® TPU X92A-1064 WT
- Technology SLS
- Printing Materials Plastic Nylon Powders

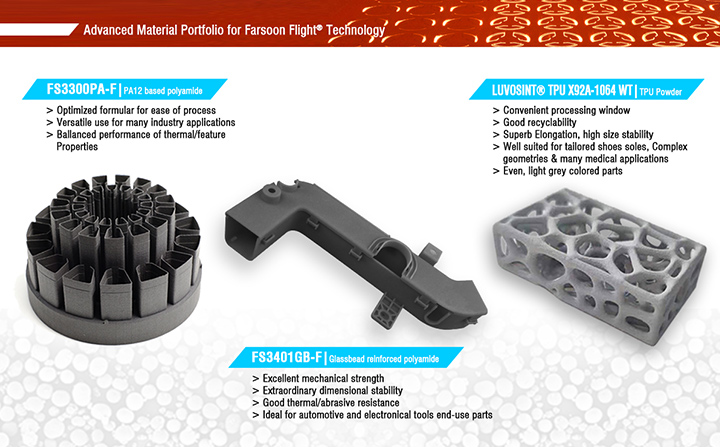

Materials
- FS3201PA-F
- FS3300PA-F
- FS3401GB-F
- LUVOSINT® TPU X92A-1064 WT
