Description
Introducing FS621M. Addressing the metal manufacturing challenges including productivity, size constraints, powder management, process control and factory layout, Farsoon developed the all-new FS621M by co-innovating with our key industry partner in the aerospace industry, with focuses on extended build cylinder volume and maximum productivity per laser.
Discover FS621M System

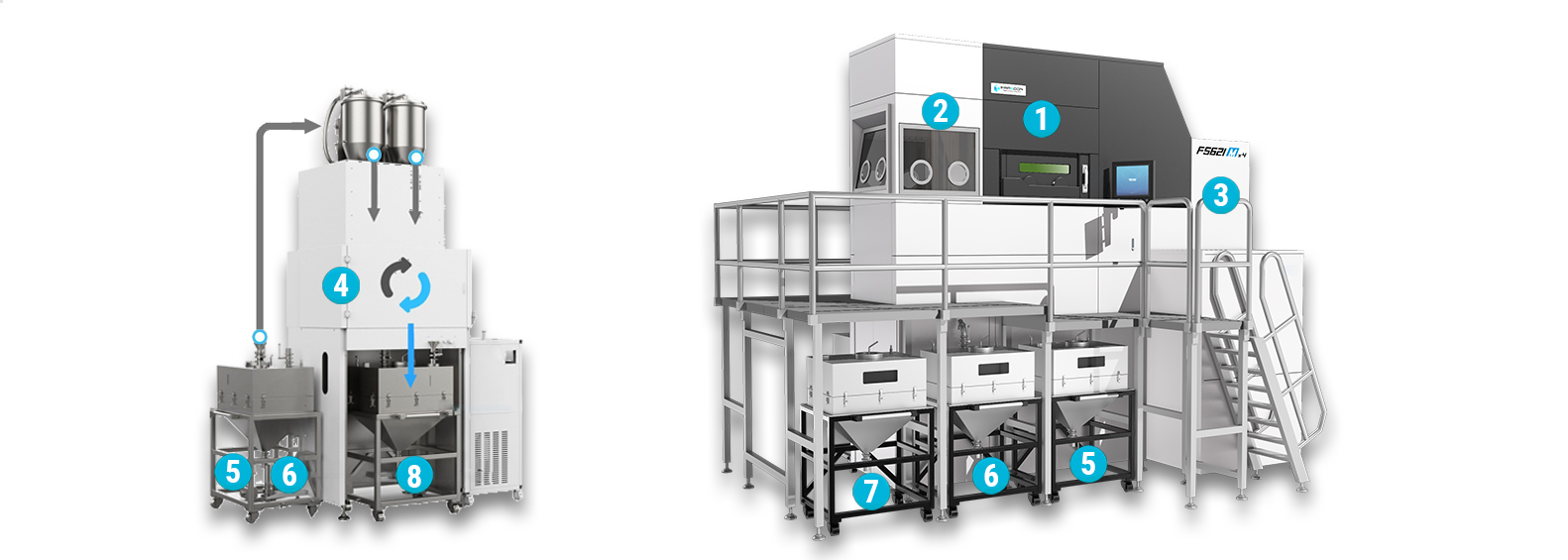

1-Build Station
The build Station module is where the sintering process takes place. Once the build cartridge is in place, the build packet files would be loaded into Farsoon’s BuildStarTM operating software, then the build process begins. The build chamber is featured with front and rear access door for ease of operation.
2-Breakout Station

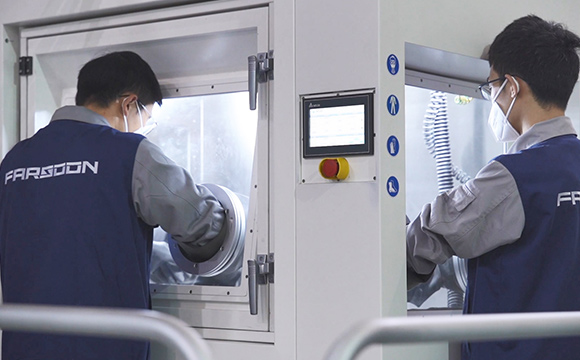

The build cartridge is moved to breakout station via the internal conveyor system. The Breakout Station is fully enclosed and is accessed through glove boxes on 3 sides of the station allows the capability of multiple operators while retaining a clean working environment. The convenient air-gun and vacuum hose access allow for gentle powder removal and detailed cleaning.
3-Filtration System
The FS621M’s integrated filter module features secondary circulating system and a dual-station filter design that allows for the exchanging of filters without disturbing the build process.
4-Sieveing Station
The powder sieving station features a vibration screen offering efficient sieving of recycled metal powder from the overflow & recycled powder hoppers to filter the large particles.
5-Overflow Powder Hopper
Located under the Build Station of FS621M, the modular Overflow Powder Hopper collects the excessed powder from the build chamber to be processed at Sieving Station.
6-Recycled Powder Hopper
Conveniently located under the FS621M’s integrated Breakout Station, the modular Recycled Powder Hopper collects the excessed used metal powder from the part cake to be processed at Sieving Station.
7-Powder Supply Hopper
The modular, fully-sealed Powder Supply Hopper offers efficient powder supply under invert gas protection; It features a common design with the Refreshed Powder Hopper for ease of transportation and material quality control.
8-Refreshed Powder Hopper
After the sieving process, the metal powder is collected and stored in the refreshed powder hopper. It can be reused for powder supply or further processing or monitoring according to the application needs.
Farsoon FS621M System Advantages
High throughput
with up to quad 500-Watt lasers
Extensive build envelope of
24.4 × 24.4 × 43.3 in / 620 × 620 × 1100 mm
Modular design
concept offers ease of operation
Extra-Large Build Volume
Developed with a focus on large build size, Farsoon’s FS621M features one of the largest metal laser sintering build volumes in the additive market, with a build platform size of 620x620mm and vertical axis of 1.1 meter. This expansive build envelope opens new possibilities for large-scale metal production that couldn’t be built before in industries such as aerospace, oil and gas, and many others.
Productivity + Quality
The FS621M can be equipped with a powerful single 1000W laser or quad 500W lasers allowing for great rates of production. In addition, the FS621M like all Farsoon systems is a truly open platform which offers the user a high degree of control to tailor build parameters for cost- competitive metal additive manufacturing. An advanced dynamic 3-axis scanning system, powerful build process controls & real-time recoating monitoring ensuring the best build quality.
Operational Ease
The FS621M’s integrated filter module features secondary circulating system and a duakstation filter design that allows for the exchanging of filters without disturbing the build process. The FS621M powder handling processes share a common powder container design which are used during loading, unloading and sieving procedures. These containers offer fully-sealed powder handling, easy transportations between the stations, and safe storage of powder. This partially closed powder system allows for the capability of continuous feeding of powder to the build while retaining the ability to easily exchange and monitor powder quality.
Industrial Applications with FS621M
The large-frame FS621M metal system offers unparalleled production edge for large-scale applications that favors higher Z axis. Taking the feedback from the broad industrial user base from aerospace, oil & gas, and energy sectors , the FS621M system is fully optimized for batch production capabilities with materials such as titanium alloys, aluminum alloys, nickel-based superalloys, stainless steels and maraging steels.

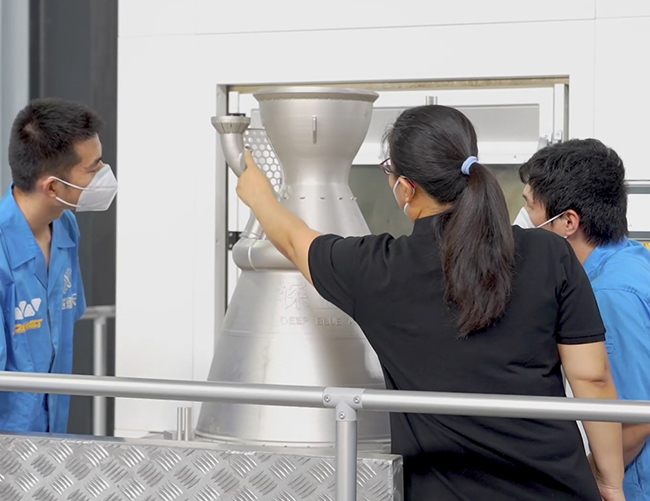

Deep Blue Aerospace Combustion Chamber
Machine: FS621M
Material: IN718
Size: 550 x 550 x 780 (H) mm
The additive manufactured Inconel combustion chamber measures 780mm (30.7 inches) in height and 550mm (21.7 inches) in diameter. Major challenges include the size of the build, function integration, and detail resolution. The advanced additive manufacturing enabled many new innovations from Deep Blue engineers including consolidated design, light-weight lattice structures, and complex geometries.

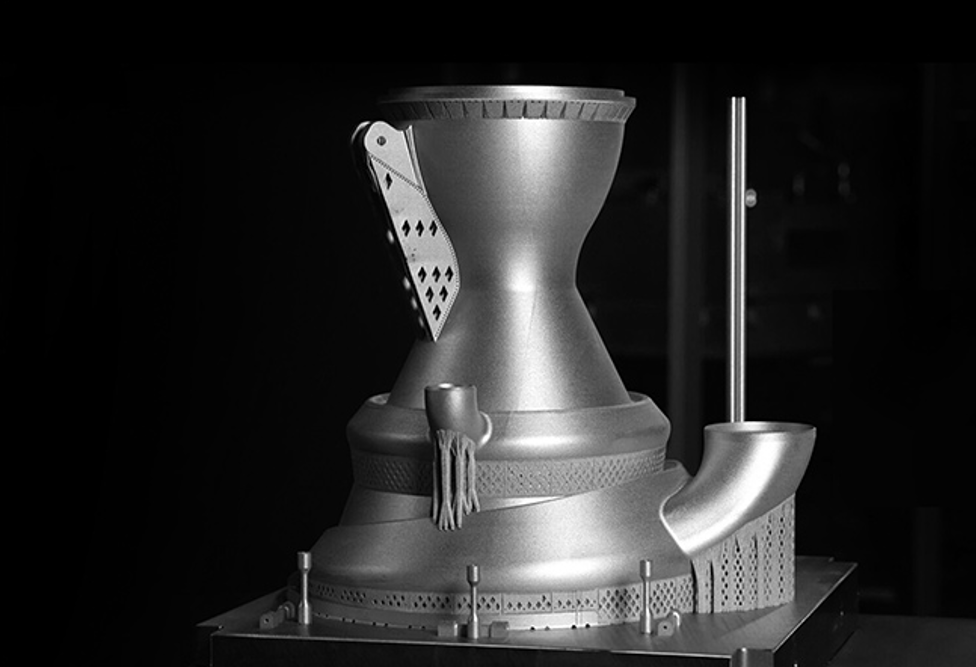

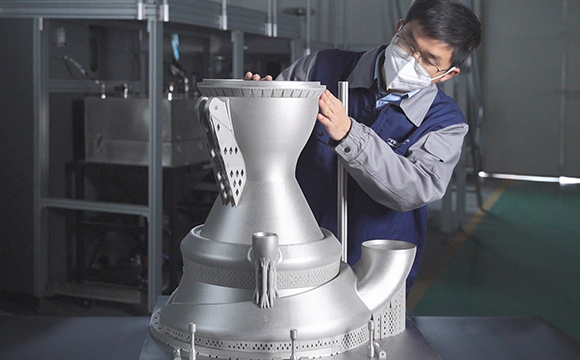

Combustion Chamber of Rocket Engine
Machine: FS621M-4
Material: IN718
Size: 600 x 496 x 558 (H) mm
Layer thickness: 0.04 mm
Build Time: 258 Hours
Farsoon Technologies in collaboration with aerospace industry partner to produce this single piece combustion chamber with Inconel superalloy 718 for functional validation. The additively manufactured part showcased structural integration, improved design features, accelerated development cycle, and of course a significantly reduced cost.
FS621M Technical Data
| Technical Data | FS621M |
| External Dimensions （L×W×H） | 5880×4280×3940mm (231.5×168.5×155.1 in) |
| Build Cylinder Size1（L×W×H） | 620×620×1100mm ( 24.4 × 24.4 × 43.3 in ) (Height incl. build plate) |
| Net Weight | Approx. 8000 kg ( 17637.0 lb ) |
| Laser Type | Single Laser, 1×1000W |
| Scanner | F theta lenses or dynamic focusing system |
| Scanning Speed | Max. 15.2 m/s ( 49.9 ft/s ) |
| Technical Data | FS621M-4 |
| External Dimensions （L×W×H） | 5880×4280×3940mm (231.5×168.5×155.1 in) |
| Build Cylinder Size1（L×W×H） | 620×620×1100mm ( 24.4 × 24.4 × 43.3 in ) (Height incl. build plate) |
| Net Weight | Approx. 8000 kg ( 17637.0 lb ) |
| Laser Type | Quad Lasers, 4×500W |
| Scanner | F theta lenses or dynamic focusing system |
| Scanning Speed | Max. 15.2 m/s ( 49.9 ft/s ) |
1 The functional build volume depends on the parts/materials
- Brand Farsoon Technologies
- External Dimensions (L×W×H） 5800×4300×4000 mm (228.3×169.3×157.5 in)
- Build Volume 24.4x24.4x43.3 in / 620x620x1100 mm
- Net Weight Approx. 9000 kg ( 19841.6 lb )
- Layer thickness 0.02~0.1 mm ( 0.0008-0.0039 in )
- Laser Type Quad Lasers, 4×500W, Single Laser, 1×1000W
- Scanner F theta lenses or dynamic focusing system
- Inert Gas Protection Argon/Nitrogen
- Average Inert Gas Consumption in Process 8 - 10 L / min
- Scanning Speed Max. 15.2 m/s ( 49.9 ft/s )
- Operating system 64 bit Windows 10
- Software BuildStar, MakeStar®
- Data File Format STL
- Key Software Features Open machine key parameters, real-time build parameter modification, three-dimensional visualization, diagnostic functions
- Power Supply EUR/China: 400V±10%, 3~/N/PE, 50Hz, 40A US: transformer sold with machine
- Operating Ambient Temperature 22-28°C (71.6-82.4℉)
- Material 316L, AlSi10Mg, HAYNES 230, HX, IN625, IN718, TA15, Ti6Al4V
- Technology Metal LPBF
- Printing Materials Metal Powders
