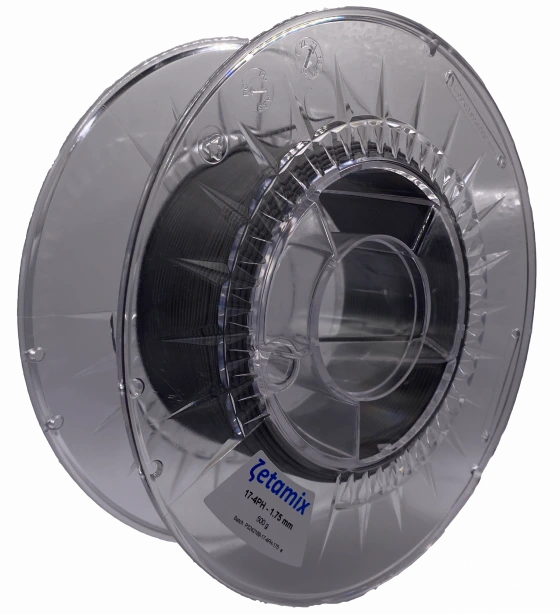

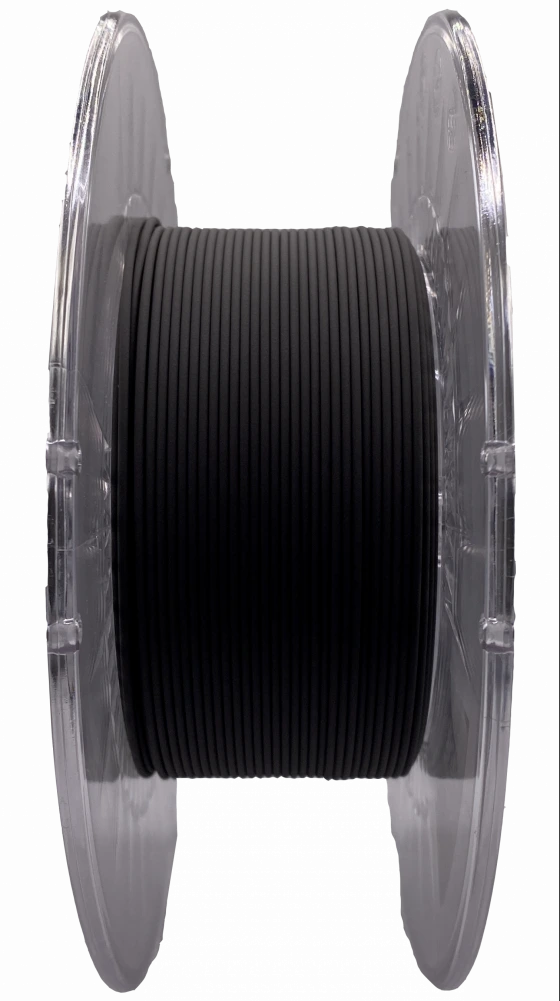

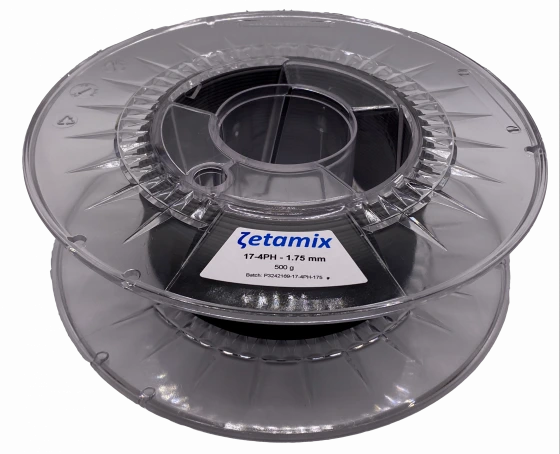

Zetamix 17-4PH Stainless Steel Filament 1,75mm
$390
17-4PH stainless steel filament: Print FDM parts → sinter into high-strength, corrosion-resistant components for demanding industrial applications.
-
Compatible platform:
FFF
-
Type:
Metal Filaments
-
Categories:
Materials, Composite Tooling, Engineering, FFF(FDM), Filaments, Jigs&Fixtures, Manufacturing, Metal Filament
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
Zetamix 17-4PH Stainless Steel Filament enables direct production of precipitation hardening steel components using standard FDM 3D printers. Create parts with exceptional mechanical properties—high tensile strength, superior hardness, and excellent corrosion resistance—for the most demanding aerospace, marine, and industrial applications without traditional manufacturing constraints.
Why Tooling Engineers & Manufacturers Choose Zetamix H13
Exceptional Mechanical Properties
High tensile strength and hardness after sintering and heat treatment
Precipitation hardening capability for tailored mechanical properties
Superior corrosion resistance compared to standard stainless steels
92% metal content by mass for authentic material performance
Corrosion & Wear Resistance
Excellent resistance to corrosive environments including marine applications
Maintains mechanical properties in high-stress, corrosive conditions
Ideal for valves, pumps, shafts, and marine components
Withstands harsh chemical exposure better than 316L stainless
Precision Manufacturing Workflow
Predictable shrinkage: 15.4% (X/Y) & 14.7% (Z) for accurate scaling
Compatible with Zetasinter furnace for repeatable results
Design freedom for complex geometries impossible with machining
Batch-specific technical data for consistent outcomes
Material Properties After Sintering
Density: >90% of theoretical density
Tensile Strength: Comparable to wrought 17-4PH (with heat treatment)
Corrosion Resistance: Excellent for marine and chemical environments
Hardness: Can be precipitation hardened to HRC 40+ with proper heat treatment
Your Path to Advanced Tool Manufacturing
1. Design for Strength & Function
Scale models by 118.2% (X/Y) and 117.2% (Z) for sintering shrinkage
Minimum wall thickness: 1mm | Minimum feature size: 1.5mm
Maximum overhang: 35° unsupported
Optimize for anisotropic properties – layer orientation affects strength
2. Precision Printing Protocol
Use grooved drive gears to prevent filament grinding
Print on flexible build plates for easy removal
3 wall layers minimum with 20-100% infill density
100% fan speed from second layer for optimal surface quality
3. Controlled Debinding & Sintering
Chemical Debinding: 24h acetone bath at 40°C (>4% mass loss)
Thermal Debinding: 10°C/h ramp from 50°C to 650°C in Ar/H₂
Sintering: 50°C/h to 1350°C with 2h hold in controlled atmosphere
Atmosphere Control: 0.5 LPM flow at 0.2 bar pressure
FAQs
What makes 17-4PH different from other stainless steels?
17-4PH is a precipitation hardening steel that can be heat treated to achieve high strength (up to 1100 MPa) and hardness (HRC 40+) while maintaining excellent corrosion resistance—making it ideal for high-stress applications.
Can I achieve full precipitation hardening properties?
After sintering, additional heat treatment (aging at 480-620°C) can be applied to achieve the full precipitation hardening effect and maximum mechanical properties.
What applications is 17-4PH best suited for?
Aerospace components, marine hardware, chemical processing equipment, high-strength fasteners, pump shafts, valves, and any application requiring the combination of high strength and corrosion resistance.
How does the corrosion resistance compare to 316L?
17-4PH offers superior strength and hardness while maintaining excellent corrosion resistance, though 316L may have slightly better resistance to certain corrosive environments. 17-4PH is preferred where both strength and corrosion resistance are critical.
What safety precautions are necessary?
Use in well-ventilated areas, wear FFP2 masks and safety glasses. The raw powder form is hazardous, but the filament is not classified as dangerous when handled properly.
What design limitations should I consider?
Similar to other Zetamix metals: maximum printed size ~200mm, minimum wall: 1mm, minimum feature: 1.5mm. Follow design guide recommendations for successful sintering.
How long does the complete process take?
Printing varies by model. Chemical debinding takes 24h + 2h drying, thermal debinding ~60h, and sintering ~28h including ramp times and holding.
Can I create food-safe or medical components?
The sintered 17-4PH has excellent corrosion resistance and can be used in food processing applications. For medical implants, additional certification and testing would be required.
What post-processing options are available?
Sintered parts can be machined, polished, and most importantly, precipitation hardened through heat treatment to achieve specific mechanical properties.
What's the shelf life and storage requirements?
One-year shelf life when stored in original vacuum-sealed packaging in cool, dry conditions.
- Brand Zetamix by Nanoe
- Printing Materials Metal Filaments
- Technology FFF
- Other designation X40CrMoV5-1
- Sintering type Solid State Sintering
- Printing temperature 120°C – 130°C
- Sintering Temperature 1350°C, under hydrogenated argon
- Shrinkage x,y = 15.4% ±1% / z = 14.7% ±1%
- Density >90 %
- Specific Gravity [g.cm-3 ] 5.2
- MFR [g/10min] (@120°C, 2.5kg, half die) 24
- MVR [cm3/10(min)] 5
- Moisture Absorption , 7 days [%] <0,3%
