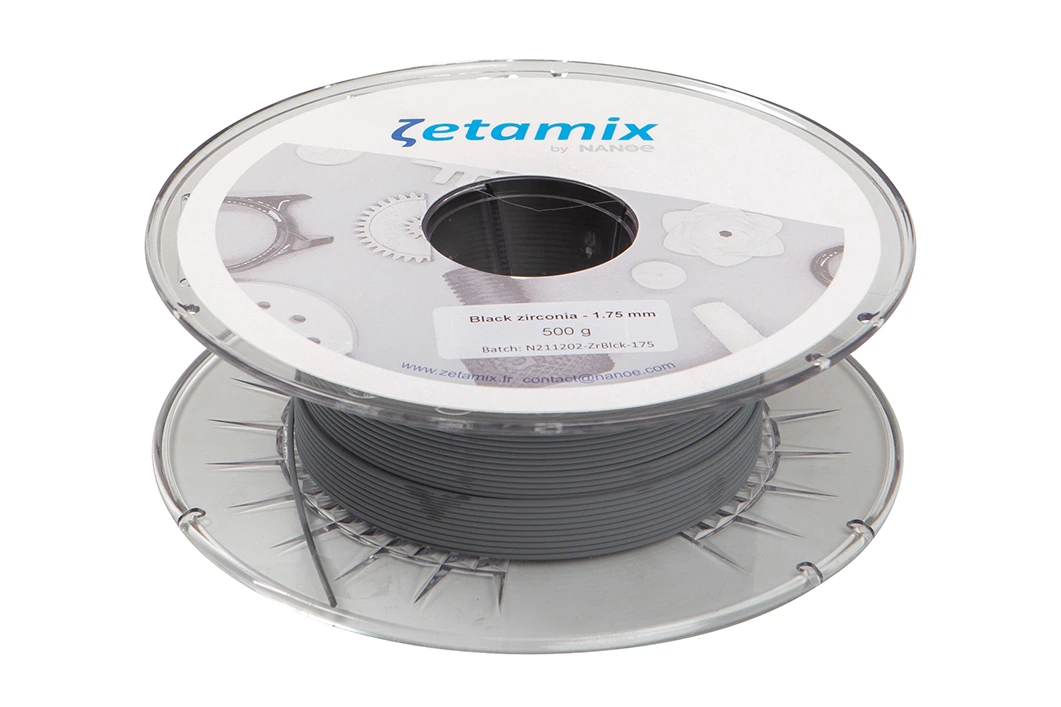

Zetamix Black Zirconia Filament 1,75mm
$535
Black zirconia filament: Print FDM ceramic parts → sinter into high-strength black components with luxury finishes for premium applications.
-
Compatible platform:
FFF
-
Type:
Ceramic Filaments
-
Categories:
Materials, Ceramic Filament, Composite Tooling, Engineering, FFF(FDM), Filaments, Jigs&Fixtures, Manufacturing
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
Zetamix Black Zirconia Filament enables direct production of advanced black ceramic components using standard FDM 3D printers. Create parts with outstanding mechanical strength, deep black aesthetics, and premium surface finishes—ideal for luxury goods, high-wear tooling, and demanding applications requiring both sophisticated appearance and exceptional performance.
Why Engineers & Manufacturers Choose Zetamix Alumina
Premium Black Aesthetics
Deep, consistent black color after sintering
Can be finished with matte, brushed, or high-polish mirror surfaces
Ideal for luxury consumer goods and high-visibility components
Maintains color integrity through finishing processes
Exceptional Mechanical Properties
Outstanding bending strength: 400-1000 MPa
High hardness: 19 GPa
98-99% density after sintering for maximum durability
Excellent impact and wear resistance
Versatile Application Range
Luxury goods and premium consumer products
High-wear tooling and manufacturing fixtures
Technical components requiring strength and aesthetics
Architectural and design elements
Material Properties After Sintering
Density: 98-99% of theoretical density
Bending Strength: 400-1000 MPa
Hardness: 19 GPa
Color: Deep black, consistent throughout
Your Path to Premium Black Ceramic Parts
1. Design for Ceramic Manufacturing
Scale models by 127.4% (X/Y/Z) for sintering shrinkage
Minimum part size: 6mm cube | Minimum wall: 1mm
Minimum pin diameter: 2.3mm | Minimum hole: 0.6mm (vertical)
Maximum overhang: 40° unsupported, 15° for ceilings
2. Precision Printing Protocol
Use grooved drive gears to prevent filament grinding
Print on flexible build plates for easy removal
100% fan speed for optimal surface quality
1mm retraction at 20 mm/s recommended
Minimum 2 wall layers with 5-100% infill density
3. Controlled Debinding & Sintering
Chemical Debinding: 6h acetone bath at 40°C (>5% mass loss)
Thermal Debinding: 8°C/h ramp to 500°C (≈2.5 days) or accelerated cycle available
Sintering: 50°C/h to 1475°C with 2h hold in air atmosphere
FAQs
What makes black zirconia different from white zirconia?ics?
Black zirconia contains cobalt iron oxide pigment that provides the deep black color while maintaining the same exceptional mechanical properties as white zirconia—perfect for applications where black aesthetics are required.
What finishing options are available for black zirconia?
Black zirconia can be finished as-sintered (matte black), brushed for satin finish, or polished to high gloss. The black color remains consistent through all finishing processes.
What applications is black zirconia best suited for?
Luxury watch components, black consumer electronics, high-end jewelry, architectural details, premium kitchenware, and any application requiring both black aesthetics and ceramic performance.
How does the strength compare to other ceramics?
Black zirconia offers exceptional bending strength (400-1000 MPa) and hardness (19 GPa), making it significantly stronger than most technical ceramics and ideal for functional, high-wear applications.
Does the black color affect the material properties?
No, the black pigment is integrated during manufacturing and does not compromise the exceptional mechanical properties of the zirconia matrix.
What design limitations should I consider?
Similar to white zirconia: maximum printed size determined by furnace, minimum wall: 1mm, minimum feature: 0.6mm. Follow the same design guidelines as white zirconia.
Can I achieve different shades of black?
The material produces a consistent deep black. Different surface finishes (matte, brushed, polished) will affect the appearance but not the base color.
How long does the complete process take?
Printing varies by model. Chemical debinding takes 6h + 2h drying, thermal debinding ≈60h (or 23h accelerated), and sintering ≈29h including ramp times and holding.
What safety precautions are necessary?
tandard ceramic filament handling—use in well-ventilated areas, wear FFP2 masks during printing and handling. The sintered black zirconia is safe for handling.
What's the shelf life of the filament?
One year when stored in original vacuum-sealed packaging in cool, dry conditions.
- Brand Zetamix by Nanoe
- Printing Materials Ceramic Filaments
- Technology FFF
- Chemical symbol ZrO2 ∙ Y2O3
- Sintering type Solid State Sintering
- Printing temperature 180°C
- Sintering Temperature 1475°C under air
- Shrinkage 21.5% ±1% (x y and z)
- Density 98-99%
- Specific Gravity [g.cm-3 ] 3.5
- Melt Flow Rate [g/10(min)] 14
- Melt Volume Rate [cm3 /10(min)] 50
- Moisture Absorption 24 hours [%] <0,1%
- Moisture Absorption , 7 days [%] <0,3%
- Shore D 45
