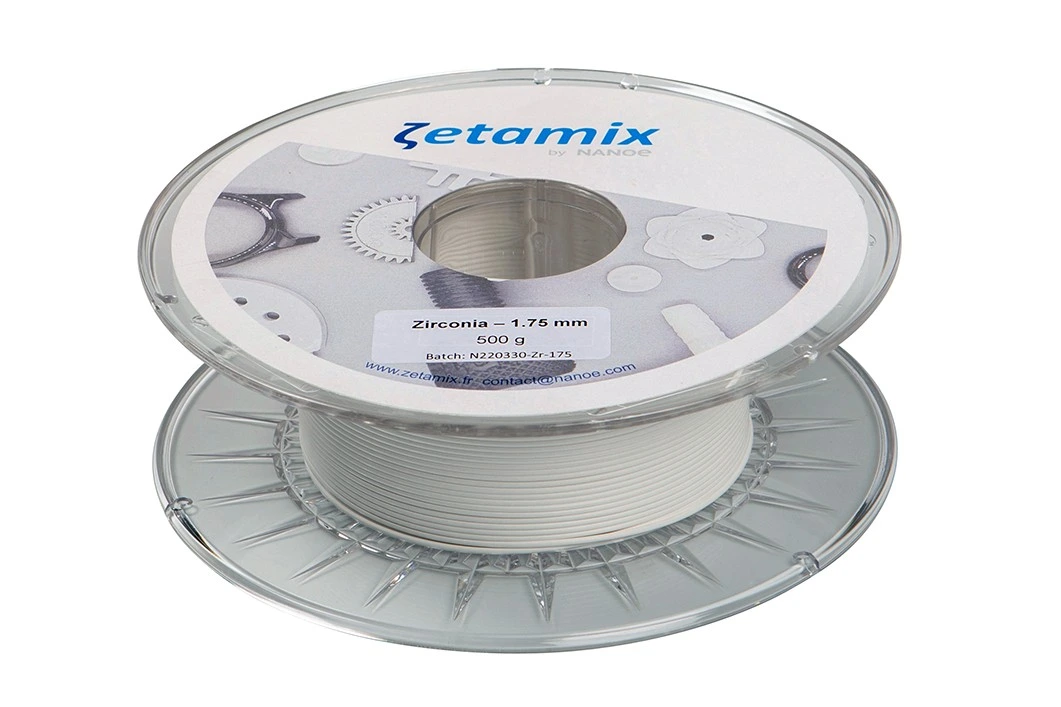

Zetamix White Zirconia Filament 1,75mm
$460
White zirconia filament: Print FDM ceramic parts → sinter into high-strength components with luxury finishes for tooling & premium goods.
-
Compatible platform:
FFF
-
Type:
Ceramic Filaments
-
Categories:
Materials, Ceramic Filament, Composite Tooling, Engineering, FFF(FDM), Filaments, Jigs&Fixtures, Manufacturing
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
Zetamix White Zirconia Filament enables direct production of advanced ceramic components using standard FDM 3D printers. Create parts with exceptional mechanical strength, stunning surface finishes, and premium aesthetics—perfect for luxury goods, high-wear tooling, and demanding technical applications that require both beauty and performance.
Why Engineers & Manufacturers Choose Zetamix Alumina
Exceptional Mechanical Performance
Outstanding bending strength: 400-1000 MPa
High hardness: 10 GPa (Hv10)
98-99% density after sintering for maximum strength
Excellent shock and impact resistance
Premium Aesthetic Versatility
Beautiful white matte finish after sintering
Can be polished to mirror-like gloss
Brushed, satin, or high-polish finishes possible
Ideal for luxury goods and high-visibility applications
Diverse Application Range
Internal tooling and manufacturing fixtures
Luxury product prototypes and final parts
Technical ceramics requiring high strength
Consumer goods with premium aesthetics
Material Properties After Sintering
Density: 98-99% of theoretical density
Bending Strength: 400-1000 MPa
Hardness: 10 GPa (Hv10)
Dielectric Constant: 32 (±0.5) at 9.4 GHz
Loss Tangent: ≈1×10⁻³
Your Path to Premium Ceramic Parts
1. Design for Ceramic Manufacturing
Scale models by 127.4% (X/Y/Z) for sintering shrinkage
Minimum part size: 6mm cube | Minimum wall: 1mm
Minimum pin diameter: 2.3mm | Minimum hole: 0.6mm (vertical)
Maximum overhang: 40° unsupported, 15° for ceilings
2. Precision Printing Protocol
Use grooved drive gears to prevent filament grinding
Print on flexible build plates for easy removal
100% fan speed for optimal surface quality
1mm retraction at 20 mm/s recommended
Minimum 2 wall layers with 5-100% infill density
3. Controlled Debinding & Sintering
Chemical Debinding: 6h acetone bath at 40°C (>5% mass loss)
Thermal Debinding: 8°C/h ramp to 500°C (≈2.5 days) or accelerated cycle available
Sintering: 50°C/h to 1475°C with 2h hold in air atmosphere
FAQs
What makes zirconia superior to other ceramics for strength applications?
Zirconia offers exceptional bending strength (400-1000 MPa) and fracture toughness, making it significantly more impact-resistant than alumina or other technical ceramics—ideal for functional parts and tooling.
What finishing options are available for sintered zirconia parts?
Zirconia can be finished as-matted (natural white finish), brushed, polished to satin, or mirror-polished to high gloss, making it perfect for luxury goods and high-end consumer products.
What applications is white zirconia best suited for?
Luxury watch components, jewelry, high-end consumer goods, dental and medical prototypes, wear-resistant tooling, and any application requiring both aesthetic appeal and mechanical performance.
How does the strength compare to traditional manufacturing methods?
Sintered parts achieve 98-99% density with mechanical properties comparable to zirconia produced by traditional ceramic manufacturing methods.
What design limitations should I consider?
Maximum printed size determined by furnace dimensions, minimum wall: 1mm, minimum feature: 0.6mm. Avoid sharp corners and maintain uniform wall thicknesses where possible.
Can I create complex geometries with fine details?
Yes! The 0.6mm minimum feature size allows for intricate details, text, and complex geometries impossible with traditional ceramic manufacturing.
How long does the complete process take?
Printing varies by model. Chemical debinding takes 6h + 2h drying, thermal debinding ≈60h (or 23h accelerated), and sintering ≈29h including ramp times and holding.
What safety precautions are necessary?
Standard ceramic filament handling—use in well-ventilated areas, wear FFP2 masks during printing and handling. The sintered zirconia is biologically inert.
What's the shelf life of the filament?
One year when stored in original vacuum-sealed packaging in cool, dry conditions.
Can I achieve different surface finishes without post-processing?
The as-sintered surface has a pleasant matte white finish. For glossy or brushed finishes, mechanical polishing or blasting is required after sintering.
- Brand Zetamix by Nanoe
- Printing Materials Ceramic Filaments
- Technology FFF
- Chemical symbol ZrO2 ∙ Y2O3
- Sintering type Solid State Sintering
- Printing temperature 180°C
- Sintering Temperature 1475°C under air
- Shrinkage 21.5% ±1% (x y and z)
- Density 98-99%
- Specific Gravity [g.cm-3 ] 3.5
- Melt Flow Rate [g/10(min)] 14
- Melt Volume Rate [cm3 /10(min)] 50
- Moisture Absorption 24 hours [%] <0,1%
- Moisture Absorption , 7 days [%] <0,3%
- Shore D 45
