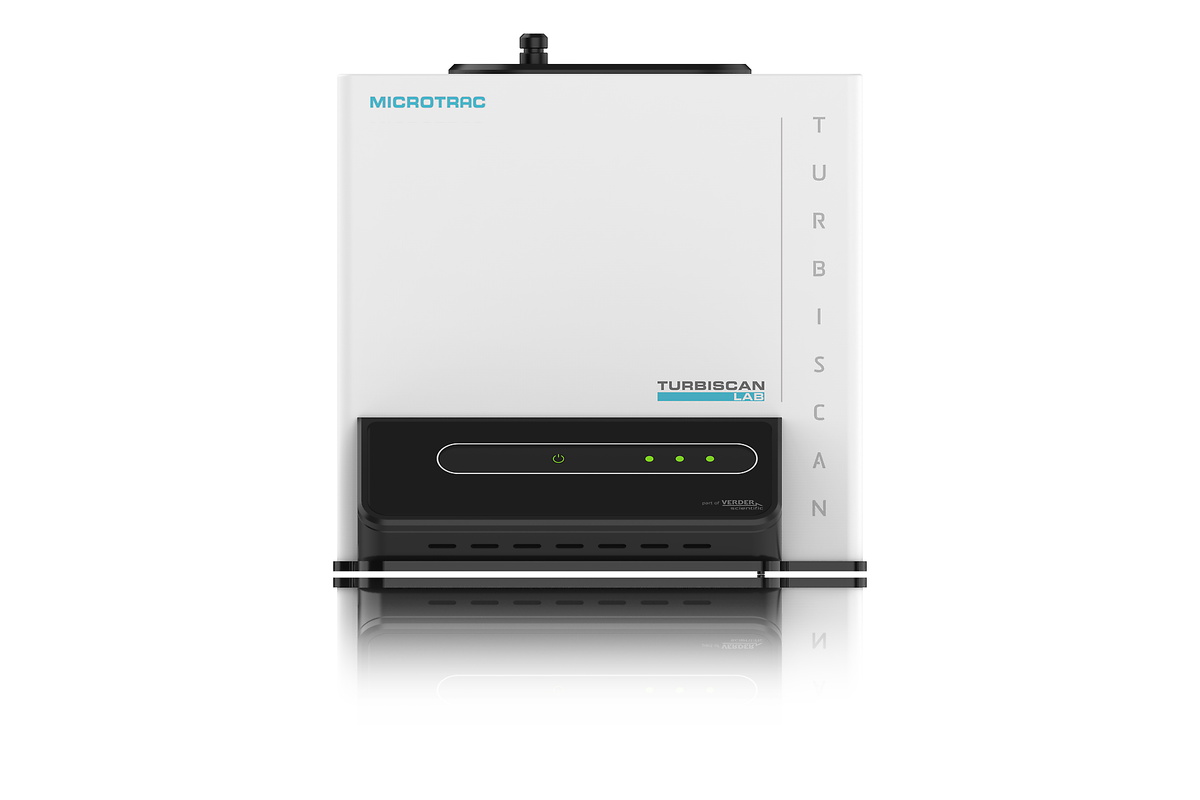

pic-turbiscan-lab-front

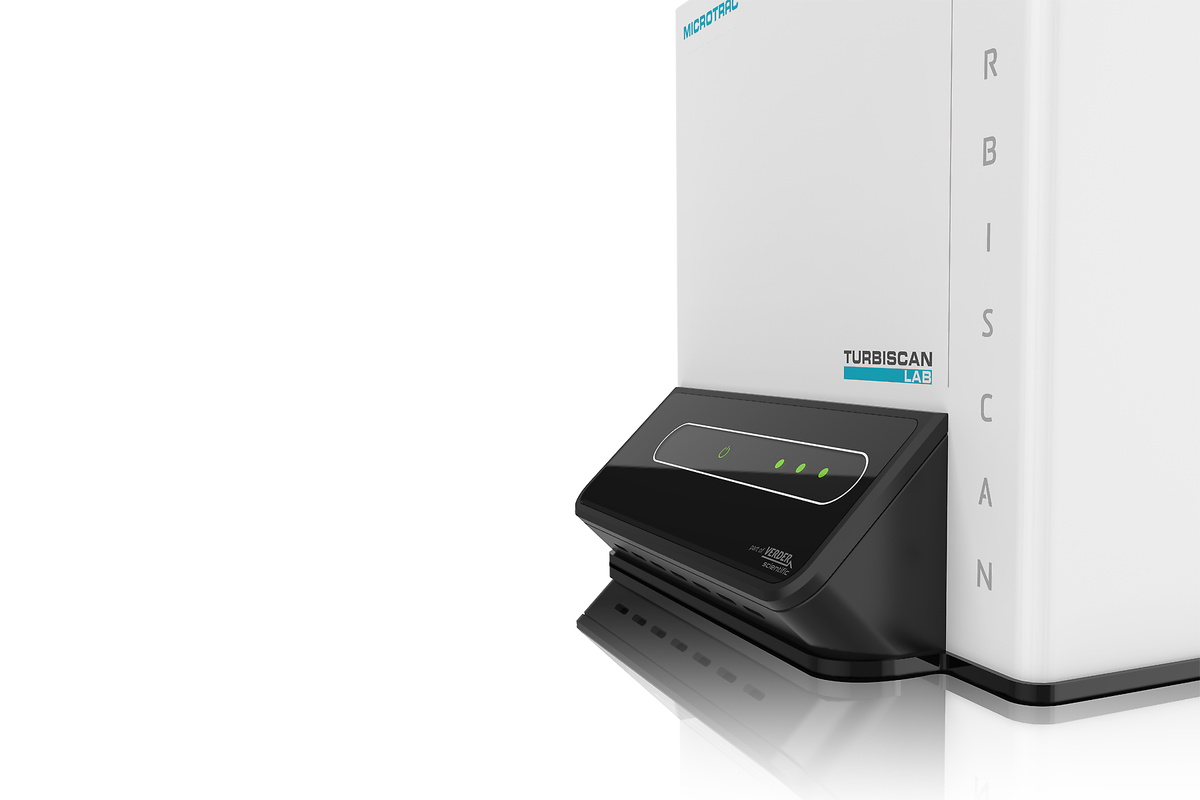

pic-turbiscan-lab-close-up

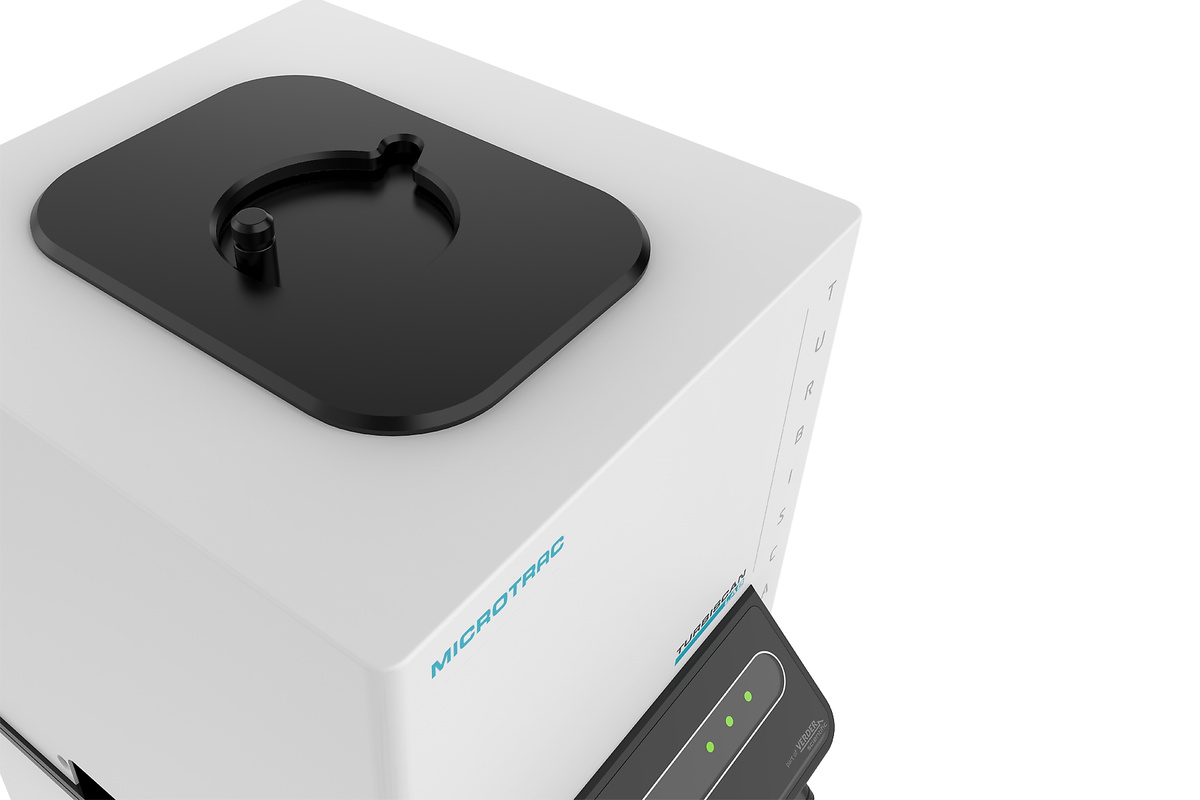

pic-turbiscan-lab-close-up-2

STABILITY ANALYZER TURBISCAN LAB

The world reference stability analyzer TURBISCAN LAB enables fast and sensitive identification

  • Brand:

    Microtrac

Request a quote
  • Description
  • Details
  • Materials
  • Documents
  • Videos
  • Review

Description

THE WORLD LEADER IN STABILITY ANALYSIS

• Static Multiple Light Scattering (SMLS) technology
• 1 measurement position
• Temperature range from room temperature (RT) up to 60°C, to observe destabilizations in real usage and storage conditions
• Accelerated destabilization detection – up to 1,000 x faster than visual observation
• Real stability: sample stability analysis without the need for dilution or mechanical stress, in concentrations up to 95%
• Quantitative measurements of dispersion stability and shelf-life, migration velocity, particle size diameter, and other parameters
• One-click stability ranking with the Turbiscan Stability Index
• Barcode reader for easy sample management
• Convenient: Plug & Play, free license software on multiple computers, limited footprint …

TYPICAL APPLICATIONS

Whenever you are working with suspensions, emulsions, colloids, or foam, the TURBISCAN is your ideal characterization companion. The TURBISCAN series is used in various industries such as pharmaceuticals, cosmetics, food and beverage, paints and coatings, oil and gas, batteries, agrochemicals, chemistry, and much more.



llfeaturessand-1
llfeaturespharmceuticals-1
llfeaturessugar-1

emulsions

•  Cosmetic creams and lotions
•  Dairy products and beverages, flavor emulsions
•  Pharmaceutical parenteral and topical forms
•  Metalworking fluids
•  Agrochemical: fertilizers, pesticides, …
•  Petroleum emulsion

suspensions

•  Paints, inks, and coatings
•  Drug & and vaccine suspension
•  Make-up and sunscreen
•  Chemical & polymer industry
•  Ceramics and catalysts
•  Battery slurries
•  Electronic slurries

APPLICATION EXAMPLES

colloids & nanoparticles

•  Drug delivery system: LNP, Liposomes, …
•  Research on nanoparticles and nanoparticle suspension
•  Polymer and biopolymer dispersion

… and many more!

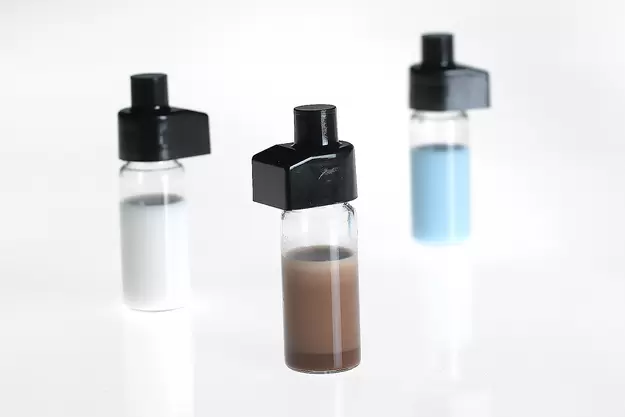

Fast Detection of Settling Particles

SEDIMENTATION

The TURBISCAN technology offers a significantly faster (up to 1,000 times) and more reliable detection of sedimentation compared to visual observation. Furthermore, naked-eye observation makes it difficult to calculate the migration rate and is prone to error and misinterpretation. In contrast, the TURBISCAN technology provides a fast and non-destructive way to detect and quantify sedimentation and particle size over time and can detect even small changes in highly concentrated samples without any dilution or mechanical stress. This makes it ideal for analyzing complex suspensions and formulations, and getting a quicker, reliable, and more accurate answer on sedimentation monitoring.

llproductscamsizer-3dapplicationsextrudateshlsupplement

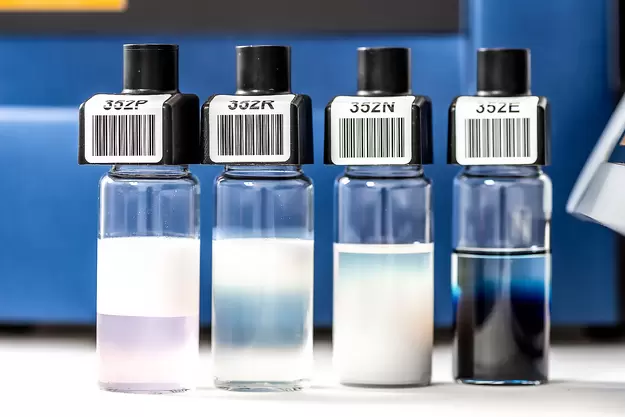

Fast Detection of Droplet Migration

CREAMING OF EMULSIONS

When it comes to measuring droplet migration and creaming behavior in emulsion systems, the TURBISCAN technology has several advantages for formulators. On one hand, it provides a fast measurement (up to 1,000 times faster than visual observation) of native samples and a non-destructive way to detect and measure droplet migration. On the other hand, the migration rate can easily be determined and helps the formulator to compare formulas, making it ideal for analyzing complex emulsions with a wide range of droplet sizes and concentrations. Additionally, the TURBISCAN technology provides insights into the mechanisms driving droplet migration, which can be used to improve formulation and processing conditions. Overall, the use of TURBISCAN technology in emulsion analysis leads to faster, more accurate, and more reliable results compared to traditional methods.

llproductscamsizer-3dapplicationsfertilizerhlsupplement

Fast Detection of Settling Particles

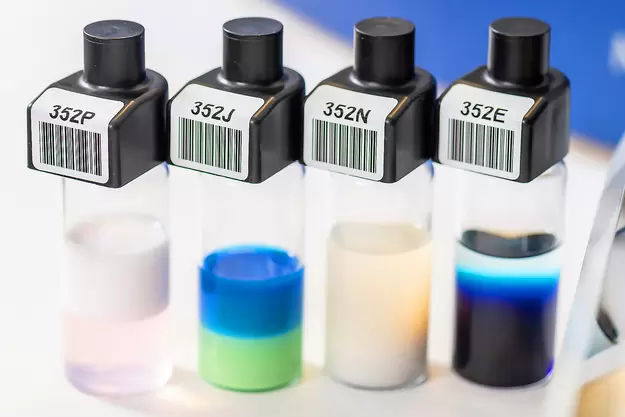

FORMULATION: STABILITY MEASUREMENT AND SHELF-LIFE ESTIMATION

The TURBISCAN has been extensively used to measure the physical stability of formulations and colloidal systems. This technology helps the formulator to save time and precisely rank and quantify the samples’ stability in different trials or batches. It applies to native samples, even on very highly concentrated formulations. Not only saving time, the TURBISCAN also provides destabilization speed and metrics as well as robust analytics to make shelf-life predictions. The TURBISCAN technology follows ISO/TR 13097:2013’s recommendations and is ideal when it comes to quickly and accurately measuring stability. Stop the guesswork and make decisions based on facts!

llproductscamsizer-3dapplicationscoffeehlsupplement

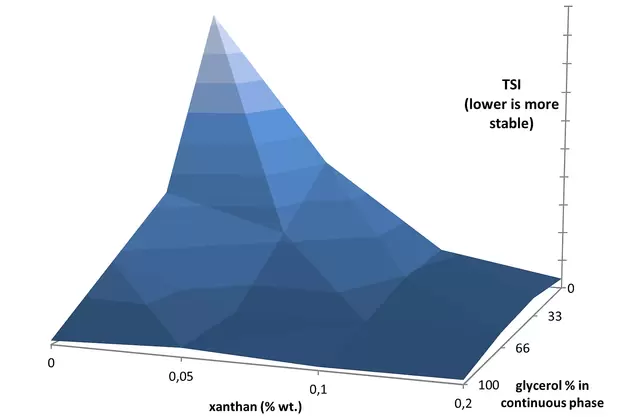

What Can Be Measured Can Also Be Improved

STABILITY MAPPING: EMULSIONS AND SUSPENSIONS

Measuring the stability of emulsions and formulations is traditionally done by visual observations. In addition to being long and tedious, the visual inspection of emulsion destabilization usually ends up with a pass / fail answer. This is suboptimal for fine-tuning the ideal concentration of surfactants or stabilizers to be added to reach the desired shelf-life. The TURBISCAN is a great help in this regard; not only does it save a huge amount of time to detect the destabilization, but it also provides a value based on the instability and ranks different formulas as a function of their shelf-life. It hence produces objective and repeatable data to make a better, greener, and safer product.

llproductscamsizer-3dapplicationssuperabsorbent-polymerscaption

Stable Products for Safer and More Efficient Pharmaceutical Suspensions

VACCINE AND PARENTERAL DISPERSIONS

Stability and shelf-life testing are essential for pharmaceutical products and drugs. Destabilization or instabilities in vaccines, parenteral dispersions, or pharmaceutical products can have a major impact on product efficacy, and in some cases, on patient safety. While many techniques are available, the TURBISCAN offers in-situ, non-dilution, and non-destructive measurements to detect destabilization and save time therein. It provides a clear, precise, and objective stability measurement, essential to making fast and right decisions in R&D or quality control. The TURBISCAN has been intensively used to study the stability and redispersion capability of vaccines, as well as of parenteral and injectable dispersions and providing scientists with a deep insight into the dispersion state and its evolution.

llproductscamsizer-3dapplicationsglass-beadshlsupplement-1

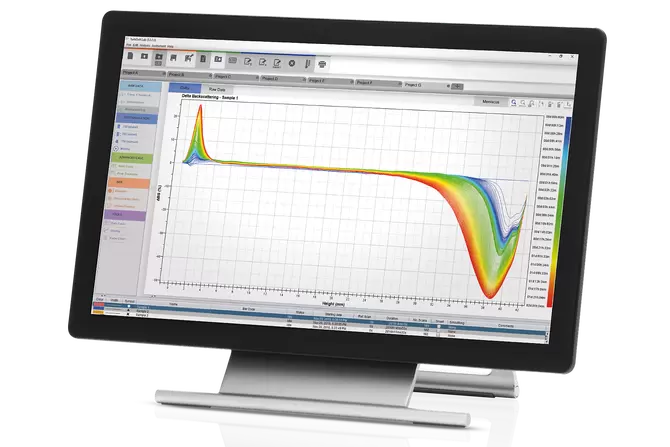

Data acquisition, interpretation, and export are done with TURBISOFT, the dedicated and intuitive software for the TURBISCAN range. TURBISOFT has been developed for and is continuously optimized towards more intuitive and straightforward data analysis, hence saving time and helping users to get the results they need in a few clicks.

• Intuitive and straightforward navigation
•  Fast and robust stability comparison thanks to the TSI algorithm
•  Advanced calculation for deep data analysis: migration rate, mean particle size evolution, phase separation, and more
•  Stay up to date: free license – free software updates
•  Need to use multiple computers? This multi-user software has you covered
•  Data export as easy as copy-paste
•  Video recording of sample destabilization for up to 6 samples
•  Fully guided calibration check-up procedure
•  Multi-language support: English, Spanish, French, Chinese, Japanese, German, and more

pic-turbiscan-series-software-1-1800px
  • Brand Microtrac
  • Acquisition scan step 20 µm
  • Certification CE
  • Dimensions 10.24 x 11.02 x 9.84 in / 260 х 280 х 250 mm
  • Standards ISO/TR 13097:2013, ISO/TR 18811:2018, ISO 13317-3:2001, ISO/TS 22107:2021, ISO/TS 21357:2022
  • Measured size range 10 nm - 1 mm
  • Measuring Principle Static Multiple Light Scattering (SMLS)
  • Number of Samples 1
  • Reproducibility 0.05%
  • Sample concentration 0.0001 - 95%
  • Software Turbisoft - Free license
  • Temperature range RT - 60°C
  • Weight 2 - 20 mL, 8 kg
