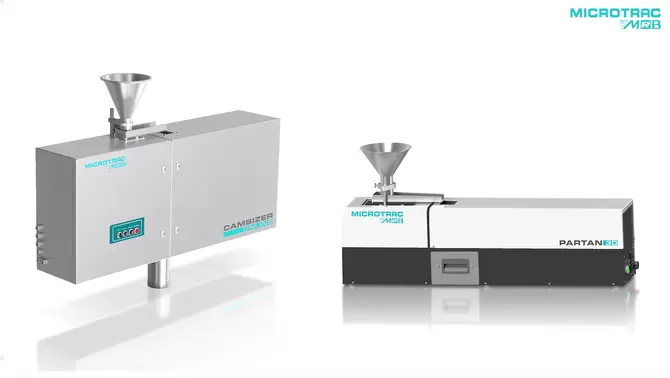

Microtrac CAMSIZER XL Particle Size and Shape Analyzer
The CAMSIZER XL by Microtrac is a large particle size and shape analyzer that can measure particles ranging in size from 160 to 135.000 µm.
-
Brand:
Microtrac
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
The CAMSIZER XL by Microtrac is a large particle size and shape analyzer that can measure particles ranging in size from 160 to 135,000 µm.
Characterizes more than 40 morphological parameters of your material including 3D
Non-contact measurement of dry particles ranging in size from 160 – 135,000 µm
Customizable sample introduction
Analyses 100 images per second with high-speed, high-resolution camera
Enclosed optical system which reduces downtime for maintenance
CAMSIZER XL PARTICLE ANALYZER FEATURES
- By having the ability to measure more than 40 parameters including 15 size, 13 shape / form, 3 surface roughness, density, transparency, and 3D in one analysis, the CAMSIZER XL provides users with superior analysis capability that enables quick and confident decision-making regarding product quality
- Industry leading size range provides the user with greater analysis flexibility to measure a variety of materials
- The high-speed, high-resolution camera ensures multiple, vivid pictures of your material are collected which result in accurate analysis
- Engineered to be able to handle the toughest environments, the CAMSIZER XL is adaptable for any lab setting
- The self-cleaning mechanism allows a user to spend less time cleaning the instrument, and more time being productive
CAMSIZER XL PARTICLE ANALYZER TYPICAL APPLICATIONS
Used in various fields such as: aggregates , building materials, fertilizers, food, geology / mining, glass beads
cement
fertilizers
wood chips
- Brand Microtrac
- Country of origin Germany
- Measurement range 160 µm - 135 mm
- Measurement principle Dynamic Image Analysis (ISO 13322-2 & 9276-6)
- Measuring time ~ 1 - 5 minutes (depending on application)
- Measurement rate > 100 images/s
- Sample amount > 2kg (depending on application)
- Physical specifications Aluminum and stainless steel
- Scale factor (µm/pixel) 160 µm / pixels
- Camera pixel layout 2560 x 2048 pixels, 62 fps at max resolution
- Light source Stroboscopic light
- Electrical 110-230 V / 50-60 Hz
- Power consumption Approx. < 100 Watt
- Dimensions (H x W x D) 15.74×48.38×64.52 in / 400×1229×1693 mm
- Weight approx. 154 lbs / 70 kg
