QCUT 250 M

The Qcut 250 M is an especially user-friendly wet abrasive cutting machine with manual cut-off.

Request a quote
  • Description
  • Details
  • Materials
  • Documents
  • Videos
  • Review

Description

PRODUCT ADVANTAGES

• Manual vertical movement
• Large cutting chamber
• Opening on left- and righthand side for continuous long parts
• Large table with exchangeable wearing plates
• Hood covering complete width for optimal accessibility
• Easy operation
• Large range of different clamping tools and systems available
• Current safety standard with door interlocking system
• Solid aluminium case construction, powder coated

llproductnamea01a01a

FINE DYNAMIC CUT-OFF

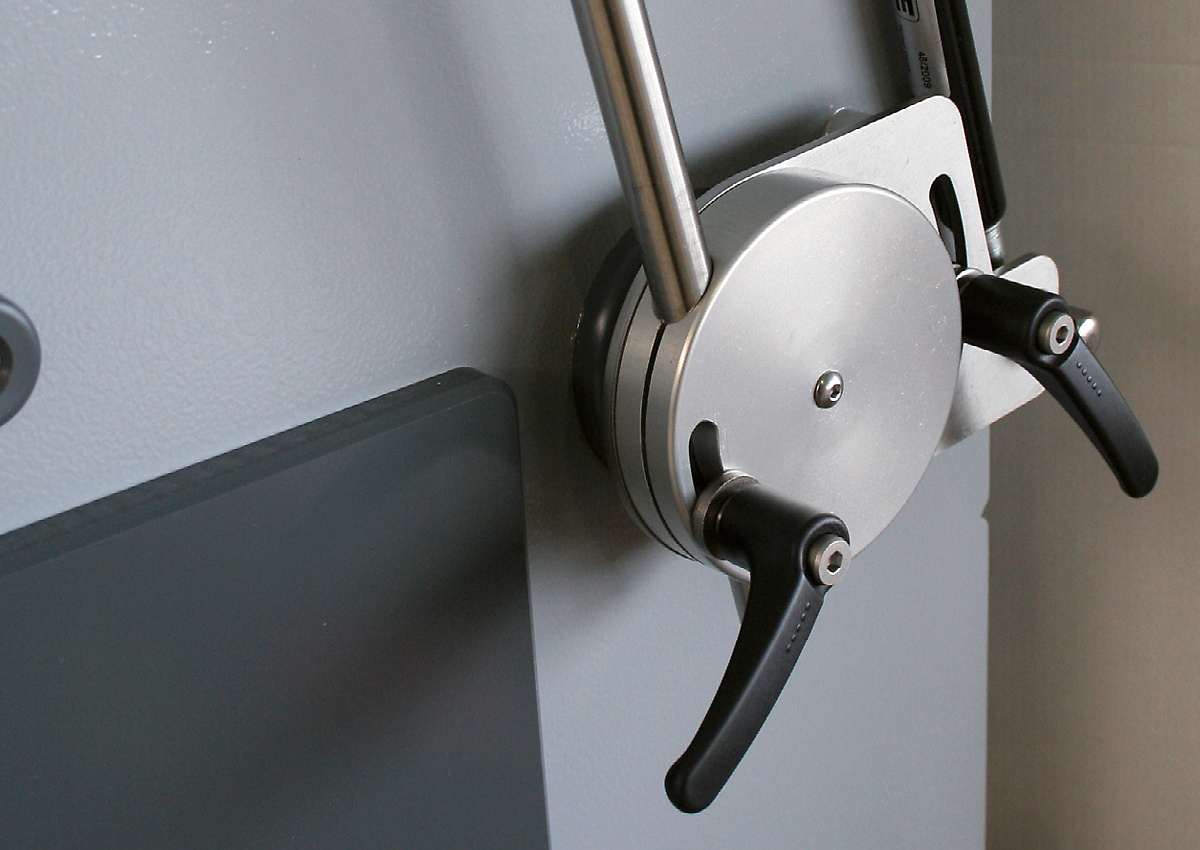

The manual cutting movement of the Y-axis is executed precisely and jerk-free via lever.
Length and angle of the lever are adjustable. Further, the cutting depth can easily be adjusted by using a limiter.

ILLUMINATION
Through the large rounded window,
the cutting chamber is comfortably
visible. For direct lighting, the Qcut 250 M can be equipped with a flexible LED light.

SAFETY
The integrated standstill monitoring allows opening only when the cutting wheel is not rotating.

1200x850px-vorlage-brillant-200-dimensions-1-1
  • Brand QATM
  • Cutting wheel up to ø 250 mm/10"
  • Max. cutting capacity ø 55 mm / ø 90 mm (up to 25 mm length)
  • Wheel flange size ø 32 mm
  • Y-axis (vertical movement) 145 mm
  • Table WxD 350 x 288 mm, stainless
  • T-slot 12 mm
  • Connection power 4.5 kVA
  • Drive power (main drive) 3 kW S6 40%
  • Weight ~ 75 kg

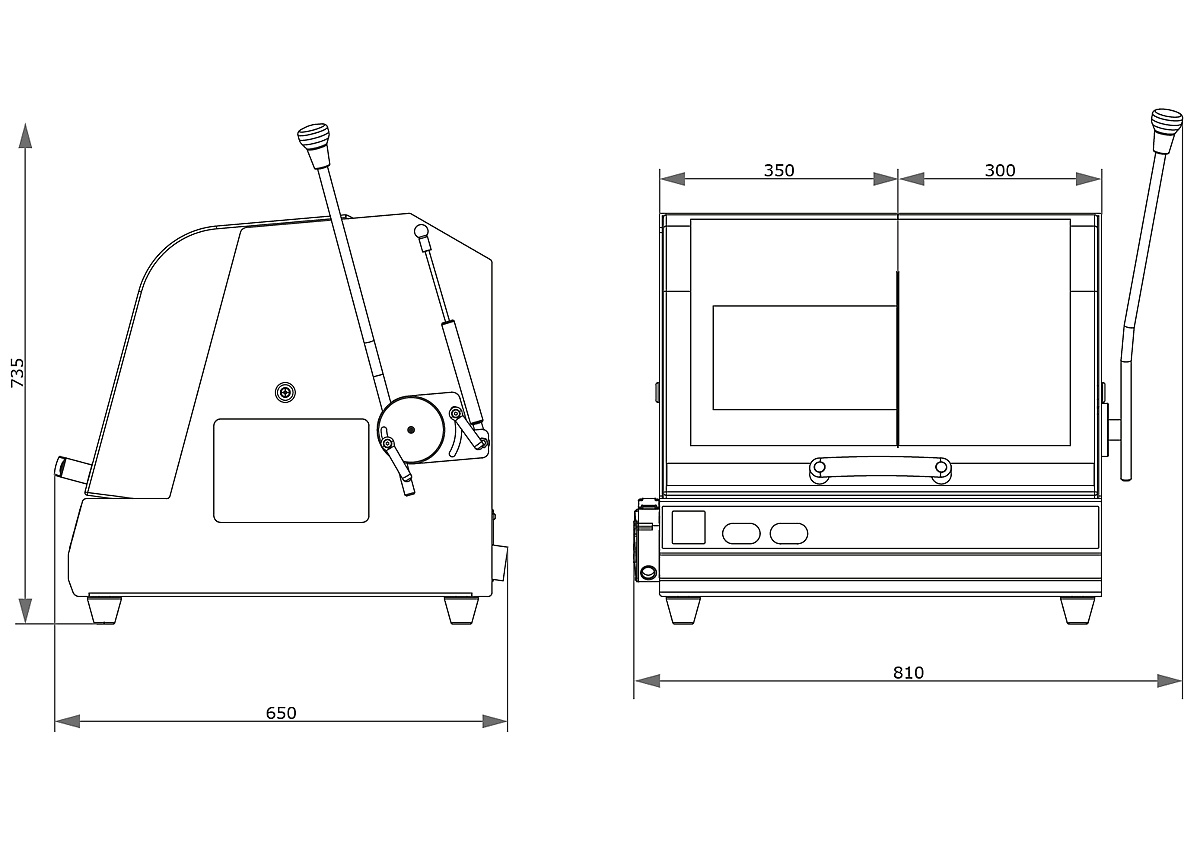

  • W x H x D 810 x 735 x 650 mm / 31.89 x 28.94 x 25.59 in
