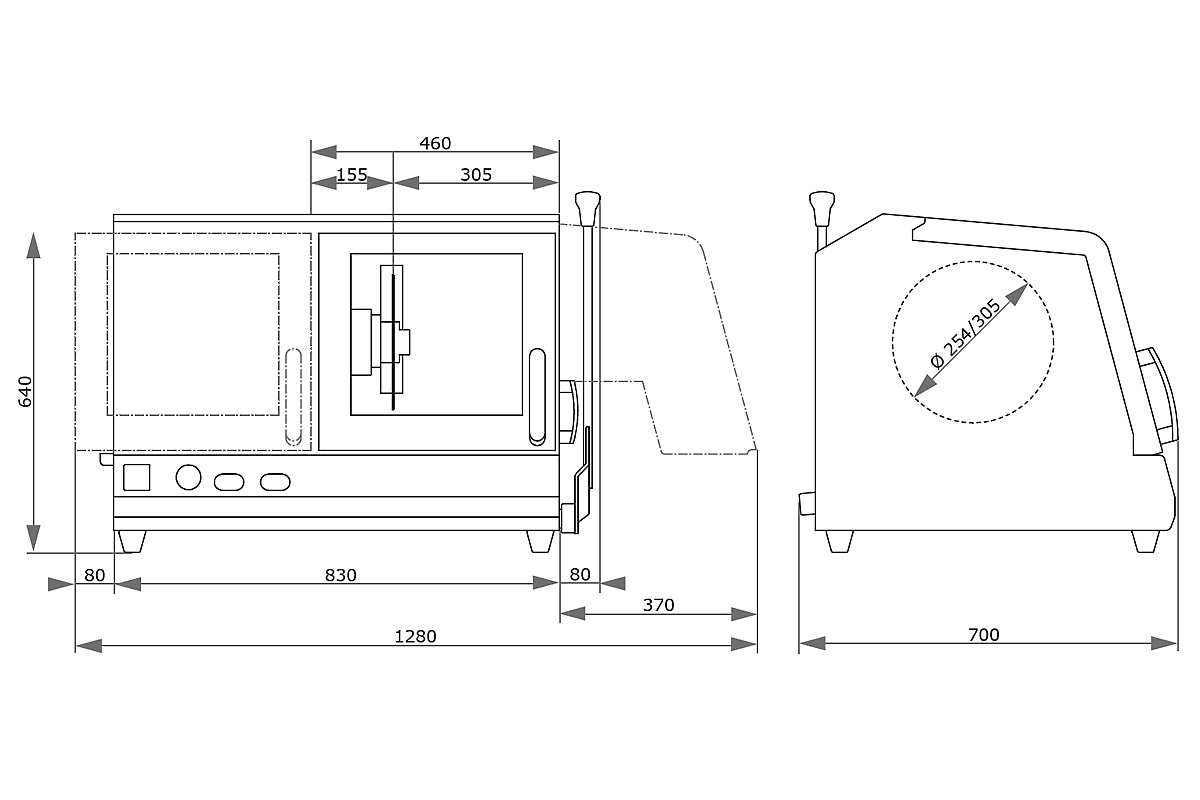

1200x850px-vorlage-brillant-230-dimensions

BRILLANT 230

The BRILLANT 230 is a wet abrasive cut-off machine with fine dynamic, manual wheel movement

Request a quote
  • Description
  • Details
  • Materials
  • Documents
  • Videos
  • Review

Description

PRODUCT ADVANTAGES

• Precise manual vertical movement
• Large cutting chamber
• Opening on left- and righthand side for continuous long materials
• Large table, individually adjustable in x-direction
• Sliding door and side door for superior accessibility
• User friendly
• Safety standard with door interlocking system
• Flange with ceramic protector
• Easy nut
• Cutting chamber illumination with LED flex light
• Large range of different clamping tools and systems available
• Solid aluminium case construction, powder coated

1200x850px-vorlage-brillant-230-3

HORIZONTAL MOVEMENT
The manual horizontal or automatic movement allows
cutting long parts longitudinally and easy positioning of
the sample below the cut-off wheel.
In pulsed cutting mode the sample material is cut
particularly gently.

FINE DYNAMIC CUT-OFF
With the manual cutting movement, the cutting force
is regulated through a set of gears. The cut is thereby
yerk-free and more precise.
The easy-to-use lever brake fixes the cutting disc in
any position.

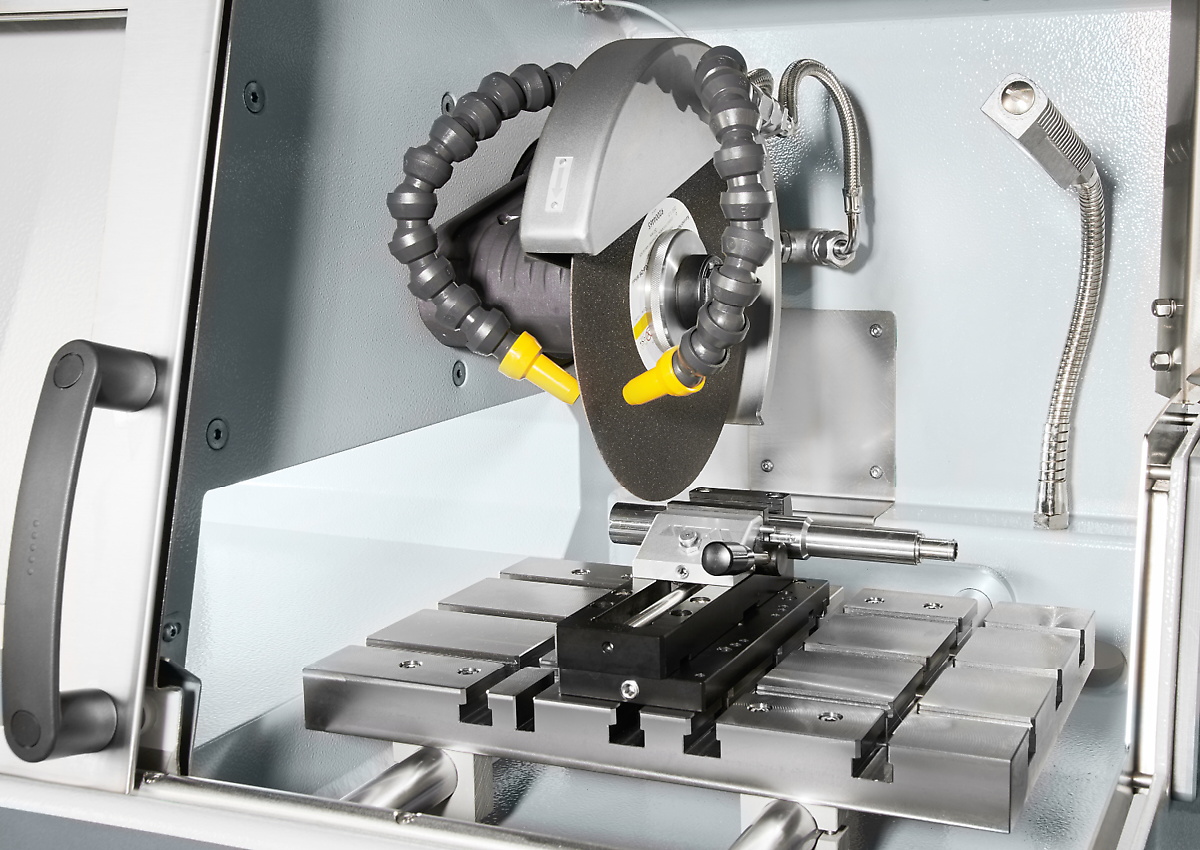

INNOVATIVE DETAILS
The sliding front door and the side door with safety interlock allow easy and optimal access to the cutting chamber, which is optimal illuminated by a LED lamp.
The Quick-Change-System makes change of the cutting wheel quick and easy and simplifies maintenance.

AUTOMATIC CROSS TRAVEL
The automatic Z-axis can be adjusted with 0.1 mm precision for parallel cuts.

1200x850px-vorlage-brillant-200-dimensions-1
  • Brand QATM
  • Cutting wheel up to ø 300 mm/12"
  • Max. cutting capacity ø 110 mm
  • Wheel flange size ø 32 mm
  • Y-axis (vertical movement) 125 mm
  • Table WxD 380 x 250 mm, stainless
  • T-slot 12 mm
  • Connection power 6 kVA
  • Drive power (main drive) 4 kW S1
  • Speed 2750 rpm
  • W x H x D 830 x 640 x 670 mm / 32.68 x 25.2 x 26.38 in
