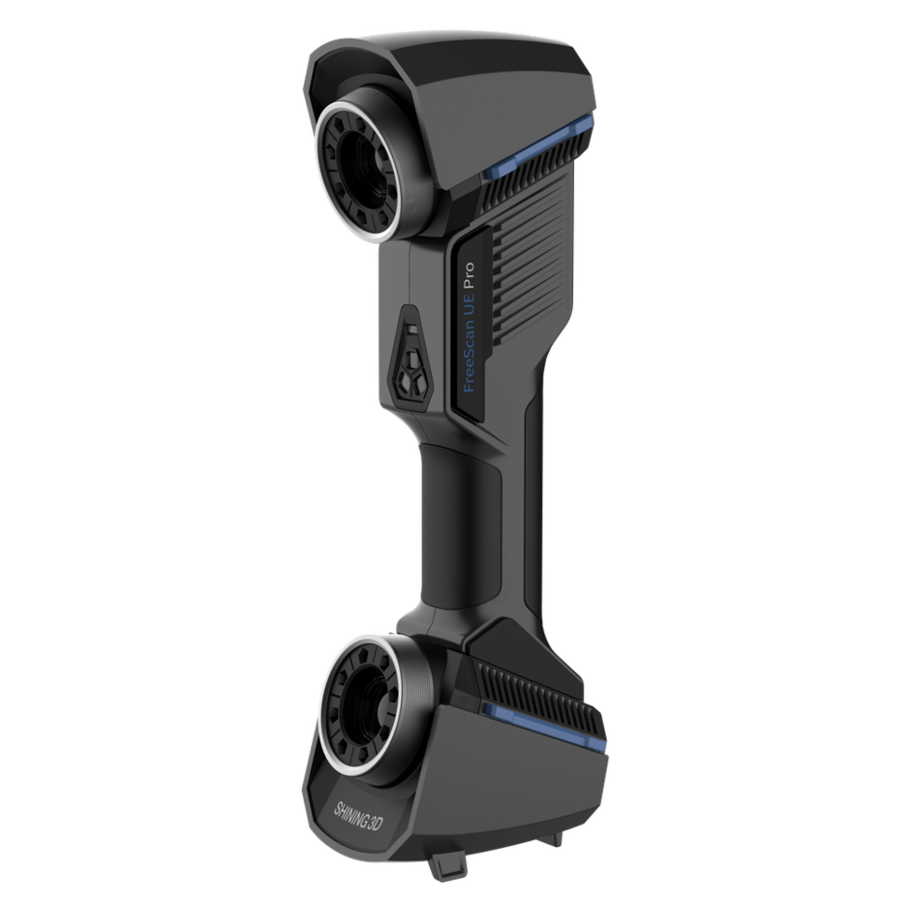

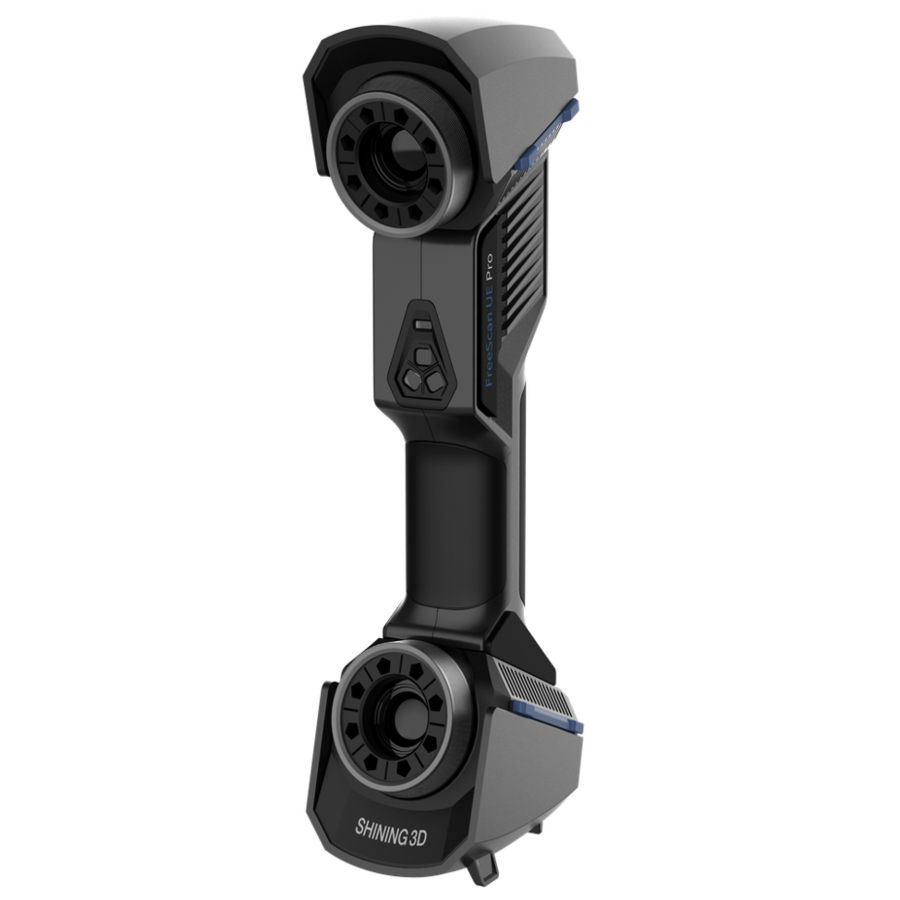

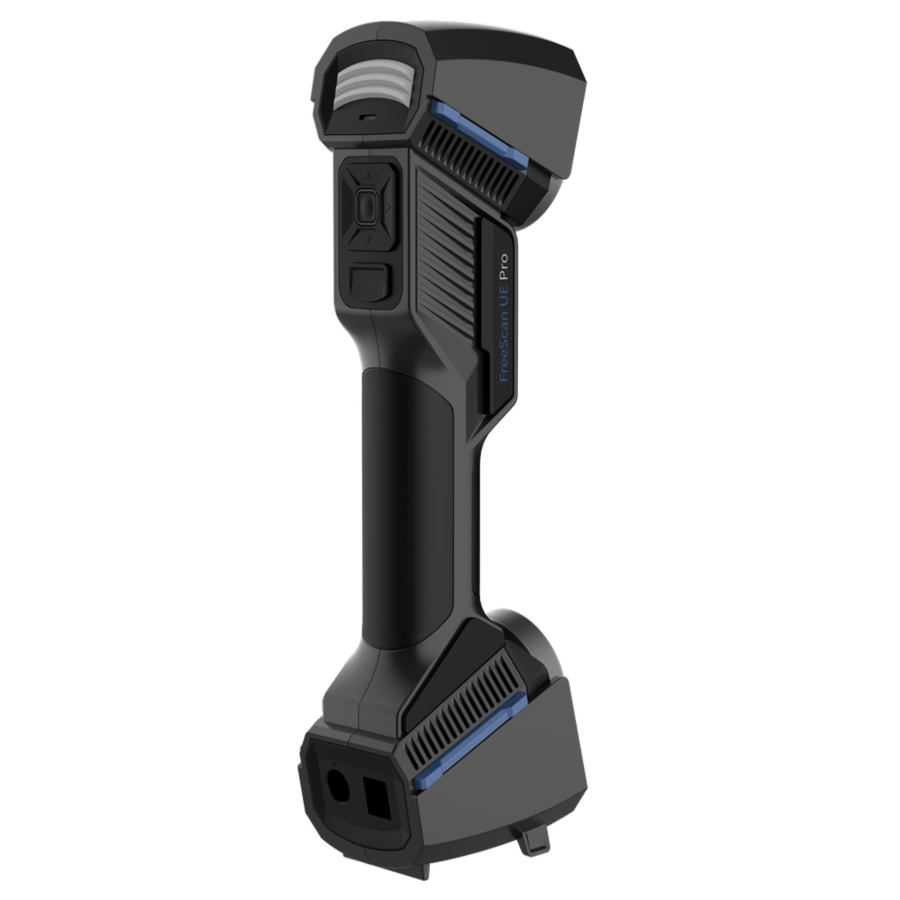

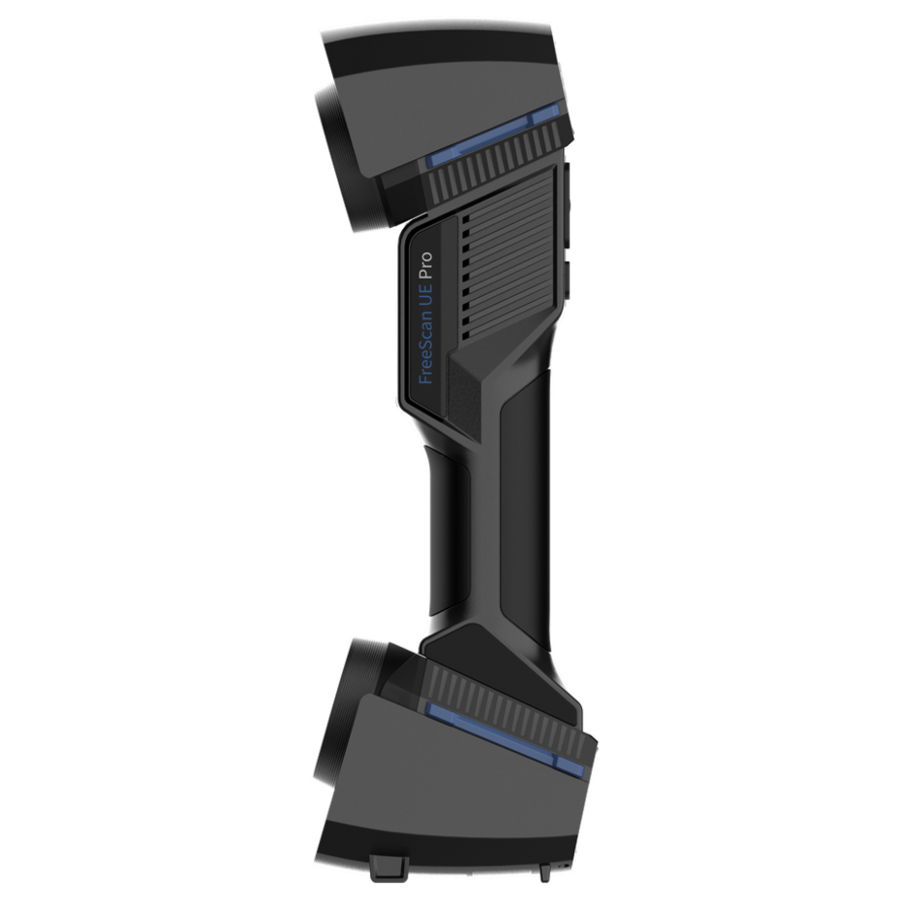

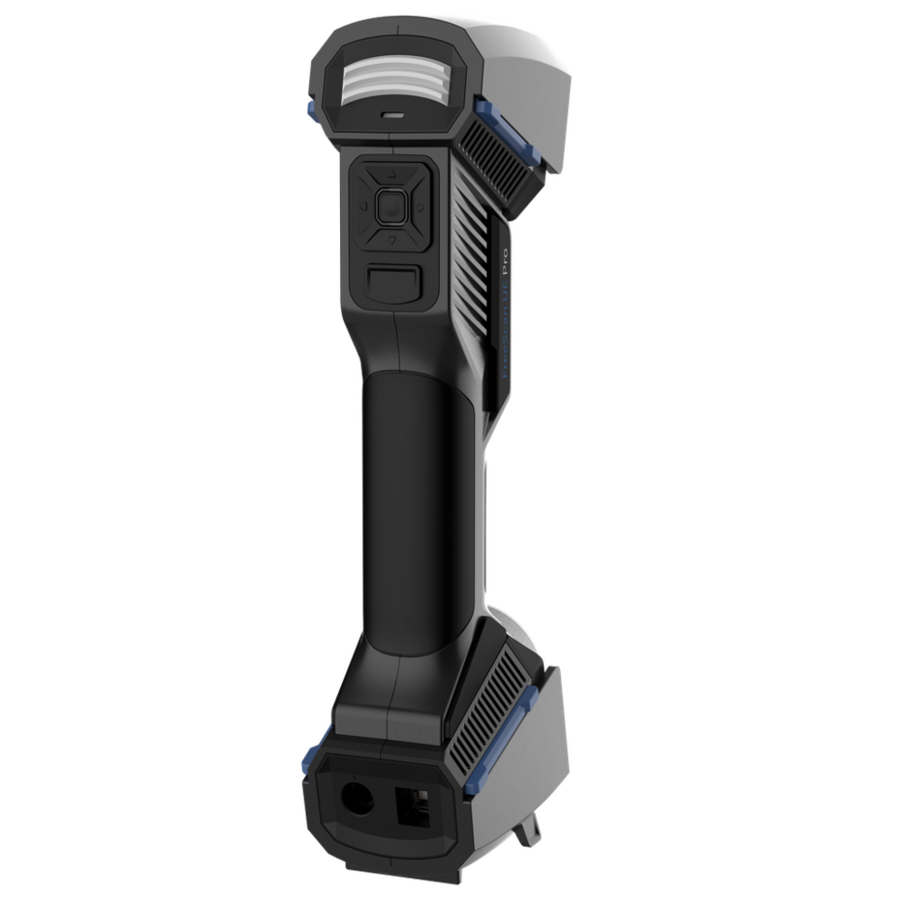

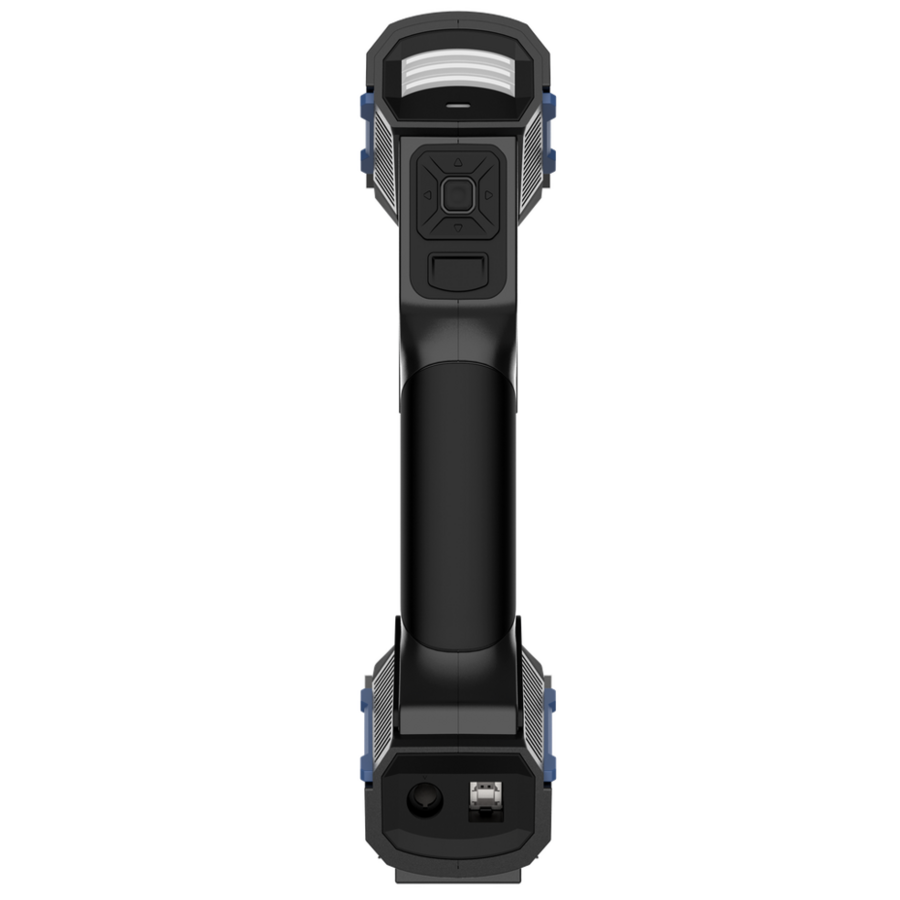

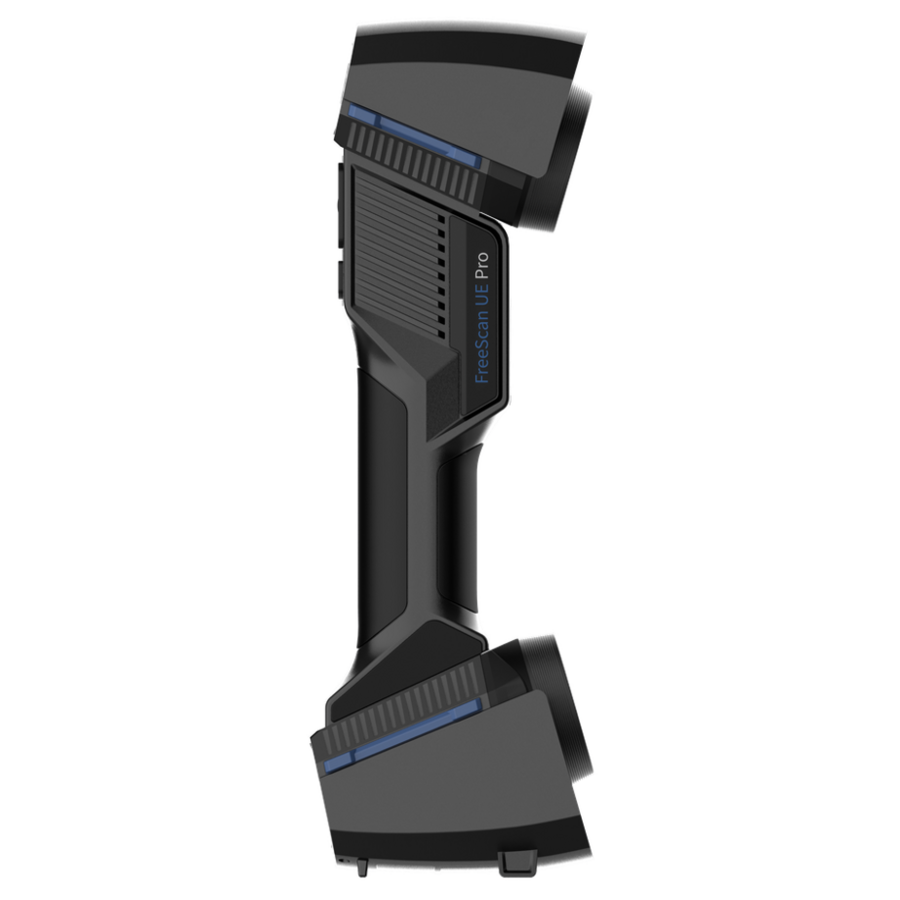

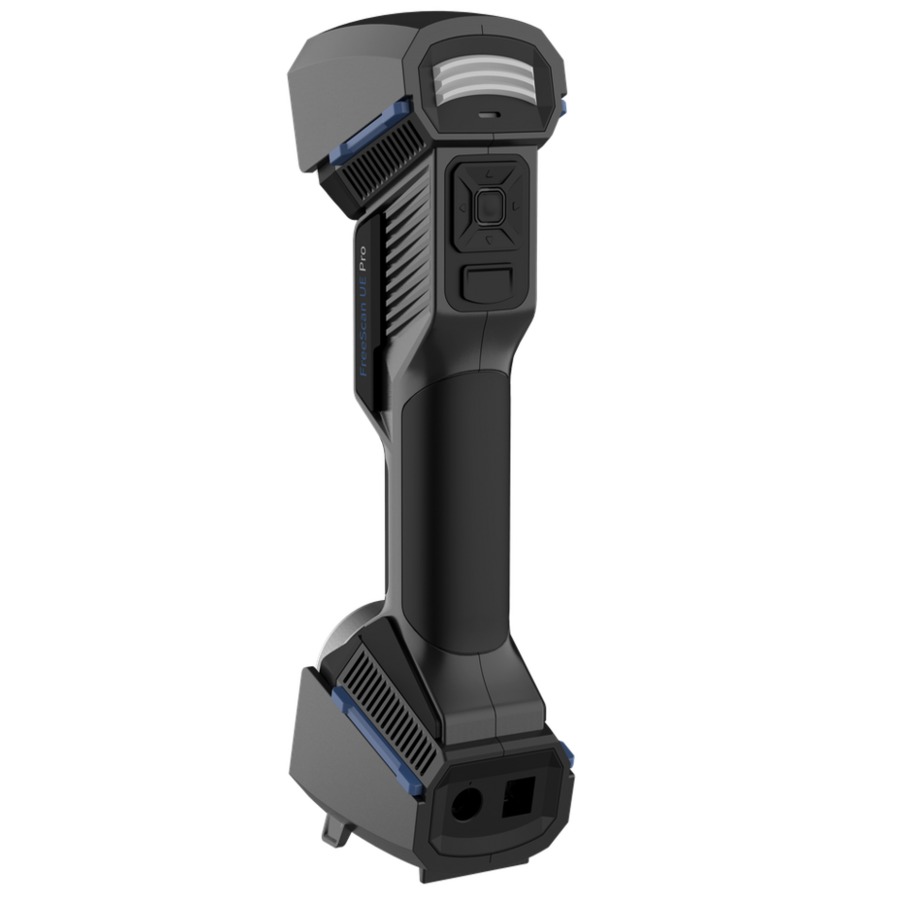

Handheld FreeScan UE Pro 3D Scanner
The FreeScan UE Pro 3D Scanner is a handheld 3D scanner designed for metrology-grade 3D scanning, ideal for 3D CAD scanning, reverse design, and additive manufacturing. It excels in bore measurement and offers precise scans for small bore diameter applications. This 3D scanner for Bambu Labs and other industries ensures high-quality results in applications like 3D printing and small object scanning. With its 3D laser scanning and 3D room scanning capabilities, the FreeScan UE Pro provides reliable and accurate scanning solutions for a variety of fields.
.
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
FreeScan UE Pro inherits the high-precision, metrology-grade accuracy, and lightweight design of FreeScan UE, while improving the ability of fine scanning and global precision control of large-scale workpiece scanning. It adopts 26+7+1 blue laser lines and integrates a photogrammetric module. Taking into account speed, accuracy and details, this professional 3D metrology solution can be applied to different sized scanning scenarios and perform metrology-grade accuracy inspection, reverse design, additive manufacturing and other applications. From small as the text on the surface of the air switch, to large as the plane, FreeScan UE Pro’s applicable fields are flexible and extensive, working well in scenarios that require multiple scanning. All in One Scan.small as the text on the surface of the air switch, to larg as the plane, FreeScan UE Pro’s applicable fields are flexible and extensive, working well in scenarios that require multiple scanning. All in One Scan.
3D inspection & Printing
design
education
digital archiving
culture & art
vr & ar
FreeScan UE Pro 3D Scanner Features
Metrology-Grade High Accuracy
Accuracy up to 0.02mm, delivers consistent scanning results with high precision.
Global Precision Control
Integrated photogrammetry function no need to apply coded targets, quickly locks the spatial position of the target frame.
Multiple Scanning Modes
13 cross laser lines to scan large objects quickly, 7 parallel laser lines to scan fine details and single laser line for deep hole and pocket area scanning.
Easy Operation
Inheriting the lightweight and ergonomic design of the UE series, the user-friendly scanning software enables an easy operation and shortens the learning curve.
Wide Range of Material Adaptations
Supports scanning of black and high-reflective surfaces, more efficient scanning process.
Fine and Rich Details
With higher resolution cameras and 7 parallel laser lines, FreeScan UE Pro enables rich feature object scanning and restores fine details more accurately.
FreeScan UE Pro 3D Scanner Applications
Automotive
Vehicle appearance design
Supply chain quality management
Production quality control
Car modification
Railway Transportation
Modeling design
Production line assembly and debugging
Overall size control
Workpiece repair and maintenance
Aerospace
Aircraft structure inspection
Interior design
Engine inspection
Maintenance and operation
Energy Manufacturing
Reverse engineering design
Fluid dynamics analysis
Deformation analysis
Impeller blade inspection
Mold Inspection
Virtual assembly
Wear analysis and maintenance
Quality control
Fixture design
Machine Manufacturing
Quality inspection and control
Tool and mold adjustment
Rapid prototyping inspection
OEM and old parts remanufacturing
- Brand Shining 3D
- Country of origin China
- Scan Modes Multiple Lines Scan Single Line Scan Fine Scan
- Point Distance 0.00039~0.3937in / 0.01~10mm
- Light Source 26 laser lines + single laser line 7 parallel laser lines
- Scan Rate up to 1,850,000 points/s
- Scan depth 6.69~26.77in / 170~680mm
- Max. Scan Range 23.62×21.65in / 600×550mm
- Working Distance 7.87~11.81in / 200~300mm
- Accuracy up to 0.00078in / 0.02mm
- Volumetric accuracy 0.02+0.03 mm/m (standard mode); 0.02+0.015 mm/m (built-in photogrammetry mode)
- Photogrammetry Built-in scale bar photogrammetry mode
- Laser class Class II (eye-safe)
- Operating temperature range -20~40 °C (-4~104°F)
- Operating humidity range 10~90 % RH
- Recommended PC configuration OS：Win10，64 bit；Graphics card: NVIDIA GTX/RTX series cards， higher or equal to GeForce RTX 3060； Video memory：≥6 G；Processor：I7-8700；Memory：≥32 GB
- Data transfer interface USB 3.0
- Power input 12V, 5.0A
- Dimensions 11.7x4x2.9in / 298x103.5x74.5mm
- Weight 1.85lbs / 840g
- Certifications CE，FCC，ROHS，WEEE，KC
