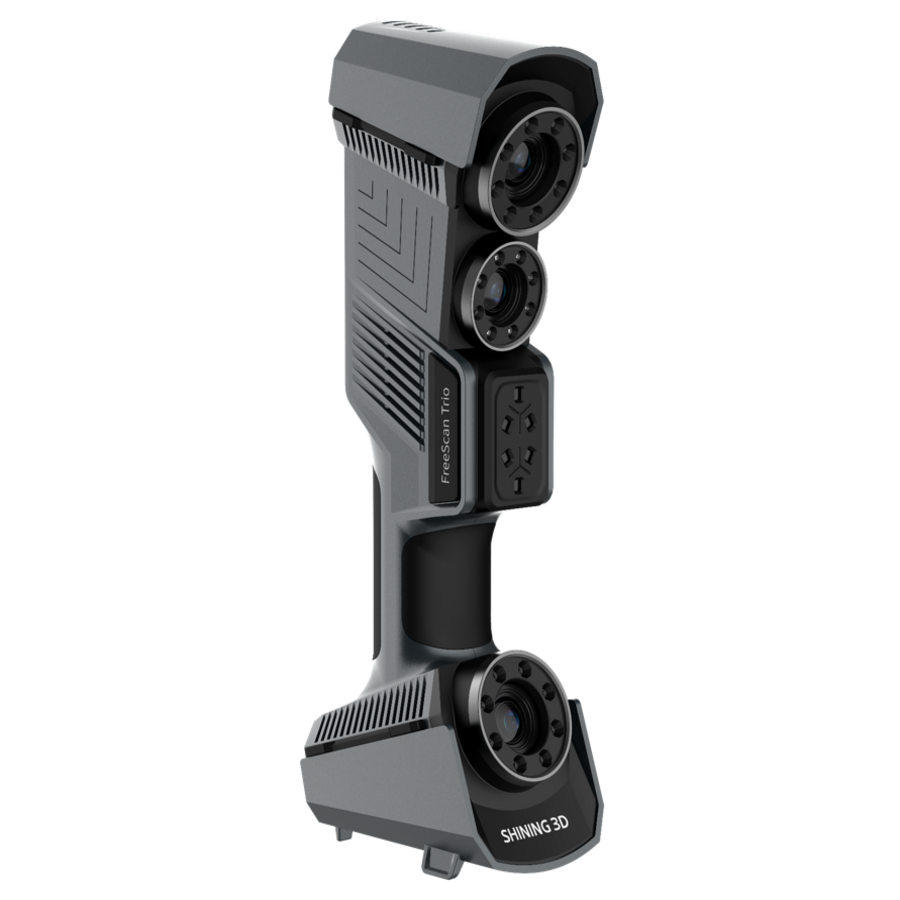

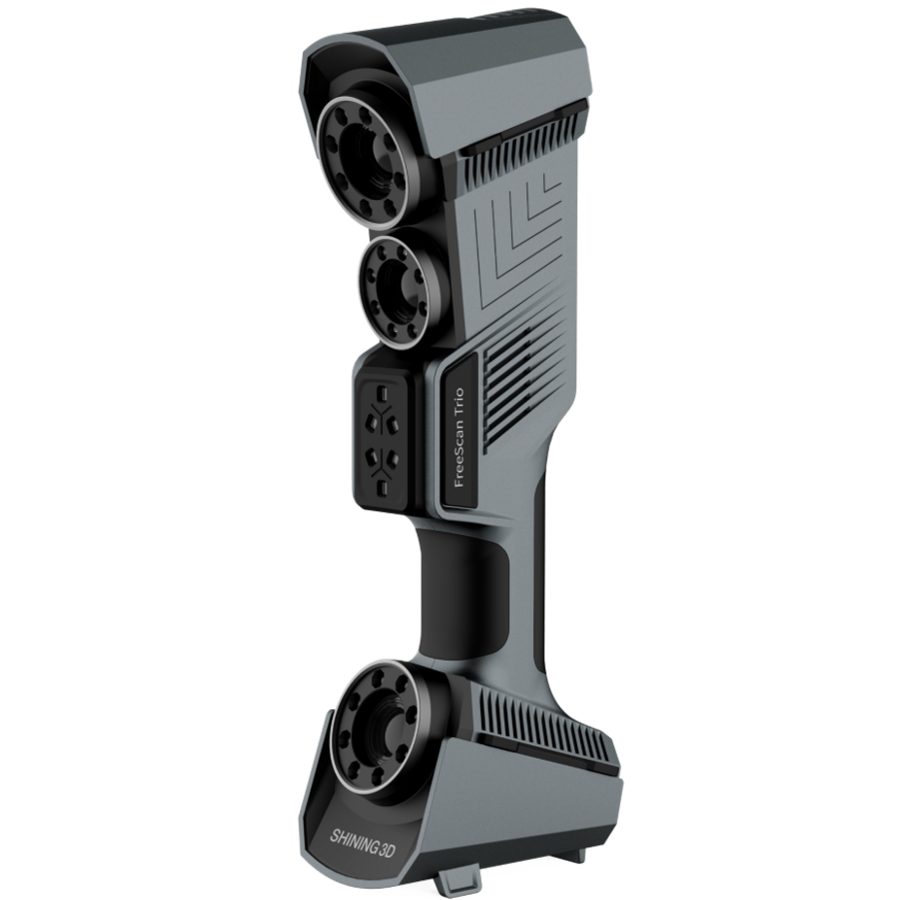

Handheld FreeScan Trio 3D Scanner
The FreeScan Trio 3D Scanner is a marker-free 3D scanner featuring 98 laser lines and a triple 5MP camera system for efficient, high-precision scanning of parts, assemblies, and 3D CAD models. This handheld 3D scanner is perfect for bore measurement, 3D printing, and converting scanned data directly to CAD. It is also ideal for 3D scanning for small bore diameter, 3D room scanning, and 3D laser scanning applications, supporting industries like automotive, aerospace, and healthcare, as well as workflows like Bambu Labs.
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
The FreeScan Trio sets a new standard in metrology-grade 3D scanning with its innovative features and unmatched performance provoding a notable development in laser 3D scanning technology, offering marker-free scanning capabilities facilitated by a 98-laser-line mode and a triple, 5MP camera system. Not only but especially for projects involving large objects, scanning without the need for markers significantly reduces preparation time. Moreover, the scanner is able to capture an impressive 3,010,000 points per second, establishing it as the fastest handheld 3D scanner in its class. Complemented by a large field of view of 650 by 580mm, it captures more data in fewer sweeps. In addition to the 98-laser-line mode, the FreeScan Trio offers a single-line mode, one with 7 parallel lines, and one with 26 crossed lines. These modes can tackle many different projects in all kinds of industries, conferring the scanner with the versatility that is now customary in all SHINING 3D products. With markers, these modes all achieve an accuracy of up to 0.02mm, and a volumetric accuracy of up to 0.02 mm. The FreeScan Trio is also equipped with a photogrammetry mode that works with SHINING 3D’s practical, magnetic scale bar, eliminating the need for extra coded targets. This mode narrows the volumetric accuracy down to 0.02mm + 0.015mm/m. Whether working with large-scale assemblies or scrutinizing intricate components, the new FreeScan Trio is a reliable and powerful ally for any engineer or designer.
3D inspection & Printing
design
education
digital archiving
culture & art
vr & ar
FreeScan Trio 3D Scanner Features
FIRST MARKER-FREE LASER 3D SCANNER
98 laser lines, zero markers
The FreeScan Trio’s thorough 98-laser-line mode eliminates the need for markers, efficiently capturing your workpieces with rich geometric details. Paired with an ultra-fast scan speed of up to 3,0101000 points/s, you’ll truly feel the acceleration in your workflow.
26 LASER LINES MODE
UNRELENTING ACCURACY
AND PRECISION
Precision isn’t just a term, it’s a commitment.
We’ve poured our 20 years of engineering expertise and our latest key patents into the FreeScan Trio. For quality control, inspection, and reverse engineering, its 0.02mm accuracy and high-precision performance deliver results you can count on, time and time again.
SWIFT EFFORTLESS SCANNING
Under the 26 Laser lines mode, its 650x580mm FOV gets your projects done fast, capturing more data in Less sweeps. Our optimized software algorithms generate 3D data in real-time for you to see on your screen, all while guiding you through the scanning process.
BUILT-IN PHOTOGRAMMETRY
The FreeScan Trio features a built-in photogrammetry mode that can achieve a ״ remarkable volumetric accuracy of up to 0.02mm + 0.015mm/m. Place markers and just one magnetic scale bar and the FreeScan Trio will quickly Lock in the spatial position of the target frame.
7 LASER LINES MODE
EXCEPTIONAL DETAIL
The FreeScan Trio’s three 5 megapixel industrial-grade cameras will let you zoom into the\ smallest, most intricate details of your projects with the minimum point distance to 0.01 mm.
1 LASER LINE MODE
DEFY POCKETS AND
HOLES
When it comes to industrial parts, deep pockets and holes are almost customary.
Cover these blind spots with the FreeScan Trio’s optimized camera angle and perceptive single-line mode.
- Brand Shining 3D
- Country of origin China
- Scan Modes Multiple Lines Scan Single Line Scan Fine Detail Scan 98 Lines Scan
- Point Distance 0.0003~0.1181in / 0.01~3mm
- Light Source 26 laser lines Single laser line 7 parallel laser lines 98 laser lines
- Scan Rate up to 3,010,000 points/s
- Max. FOV 25.5x22.8in / 650x580mm
- Scan depth 14.1in / 360mm
- Working Distance 7.8~11.8in / 200~300mm
- Accuracy up to 0.00078in / 0.02mm
- Volumetric accuracy 0.02 + 0.03mm/m
- Volumetric accuracy with photogrammetry 0.02 + 0.015mm/m
- Laser class Class II (eye-safe)
- Operating temperature range -0~40 °C (32~104°F)
- Operating humidity range 10~90 % RH
- Recommended PC configuration OS: WinlO, 64 bit; Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 3060; Video memory: N6G; Processor: 17-10700; Memory: N64GB
- Data transfer interface USB 3.0
- Power input 12V, 5.0A
- Dimensions 13x4.7x2.9in / 331x120x76mm
- Weight 2.1lbs / 985g
- Certifications CE, FCC, ROHS, WEEE, КС, FDA, UKCA, IP50
