Handheld FreeScan Trak Pro2 3D Scanner
The FreeScan Trak Pro2 is a 3D handheld scanner offering markerless optical 3D measurement with dynamic tracking for large workpieces. This 3D scanner for bore measurement, small bore diameter, and 3D printing delivers exceptional accuracy, with capabilities like 3D laser scanning and 3D room scanning. Ideal for industries such as automotive, aerospace, and ship maintenance, it also supports workflows like Bambu Labs and captures precise data for reverse engineering, quality control, and industrial applications.
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description

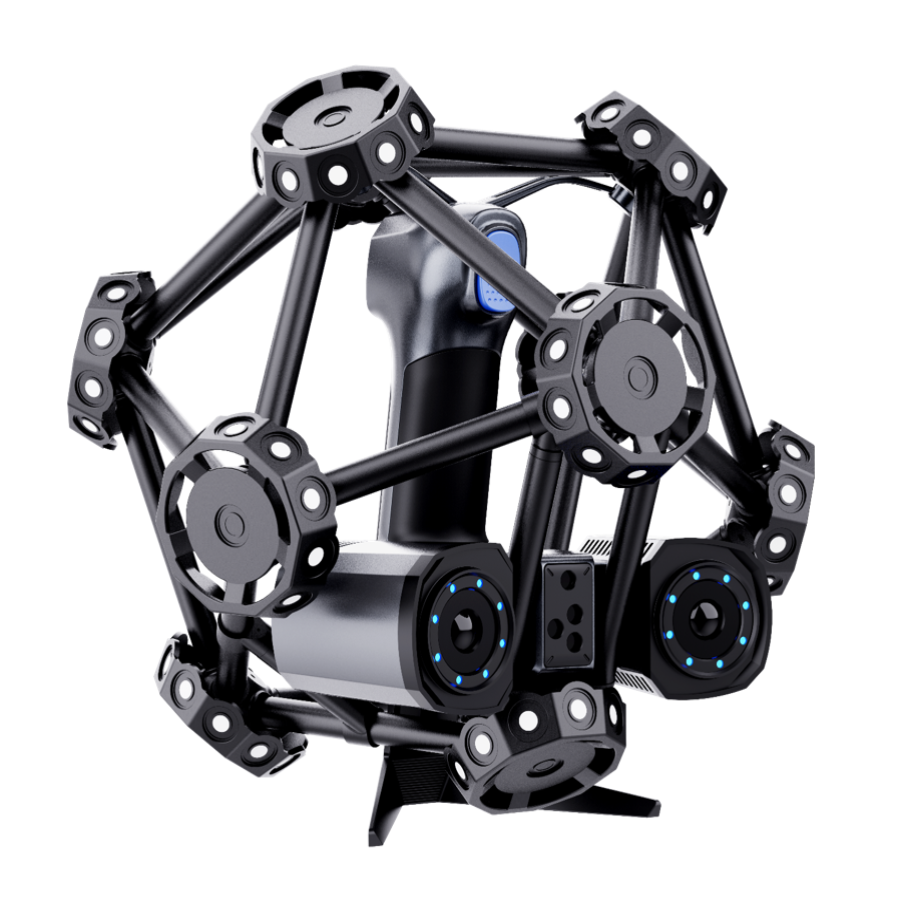

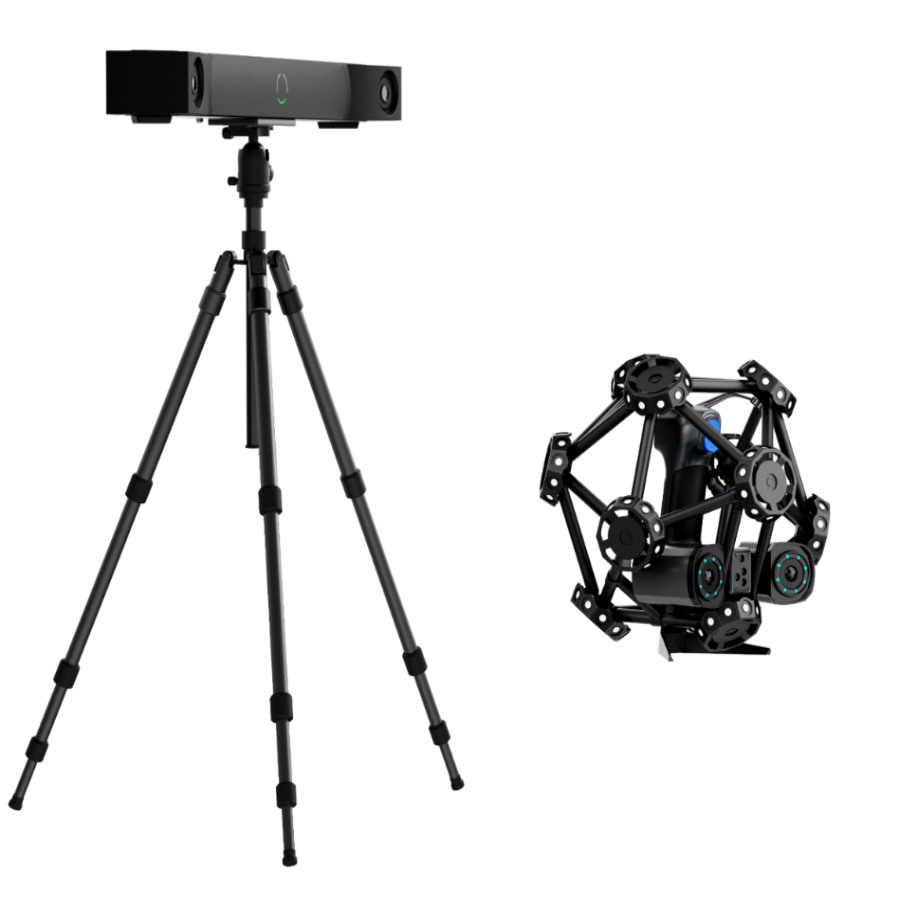

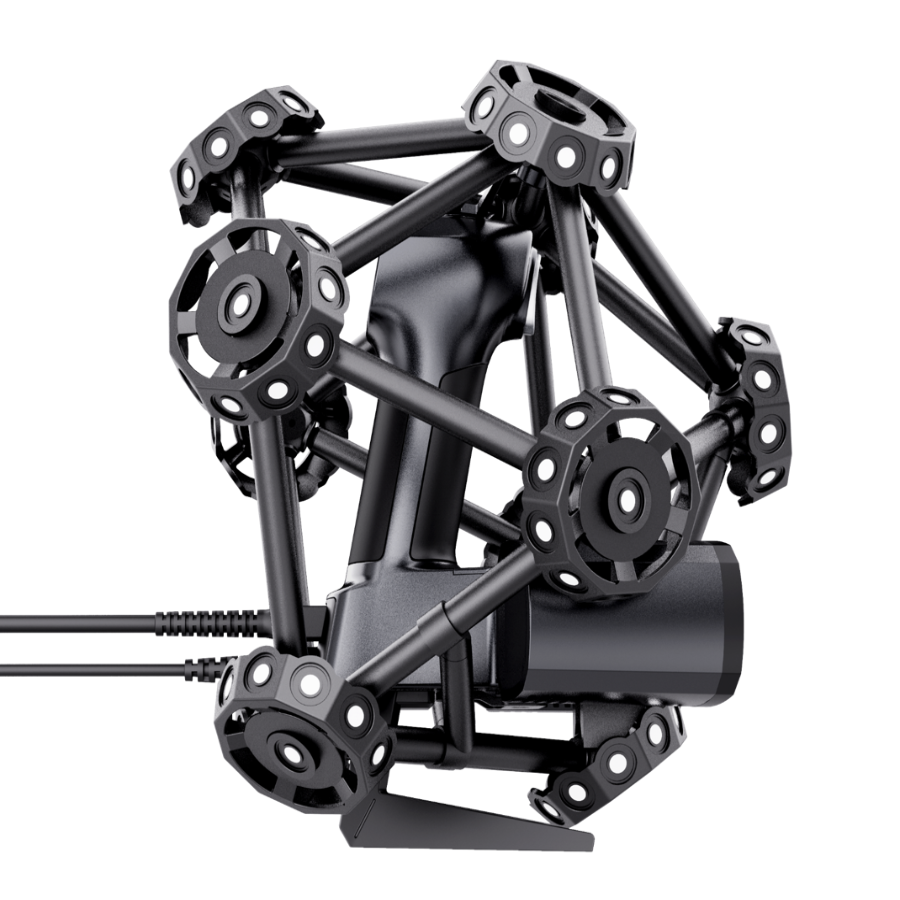

FreeScan Trak Pro2: Markerless Optical 3D Measurement and Dynamic Tracking. This metrology solution is comprised of three devices: the FreeScan tracking bar, the TE25 portable scanner, and the optional FreeProbe contact probe. These tools offer a convenient, efficient, and precise 3D inspection workflow for a wide range of sectors. This turnkey 3D inspection solution is particularly suited for use cases and industries involving large workpieces, such as the automotive, aerospace, power generation, and ship maintenance industries. Its main advantage is its dynamic referencing and markerless operation, possible thanks to the dual-camera FreeScan that tracks the TE25 and its built-in targets. This solution’s extendable measuring range also offers a significant edge, eliminating the need for leapfrogging when repositioning the FreeScan to cover other parts of a large-scale workpiece. The FreeScan Trak Pro2 solution provides a scan speed up to 3,070,000 points per second and a minimum point distance down to 0.01mm (0.0003in). Such speeds can be reached with the TE25’s 50 crossed laser lines. Two other modes, one with 7 parallel laser lines and one with a single laser line, provide flexibility for more detailed zones. As SHINING 3D users are accustomed to, a free lifetime license to FreeScan software is included with the system. It offers a comprehensive toolkit and displays point cloud data in real time, with data quality indicators to help obtain the best possible mesh from the start.
This comprehensive set of high-precision tools offers an ideal metrology solution for quality control and 3D inspection, without markers. The FreeTrak system enables dynamic referencing, allowing users to move the TE25 laser scanner freely around the workpiece without the constraints of reference markers. For large-scale workpieces, users can also move the FreeTrak to extend its scan range without having to re-measure reference artifacts to reestablish the link with the TE2D (a tedious process known as leapfrogging).
3D inspection & Printing
design
education
digital archiving
culture & art
vr & ar
FreeScan Trak Pro2 3D Scanner Features
Dynamic Referencing
No Markers Needed

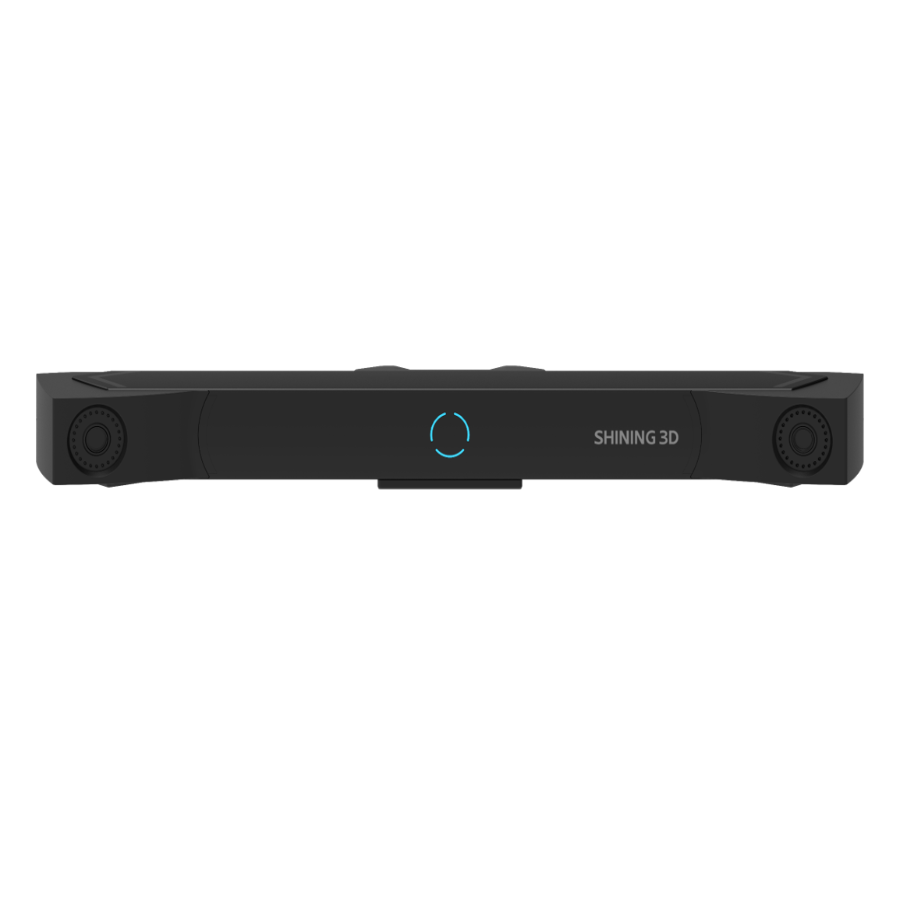

The FreeTrak bar dynamically tracks the TE25 scanner thanks to its tracking targets, without the need to manually place markers on the scanned object. This markerless operation saves time and makes the 3D scanning process much smoother.
SCAN SPEED UP TO 3,070,000 POINTS/S
50 crossed laser lines: Quick and highly accurate scan 7 parallel laser lines: Partial HD scan for extremely fine details 1 single laser line: Deep hole scanning (hole diameter:depth ratio of 1:4)
Paired with its 50 blue laser lines, the Trak Pro2’s two industrial-grade cameras of 5.0MP each enable ultra-high-speed data acquisition for a smooth scanning experience.
ACCURACY UP TO 0,0023mm
Exceptional Accuracy
FreeScan Trak Pro2 delivers metrology-grade scanning results with exceptional accuracy, reaching up to 0.023mm.
Supports Both Optical Tracking and Marker Scanning
Switch between these two modes based on your requirements and the type of object to scan. This duality offers the flexibility to cover a wider range of applications and surface types.
Wide Measuring Range
FreeScan Trak Pro2’s wide and expandable tracking range allows measurement of a broad spectrum of volumes and surfaces without compromising accuracy or requiring traditional leapfrogs (1) in the scanning process.
Robust & Intuitive Software
Real-time Display of Mesh Data
Our intuitive, streamlined software displays mesh data in real time as you scan your workpiece, saving time on point cloud meshing later on.
Data Quality Visualization
Users can determine if the scanning distance is appropriate by observing the color of the laser lines projected onto the object. There is also a built-in data quality indicator to determine which parts of the data are insufficient.

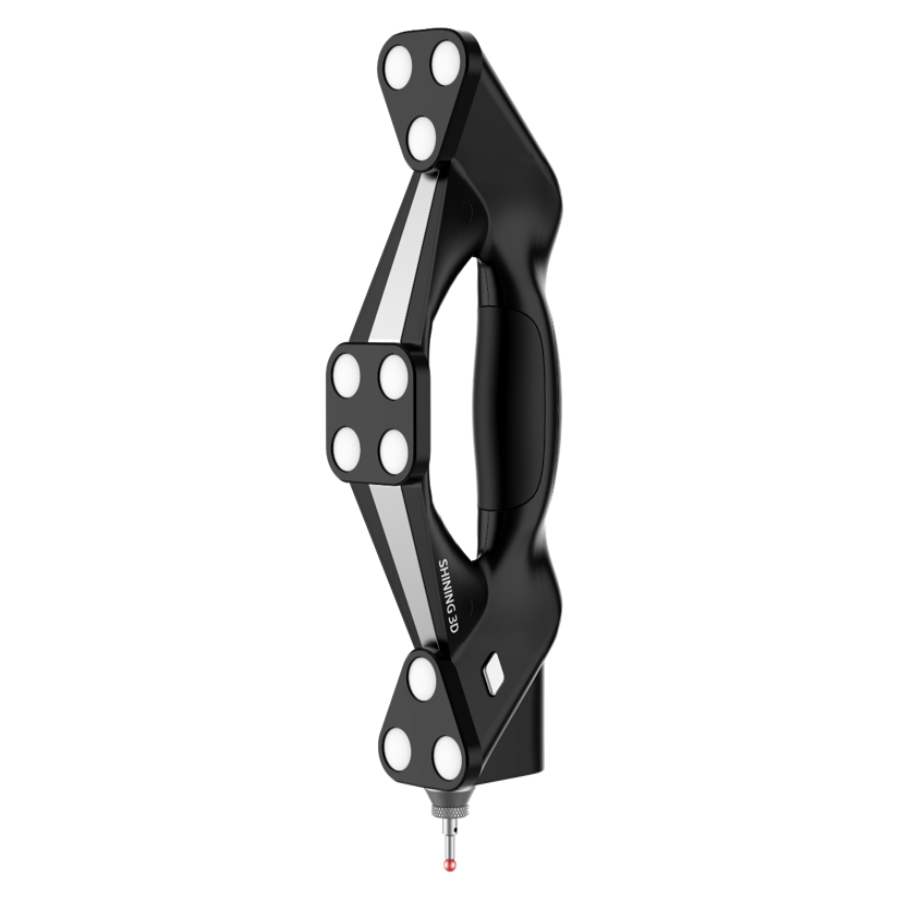

FreeProbe (Optional)
Ergonomic design for easy grip and use
Sturdy structure to ensure accuracy
Multifunctional button for versatile functionality Integration with PolyWorks and ControlX for quick inspection
When only specific data is needed, use the Probe to create geomegic features for quick inspection or measurement without getting mesh data.
- Brand Shining 3D
- Country of origin China
- Point Distance 0.0003~0.39in / 0.01~10mm
- Light Source FreeScan Trak Pro2: Infrared LED TE25: 50 cross laser lines, 7 parallel laser lines, 1 single laser line
- Scan Rate FreeScan Trak Pro2: up to 3,070,000 points/s; FreeProbe: 100 measurements/s (optional)
- Max. FOV 25.5x22.8in / 650x580mm
- Scan depth 15.7in / 400mm
- Effective Working Distance 11.8in / 300mm
- Recommended object size 3.937~393.7in / 0.1~10m
- Accuracy FreeScan Trak Pro2: 0.0009in / 0.023mm; FreeProbe: 0.0009in / 0.025mm (optional)
- Volumetric accuracy 339 ft3: 0.0024in / 9.6 m3: 0.062 mm 622 ft3: 0.0028in / 17.6 m3: 0.072 mm
- Volumetric accuracy with photogrammetry (0.0017 + 0.0004)in/ft / (0.044 + 0.012)mm/m
- Laser class Class ll
- Operating temperature range -10~40 °C (14~104°F)
- Operating humidity range 10~90 % RH
- Recommended PC configuration OS: Windows 10 Pro (64-bit) / Windows 11 Pro (64-bit); CPU: 13th Gen Intel (R) Core (TM) i7-13650HX 2.6 GHz or above; Video card: NVIDIA GeForce RTX 4060 or above Video memory: 8GB or above; RAM: 64GB or above, DDR5 dual-channel; USB port: USB 3.0
- Weight FreeScan tracking bar: 15.8 lbs / 7.2 kg; TE25 portable scanner: 3.2 lbs / 1.47 kg; FreeProbe: 1.1 lbs / 0.5 kg (optional)
- Dimensions FreeScan tracking bar: 42.4x9.3x4.3in / 1079x237x110mm; TE25 portable scanner: 11.1x11.1x11.4in / 281x283x290mm; FreeProbe: 2.7x5.9x13.3in / 70x150x340mm (optional)
