Handheld FreeScan Combo 3D Scanner
The FreeScan Combo 3D Scanner is a handheld 3D scanner combining portability and precision for diverse applications. As a 3D laser scanner, it excels in bore measurement, small bore diameters, 3D printing, and intricate tasks like dental modeling. Compatible with workflows like Bambu Labs, it offers industry-leading accuracy for aerospace, automotive, healthcare, and education.
.
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
FreeScan Combo packs dual light sources in an ultra-compact shell, measuring just 193x63x53mm. It’s equipped with both blue laser and infrared VCSEL technology and weighs in at only 620g. This lightweight, handheld 3D scanner offers four modes: multiple-line scanning, single-line scanning, fine scanning, and infrared scanning. With its versatile scan modes and technologies,the FreeScan Combo can adapt to numerous use cases. lt achieves metrology-grade precision for inspection, reverse engineering, product design, additive manufacturing, and other demanding applications in a wide range of sectors.
3D inspection & Printing
design
education
digital archiving
culture & art
vr & ar
FreeScan Combo 3D Scanner Features
& Applications
BLUE LASER + INFRARED LIGHT
An innovative combination of blue laser and infrared light sources meets the needs of diverse industrial 3D scanning scenarios.
4 SCANNING MODES,
MULTIPLE SCAN CHOICES
26 laser lines for global scanning;
7 parallel blue laser lines for fine scanning details;
1 single blue laser line to obtain deep hole data; Infrared light source scanning fast and without markers.

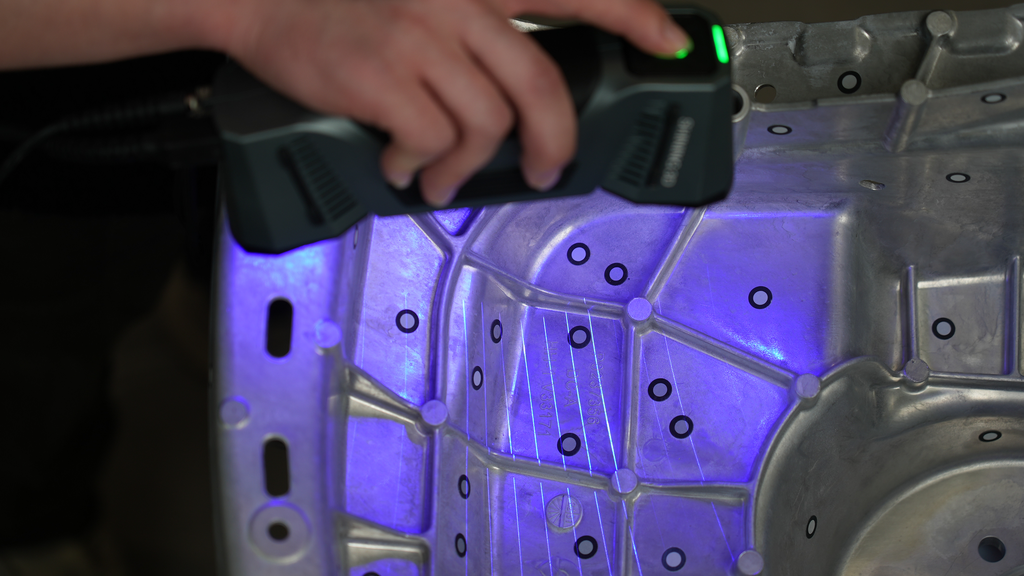

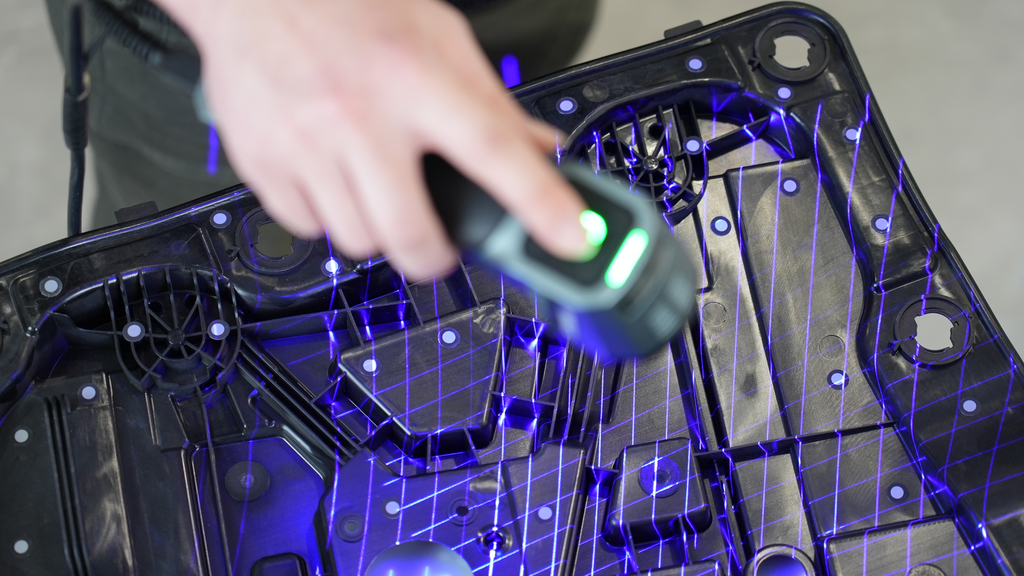

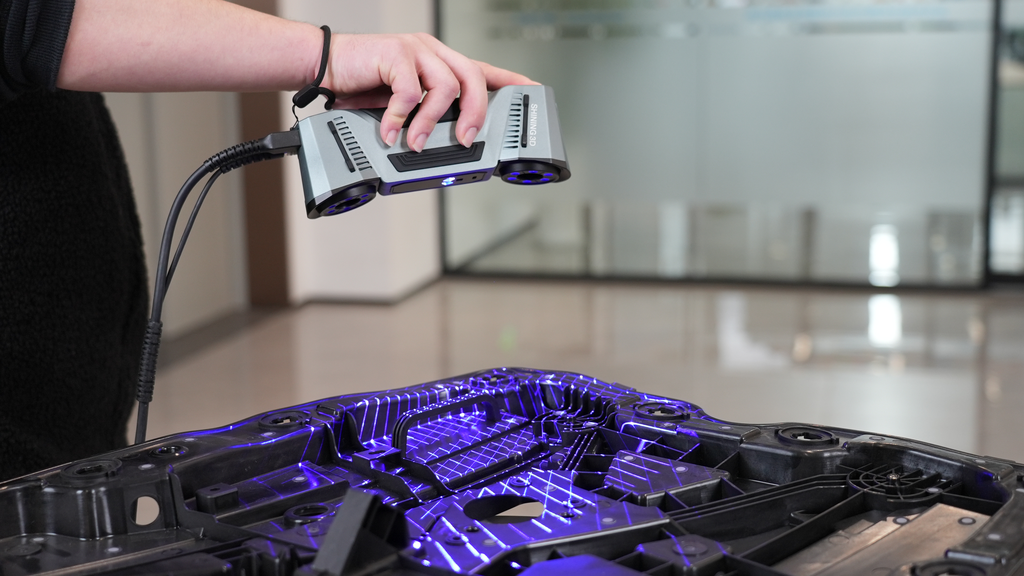

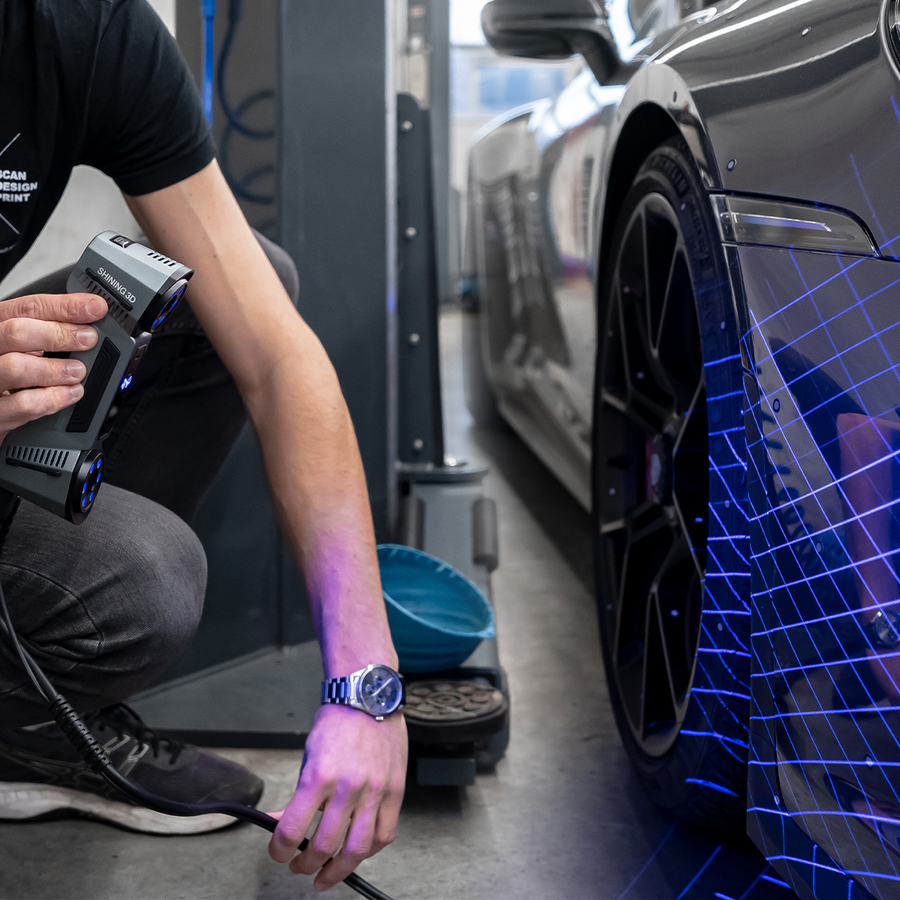

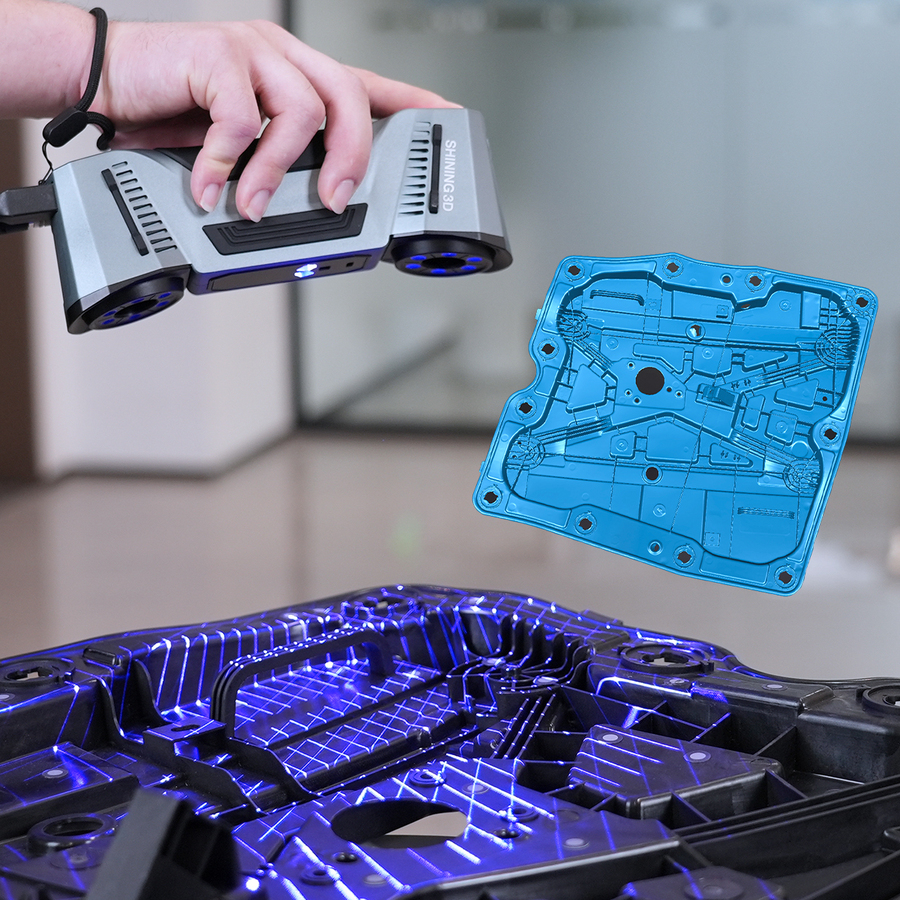

26 LASER LINES
1,860,000 points/s
Global scanning, smooth and efficient.
No fear of black or reflective surface.

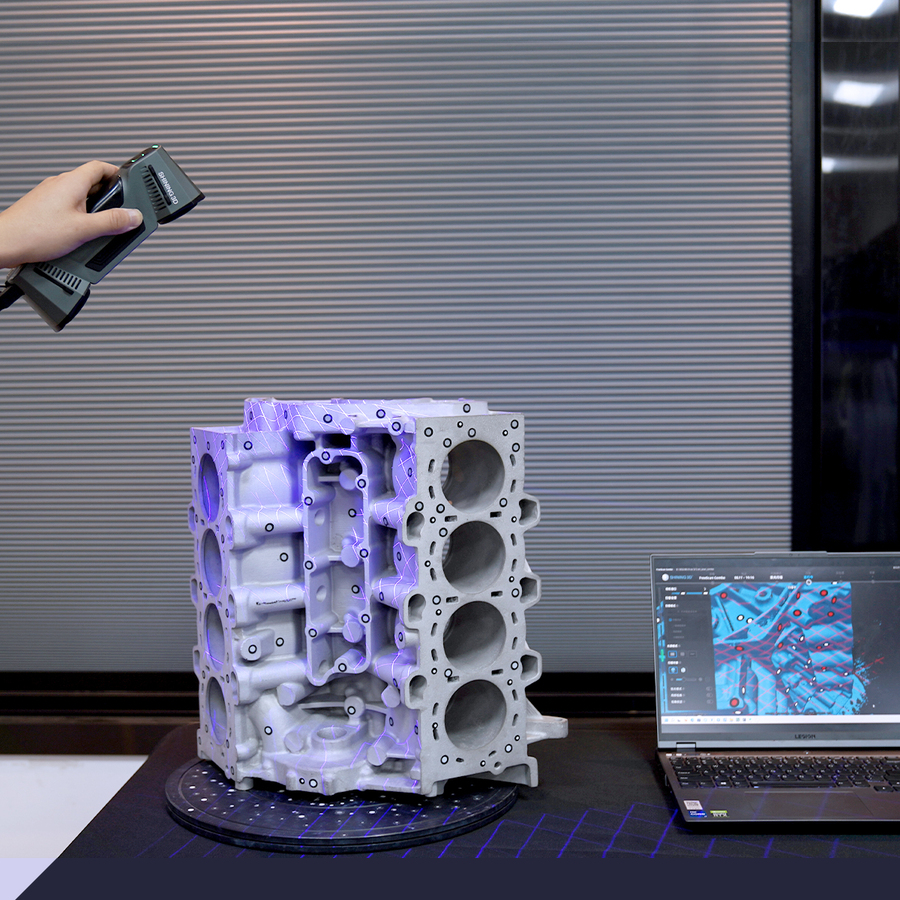

A WISE CHOICE FOR
METROLOGY APPLICATION
Metrology-grade accuracy, the accuracy under laser scanning mode can achieve up to 0.02mm.

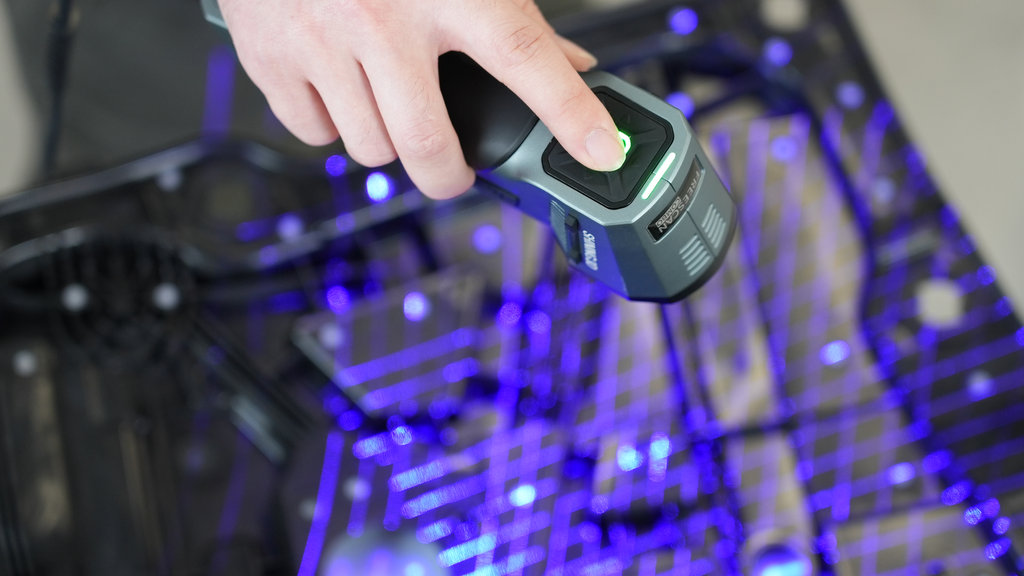

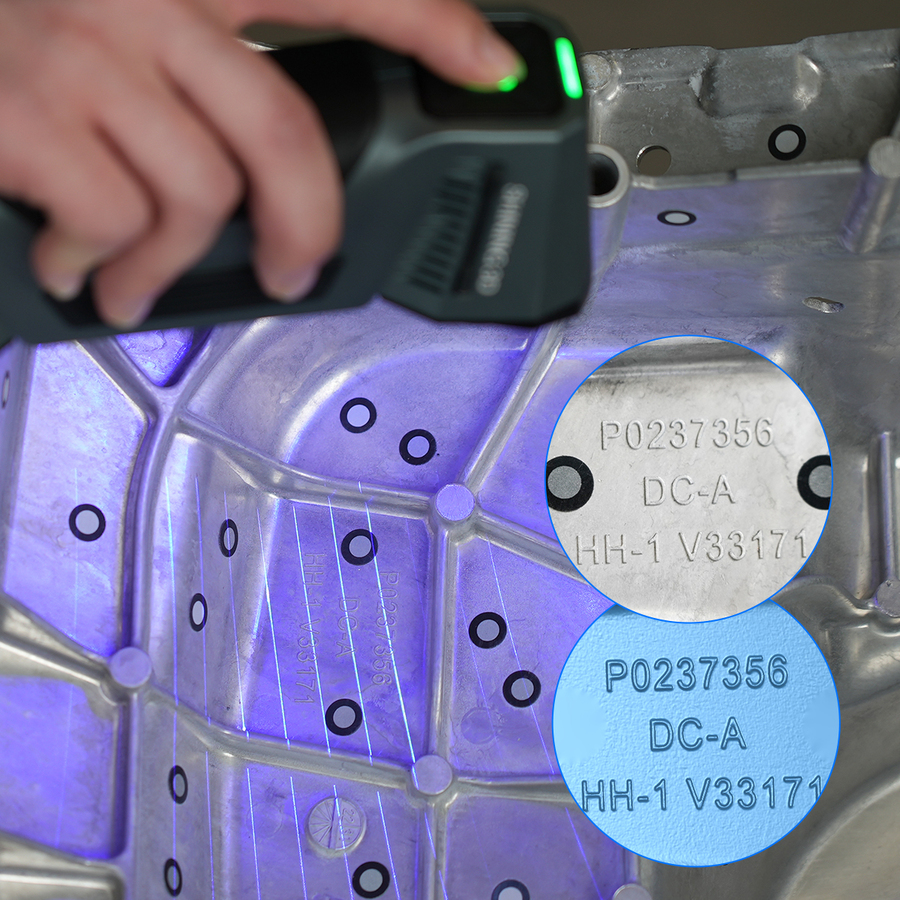

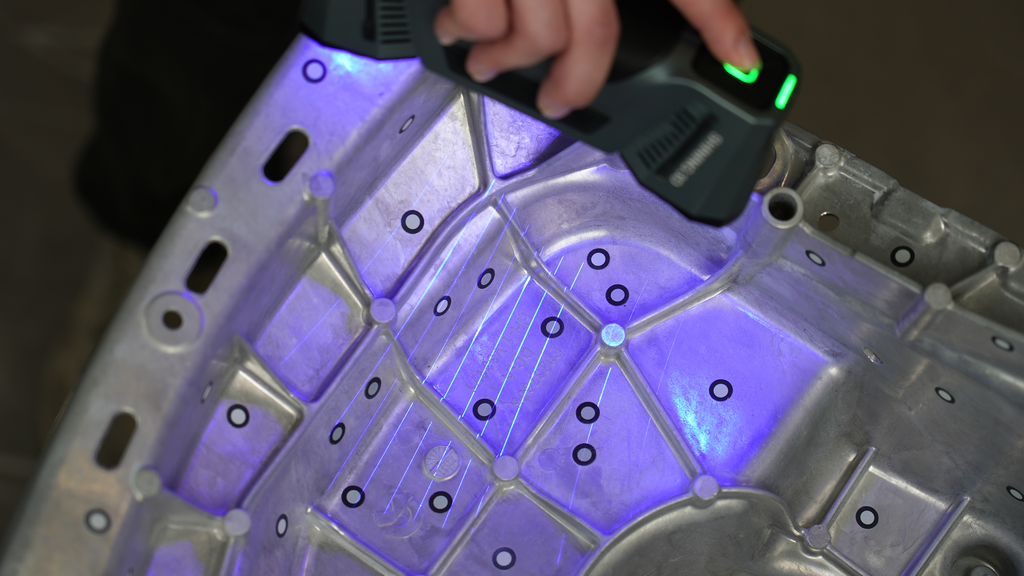

PRECISE AND FINE DETAIL
SCANNING
Smaller scanning area with 7 parallel laser lines.

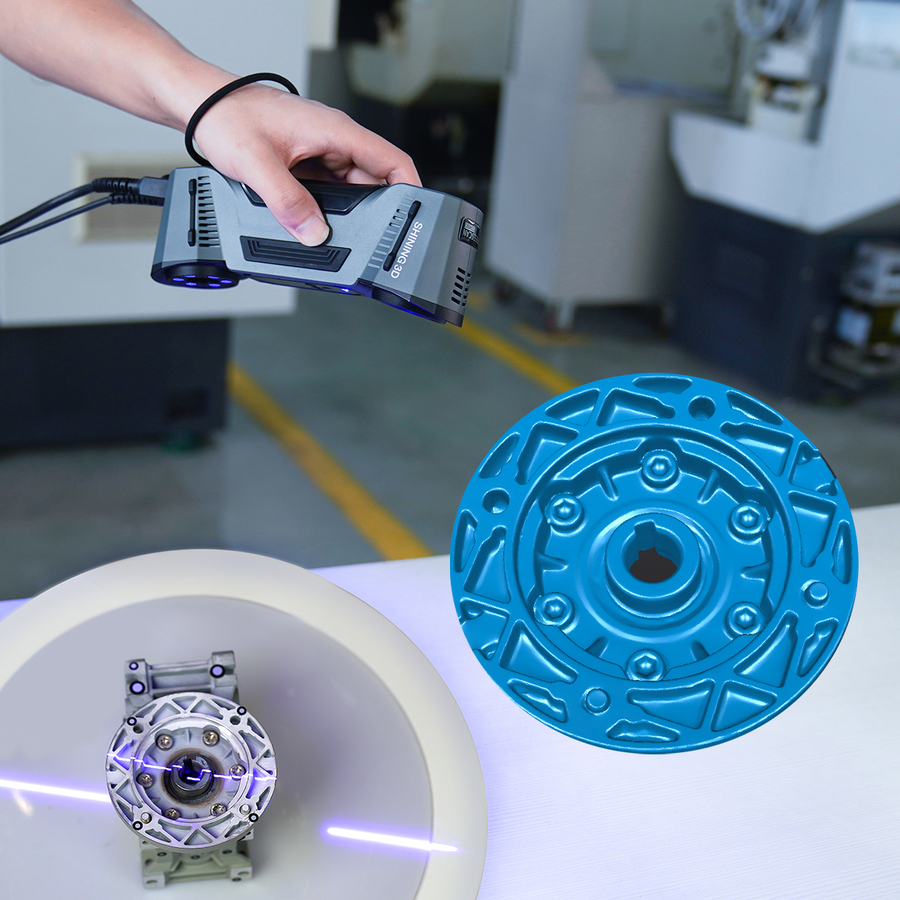

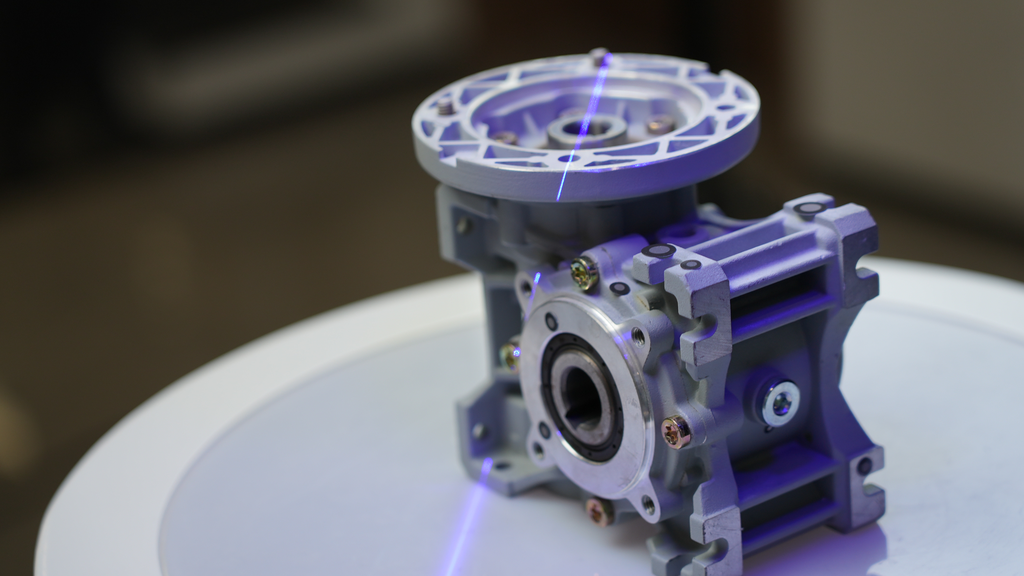

DEEP HOLE SCANNING
WITH COMPLETE DATA
Optimized lens angle and single line for better acquisition of deep hole data.
Ensuring complete data for full-size 3D inspection.
INFRARED LIGHT
SCANNING
No markers needed for feature-rich workpieces.
Infrared light source can be used directly to scan quickly.

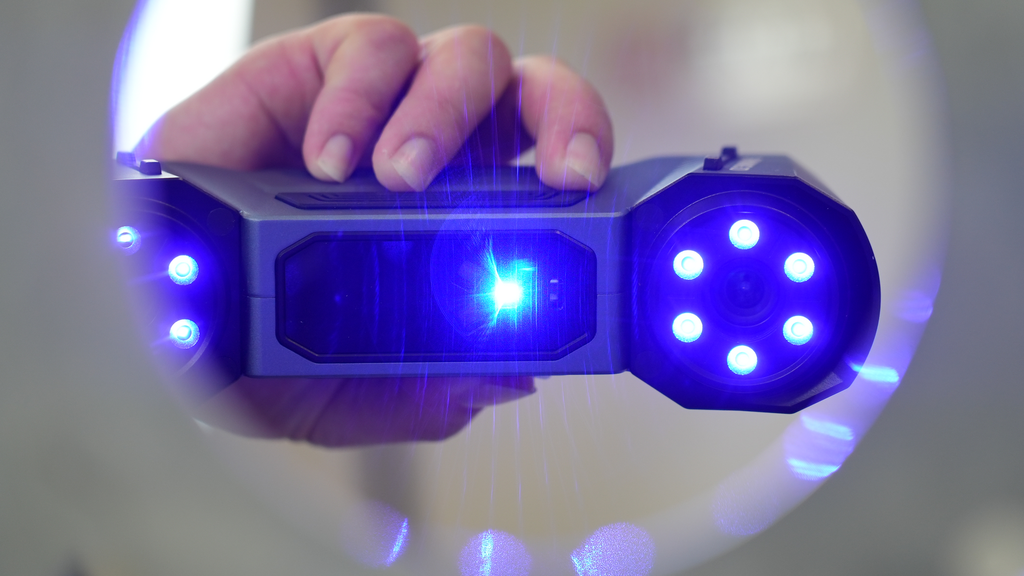

620 g.
POWERFUL
AND ERGONOMIC
Ergonomic design, compact, convenient and easy to use.
Metal case in line with modern industrial aesthetics.
- Brand Shining 3D
- Country of origin China
- Scan Modes Laser Scan: Multiple Lines Scan; Single Line Scan; Fine Scan Infrared Scan
- Point Distance Laser Scan: 0.0019~0.3937in / 0.05~10mm Infrared Scan: 0.0039~0.1181in / 0.1~3mm
- Light Source Laser Scan: 26 laser lines; Single laser line; 7 parallel laser lines Infrared Scan: VCSEL Light Source
- Scan Rate Laser Scan: up to 1,860,000 points/s Infrared Scan: up to 2,250,000 points/s
- Scan depth Laser Scan: 14.17in / 360mm Infrared Scan: Max. 48.81in / 1240mm (can be adjusted manually)
- Working Distance 7.87~11.81in / 200~300mm
- Max. FOV Laser Scan: 20.47x20.07in / 520x510 mm Infrared Scan: 23.62x23.62in / 600x600mm
- Accuracy up to 0.00078in / 0.02mm
- Volumetric accuracy Laser Scan: 0.02+0.033 mm/m Infrared Scan: 0.05+0.1 mm/m
- Laser class Class II (eye-safe)
- Operating temperature range -20~40 °C (-4~104°F)
- Operating humidity range 10~90 % RH
- Recommended PC configuration OS: Win10/11, 64 bit; Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 3060; Video memory: ≥6 G；Processor: I7-10700; Memory: ≥32 GB
- Data transfer interface USB 3.0
- Power input 12V, 5.0A
- Dimensions 7.5×2.4×2in / 193×63×53mm
- Certifications CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50
