SAPHIR 550 / RUBIN 520

The SAPHIR 550 with RUBIN 520 is a single wheel grinder and polisher

Categories:
Manual Grinder & Polisher, Grinders & Polishers

Description
Details
Materials
Documents
Videos
Review

Description

PRODUCT ADVANTAGES

• Single wheel grinder/polisher with Rubin 520
• Single and central pressure
• Variable speed of working wheel and polishing head
• Electronic control with touch screen
• Programmable memory
• Polishing head with clockwise/counter-clockwise rotation
• Memory function for side and height adjustment
• Automatic front cover for safety

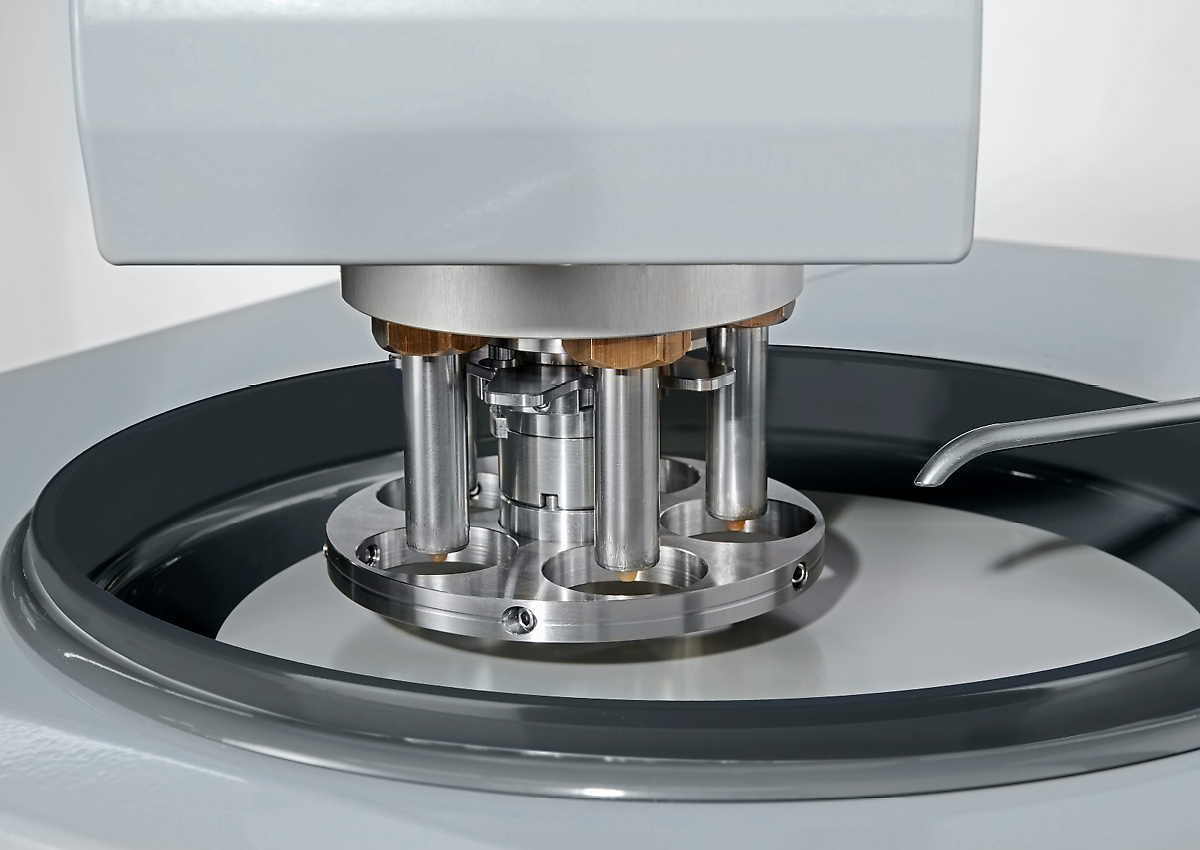

GRINDING AND POLISHING HEAD
Through the individual pressure of the head, samples with different diameter and materials can be worked at the same time. It also has a memory function for the side
and height setting. The grinding and polishing head is operated via a clearly laid out touch-display. Programs can be compiled here and then saved.
Furthermore it is fitted with a quick-change function for the sample holders and clockwise and anticlockwise
running directions.

MATERIAL REMOVED MEASUREMENT
The removal height can be pre-determined with 0.1 mm accuracy. The material removed measurement takes place automatically. After reaching the preset value, the machine switches off.

SAFETY

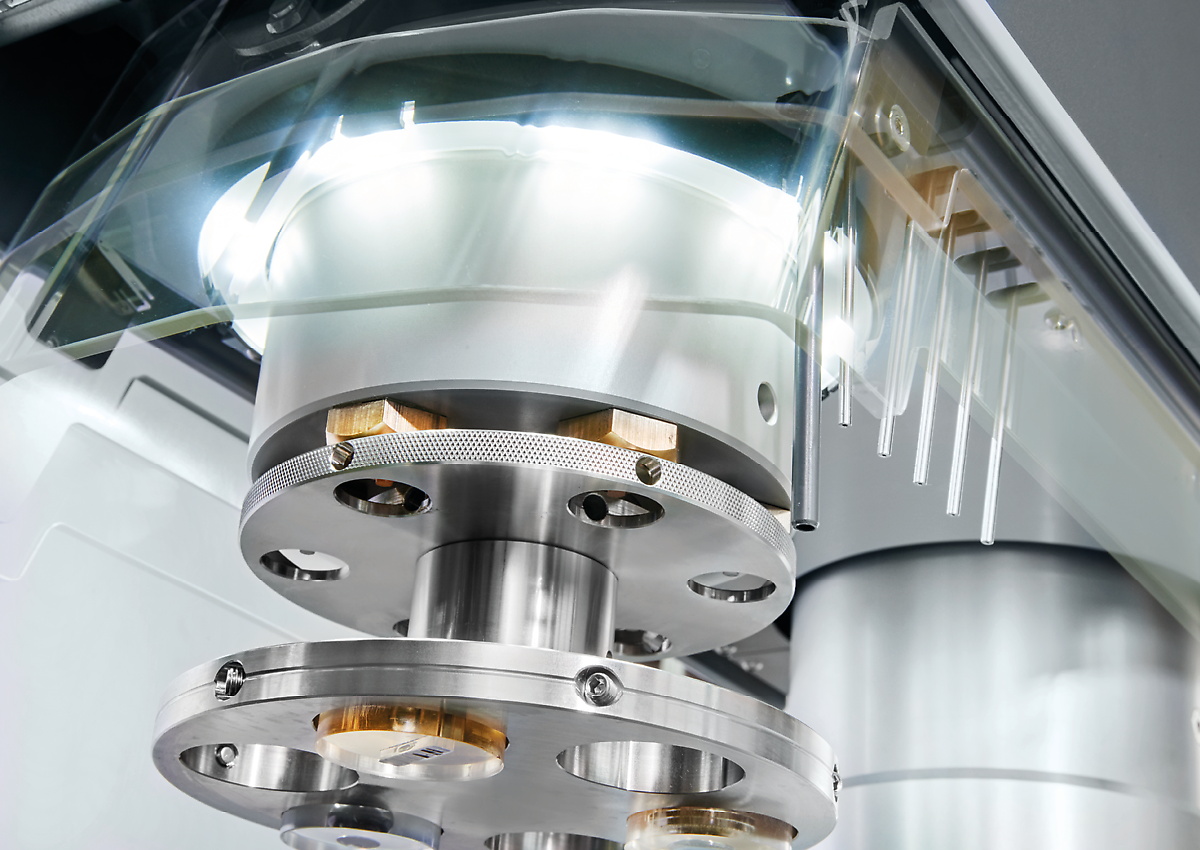

The preparation only starts when the transparent protective hood is extended. The working area is illuminated by energy-saving LEDs. Data safety is secured by enabling password protection for each individual program.

VARIABLE SPEED
The display on the grinder and polisher shows the speed digitally. The base speed can be infinitely adjusted between 50 and 600 rpm. The head speed is separately adjustable between 30 and 150 rpm. The speed can also be changed during the working sequence.

WATER
The automatically switched integrated basin rinsing is cooling the working wheel and cleaning the basin during the entire working process. The rinsing tap can be pulled out with the hose extension. Optimum distribution of water can be reached by swinging the tap left and right across the diameter of the working wheel.

Brand QATM
Working wheels ø 200 - 300 mm
No. of samples (single pressure) 1-6 samples ø 50 mm
Single pressing force variable, 5-100 N
Central pressing force variable, 20-400 N
Connection power 3.2 kVA
Drive power (grinder) 0.75 kW (S1)
Drive power (head) 0.17 kW (S1)
Speed (grinder) 50 - 600 min-1
Speed (head) 30 - 150 min-1

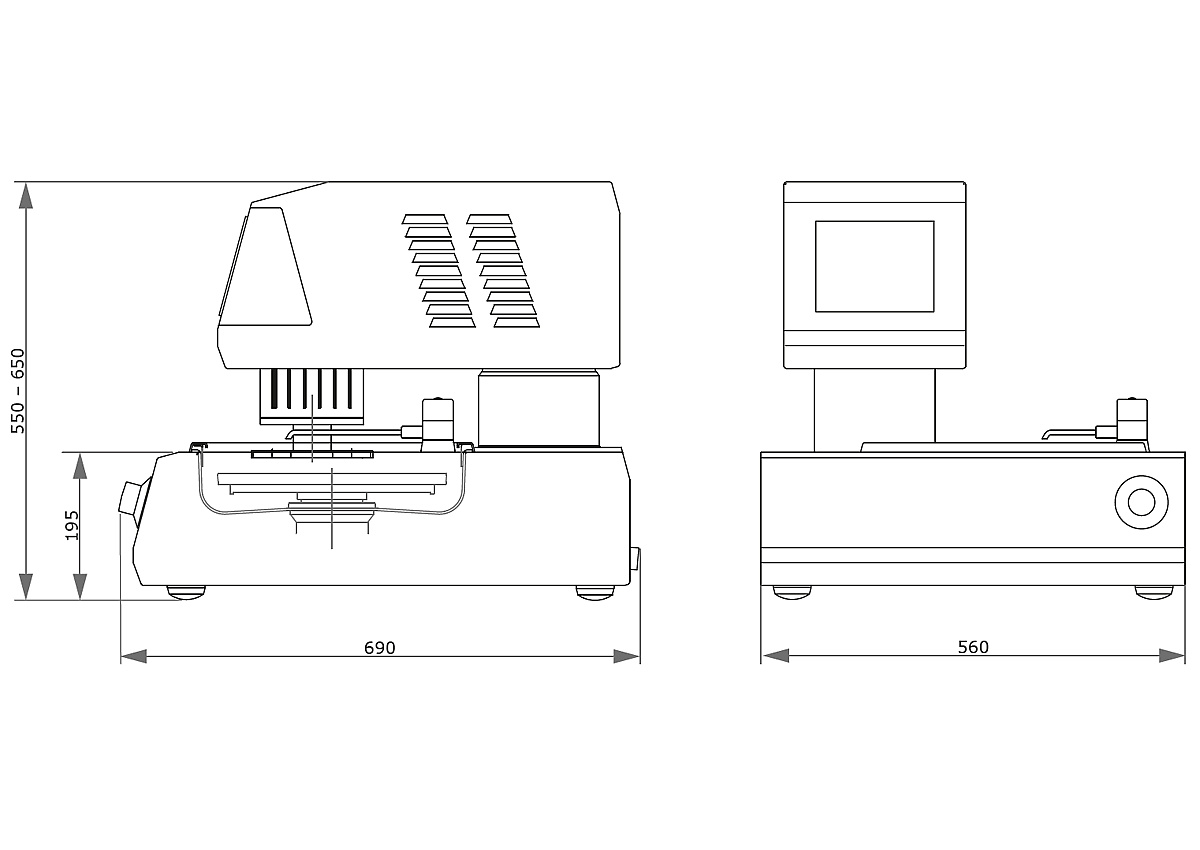

W x H x D 560 x 550 - 650 x 660 mm / 22.05 x 21.65-25.59 x 25.98 in
Weight ~ 85 kg
Water connection 1x fresh water connection R½" max. 6 bars

Documents

Download Brochure SAPHIR 550
