QPOL VIBRO

Qpol Vibro is designed for the preparation of specimen surfaces practically without deformation

Categories:
Grinders & Polishers, Automatic Grinder & Polisher

Description
Details
Materials
Documents
Videos
Review

Description

PRODUCT ADVANTAGES

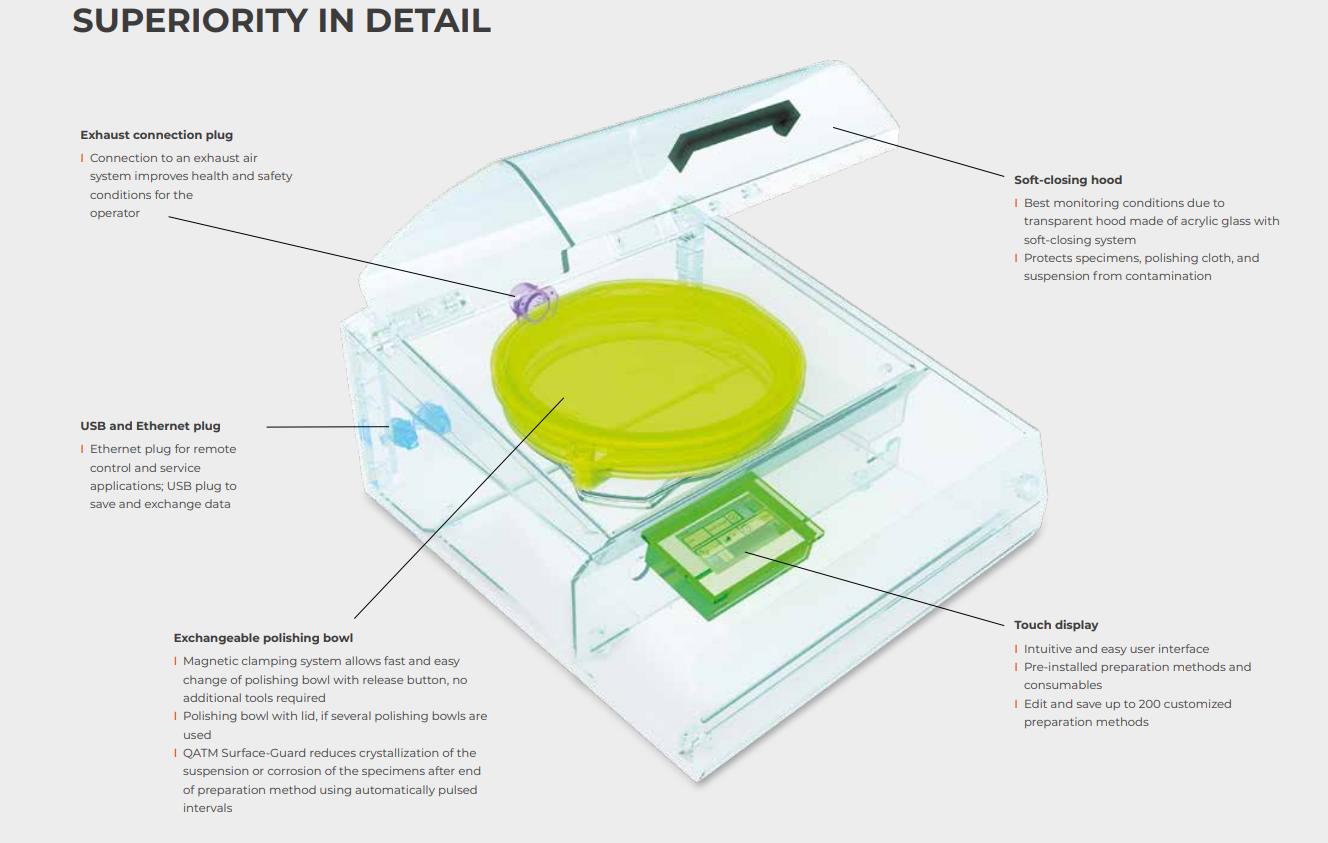

• Rapid changeable polishing bowl with magnetic system
• Surface-Guard: reduces crystallization and corrosion of the specimen surface
• Automatic frequency control from 60-120 Hz, e.g. for mass variation

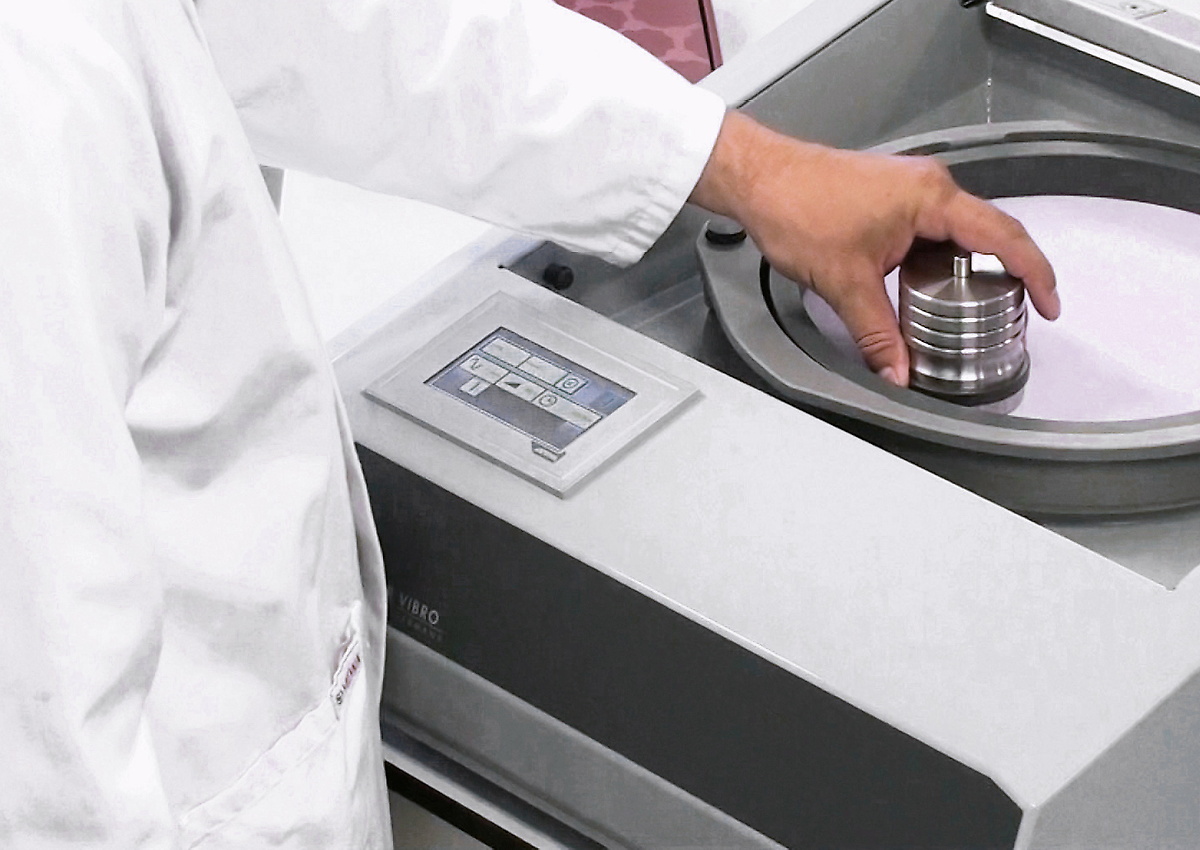

• Intuitive user interface and touch screen
• Pre-installed preparation methods and consumable list
• Low-noise operation, almost indefinite polishing time without supervision
• Exhaust connection plug (exhaust connection for enhanced user-friendliness and safety)
• Up to 200 custom preparation methods can be saved

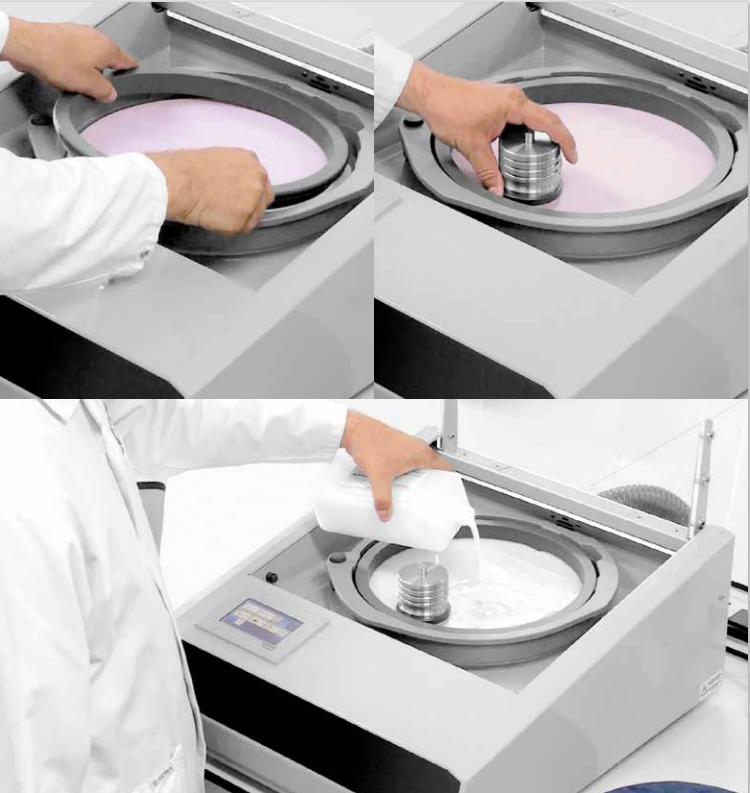

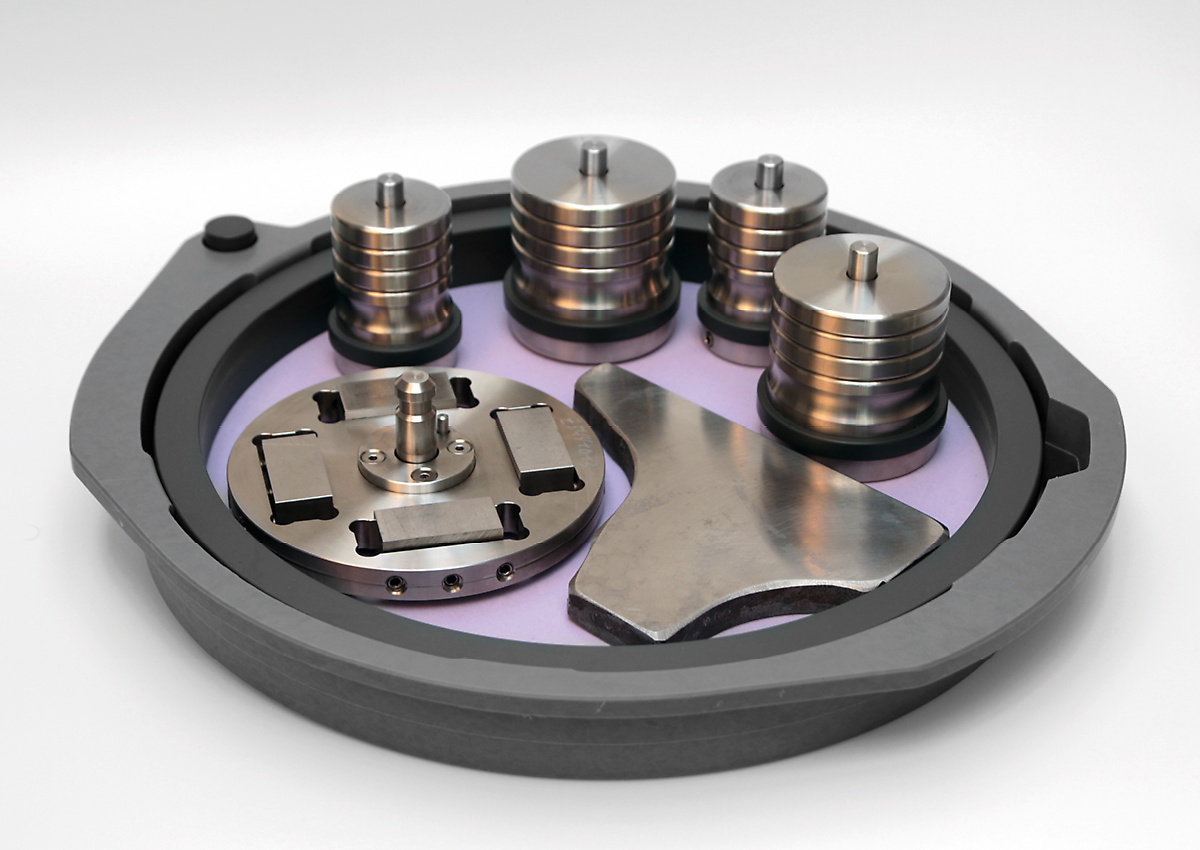

With a diameter of Ø = 308 mm the large bowl provides sufficient space for polishing of completely filled sample holders, large specimens, as well as for simultaneously polishing up to 21 specimens. Held by strong magnets the polishing bowl can be easily removed by pressing a button and exchanged by simply putting it back into the device – the magnetic forces will do their job.
The clamping ring protects the edge of the polishing cloth to ensure a long service life. In addition, the ring delimits the polishing area and enables the sample holders to move evenly. The bowl is designed for the use of polishing cloths on magnetic
systems. Consequently, the cloth is quickly and easily removed.

The Qpol Vibro offers silent operation based on its robust, high-quality design, innovative vibratory transmission angle, and vibrational motor with oscillation compensation. It may run for hours without any noticeable noise development.
The oscillation compensation of the vibrational motor prevents the vibrations from being transmitted to the machine case or bench, thus ensuring silent operation of the Qpol Vibro.
The exhaust connection plug may be connected to an external exhaust system to safely discharge moisture or gases, thus providing a safe working environment for the operator.

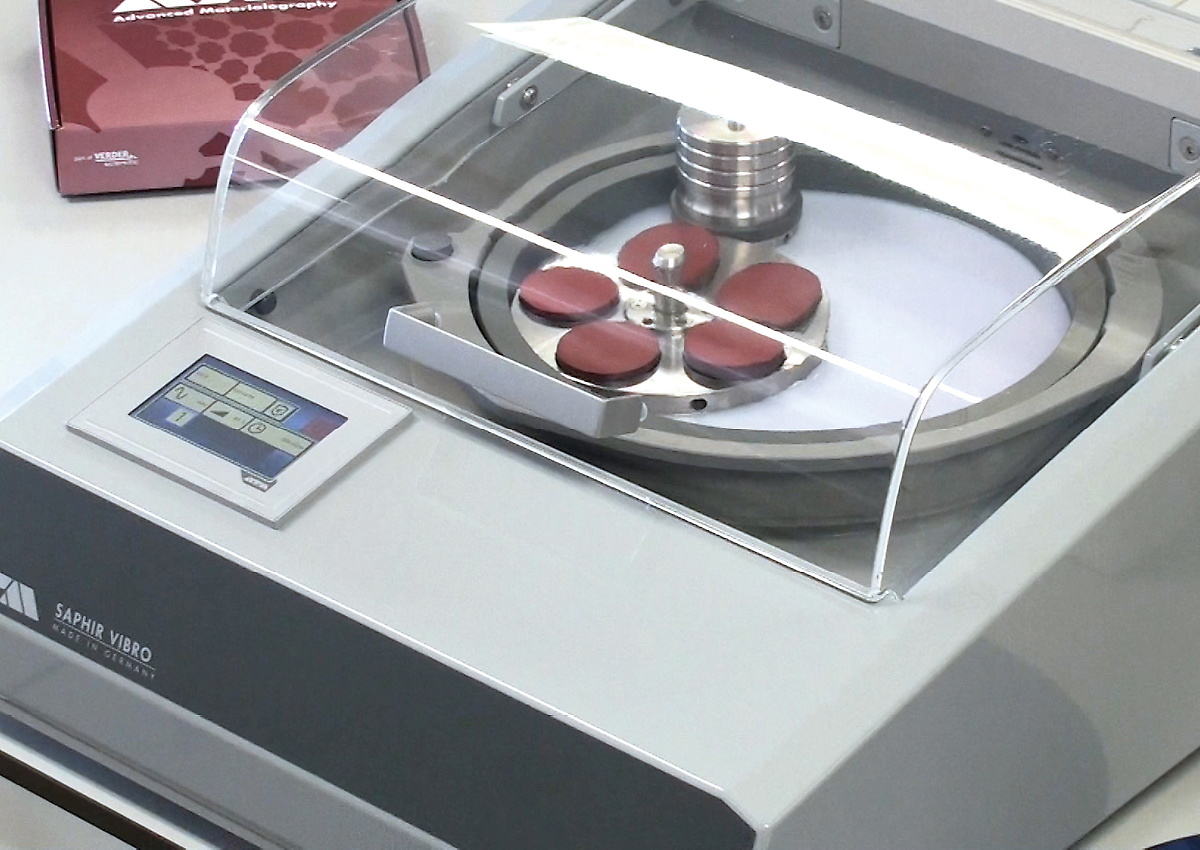

The transparent, soft-closing hinged hood shows the premium quality of QATM machines
and devices. It protects the suspension and specimens from contamination for achieving
best preparation results. The Qpol Vibro offers a wealth of features but is still compact and lightweight – with a weight of only 45 kg it is very suitable as a bench top device.

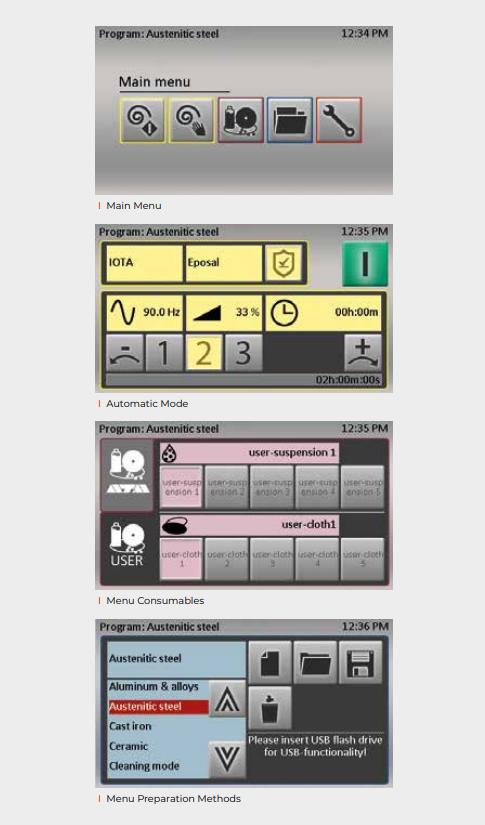

The innovative design of the Qpol Vibro software provides intuitive and user-friendly operation. 15 preparation methods for various materials are pre-installed, together with the appropriate consumables. The Qpol Vibro offers storage of up to 200 customized methods both on the device or on USB, allowing a transfer of methods from one device to another. These may be programmed without any restriction in duration or in vibration intensity. The device may be operated in manual or automatic mode.

The selectively choosable alert function (timer) informs the operator that a program has ended.

QATM invented a special operating mode to protect the prepared surface after preparation has finished: the Surface-Guard preserves the high quality of the prepared surface by preventing e.g. corrosion.

The Qpol Vibro is equipped with automatic frequency control which optimizes the oscillation frequency depending on the specific load of the bowl.

The Qpol Vibro may be operated without supervision and almost without time-limit.
This yields best polishing results and gives the user time for other tasks.

Brand QATM
Polishing bowl ø 308 mm (compatible with 300 mm or 305 mm (12") polishing cloths)
Vibration frequency 60 - 120 Hz
Plugs USB, Ethernet
Connection power 0.25 kVA
Drive power 135 VA

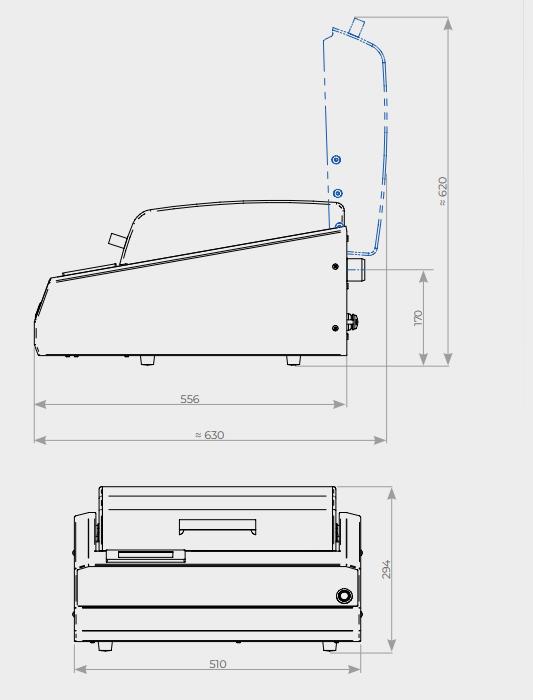

W x H x D 510 x 300 x 590 mm / 20.1 x 11.8 x 23.2 in
Weight ~ 45 kg

Documents

Download Brochure QPOL VIBRO
