QPOL 250 BOT

Qpol 250BOT is perfectly suited for automation in the metallographic laboratory

Request a quote
  • Description
  • Details
  • Materials
  • Documents
  • Videos
  • Review

Description

PRODUCT ADVANTAGES

• Grinding- and polishing system with central pressure
• Aluminium case, powder-coated
• Polishing head with variable speed
• Removal measurement
• Electronic control with touch screen
• Automatic abrasive changer
• Cleaning station with water, air and ethanol
• Ultrasonic cleaner
• 6-fold dosing unit (4x diamond supension or lubriant, 2x fine polishing suspension)

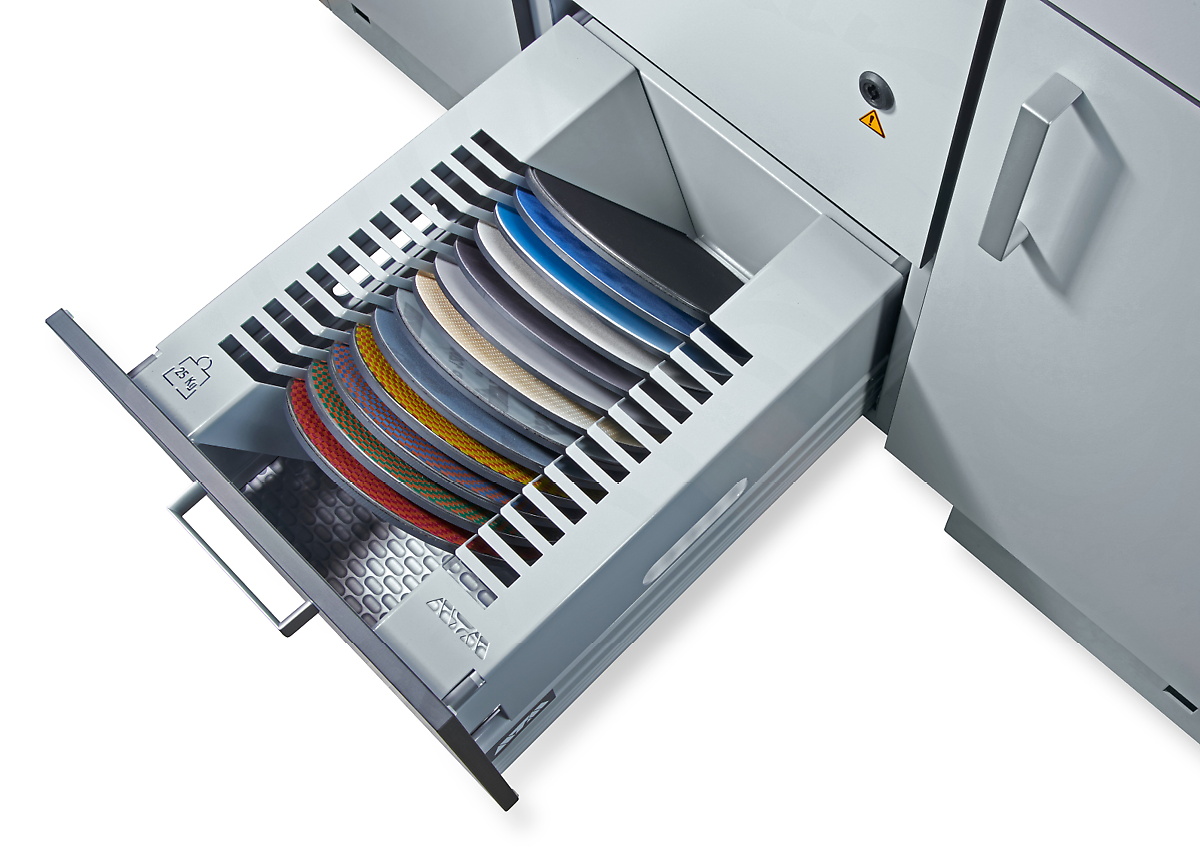

• Storage drawer for abrasives
• Settling tank 45L
• Light barrier to secure danger area

llproductnamea01c12a

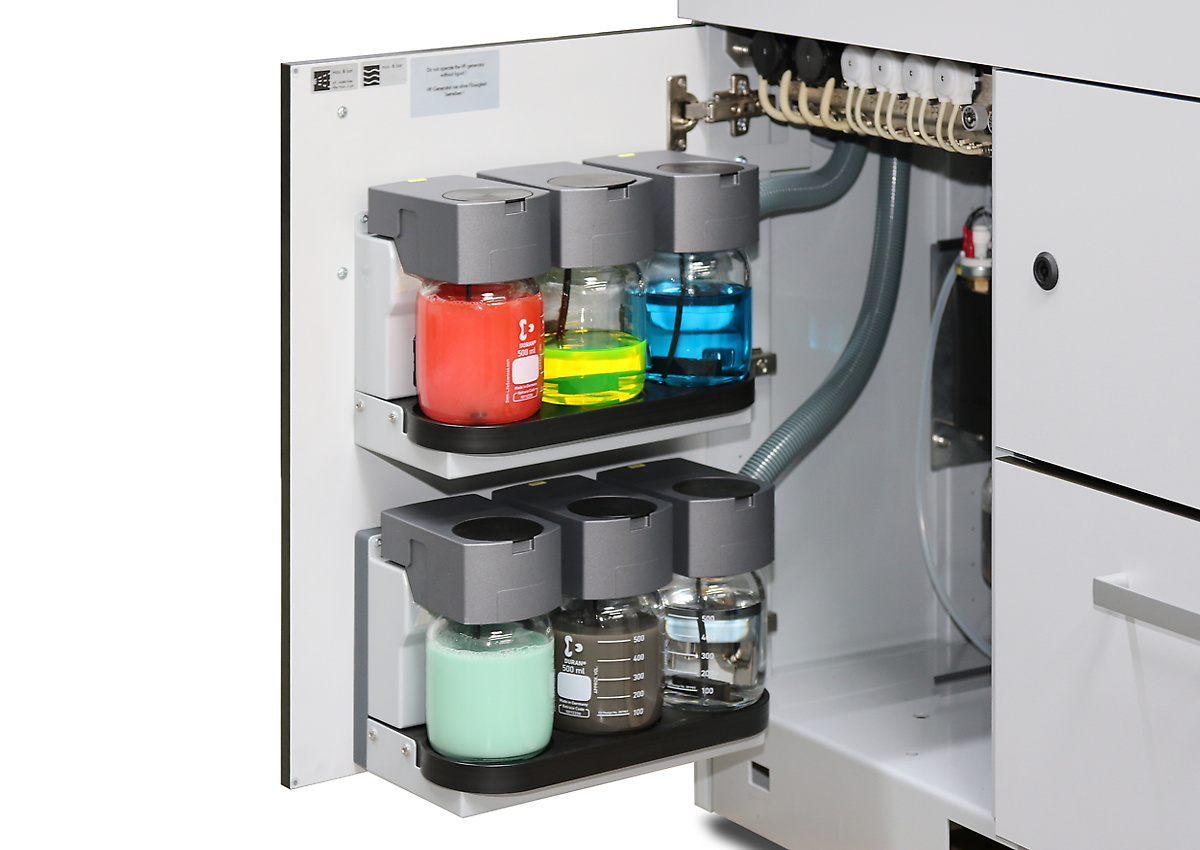

DOSING UNIT
Dosing and bottles depot are easily accessible and clearly arranged in the cabinet. Optional level monitoring and magnetic stirrer.

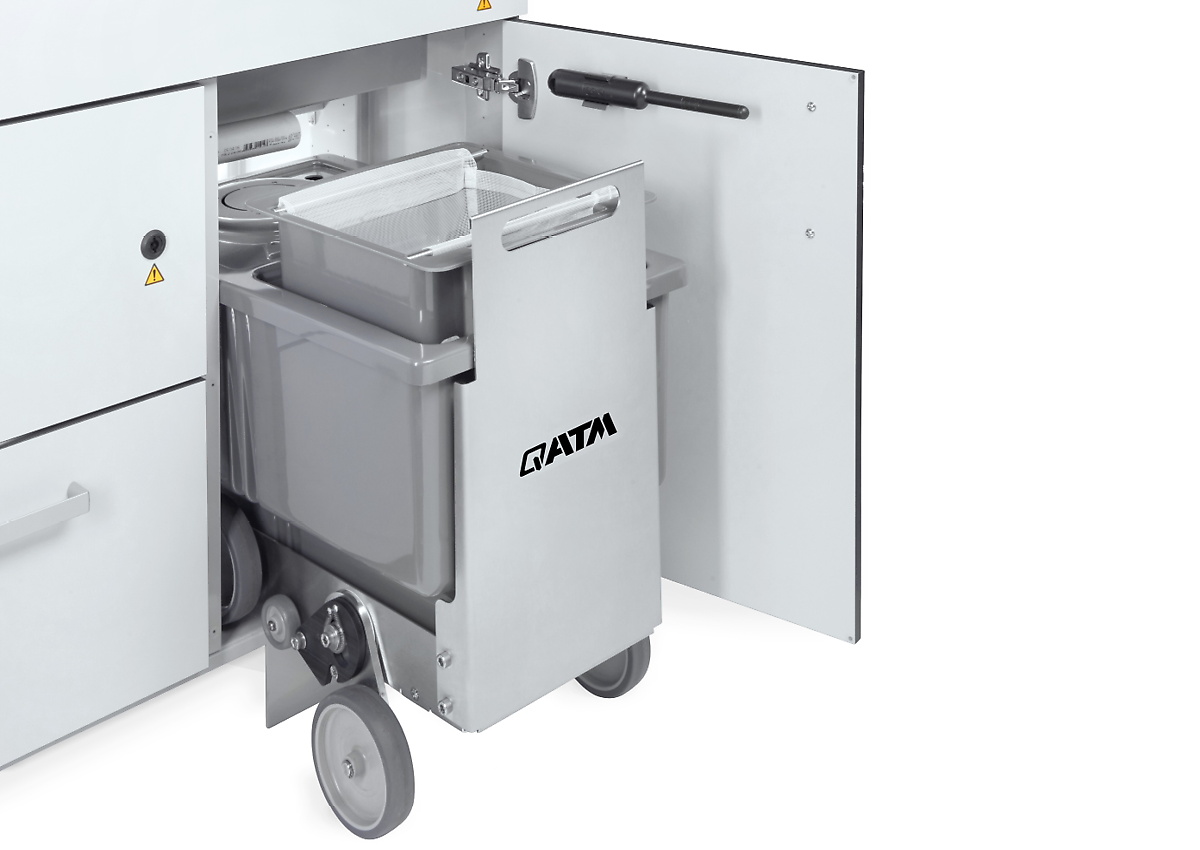

SETTLING TANK
The insertible settling tank is invisibly integrated into the cabinet with all its connections (option).

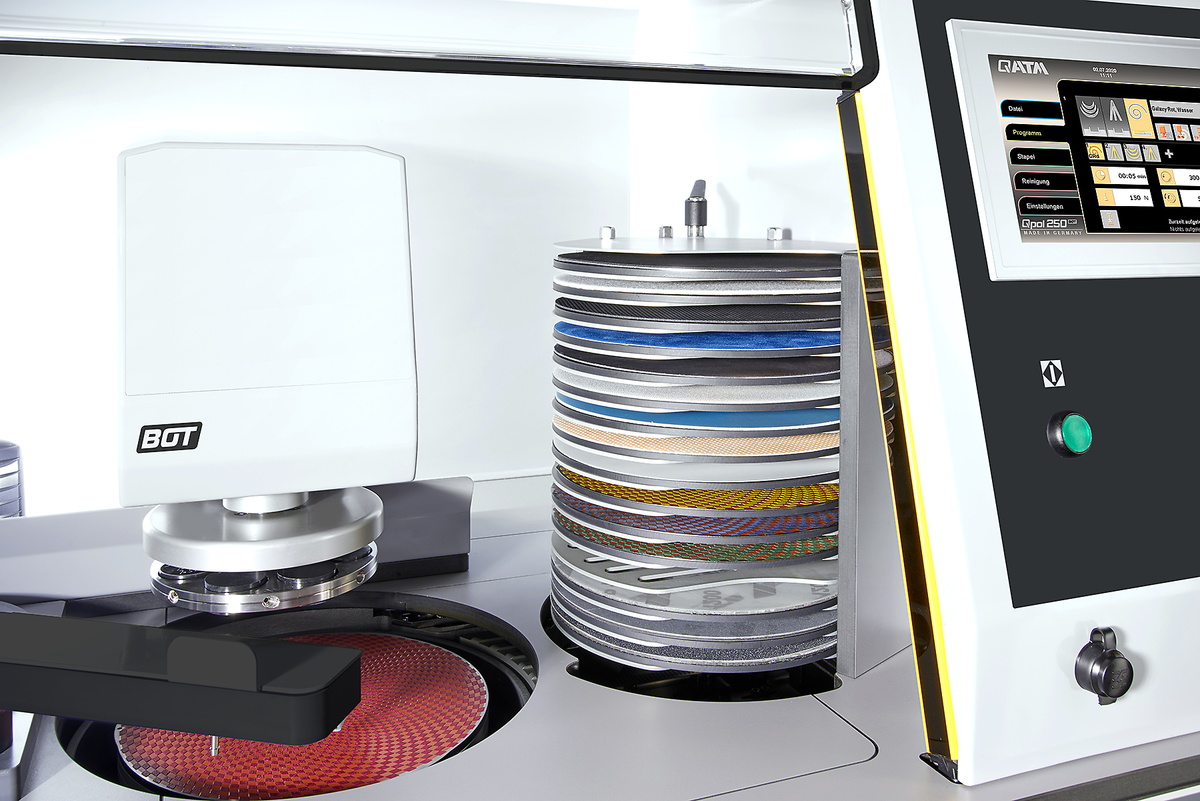

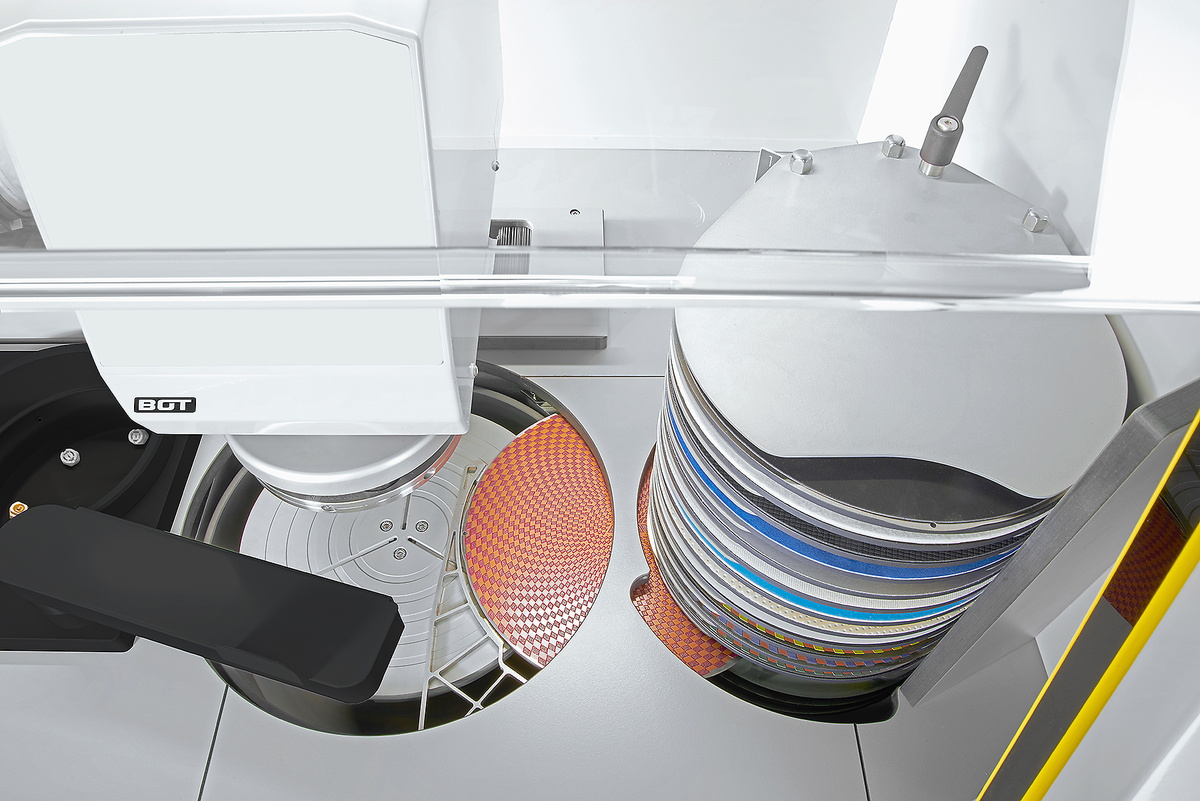

DISC CHANGER
The storage elevator contains up to 16 different grinding discs, such as SiC paper or Galaxy discs. During cleaning the sample, the foil changer replaces the grinding media and fixes it with the VacuJet system automatically.

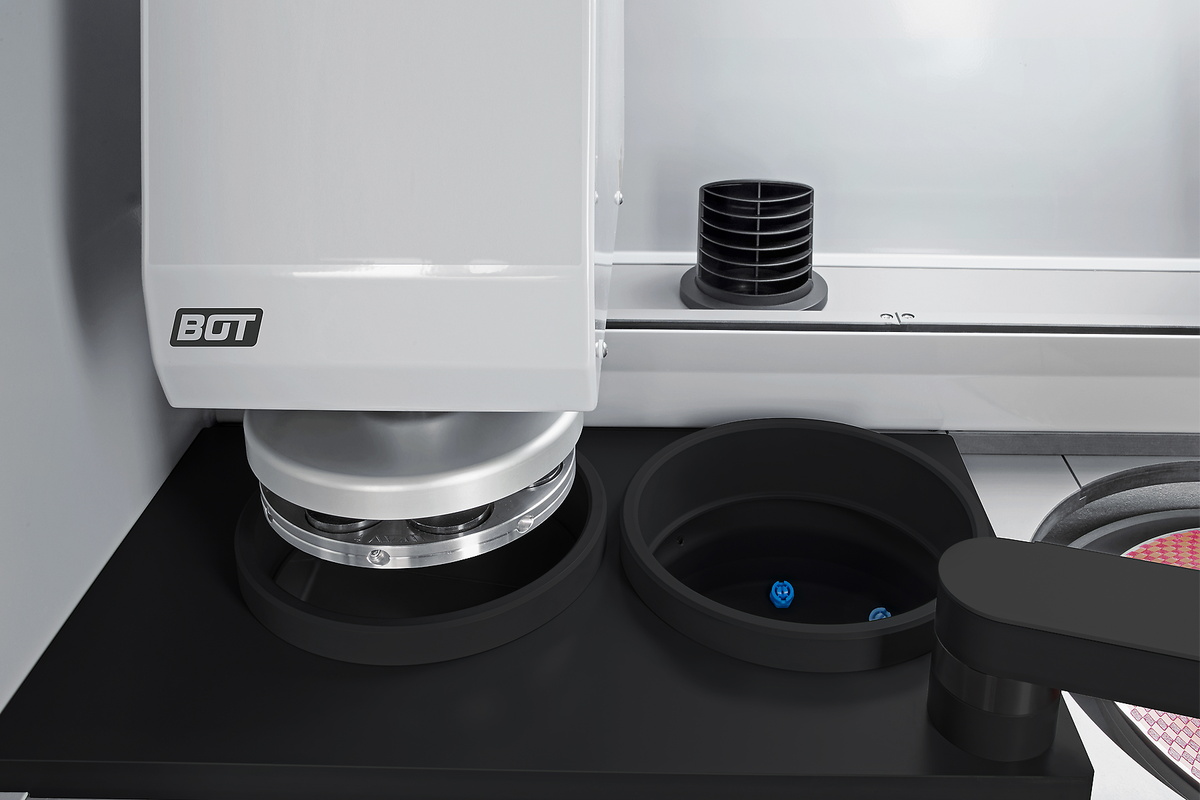

CLEANING STATION
The cleaning station enables a fully automatic multi-step cleaning of the sample with water, air and alcohol. Cleaning times and steps are completely adjustable as needed. The ultrasonic cleaning station provides intermediate or final cleaning.

1200x850px-vorlage-qpol-250-bot-dimensions-1
  • Brand QATM
  • Working wheels ø 250 mm
  • Drive power 1.1 kW S3/40%
  • Sample holder-Ø 160 mm
  • Drive power polishing head 0,17 kW S1
  • Speed (head) 30 - 150 rpm
  • Speed (grinder) 50 - 600 rpm
  • Controlled removal measurement (display accuracy) 0.1 mm
  • Water connection 1x fresh water R½" max. 6 bar
  • Water outlet 1x waste water DN50
  • Compressed-air connection 6 bar. coupling connector NG8

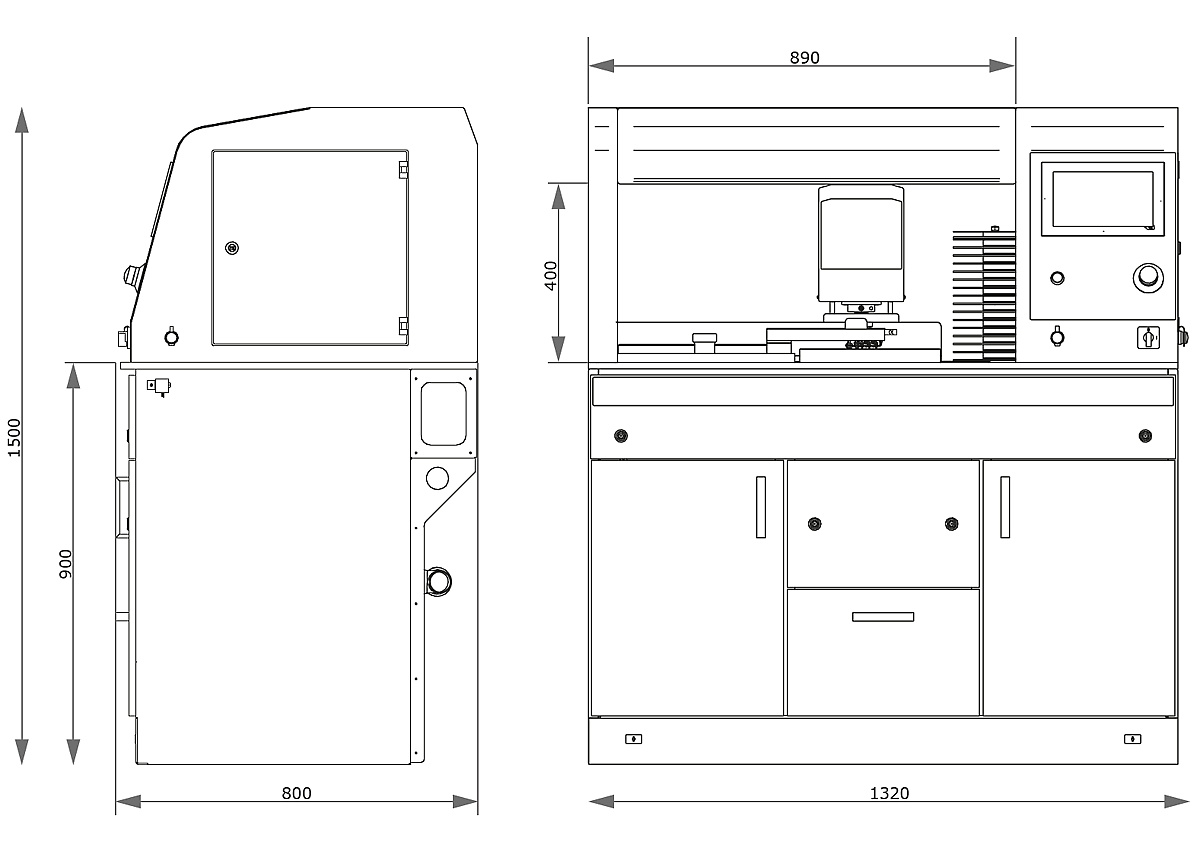

  • W x H x D 1320 x 1500 x 800 mm / 51.97 x 59.06 x 31.49 in
