QPOL 300 A2-ECO+

The Qpol 300 A2-ECO+ is a single-wheel grinding and polishing machine for the metallographic laboratory

Request a quote
  • Description
  • Details
  • Materials
  • Documents
  • Videos
  • Review

Description

PRODUCT ADVANTAGES

• Double wheel grinder/polisher for metallographic sample preparation
• Spin cycle feature (Cleaning Boost)
• 4.3″ Touch-Screen with intuitive QATM user software
• 200 customized programs storable
• Easy cleaning/rinsing of bowl by lifting the working wheel (single-disc design)
• Variable speed of working wheel and polishing head
• Working wheel and polishing head: clockwise / counter-clockwise rotation
• Impact-proof plastic bowl
• Aluminium case, powder coated
• Economic LED illumination

llproductnamea01c27b

FEATURES

1800x1200px-vorlage-qpol-250-a1-eco5

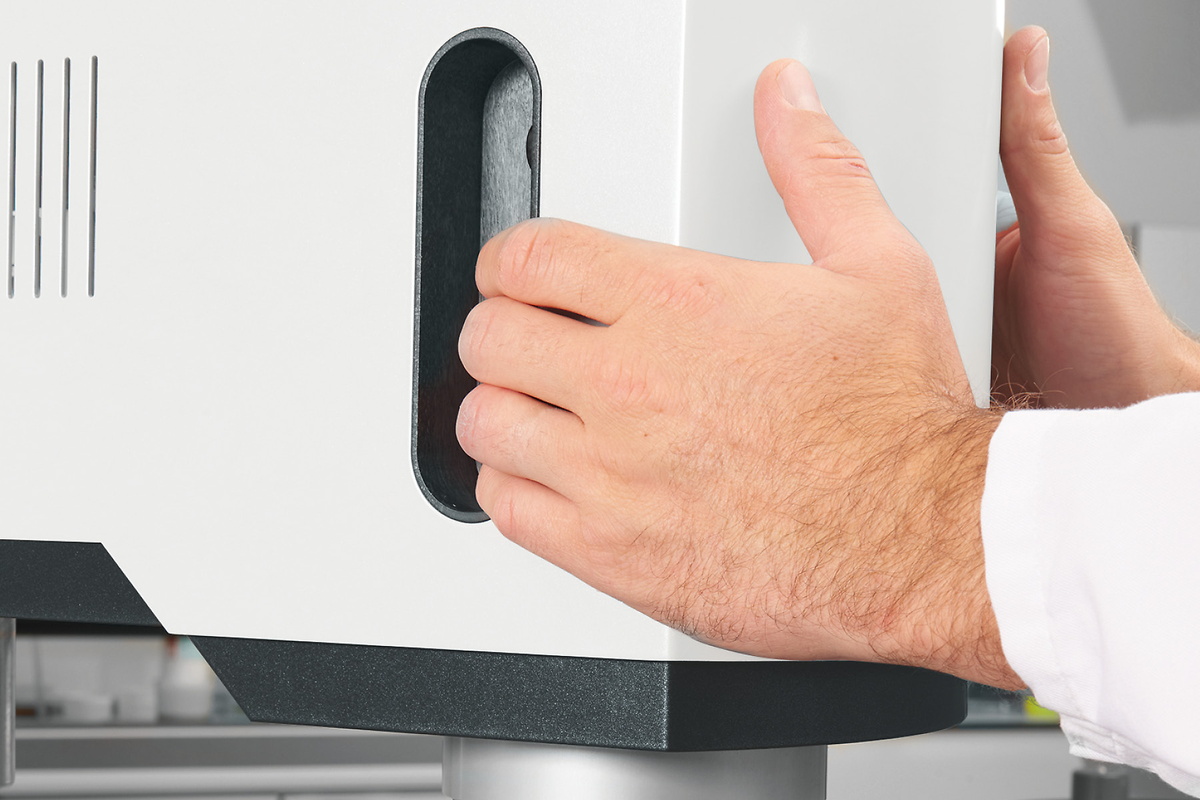

OPERATING COMFORT
llproductsqpol300aconvincingbenefitssingledischl
SINGLE-DISC DESIGN
1800x1200px-vorlage-qpol-250-a1-eco4
ECO POLISHING HEAD
llproductsqpol300aconvincingbenefitssampleholderhl

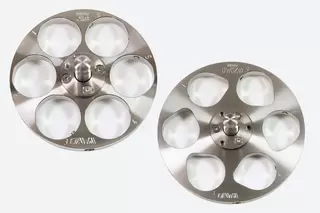

SAMPLE HOLDERS
llproductsqpol250adosingunithl

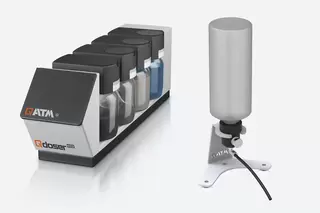

OPTIONAL DOSING UNIT QDOSER ECO / ONE

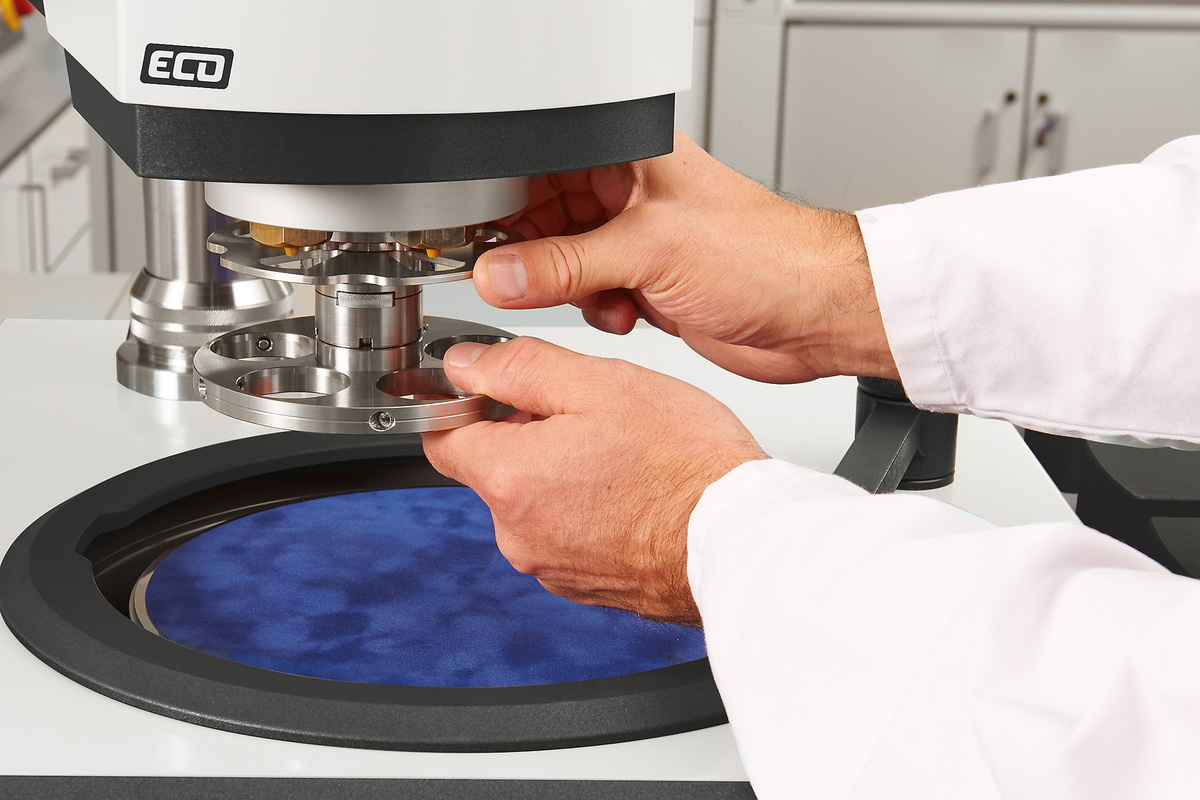

The ECO grinding & polishing head with adjustable swivelling limits is equipped with recessed grips on both sides and integrated buttons for easy swivelling and adjustment. A large gap between the working surface and the polishing head ensures convenient changing of the sample holder.

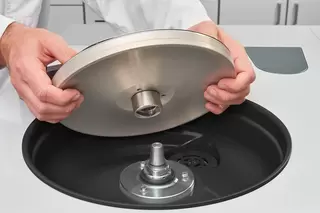

After removal of the splash protection ring, the working wheel is freely accessible. The wheel is automatically arrested when placed on the new mounting system. On lifting the wheel, all parts below are accessible for easy cleaning.

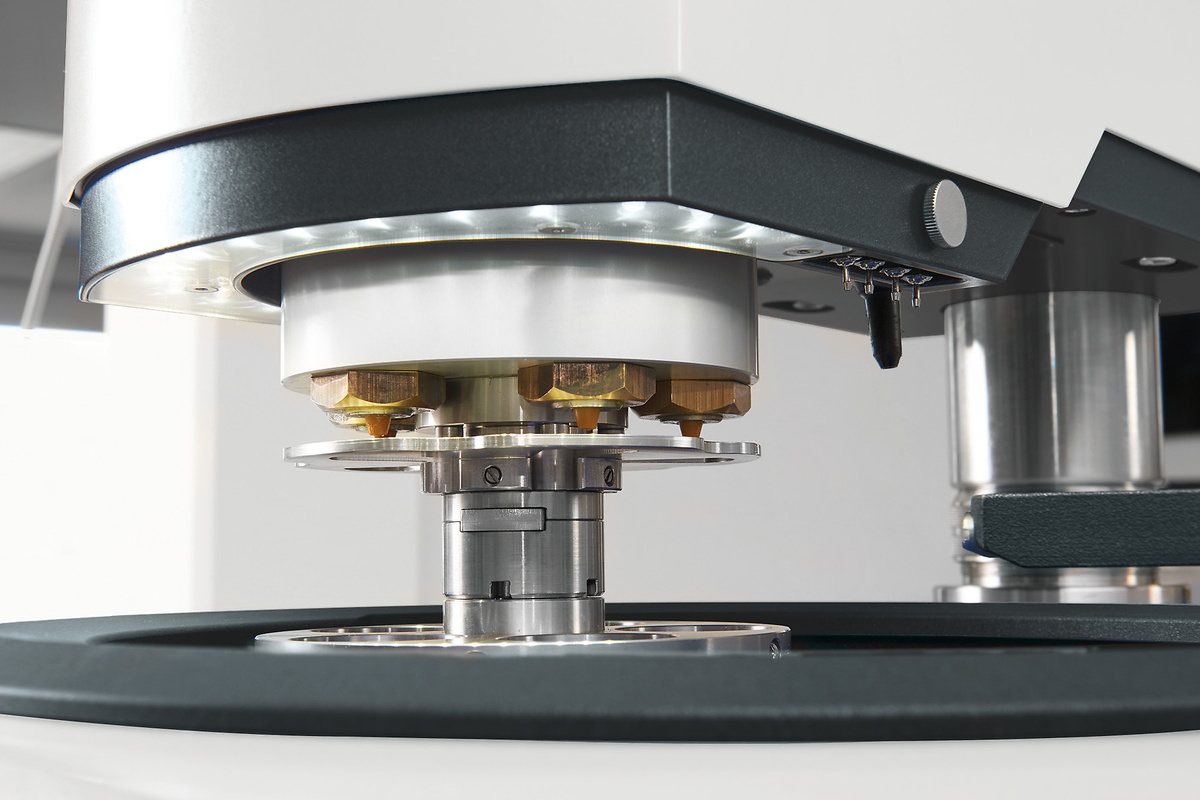

The ECO polishing head is equipped with LED illumination of the working area and a holder for the nozzles of the Qdoser ECO dosing system. Water is supplied automatically via the head.

QATM offers a wide selection of standard sample holders in various diameters and for different applications and machines. Samples with unusual dimensions can be clamped with the help of special design sample holders.

The automatic grinders and polishers can be combined with the fully automatic dosing system Qdoser ECO or the manual dosing solution Qdoser One, thus offering a high degree of flexibility for sample preparation and ease of use.

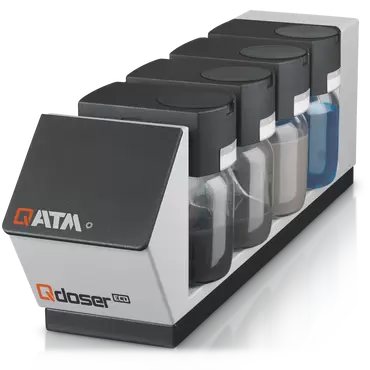

DOSING UNITS QDOSER ECO / QDOSER ECO+

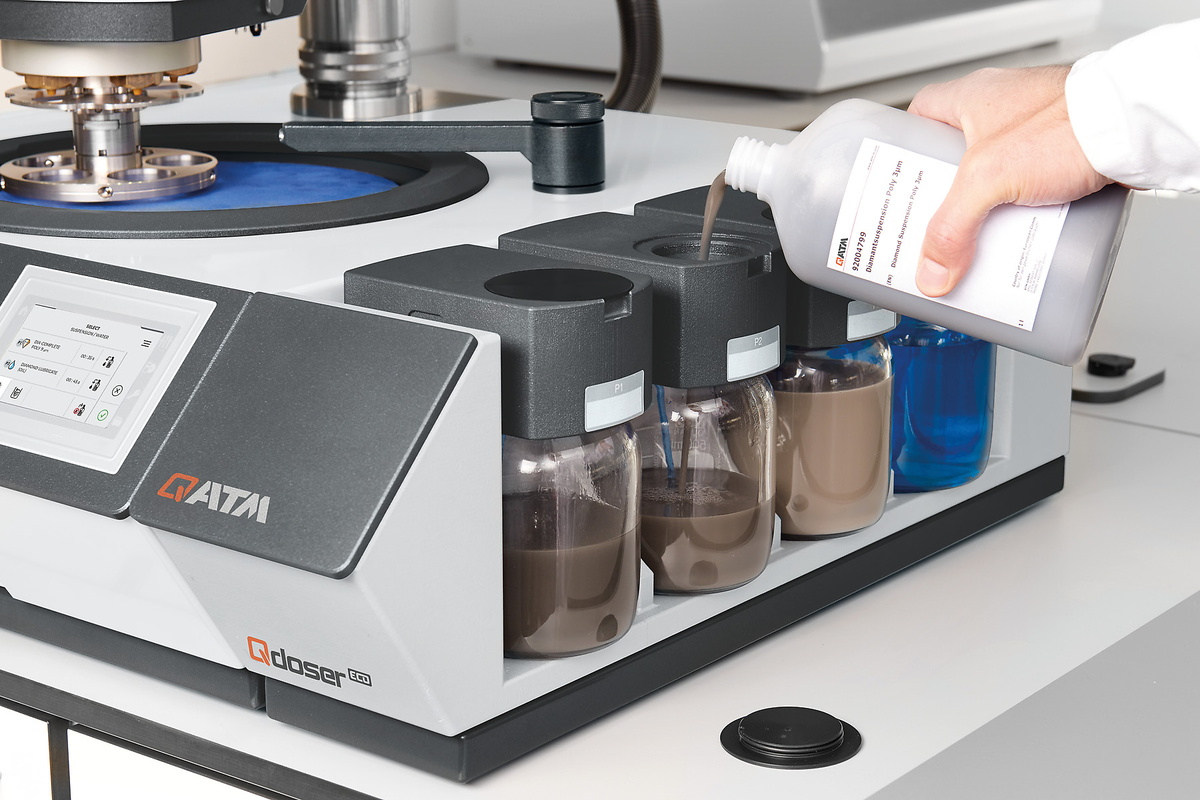

The Qdoser ECO and Qdoser ECO+ fully automatic dosing units speed up grinding and polishing processes in the materialographic laboratory and are designed for use with the automatic grinding machines of the Qpol 250/300 A series. 4 screwable 500 ml glass bottles can hold diamond suspensions, lubricant or final polishing suspensions and can be filled through a separate lid, even during operation. They are quickly removed for easy cleaning.
The dosing nozzles are easily attached to the grinding and polishing head. The dosing is controlled fully automatically by the software of the Qpol devices. A backflushing function keeps the hoses clean.

Qdoser ECO for all Qpol 250/300 A grinders/polishers for 3x diamond suspension and 1x lubricant or 4x diamond suspension Dia-Complete
Qdoser ECO+ only for Qpol 300 A-ECO+ grinders/polishers for 3x diamond suspension, lubricant or All-In-One diamond suspension and 1x final polishing suspension
Adjustable interval
Reverse rinsing function
Controlled by the control software of the Qpol 250/300 A grinders/polishers
Suspension containers refillable and removable
incl. nozzles (inserted into a holder attached to the head)

llproductnamea01c23a
  • Brand QATM
  • Working wheels ø 250/300 mm
  • No. of samples (single pressure) 1-6 samples ø 50 mm
  • Single pressing force variable, 5-80 N
  • Central pressing force variable, 20-350 N
  • Connection power 3.3 kVA
  • Drive power (grinder) 0.75 kW (S1)
  • Drive power (head) 0.18 kW (S1)
  • Speed (grinder) 30 - 600 min-1
  • Speed (head) 30 - 160 min-1
  • W x H x D 901 x 530-610 x 710 mm / 35.47 x 20.87-24.02 x 27.95 in
  • Weight ~ 78 kg
  • Water connection 1x fresh water connection R½" max. 6 bars
  • Dosing system (option) Qdoser ECO / ECO+
