QNESS 200 CS

During the development of the Qness 200 units, particular attention was paid

Categories:
Hardness Testers, Macro Hardness Testers

Description
Details
Materials
Documents
Videos
Review

Description

FEATURES

• Controlled force application (1kg to 187.5kg)
• Machine versions to serve all applications and test piece size
• Direct depth-gauge-system (0.05μm resolution)
• Robust welded steel frame and sheet steel covers

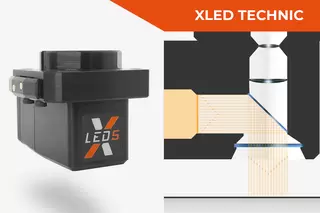

XLED illumination modules revolutionize the analysis of Brinell indentations. Due to beading on commercially available lenses, soft Brinell indentations in particular can be subject to imprecise gauging results. In contrast, XLED lenses guarantee precise and repeatable measurements, regardless of material type and hardness, due to direct and wide-extension illumination.

Unmatched in its class! We know how important a long-serving superior-quality device can be and guarantee excellent quality from our new Rockwell hardness tester series. Developed and manufactured in Austria!

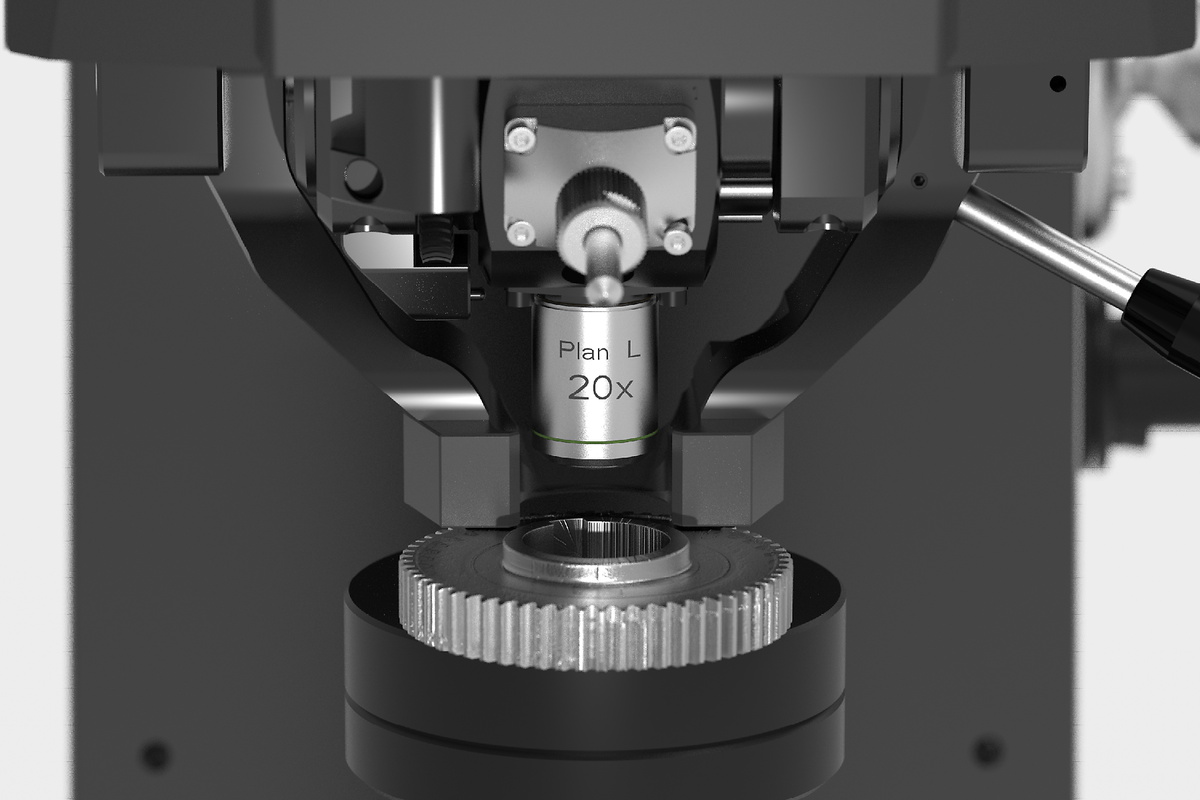

No long tool changeovers for inaccessible test positions. The downholder can be swiveled in and out via manual action. Furthermore, the clamping elements can be changed easily and adapted to suit the customer’s component.

High-quality CMOS 5-megapixel cameras with Ethernet data transfer define the current industrial standard. Unlike other camera systems, a far higher transmission stability is possible here. Additionally, the PC and hardness testing device can be set up remotely at great distances from each other. This is ideal in manufacturing environments in which the control infrastructure is installed in external switch cabinets.

A range of clamping and holding elements can be configured to suit tooling requirements. The optional transparent collision guard can protect tools on the device from damage while ensuring an unrestricted view of the test cell interior.

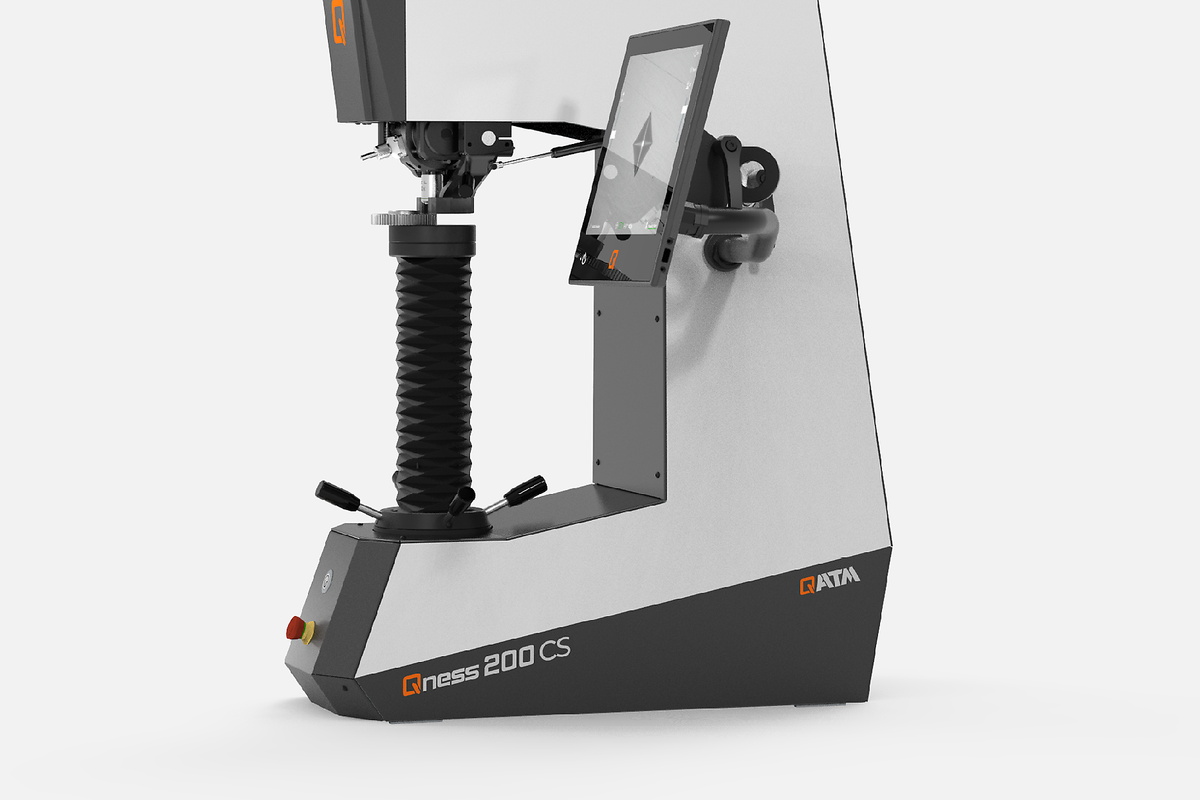

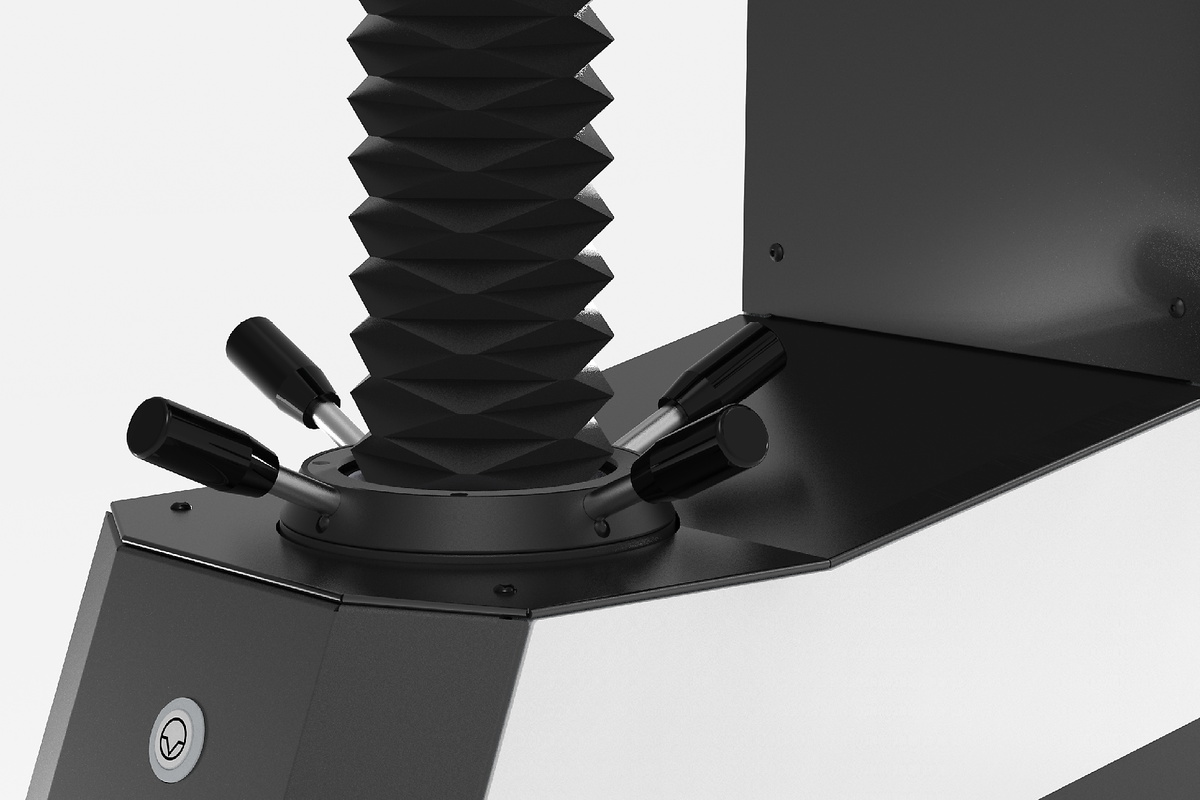

Height adjustment via stable, ultra-precise roller-bearing spindle guide. Solid, no-maintenance structure. All devices are available with a Ø 25 mm table mount (optional ¾” adapter available) facilitating the use of a wide range of test tables and devices.

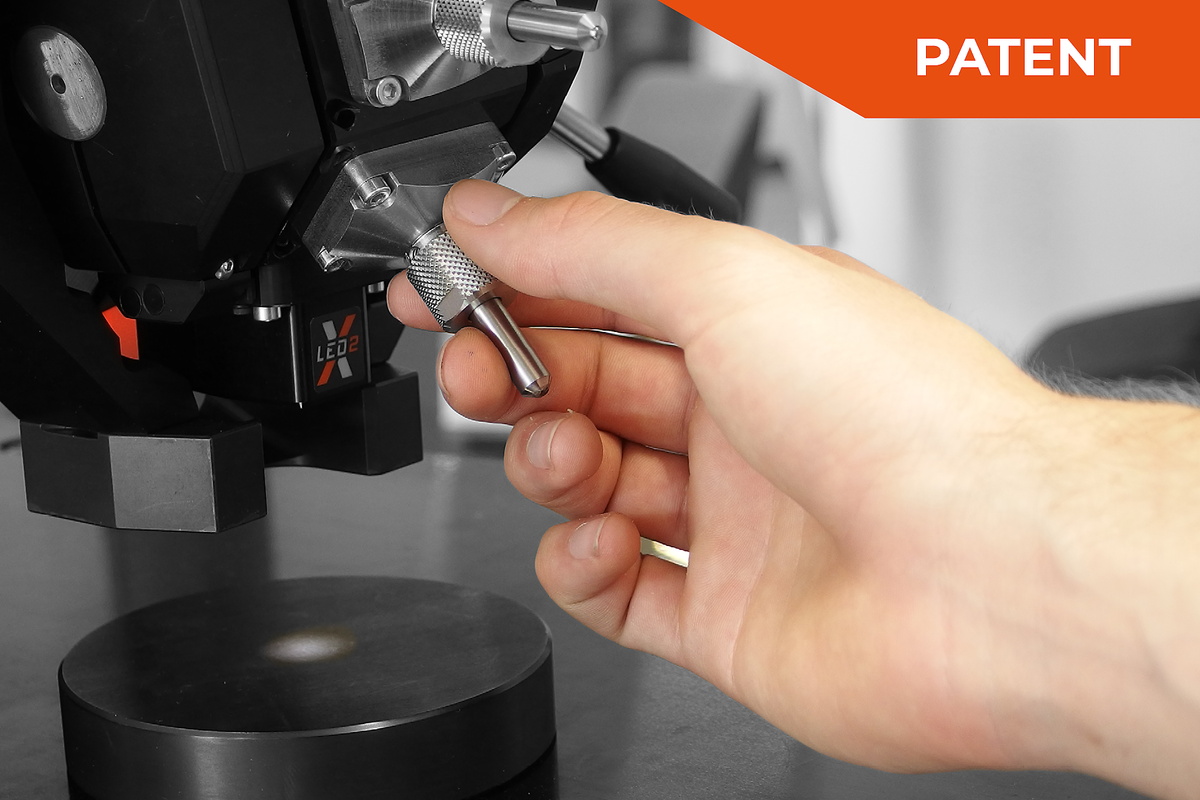

Uniquely simple, tool-free indenter changes due to indenter quick-release mechanism.

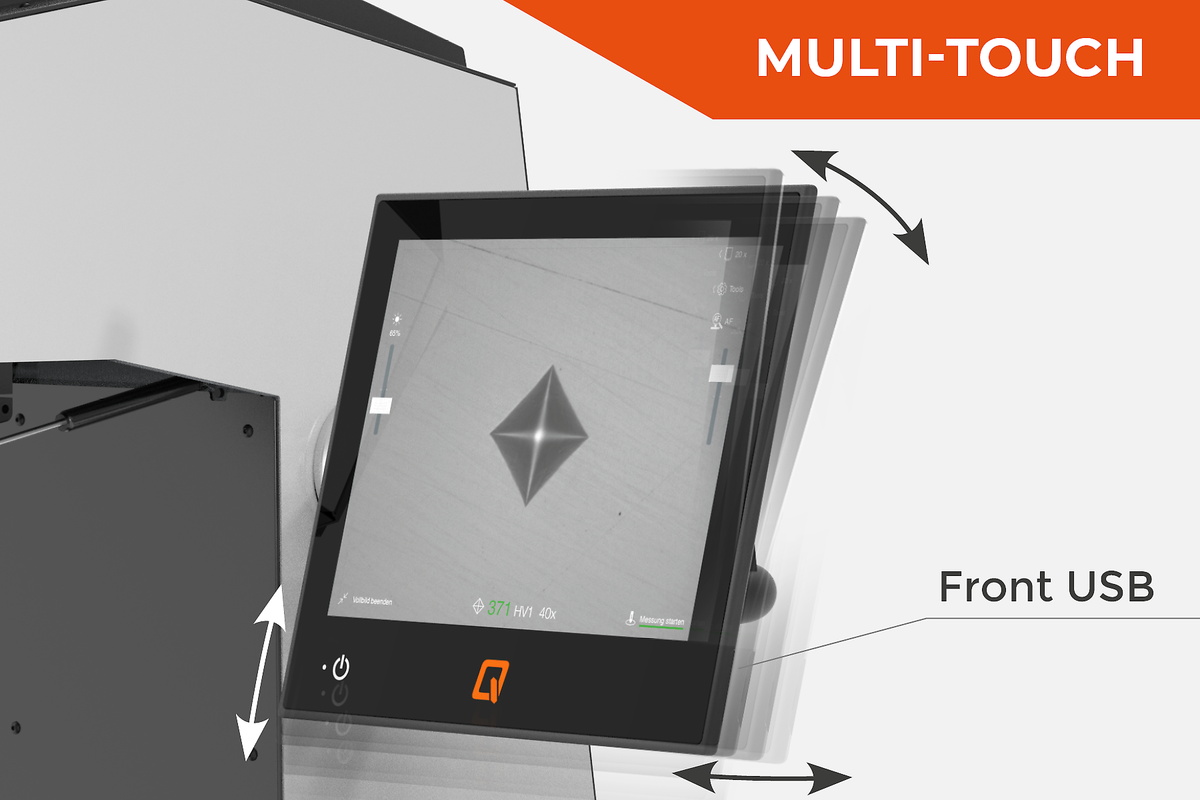

The 12” ultra-flat, capacitive touch display can be raised, lowered and tilted smoothly via ball-and-socket joints for ergonomically optimized use.

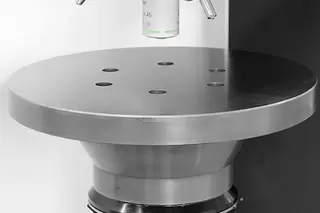

The wide range of available test anvils and prisms enable hardness testing to be conducted on unusually large or spherical items, and on test objects with an uneven test surface.

Brand QATM
Test force range 0.5 - 187.5 kg (4.9 - 1839 N)
Height adjustment manual / spindle

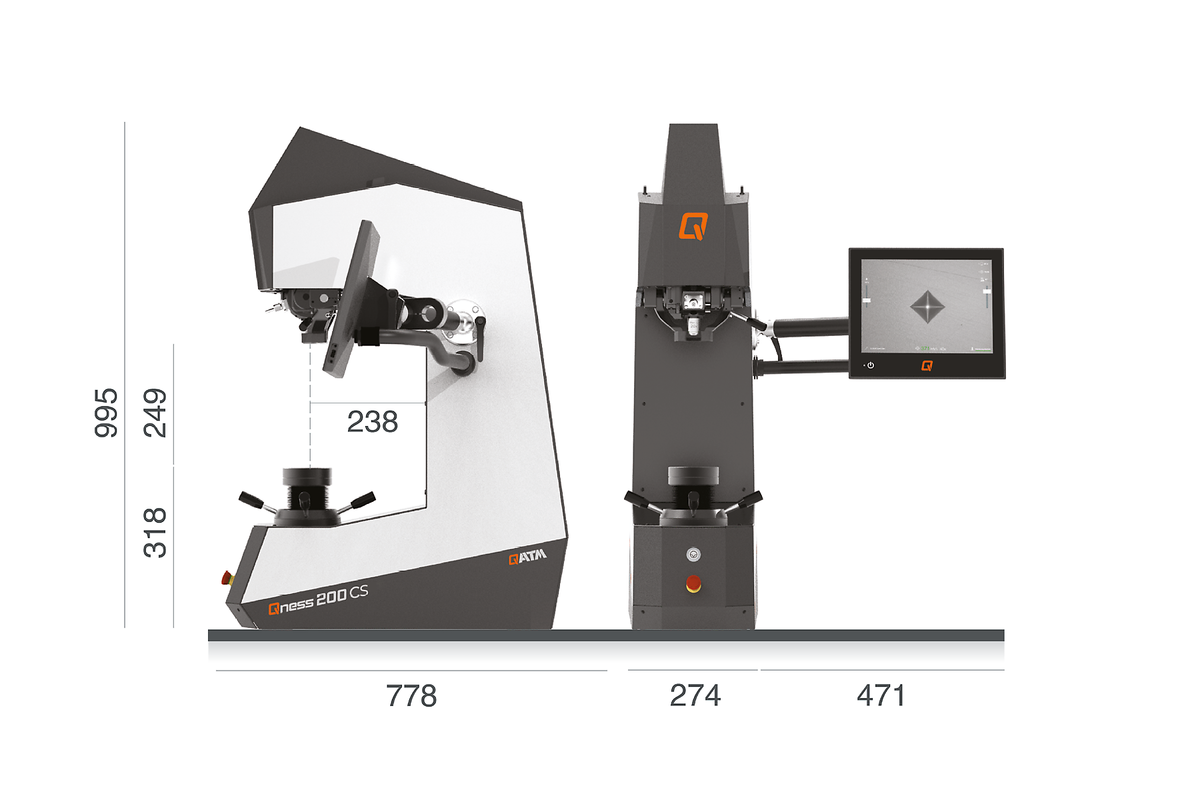

Test height 250 mm
Throat depth 238 mm
Test table ø 100 mm
Max. workpiece weight "unlimited"
Weight of basic device 132 kg
Test sequence fully automated / electronic force application
Software Qpix T2
Camerasystem / Image transfer 5 MP ethernet industrial standard
Interfaces 1x USB (Front) 4x USB, 2x RJ45 (Ethernet), 1x DisplayPort, 1x RS232, 1x HDMI
Lenses XLED 2, XLED 5, 5x, 10x, 20x, 50x, 100x
Field of view (acc. to equipment) 0.113 x 0.084 mm (100x) to 4.24 x 3.18 mm (XLED2)
Additional optioins QATM designer pedestal, collision protection, cross laser, test anvils,prisms, data connections, barcode/QR code reader etc.
