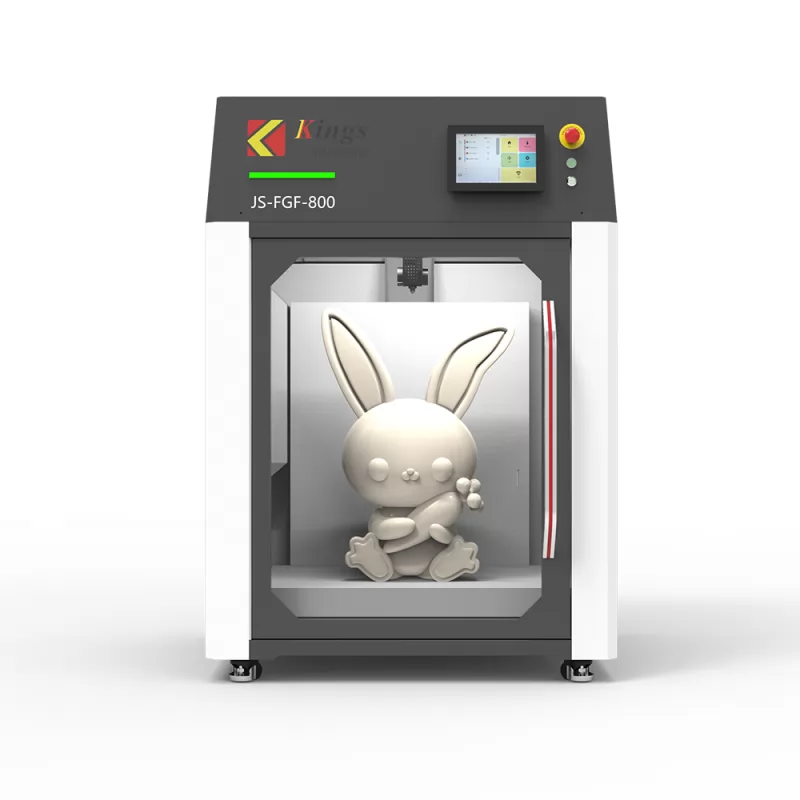

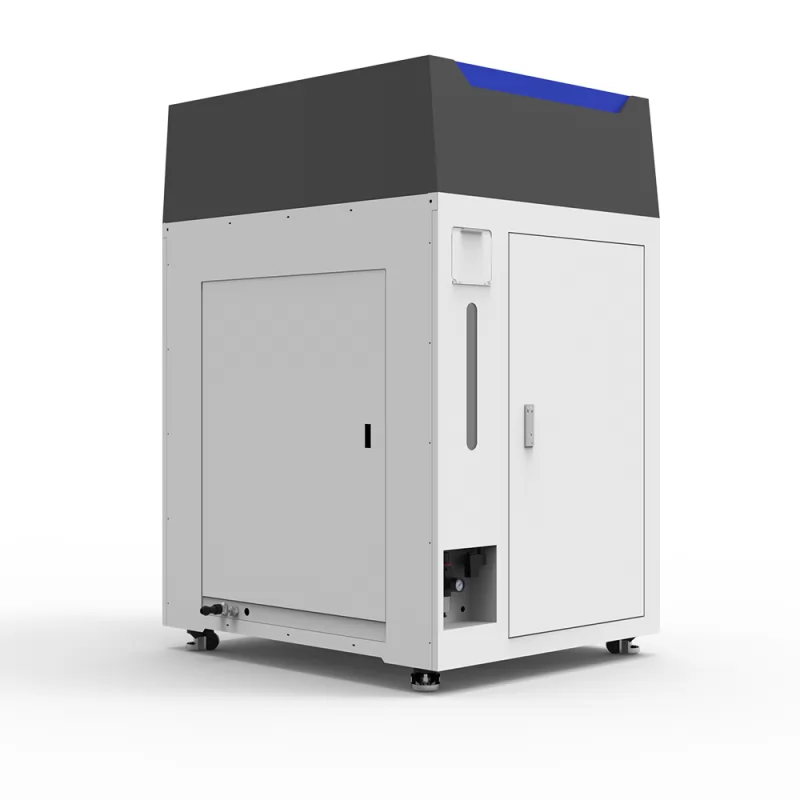

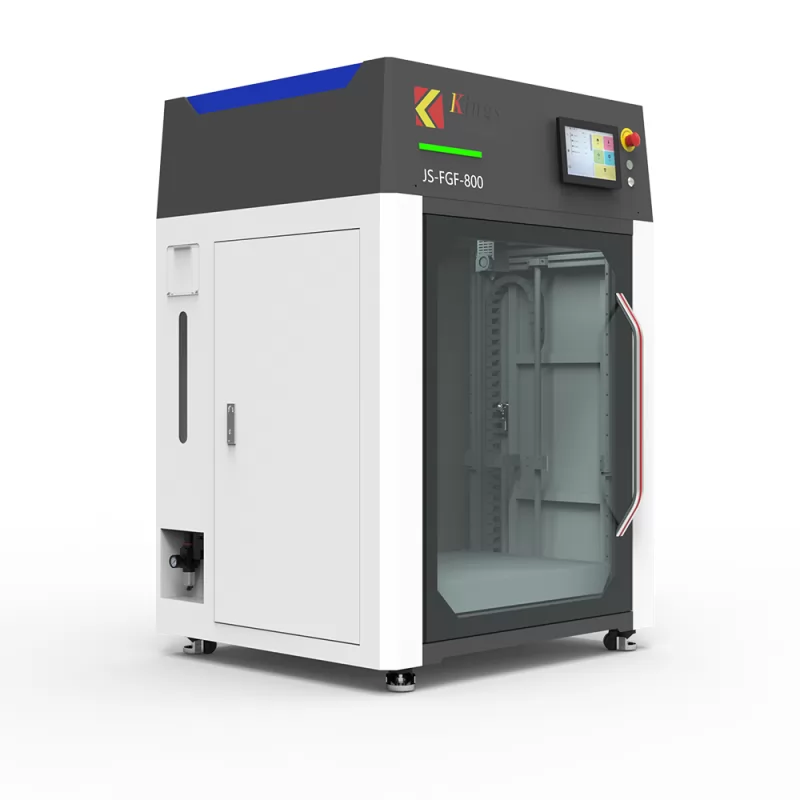

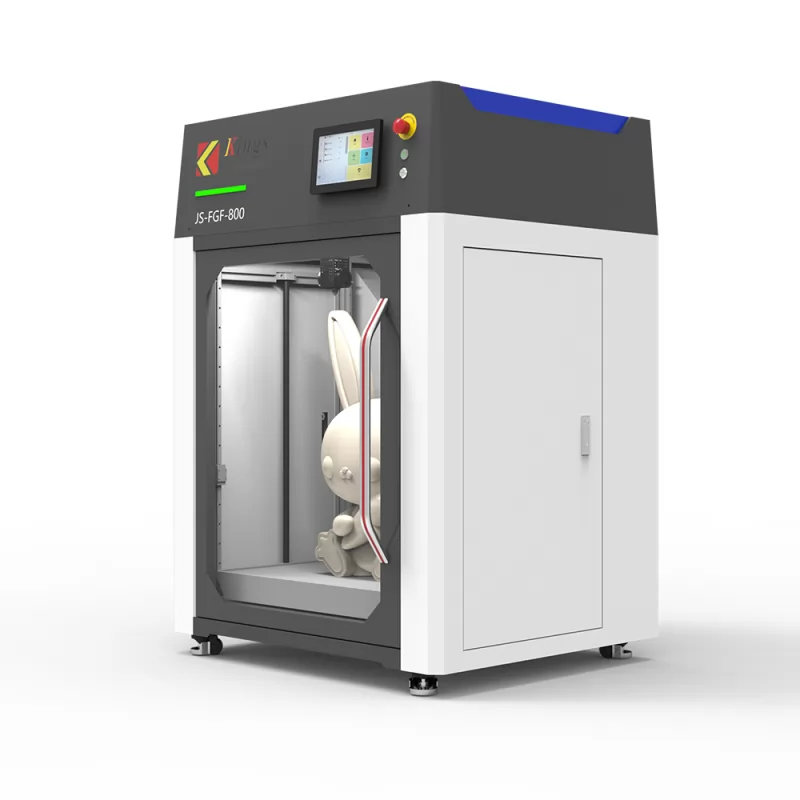

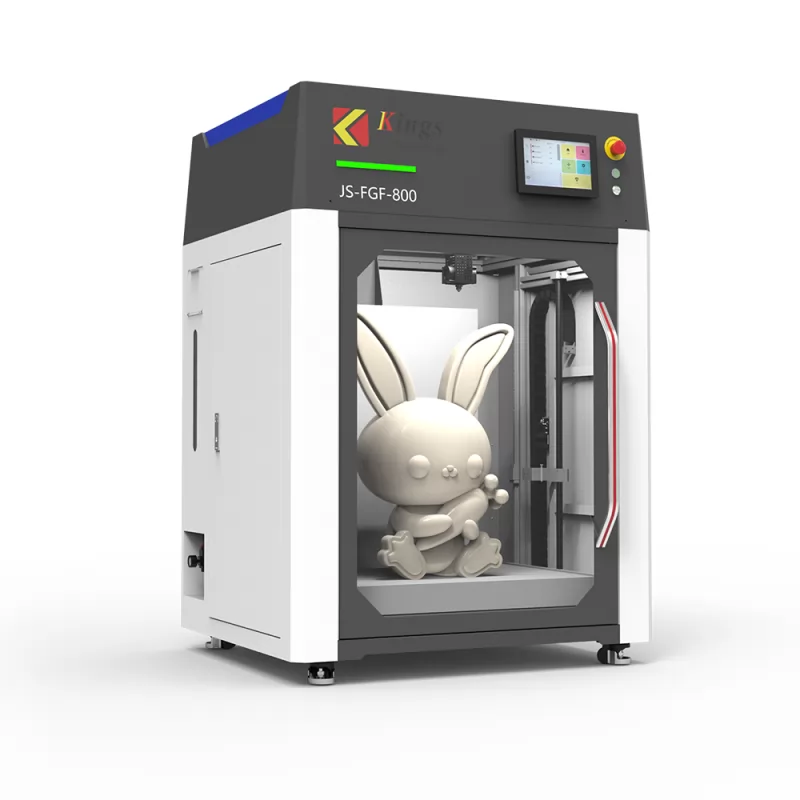

Kings FGF800 3D Printer
Efficient Industrial FGF 3D Printer. Large Format. Open Platform.
-
Technology:
FGF
-
Materials:
Plastic Pellets
On backorder
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
This model uses granular and
polymer composite materials for printing, which has the advantages of low
material cost, fast printing speed and forming speed, high strength, and
outdoor weather resistance. A new generation of industrial-grade
high-performance 3D printer developed by using Fused Grain Structure (FGF)
technology and a new generation of screw extrusion technology, with
self-developed consumables. Cost-effective materials based on ABS, ASA,
PETG+glass fiber/carbon fiber are suitable for indoor and outdoor sculptures,
special-shaped walls, furniture, models, molds, display props and other
application markets. The personalized external fixation brace based on PP,
PLA and other materials is suitable for the prevention and correction of limb
deformities, postoperative rehabilitation and other medical fields due to its
characteristics of fast, accurate, light and easy to clean.
MULTI-ZONE HEATING BUILD PLATE
The build plate has multiple heating zones that can be controlled independently. This allows for selective heating of different areas to prevent unnecessary power consumption. The build plate can reach a maximum temperature of 145°C. The build plate is designed to release stress and maintain a flat surface, ensuring the stability of the workpiece. When a single area of the build plate is heated to 100°C, the flatness error is ≤0.2mm/㎡.
ADVANCED PROCESS CONTROL
The Advanced Process Control system includes a self-developed, all-digital bus-type high-end CNC device. It supports the self-developed NCUC bus protocol and EtherCAT bus protocol, allowing for compatibility with bus-type full-digital servo drive units, absolute servo motors, and remote I/O units. It also integrates a handheld unit interface. The system features a dual IPC unit structure, with high-end CNC system functions such as high-speed and high-precision machining control, five-axis linkage control, multi-axis and multi-channel control, two-axis synchronous control, and error compensation. The system has a user-friendly and humanized HMI, as well as a unique intelligent APP platform and network communication capabilities for digital workshops.
KINGS FGF800 3D PRINTER ADVANTAGES
The Kings FGF800 3D Printer offers several notable features. It utilizes granular and polymer composite materials for printing, which brings various advantages. These advantages include low material cost, fast printing speed, quick forming speed, high strength, and resistance to outdoor weather conditions. Additionally, this model incorporates Fused Grain Structure (FGF) technology and a new generation of screw extrusion technology, resulting in an industrial-grade high-performance 3D printer. The printer also utilizes self-developed consumables.

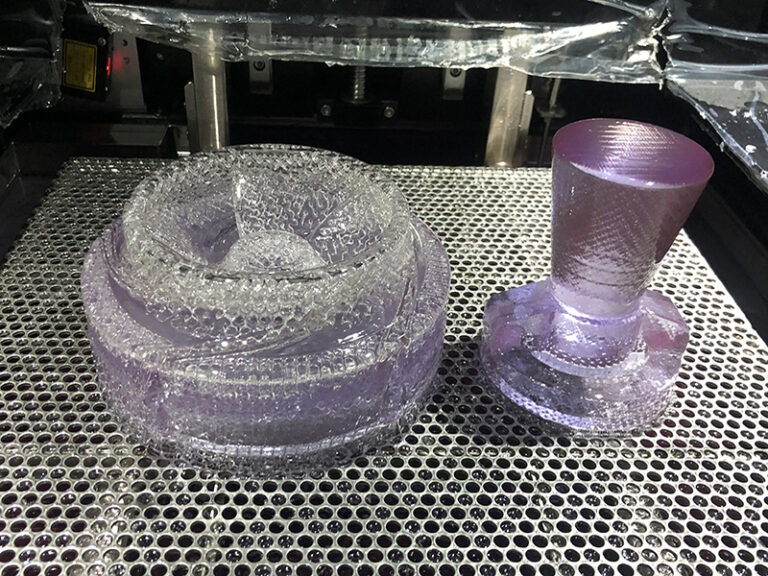

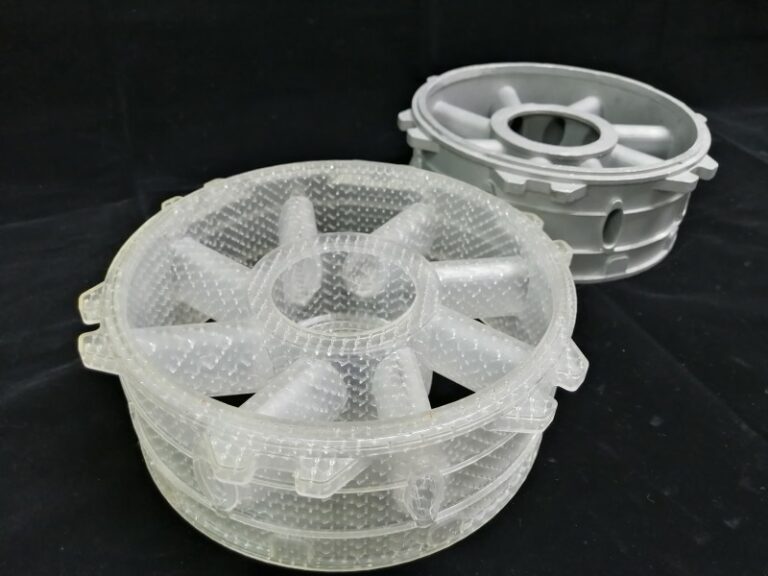

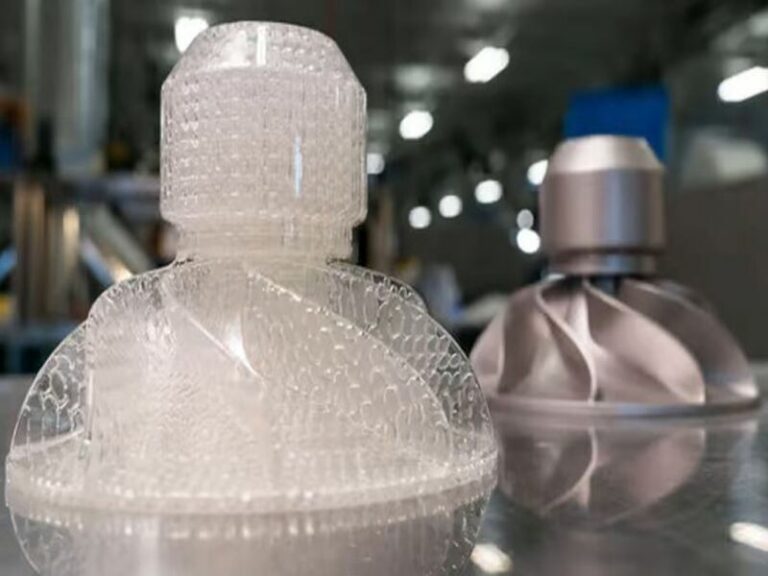

HIGH SPEED MOLD MANUFACTURING
The traditional process of manufacturing aluminum steel molds typically takes 1-2 months. However, with Kings’ integrated manufacturing process, which involves both adding and subtracting materials, molds can be produced and put into production within just 1-2 weeks. This allows for the timely adaptation of molds to keep up with product design updates, significantly reducing the product design time and R&D cycle for businesses. It also improves workflow efficiency in creative applications, resulting in faster output of finished products.
WIDE RANGE OF MATERIALS AND REDUCED MATERIAL COST
Another advantage of using Kings FGF 3D printers is the lower material cost. These printers use an extrusion-based process, which allows for the direct conversion of raw materials onto the print bed. This means that the products produced can be used outside. Additionally, the rapid additive and subtractive prototyping process used by these printers minimizes waste material, resulting in high material utilization. Overall, this leads to lower material costs and improved reliability, as well as shorter turnaround times.
LARGE PRINTING SIZE
TYPICAL APPLICATIONS

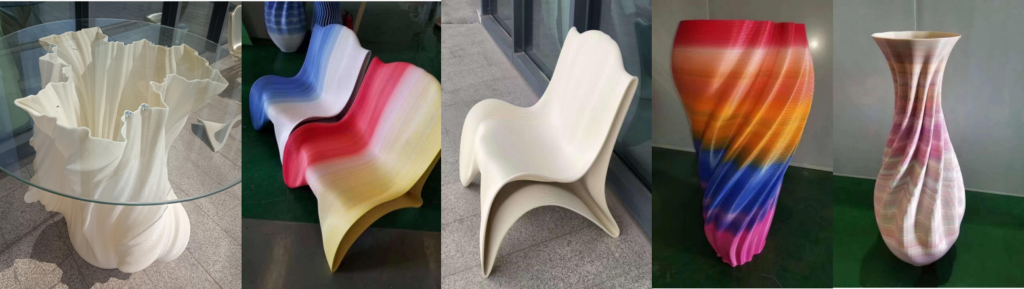

The Kings FGF800 3D Printer is well-suited for a range of applications. It is particularly effective for cost-effective materials such as ABS, ASA, PETG+glass fiber/carbon fiber. These materials are ideal for creating indoor and outdoor sculptures, special-shaped walls, furniture, models, molds, display props, and other similar markets.
Moreover, the printer is capable of producing personalized external fixation braces using materials like PP and PLA. These braces are suitable for various medical fields, including limb deformity prevention and correction, postoperative rehabilitation, and more. The braces are characterized by their fast production, accuracy, lightweight design, and ease of cleaning.

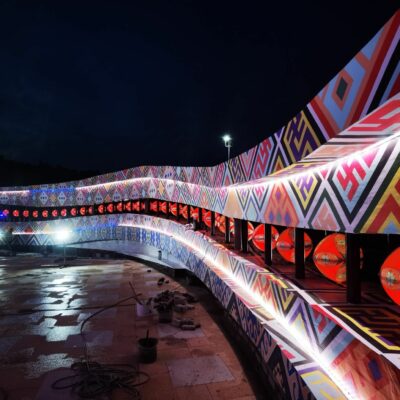

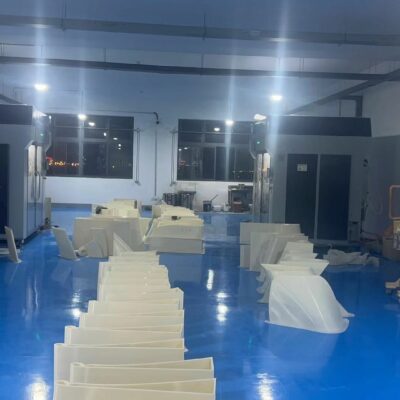

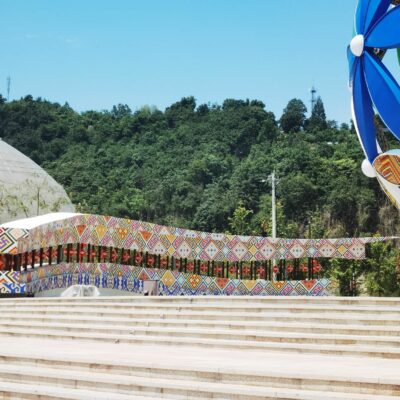

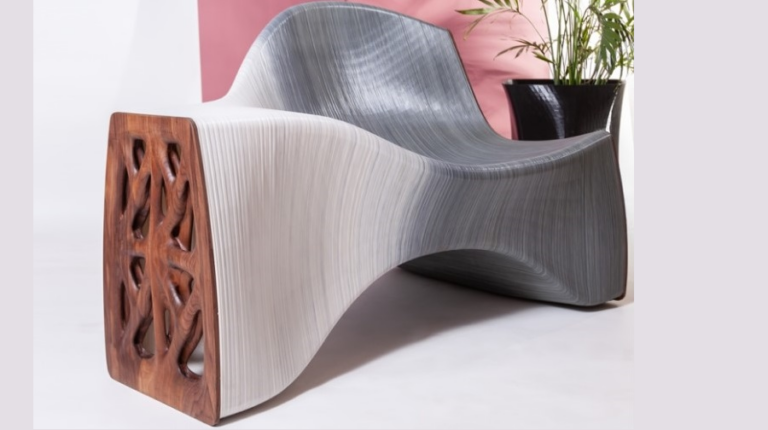

FURNITURE AND DESIGN. In response to the increasing and varied market demand, we have introduced our FGF solution, which offers a more cost-effective and time-saving option. Service providers in the cutting-edge industry are utilizing 3D printing technology for the production of complex geometries. This technology is widely used in various industries such as sculpture making, furniture design, toy manufacturing, art crafts, mold production, and even the creation of landmarks.

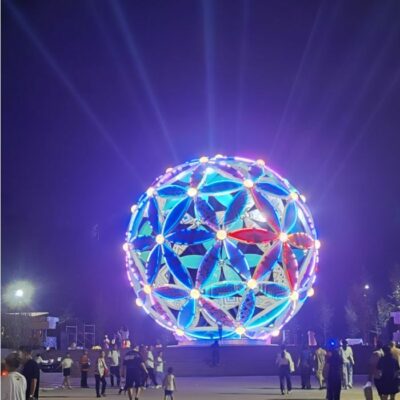

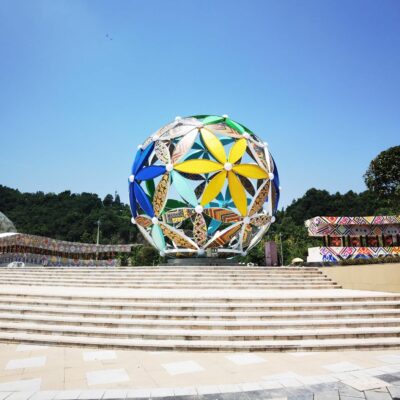

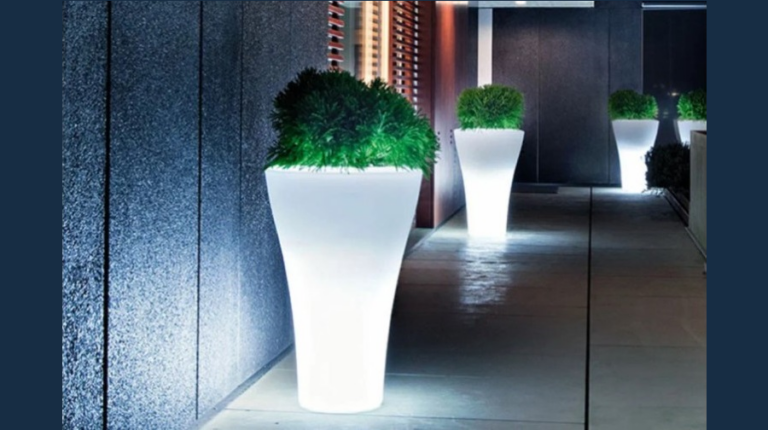

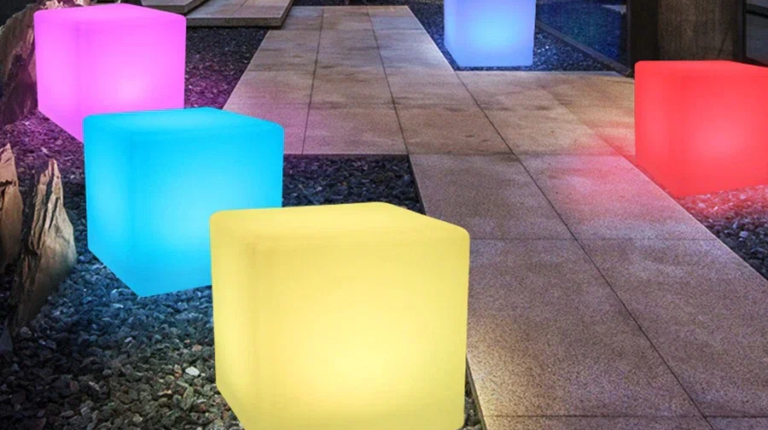

OVERSIZE DISPLAYS. These displays are created using 3D printing technology, which allows for the production of complex and intricate designs. They are commonly used in industries such as advertising, marketing, and event planning to create eye-catching and attention-grabbing displays that effectively promote brands and products. The use of FGF technology in the production of oversize displays offers a cost-effective and time-saving solution for businesses looking to create impactful visual experiences.

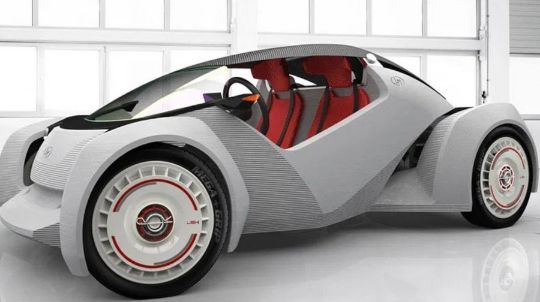

Generally, Kings 3D has successfully catered to the demands of the heavy industry, where there is a significant need for fast and large-scale production. This includes various applications such as bicycle manufacturing, automotive production, yacht building, rail construction, and marine engineering.
In the video you can see how the FGF 3D printer works:
- Build Volume 31x24x31 in / 800x600x800 mm
- Brand Kings3D
- Rated Power Consumption 10kW
- Technology FGF
- Machine model FGF-1600
- Molding technology Fused granular fabrication
- Working surface temperature ≤120 degrees Celsius
- Workbench contact surface Magnetic platform/tempered glass
- Optional nozzle diameter 0,039-0,315in 1-8mm
- The maximum temperature of the nozzle ≤350 degrees Celsius (500 degrees Celsius is optional)
- Nozzle heating method Three-zone intelligent heating
- Printing connection method SD/USB/WiFi
- Slicing supported formats STL/OBJ/AMF/3MF
- Compressed air pressure 0.6MPA

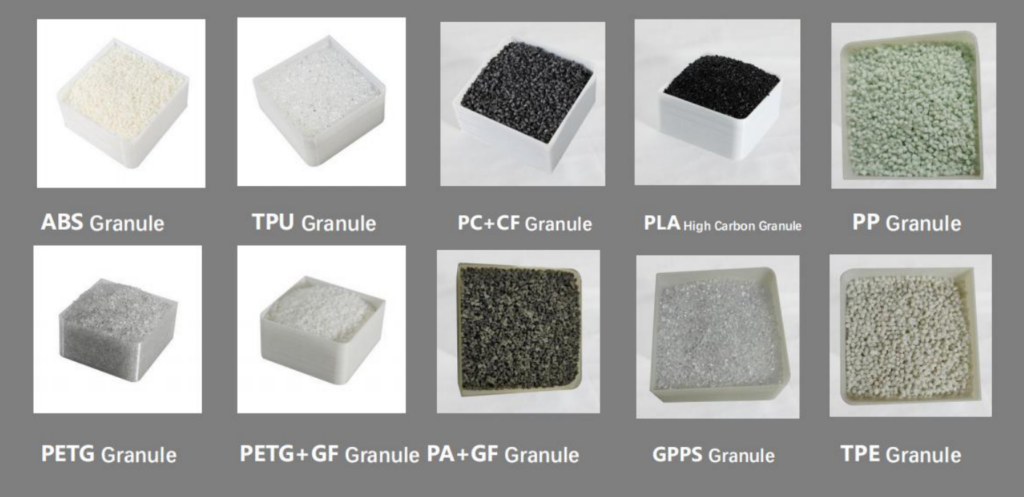

- Materials PLA/PETG/ABS/PC/PA/HDPE/TPU/TPV/EVA PETG+GF/PPS+GF/PA+GF/ABS+GF/PC+CF/PEI+CF etc
- Material particle diameter 0,039-0,197in 1-5mm
- Storage hopper volume 132,3Lb 60kg
- Automatic feeder Integrated
- Chamber heating Option
- Drive mode Servo motor
- Power supply voltage Single-phase AC 220V
- Printing Materials Plastic Pellets
