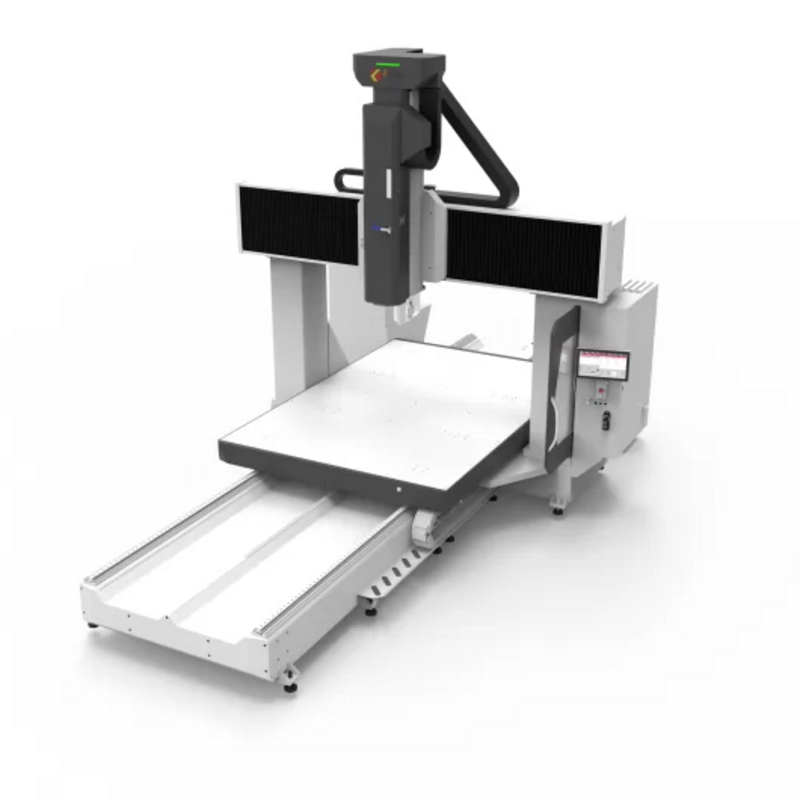

Kings FGF2400 3D Printer
Efficient Industrial FGF 3D Printer. Large Format. Open Platform.
.
-
Technology:
FGF
-
Materials:
Plastic Pellets
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description

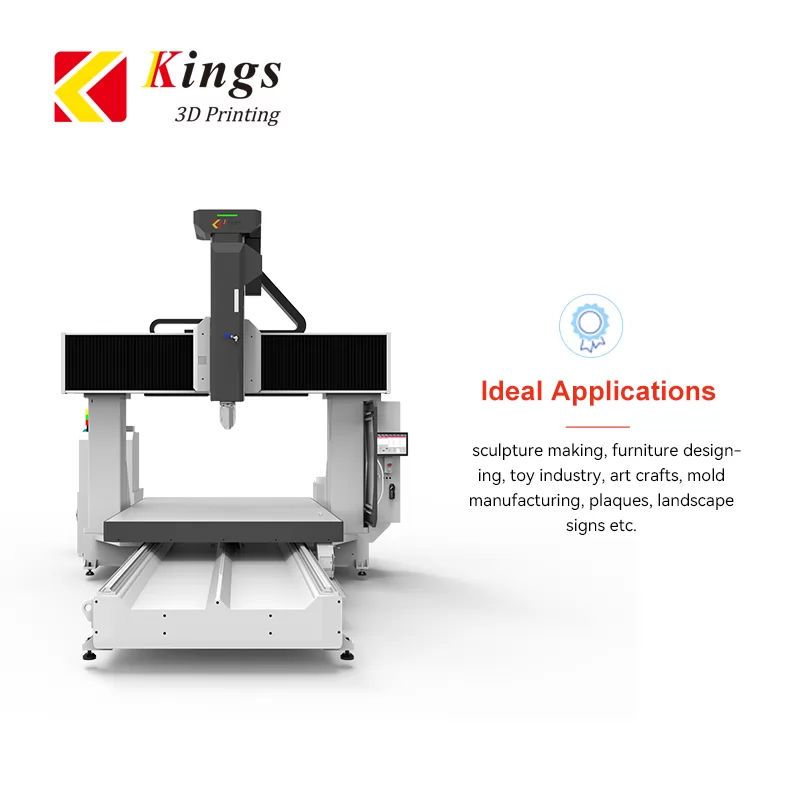

Kings FGF2400 printer is an additive and subtractive 3D printer that uses FGF (Fused Granular Fabrication) technology. It is primarily designed for printing large-scale objects, which helps reduce order fulfillment time and increase reliability. The printer converts raw material directly on the printing surface in granulated form, resulting in low material costs and high printing speed. The final product is also known for its high strength and durability. The printer boasts low material costs, fast printing speeds, and produces final products with high strength. It is ideal for applications such as sculpture making, furniture designing, the mining industry, the oil & gas industry, the toy industry, art crafts, mold manufacturing, plaques, and landscape signs. Due to its ability to work with large projects, this printer is suitable for creating life-sized prototypes and printing finished products such as boats, cars, wind turbine blades, and other interior and exterior items.
Multi-zone Heating Build Plate
- The build plate has multiple heating zones that can be controlled independently. This allows for selective heating of different areas to prevent unnecessary power consumption. The build plate can reach a maximum temperature of 145°C.
- The build plate is designed to release stress and maintain a flat surface, ensuring the stability of the workpiece. When a single area of the build plate is heated to 100°C, the flatness error is ≤0.2mm/㎡.
ADVANCED PROCESS CONTROL
- The Advanced Process Control system includes a self-developed, all-digital bus-type high-end CNC device. It supports the self-developed NCUC bus protocol and EtherCAT bus protocol, allowing for compatibility with bus-type full-digital servo drive units, absolute servo motors, and remote I/O units. It also integrates a handheld unit interface. The system features a dual IPC unit structure, with high-end CNC system functions such as high-speed and high-precision machining control, five-axis linkage control, multi-axis and multi-channel control, two-axis synchronous control, and error compensation. The system has a user-friendly and humanized HMI, as well as a unique intelligent APP platform and network communication capabilities for digital workshops.
KINGS FGF2400 3D PRINTER ADVANTAGES
A PRINTED VASE EXAMPLE
Here is an example of a vase that was printed using Kings FGF. You can see the weight of the vase and the speed at which it was printed.
| Size of the vase | 641x631x1250mm |
| Weight | 11.2kg |
| Line width | 5mm |
| Layer thickness | 2mm |
| Printing time | 6 hours |
WIDE RANGE OF MATERIALS AND REDUCED MATERIAL COSTS
Another advantage of using Kings FGF 3D printers is the lower material cost. These printers use an extrusion-based process, which allows for the direct conversion of raw materials onto the print bed. This means that the products produced can be used outside. Additionally, the rapid additive and subtractive prototyping process used by these printers minimizes waste material, resulting in high material utilization. Overall, this leads to lower material costs and improved reliability, as well as shorter turnaround times.
LARGE PRINTING SIZE
One of the advantages of using Kings FGF printers is their ability to accommodate large printing sizes. These printers offer incredibly large printing and milling sizes, with the largest printing size reaching 3500*2400*1000mm. This makes them suitable for various applications such as printing large parts, functional testing, mold making, and creating full-scale prototypes. With this capability, Kings FGF printers provide users with the flexibility to create larger and more complex objects.
TYPICAL APPLICATIONS

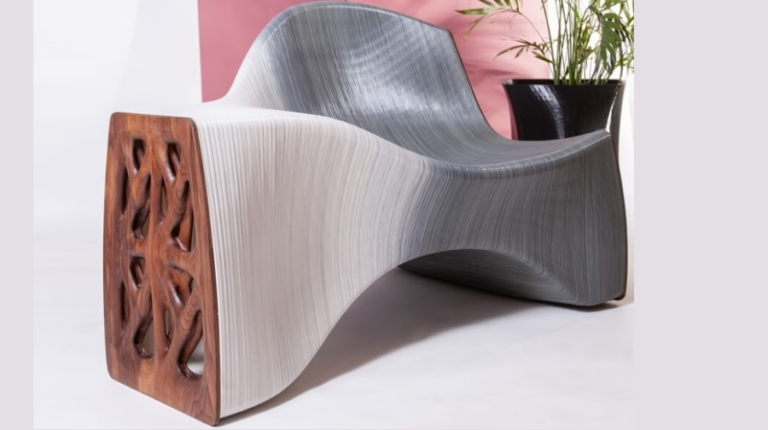

FURNITURE & DESIGN. In response to the increasing and varied market demand, we have introduced our FGF solution, which offers a more cost-effective and time-saving option. Service providers in the cutting-edge industry are utilizing 3D printing technology for the production of complex geometries. This technology is widely used in various industries such as sculpture making, furniture design, toy manufacturing, art crafts, mold production, and even the creation of landmarks.

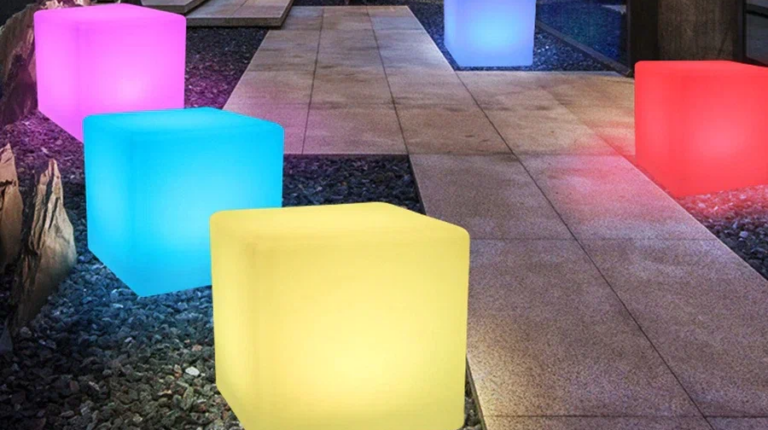

OVERSIZE DISPLAYS. These displays are created using 3D printing technology, which allows for the production of complex and intricate designs. They are commonly used in industries such as advertising, marketing, and event planning to create eye-catching and attention-grabbing displays that effectively promote brands and products. The use of FGF technology in the production of oversize displays offers a cost-effective and time-saving solution for businesses looking to create impactful visual experiences.
MECHANICAL ENGINEERING. The application of Kings FGF2400 in mechanical engineering includes prototyping, production of parts and components, tool and mold making, as well as creating complex structures. This technology enables fast and accurate fabrication of highly complex parts, making it an ideal choice for mechanical engineering companies. With the ability for rapid prototyping, Kings FGF2400 also helps reduce time and costs in developing new products and improves the engineering process.
Generally, Kings 3D has successfully catered to the demands of the heavy industry, where there is a significant need for fast and large-scale production. This includes various applications such as bicycle manufacturing, automotive production, yacht building, rail construction, and marine engineering.
In the video you can see how the FGF 3D printer works:
- Build Volume 94x79x39 in / 2400x2000x1000 mm
- Brand Kings3D
- Rated Power Consumption 10kW
- Technology FGF
- Machine model FGF-1600
- Molding technology Fused granular fabrication
- Working surface temperature ≤120 degrees Celsius
- Workbench contact surface Magnetic platform/tempered glass
- Optional nozzle diameter 0,12-0,47in 3-12mm
- The maximum temperature of the nozzle ≤350 degrees Celsius (500 degrees Celsius is optional)
- Nozzle heating method Four-zone intelligent heating
- Printing connection method SD/USB/WiFi
- Slicing supported formats STL/OBJ/AMF/3MF
- Compressed air pressure 0.6MPA
- Materials PLA/PETG/ABS/PC/PA/HDPE/TPU/TPV/EVA PETG+GF/PPS+GF/PA+GF/ABS+GF/PC+CF/PEI+CF etc
- Material particle diameter 0,039-0,197in 1-5mm
- Storage hopper volume 132,3Lb 60kg
- Automatic feeder Integrated
- Chamber heating Option
- Drive mode Servo motor
- Power supply voltage Single-phase AC 220V
- Printing Materials Plastic Pellets
