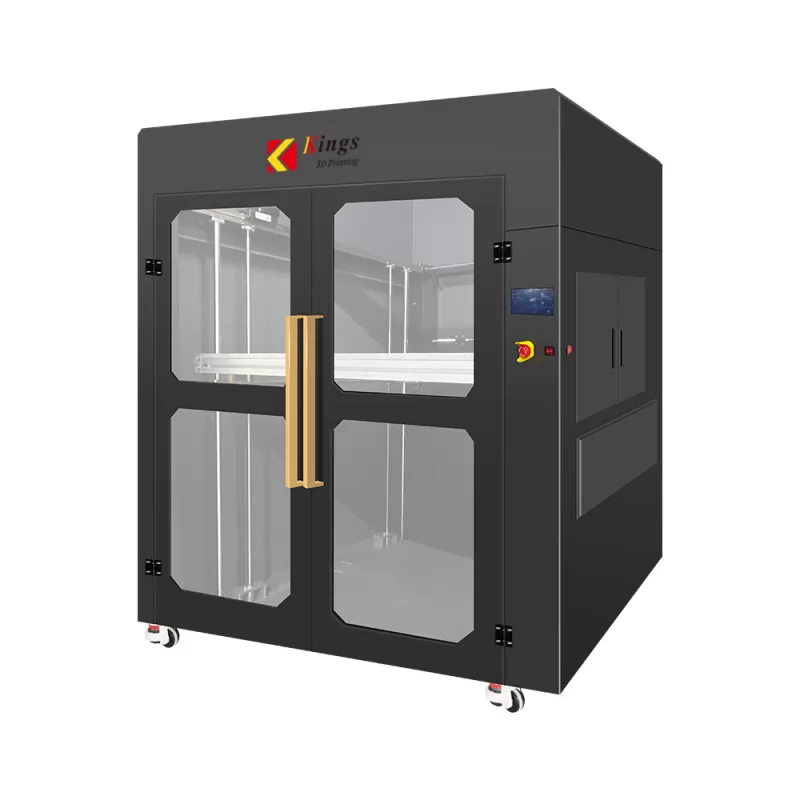

Kings FDM 3D Printer 1000
An industrial-grade FFF printer designed for large-scale, precise printing.
-
Technology:
FFF
-
Materials:
Plastic Filaments
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
Introducing the Kings FDM 3D Printer M1000, a powerhouse in industrial-grade 3D printing designed for those who require precision and scalability. With an impressive build volume of 1000 x 1000 x 1000 mm, this printer offers unparalleled versatility, making it suitable for a wide range of applications—from prototyping to large-scale production.
Equipped with cutting-edge Klipper systems, the M1000 leverages advanced technology to enhance performance. Its closed-loop servo motors and high-precision linear modules work in tandem to deliver fast, accurate, and stable printing results, ensuring that every project meets the highest standards of quality.
The robust construction of the M1000 is designed to withstand the rigors of demanding printing tasks. It features a custom ball screw mechanism that contributes to its reliability and precision. The 12mm aluminum plate platform is engineered to support up to 80 kg, allowing you to work with a variety of materials without compromising stability. Additionally, the independent material storage box streamlines your workflow, making it easier to manage multiple filament types for diverse projects.
Whether you’re an engineer, designer, or manufacturer, the Kings FDM 3D Printer M1000 is your go-to solution for achieving exceptional results in large-scale 3D printing. Experience the future of printing technology with the M1000—where innovation meets functionality.
FEATURES
- Klipper High-Speed System
- Closed-Loop Servo Motor
- Linear Industrial Module
- Extra-Large Print Size: 1000*1000*1000mm
- Fast Printing Speed, Up to 500mm/s
- Stable Printing
- Custom Ball Screw, 12mm
- Aluminum Plate Platform with a Maximum Load of Over 80kg
- Independent Material
- Storage Box
TECHNOLOGY
Fused Filament Fabrication (FFF) is a popular 3D printing technology that creates objects layer by layer using thermoplastic materials.
1. Material Feed: FFF printers use filament, which is a long strand of thermoplastic material, typically available in 1.75 mm or 2.85 mm diameters. Common materials include PLA, ABS, PETG, and TPU.
2. Heating Element: The filament is fed into a heated nozzle where it is melted. The temperature of the nozzle is carefully controlled to ensure the filament reaches its melting point without degrading.
3. Extrusion: Once melted, the filament is extruded through the nozzle onto the build platform in a precise pattern determined by the 3D model. The printer moves in both the X and Y axes to create the desired shape.
4. Layering: After each layer is printed, the build platform lowers (or the nozzle raises) by a specific height, typically between 0.1 mm to 0.3 mm, depending on the desired resolution. The next layer is then printed on top of the previous one, allowing for complex geometries and designs.
5. Cooling: As each layer is deposited, it cools and solidifies, bonding with the layers below it. Some printers have cooling fans to help speed up this process, especially for materials that require rapid cooling.
- Build Volume 1000 x 1000 x 1000 mm, 39.37 x 39.37 x 39.37 in
- Brand Kings3D
- Technology FFF
- Working surface temperature ≤120 degrees Celsius
- Workbench contact surface Magnetic platform/tempered glass
- Optional nozzle diameter 0.6/0.8/1.0/1.2/1.5/2mm
- Printing Materials Plastic Filaments
- Max Resolution 0.05-1.0 mm
- Printing Speed 30-350mm/s
- Operating Temperature 15℃-32℃（60°-90℉）
- Max Part Size 39.37×39.37×39.37 in
