InssTek MX-Fab
DED 3D Printer with DMT & 5-Axis system.
-
Technology:
DED, DMT
-
Materials:
Metal Powders
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
- All-in-one fabrication system
- 5Axis system & DMT technology
- Accurate & stable powder feeding supply
- Efficient inert gas environment creation
- Easy installation
- Compact system & superior build volume
All-In-One Fabrication System
InssTek’s newly developed product, the MX-Fab, is representative system that can produce various field products in a short time with a wide working range. As it is called an all-in-one system, a laser, chiller, purifier, and vacuum pump are equipped in the system. And it is designed with an independent powder feeder to improve user convenience.
dmt technology
The most precise DED Technology.
DMT® is Direct Metal Tooling, developed by InssTek and categorized as Direct Energy Disposition(DED) technology according to ASTM standards. Using 2 vision cameras, DMT technology analyzes and controls the height of the meltpool in real-time.
Applicable Material for DMT
The table shows just the metals already printed with our technology so far. Almost every week a new metal is added to our experience.
Fe-based Alloys
P20, P21, H13, SS304L, SS316L, SS420, 2507
Ti-based Alloys
Ti(Grade 2), Ti6-Al-4V(Grade5, Grade23)
Ni-based Alloys
Inconel600, 625, 690, 713, 718, Hastelloy22, 276, Nimonic75, Invar36
Co-based Alloys
CoCr, Stellite6, Stellite21, Stellite25
Cu-based Alloys
Al-Bronze, Cu-Sn
Microstructure. fe-based Alloys. ss316l
| Materials – SS316L | Tensile Strength | Yield Strength | Elongation | Hardness |
| InssTek(DMT®) | 575 MPa | 450 MPa | 36% | 182 Hv |
Microstructure. Ni-based Alloys Inconel625
| Materials – Inconel625 | Tensile Strength | Yield Strength | Elongation | Hardness |
| InssTek(DMT®) | 1013 MPa | 670 MPa | 32% | 252 Hv |
Microstructure. Ti-based Alloys Ti-6Al-4V
| Materials – Ti-6Al-4V | Tensile Strength | Yield Strength | Elongation | Hardness |
| InssTek(DMT®) | 1141 MPa | 1036 MPa | 7% | 38.5 Hv |
application
KARI 3ton Rocket Nozzle

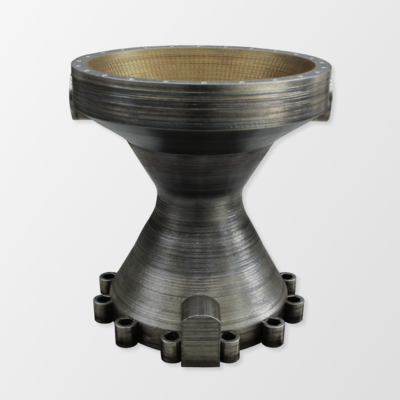

Full-scale fabrication for propulsion validation
- Material: INCONEL625 (Outer) Al-Bronze (Inner)
- Size: Diameter: 280mm /
- Height: 257mm
- Printing time: 300H
KARI 3ton Rocket Nozzle Extension

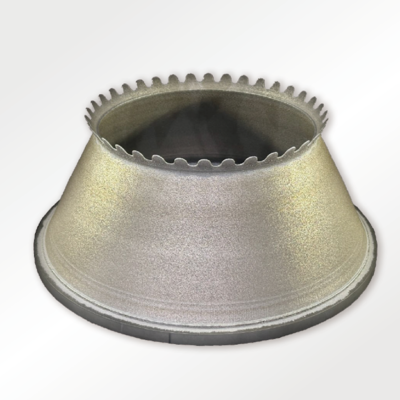

Manufactured with C-103(Nb based Alloy) using DED 3D Printing
- Material: C-103 (Niobium Alloy)
- Size : Diameter: max 432mm, min 270mm / Height: 169mm
- Printing time: 64 H
Compressor Blade
Repairing for aircraft engine manufacture

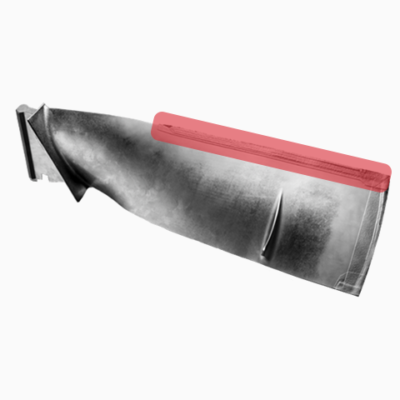

- It was required to restore damaged part of turbine blade with titanium material.
- Before InssTek was involved in this project, the client contact other competitors, but failed.
- Material: Ti-6AI-4V
- Brand Insstek
- Technology DED, DMT
- Printing Materials Metal Powders
- Country of origin Korea
- External Dimensions (L×W×H） 1740×2550×2655 mm (68.5×100.4×104.5 in ) 31.5×39.4×27.6 in
- Build Volume 19.7×23.6×15.6 in, 31.5×39.4×27.6 in, 500×600×385 mm, 800×1000×700 in
- Software MX-OS / Material Designer & MiXO DMT® Closed Loop Feedback Control system
- Data File Format STL
- Power Supply EUR/China: 220V±10%, 1~/N/PE, 50Hz, 14A US: transformer sold with machine
- Laser Type Single Laser, 1×1000W, Optional 2000 W
- Optic Module LFM Series 800 / 1200 / 1600 / 2400
- Powder Feeding System PCM-Multi (Max. 6 hoppers)
