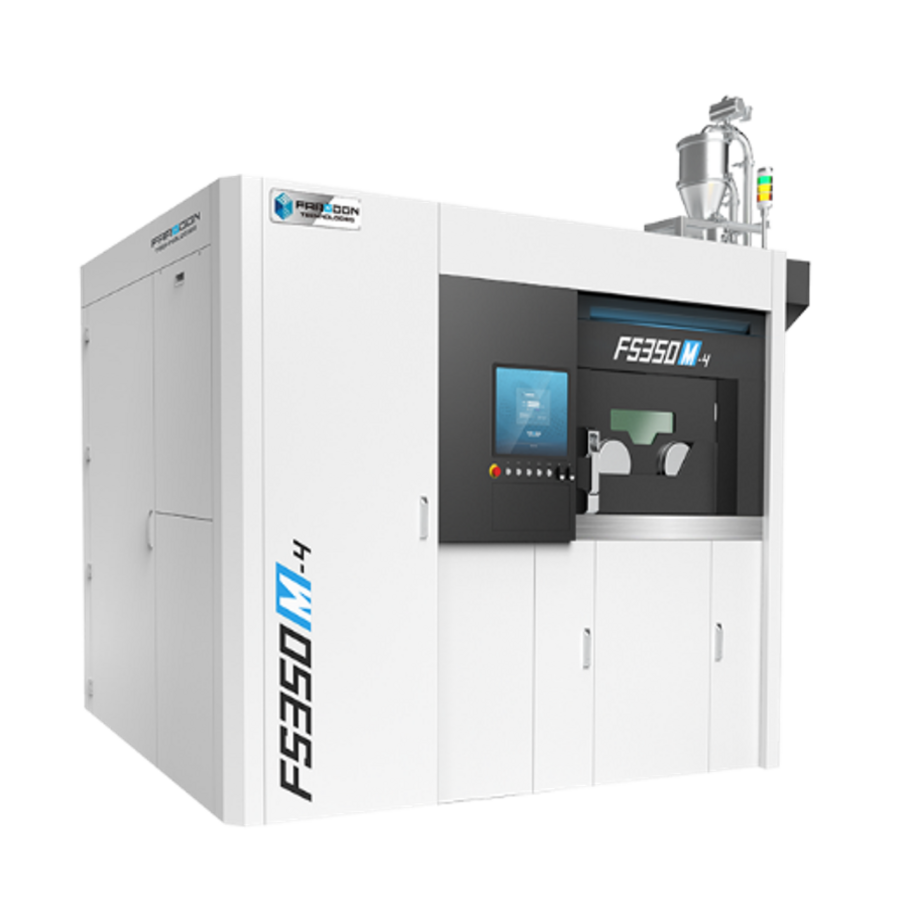

Farsoon FS350M-4
Highly Productive Metal PBF System for Economy Serial Additive Manufacturing.
-
Technology:
Metal LPBF
-
Materials:
Metal Powders
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
Highly Productive FS350M-4 System. Featuring an expanded build cylinder of 433×358×400mm and quad 500-watt lasers configuration, the FS350M-4 is capable of producing large metal parts from a wide range of powder materials. The FS350M-4 is ideal for medium to high volume series production of metal parts from a variety of industries such as molds, tooling, automotive and aerospace. The current material capability of powder materials including aluminum, titanium, maraging steels and specialized grades of stainless steels.

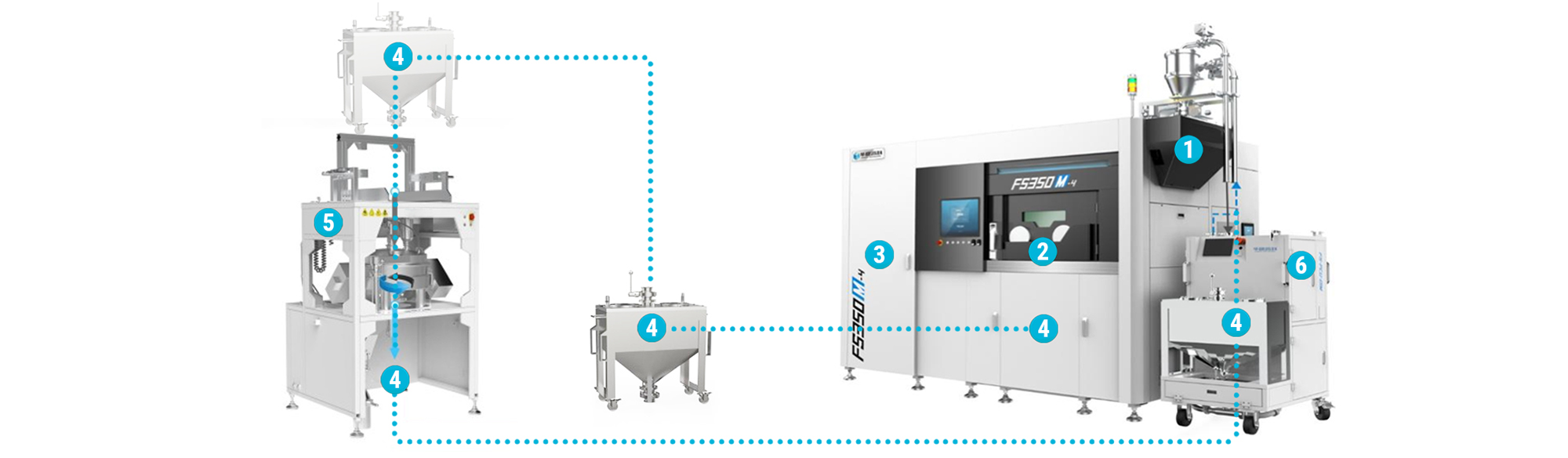

Discover FS350M-4 System
- 1-Powder Supply Tank
The integrated powder supply tank can be easily connected with a powder delivery unit offering a fully sealed material delivery operation under an inert atmosphere without disturbing the build process.
- 2-Glove Box
The fully sealed glove boxes are located in front of the FS350M-4 system allows convenient and safe breakout operation when the build is completed.
- 3-Integrated Filtration System
The FS350M-4 is equipped with an integrated, advanced 3-stage reactive material capable recirculating filter module, featured a powerful back-flush function to ensure longer filter life which helps reduce the cost of the filter changes, in addition a permanent filter solution will also be available in the near future further enhancing machine uptime and ease of operations.
- 4-Shared Metal Container
A shared material container is used during loading, unloading and the sieving procedures offering more convenient powder-handling and transportation between the stations.
- 5-Sieving Unit
The powder sieving unit features a vibration screen offering efficient sieving of recycled metal powder from the material containers to filter out the large particles. The metal powder collected in the refreshed powder container can be re-used for powder supply.
- 6-Powder Delivery Unit
The FS350M-4 is featured with a high-efficiency top-feed powder system. Once the powder level in the container runs low, the equipped sensor will release a message for refill. The powder refill unit can be easily docked, enabling quick refill of the material without disturbing the build process. The material supply volume can be precisely controlled by the sensor as well.
Farsoon FS350M-4 System Advantages
Highly productive
Quad 500-watt lasers
Versatile build envelope
of 17.1 × 14.1 × 15.7 in 433 × 358 × 400 mm
Best
cost-to-performance

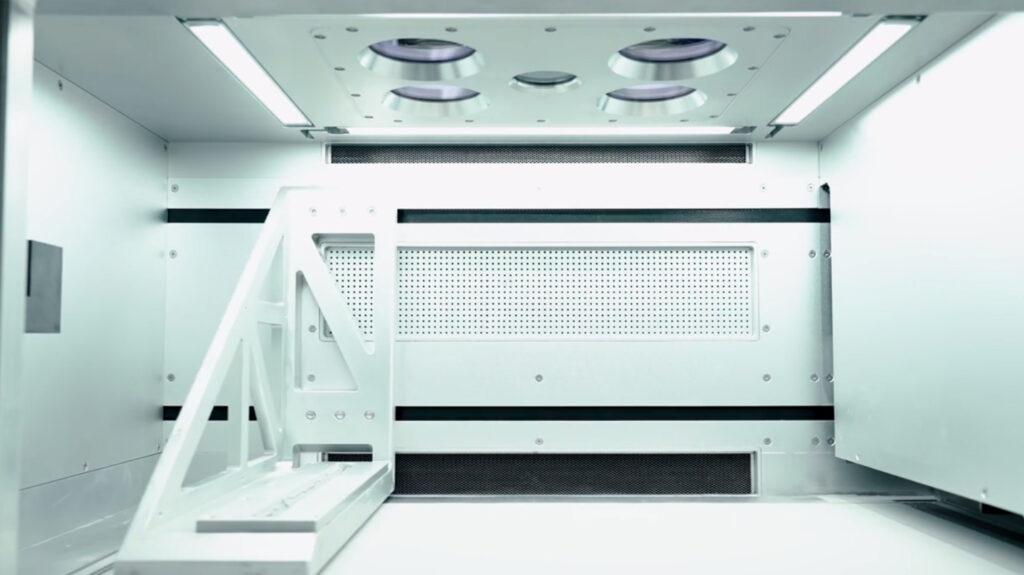

Compact + Ease of use
The FS350M 4 features a machine footprint of 6 sqm with an integrated Filtration System. In an additive factory setting, FS35QM-4 enables high density layout to achieve maximum throughput per floor area allowing for more efficient additive production layout. The FS350M 4 is also featured with a high-efficiency top-feed powder system. Once the powder level in the container runs low, the equipped sensor will release a message for refill. The powder refill unit can be easily docked, enabling quick refill of the material without disturbing the build process.

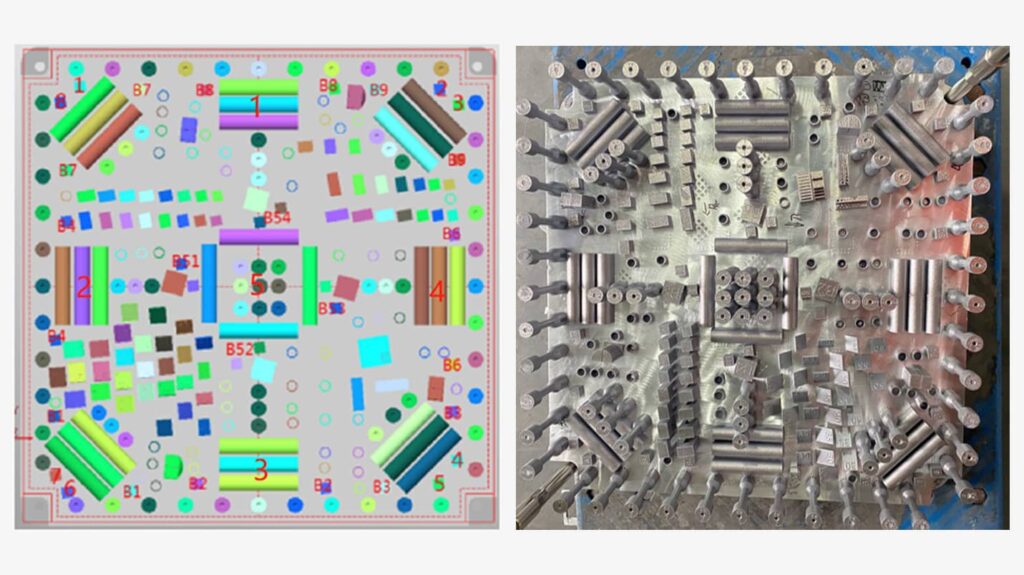

Efficiency + Quality
Equipped with advanced multMaser scanning strategy and calibration algorithms, the FS350M- 4 offers optimal build efficiency, and uniformed part performance throughout the build area.
Thanks to the latest process parameters development including variable layer thickness, adaptive scanning strategies for infill and detail, the FS350M-4 is able achieve improved productivity along with excellent part quality.

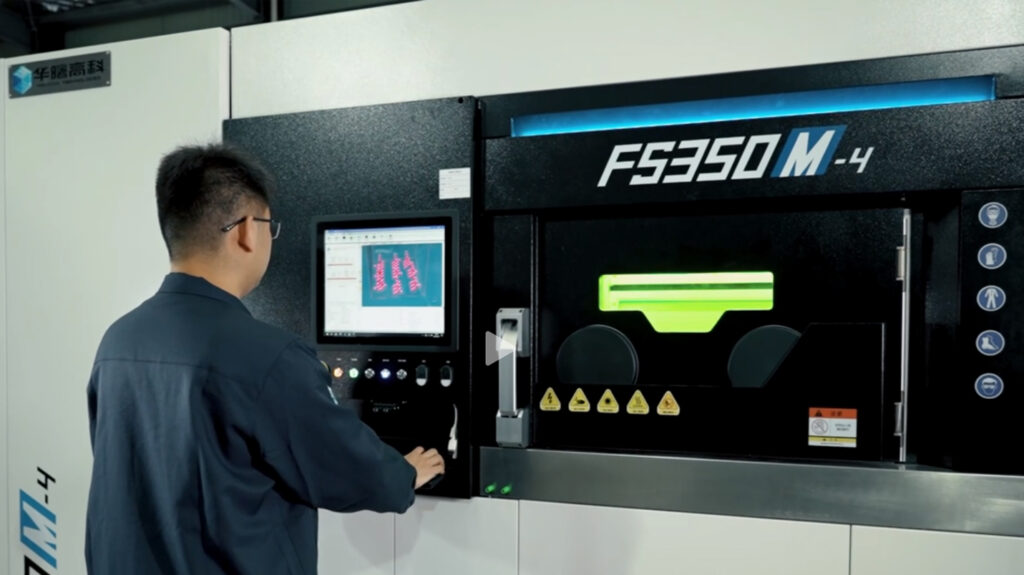

Reduced Cost Per Part
The new FS350M-4 is a high-value proposition metal system includes many design features to reduce the manufacturing cost. The FS350M-4 features a highly efficient inert gas system offering fast purge process and low inert gas consumption. The FS350M-4 is equipped with an integrated, advanced 3-stage filter module, featured a powerful back-flush function to ensure longer filter life which helps reduce the cost of the filter changes, in addition a permanent filter solution will also be available in the near future further enhancing machine uptime and ease of operations.
Industrial Applications with FS350M-4
Serving in multiple serial production customers’ sites for nearly 2 years, the FS350M-4 is a proven cost-performance solution before it introduced to the global market. Farsoon’s openness to truly co-innovate with industry customers brings many new advanced features boosting higher productivity with FS350M-4, including highly variable layer-thickness, adaptive scanning strategies for infill and detail, and many more, for significantly improved production yield in its peer.

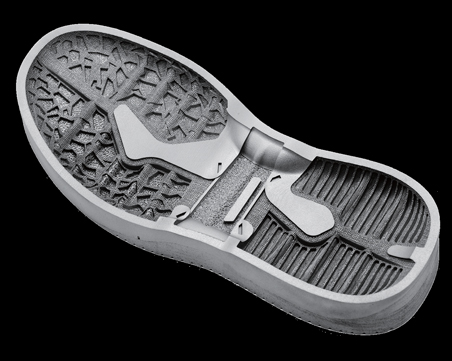

Shoe Mold
Machine: FS350M-4
Material: 316L
Size: 290 x 140 x 31 (H) mm each
Layer thickness: 0.03 mm
Build Time: 24 Hours for one pair
Thanks to the latest process parameters development, the FS350M-4 is able achieve improved productivity along with excellent shoe mold quality. Take for example a shoe mold application, the FS350M-4 platform is capable of producing over 95% of all shoe sizes of one pair of shoe molds in a single build, with 60% higher build volume rates compared to other metal LPBF systems in its class.
FS350M-4 Technical Data
| Technical Data | FS350M-4 |
| External Dimensions （L×W×H） | 3260×1850×2300 mm (128.3×72.8×90.6 in) |
| Build Cylinder Size1（L×W×H） | 433×358×400 mm ( 17.1×14.1×15.7 in ) (Height incl. build plate) |
| Net Weight | Approx. 3300kg ( 7275.3 lb ) |
| Laser Type | Quad Lasers, 4×500W |
| Scanner | F theta lenses |
| Scanning Speed | Max. 10 m/s ( 32.8 ft/s ) |
1 The functional build volume depends on the parts/materials.
- Brand Farsoon Technologies
- External Dimensions (L×W×H） 3260×1850×2300 mm (128.3×72.8×90.6 in)
- Build Volume 433×358×400 mm (17.1×14.1×15.7 in) (Height incl. build plate)
- Net Weight Approx. 3300kg (7275.3 lb)
- Layer thickness 0.02~0.1 mm (0.0008-0.0039 in)
- Scanning Speed Max. 10 m/s (32.8 ft/s)
- Laser Type Quad Lasers, 4×500W
- Scanner F theta lenses
- Inert Gas Protection Argon/Nitrogen
- Average Inert Gas Consumption in Process 3-5 L / min
- Operating system 64 bit Windows 10
- Software BuildStar, MakeStar®
- Data File Format STL
- Key Software Features Open machine key parameters, real-time build parameter modification, three-dimensional visualization, diagnostic functions
- Power Supply EUR/China: 400V±10%, 3~/N/PE, 50Hz, 42A US: transformer sold with machine
- Operating Ambient Temperature 22-28 °C (71.6-82.4 °F)
- Material 316L, AlSi10Mg, Ti6Al4V, 17-4PH, ST1, Maraging Steel Grade 300, more materials to come
- Technology Metal LPBF
- Printing Materials Metal Powders
Materials
- 316L, AlSi10Mg, Ti6Al4V, 17-4PH, ST1, Maraging Steel Grade 300, more materials to come
