ELEMENTRAC CHS‑r
For the safe, precise and reliable elemental analysis of carbon (C) and sulfur (S) in predominantly organic matrices
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description

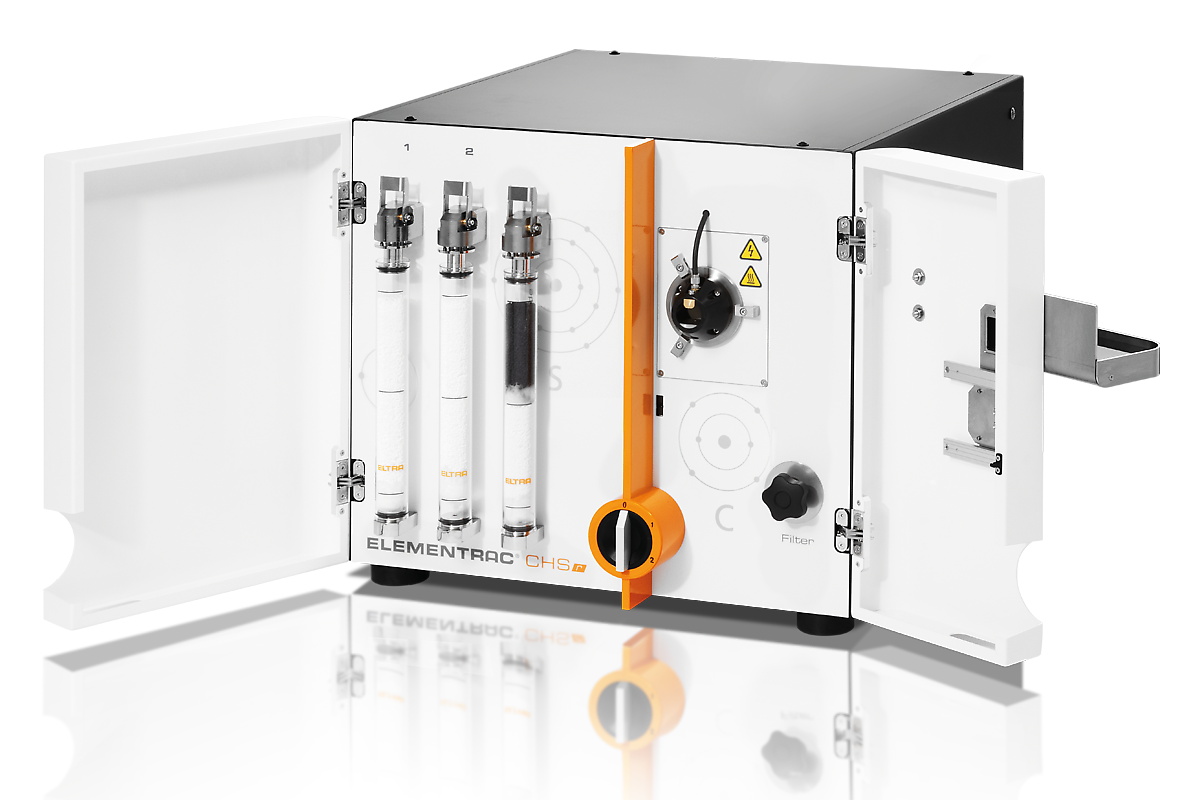

CARBON / SULFUR ANALYZER ELEMENTRAC CHS-R
SOLUTIONS & OPTIONS IN DETAIL
The ELEMENTRAC CHS-r analyzer comes with various solutions for reliable, and precise carbon, hydrogen and sulfur analysis.

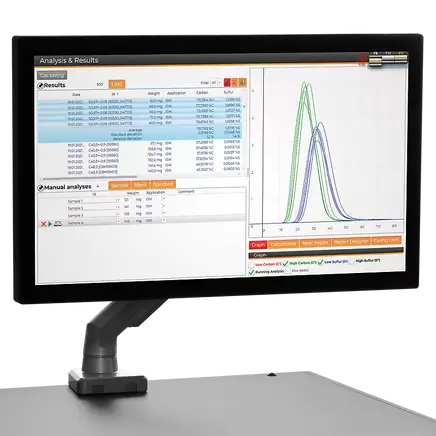

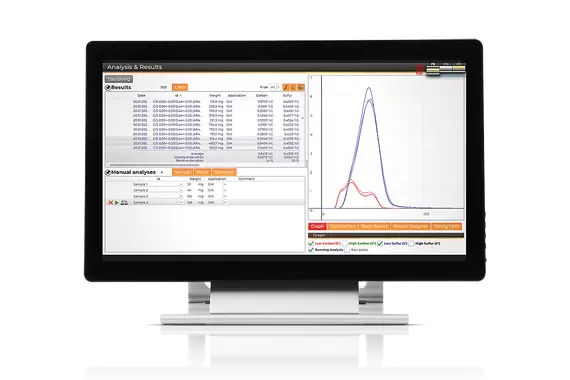

Software
TYPICAL SAMPLE MATERIALS
Biomass, building materials, coal/ coke, fuels, oil, ores, plant materials, plastics, rubber, soil, soot, tobacco, waste.
FUNCTIONAL PRINCIPLE
In the elemental analyzer CHS-r the sample is burnt in an oxygen atmosphere at temperatures up to 1,550 °C. The furnace temperature can be freely selected in steps of 1 °C. The combustion gasses (CO2, H2O, SO2) coming from the furnace and first pass through a dust filter and then into the heated H2O infrared cell. After the water vapor is chemically absorbed, the dried CO2 and SO2 gas is detected in the additional infrared cells. Depending on the configuration, it is possible to combine up to three infrared cells with different sensitivities.
- Brand ELTRA
- Model ELEMENTRAC CHS‑r
- Measured elements carbon, hydrogen, sulfur
- Samples organic
- Furnace alignment horizontal (resistance furnace)

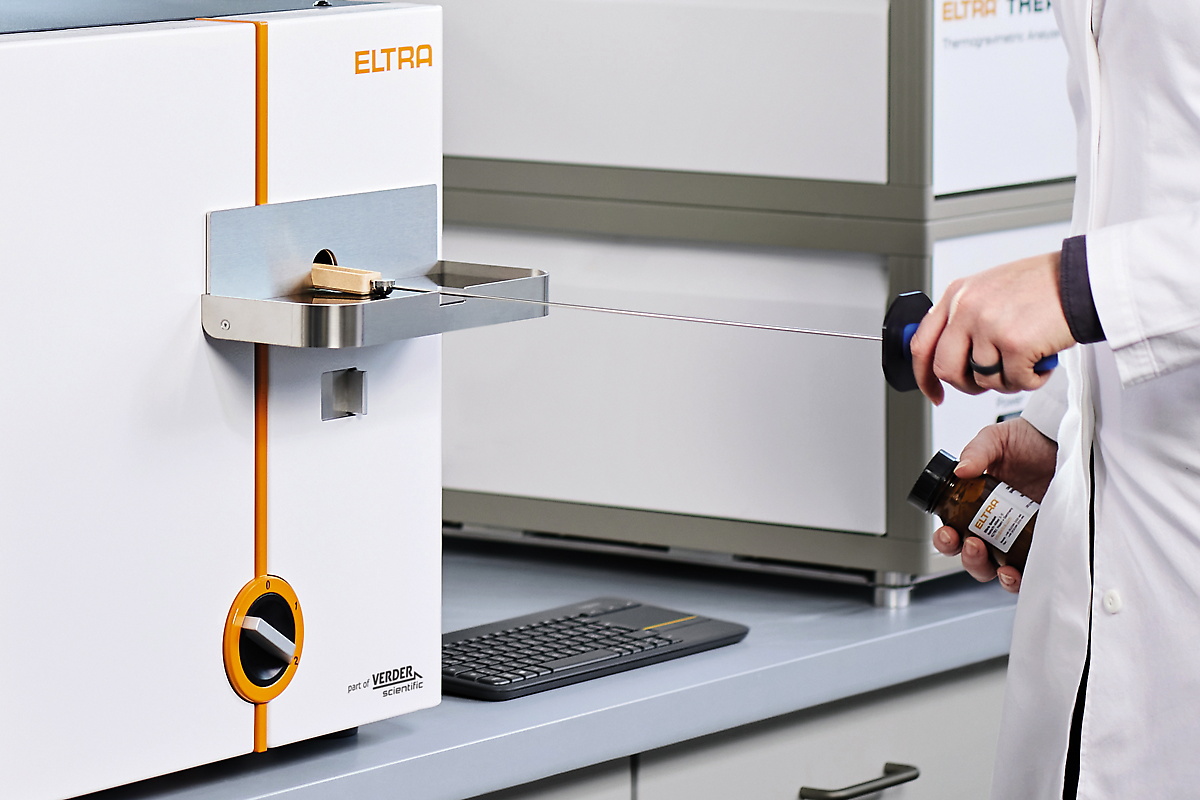

- Sample carrier ceramic boats
- Field of application agriculture, biology, chemistry / plastics, coal / power plant, construction materials, environment / recycling, medicine / pharmaceuticals
- Furnace resistance furnace (ceramic tube), adjustable up to 1550 °C (steps of 1 °C)
- Detection method solid state infrared absorption
- Number of IR cells 1 - 3
- Material of IR path gold
- Typical analysis time 60 - 180 s

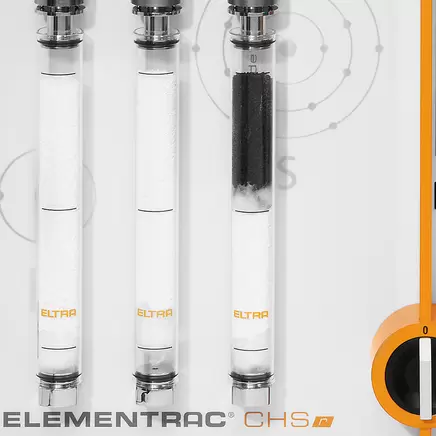

- Chemicals required magnesium perchlorate, sodium hydroxide
- Gas required oxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi)
- Power requirements 230 V, 50/60 Hz max. heat up current 2000 W
- Dimensions (W x H x D) 580 x 520 x 750 mm / 22.83 x 20.47 x 29.53 in
- Weight ~ 77 kg

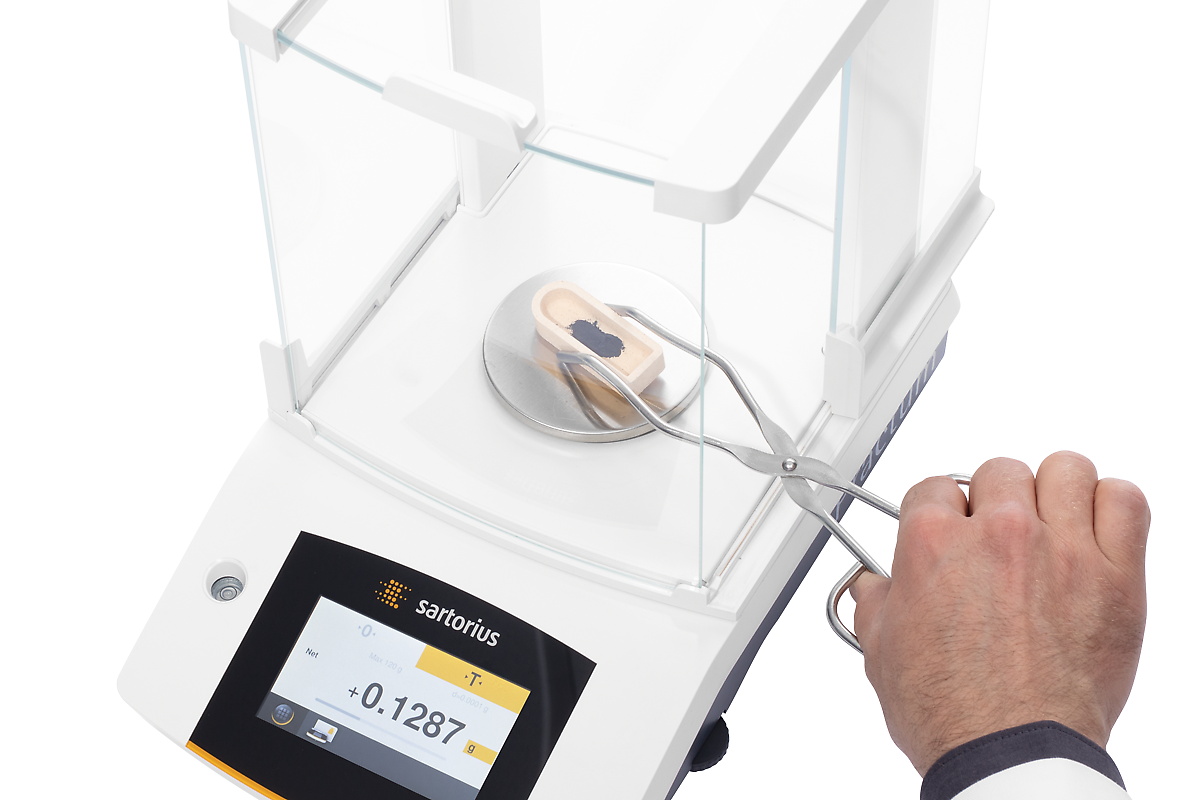

- Required equipment PC, monitor, balance (resolution 0.0001g)
- Optional accessories TIC module
