ELEMENTRAC CS‑i
ELEMENTRAC CS-i measures the carbon and sulfur concentration in predominantly inorganic samples
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description

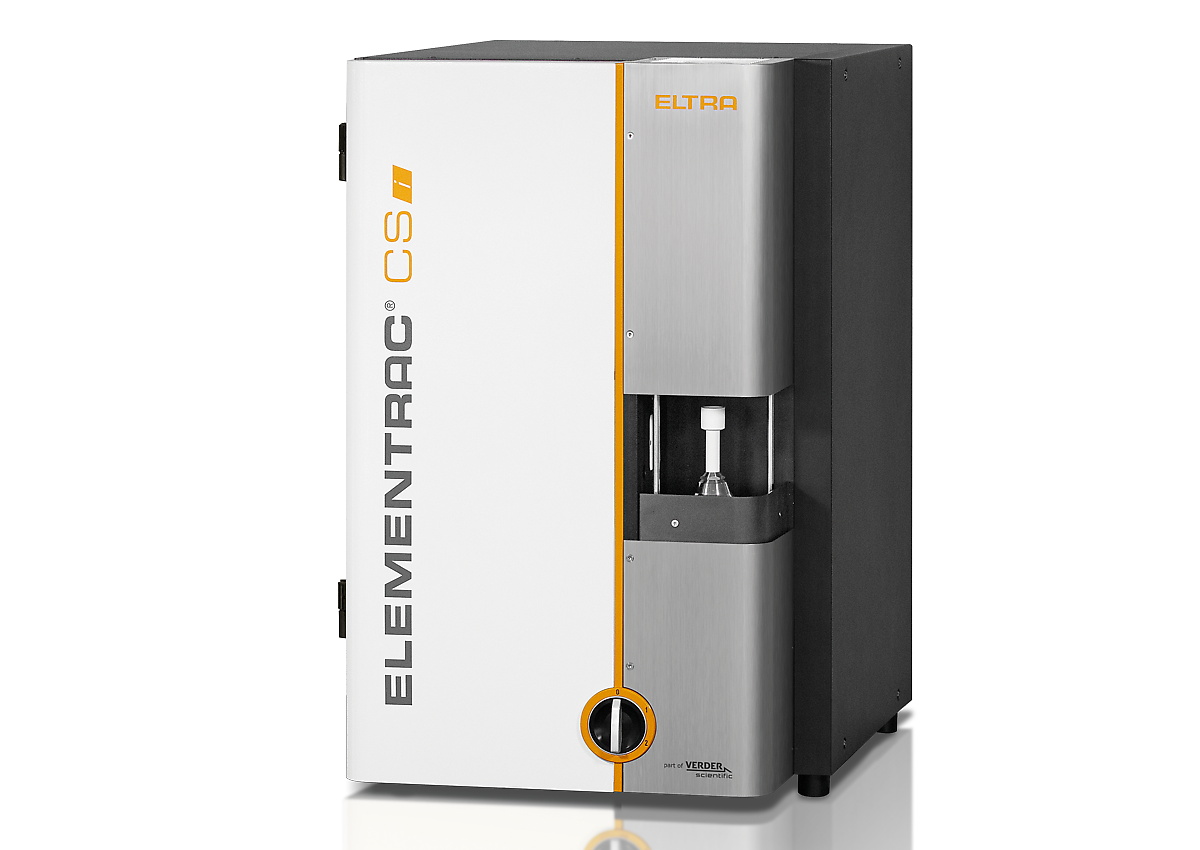

CARBON / SULFUR ANALYZER ELEMENTRAC CS-I
CONFIGURATIONS

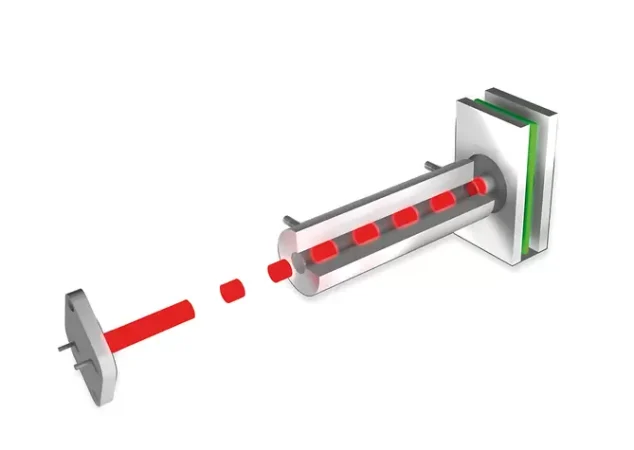

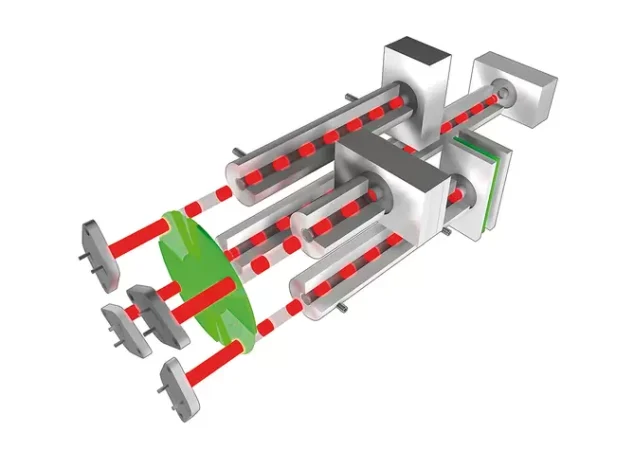

The ELEMENTRAC CS-i is available as a single-element analyzer for carbon or sulfur only, or in a configuration for simultaneous measurement of both carbon and sulfur. It uses up to 4 IR cells which can be configured according to customer requirements. The longer the cuvette, the more sensitive it is for low concentrations like 10 ppm. Shorter cuvettes also allow measurement in the low ppm range, however with increasing standard deviation of the measured values. For optimum analysis of low and high concentrations, a configuration of two IR cells for one element should be selected. The latest detector technology permits advanced configurations to reliably cover the measuring range from 0.6 ppm to more than 6 % for a sample weight of 1000 mg. Optional gold cuvettes provide higher reliability for elemental analysis of halogenated samples. For reliable analysis of materials with a high sulfur content, the CS-i can be equipped with more robust IR cells to extend the measurement range and improve the reproducibility of the results. It is also possible to equip the CS-i with a halogen trap. Another option is a special configuration for measuring cement.
INTEGRATED STANDARD SOLUTIONS

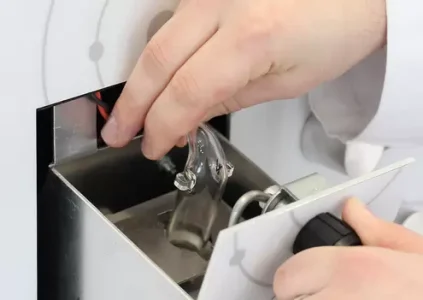

The chemicals and filters required for operation of the ELEMENTRAC CS-i are conveniently arranged on the front of the analyzer and may be concealed behind a removable door. This arrangement substantially reduces maintenance time and increases usability. Innovative details of the ELEMENTRAC CS-i significantly improve the reproducibility of carbon and sulfur measurements.
Options

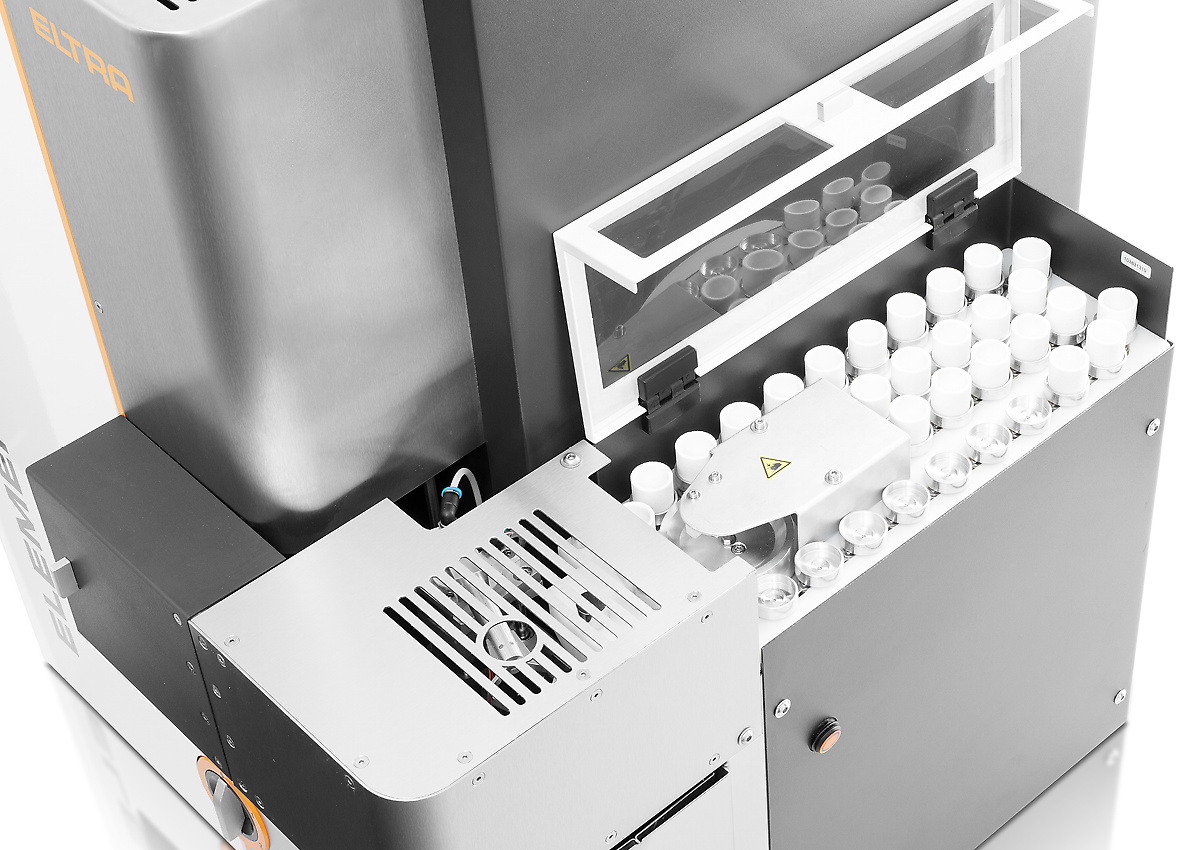

In addition to the features already integrated in the ELEMENTRAC CS-i further options are available to increase efficiency and extend the application range.
Software
TYPICAL SAMPLE MATERIALS
Alloys, aluminum, ashes, carbides, cast iron, cement, ceramics, copper, ferroalloys, glass, gypsum, iron, limestone, metals, minerals, ores, refractory metals, sand, silicon, slag, soil, steel.
- Brand ELTRA
- Model ELEMENTRAC CS‑i
- Measured elements carbon, sulfur
- Samples inorganic
- Furnace alignment vertical
- Sample carrier ceramic crucibles
- Field of application construction materials, engineering / electronics, geology / mining, glass / ceramics, steel / metallurgy

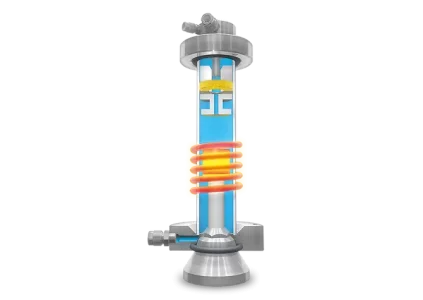

- Furnace induction furnace, above 2,000 °C
- Detection method solid state infrared absorption
- Number of IR cells 1 - 4
- Material of IR path aluminum (optional gold)
- Typical analysis time 40 seconds (nominal)
- Chemicals required magnesium perchlorate, platinum-based catalyst, sodium hydroxide
- Gas required compressed air (4 bar/ 60 psi) oxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi)
- Power requirements 230 V, 50/60 Hz, max. 15 A, 3450 W
- Dimensions (W x H x D) 520 x 840 x 750 mm / 20.47 x 33.07 x 29.53 in
