Sygpast
Advanced DIW/SLE 3D printer for semi‑liquid materials with real‑time quality control system.
-
Technology:
DIW
-
Materials:
Conductive Pastes, Plastic Filaments
-
Categories:
3D printers, Business 3D Printers, Ceramic, DIW, Education, Engineering, FFF (FDM), Paste
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
The device is enabled to print from semi-liquid materials and thermoplastic filaments in a single process and provide the user with open access to modify the printing parameters, thus allowing the use of proprietary materials. Sygpast not only transforms semi-liquid materials into remarkable creations, but also effortlessly generates support structures using thermoplastic material, all in one seamless process. Plus, with integrated UV and IR curing capabilities, your parts are ready to be applied right after the end of the printing process.
Two-component pastes
It is a comprehensive tool for printing with pastes, including two-component pastes

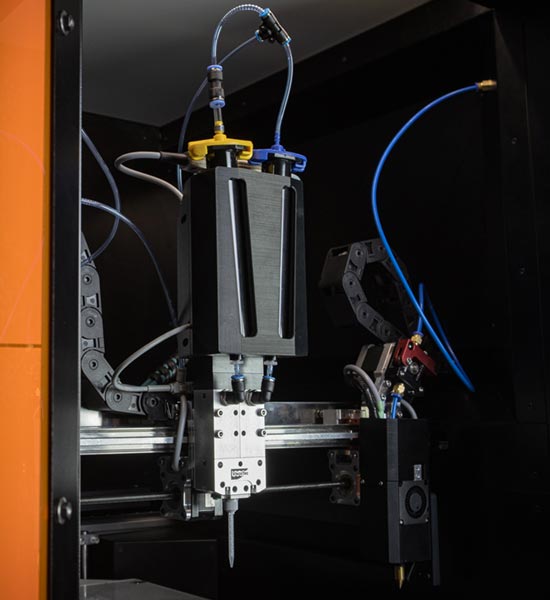

Printhead
SLE1 and SLE2 head modules (printing with one- and two-component liquid materials)
Software
Sygprint, dedicated slicer
The Hull
Proprietary solution for supporting even the most complex semi-liquid objects, automatically generated
UV exposure, IR exposure
Illuminates UV in two wavelengths and IR, for curing and heating mid‑print
The SYGPAST printer will find its applications in the space industry (demanding satellite components), aerospace (fine turbine tooling), energy (specialized seals), chemical and materials industries (both for validation of manufactured materials and manufacturing of the specialized fixtures assisting in research), and wherever maintaining the continuous operation of machines and their parts requires their efficient adaptation to dynamically changing operating conditions (rearming of lines of machines by manufacturing specialized adapters, fixtures, and safety devices). The technology has primary applications in three areas.
Creation of spatial structures from two-component materials with set parameters for industry (including polyurethanes).
Creation of spatial structures from ceramic materials freely doped (depending on the application) for industry.
Application in the development of specialized materials in research groups (research gate machine).
Printing semi-liquid materials with FDM support structures

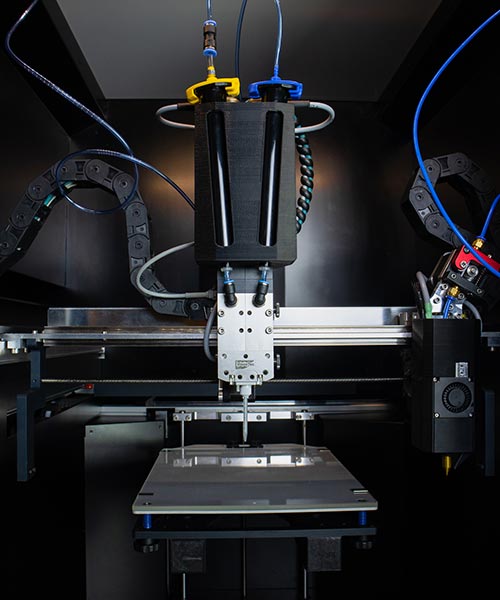

Sygpast revolutionizes additive manufacturing with its dual print heads: FFF and SLE, available in two versions (SLE1 and SLE2), providing research teams seamless access to machines with open parametric systems for assessing material and admixture performance in final molds.
Dedicated SYGPRINT Slicer
The own proprietary slicing software is the bridge between innovation and production, offering complete control over your 3D printing process. Whether you’re in the lab or factory, SYGPRINT empowers you to achieve your goals with confidence, precision, and ease.
Mid-print UV and IR exposure
Sygpast enhances its offerings with a variety of exposure options, including UV 365 nm, UV 405 nm, and IR, by developing its own proprietary solutions.
- Brand Sygnis
- Number of heads 2 (incl. 1 interchangeable SLE printhead)
- Types of heads SLE1, SLE2, FFF
- Working area 250 x 250 x 250 mm
- Heated platform Yes, up to 120°C
- Print material Any one- or two-component paste or semi-liquid material
- Support material Termoplastic (FFF printhead heated up to 280°C)
- Software SYGPRINT, dedicated slicer
- Quality control Profilometer and IR camera with proprietary quality control algorithms
- Curing module UV 365 nm, UV 405 nm, IR
- Printing Materials Conductive Pastes, Plastic Filaments
- Technology DIW
