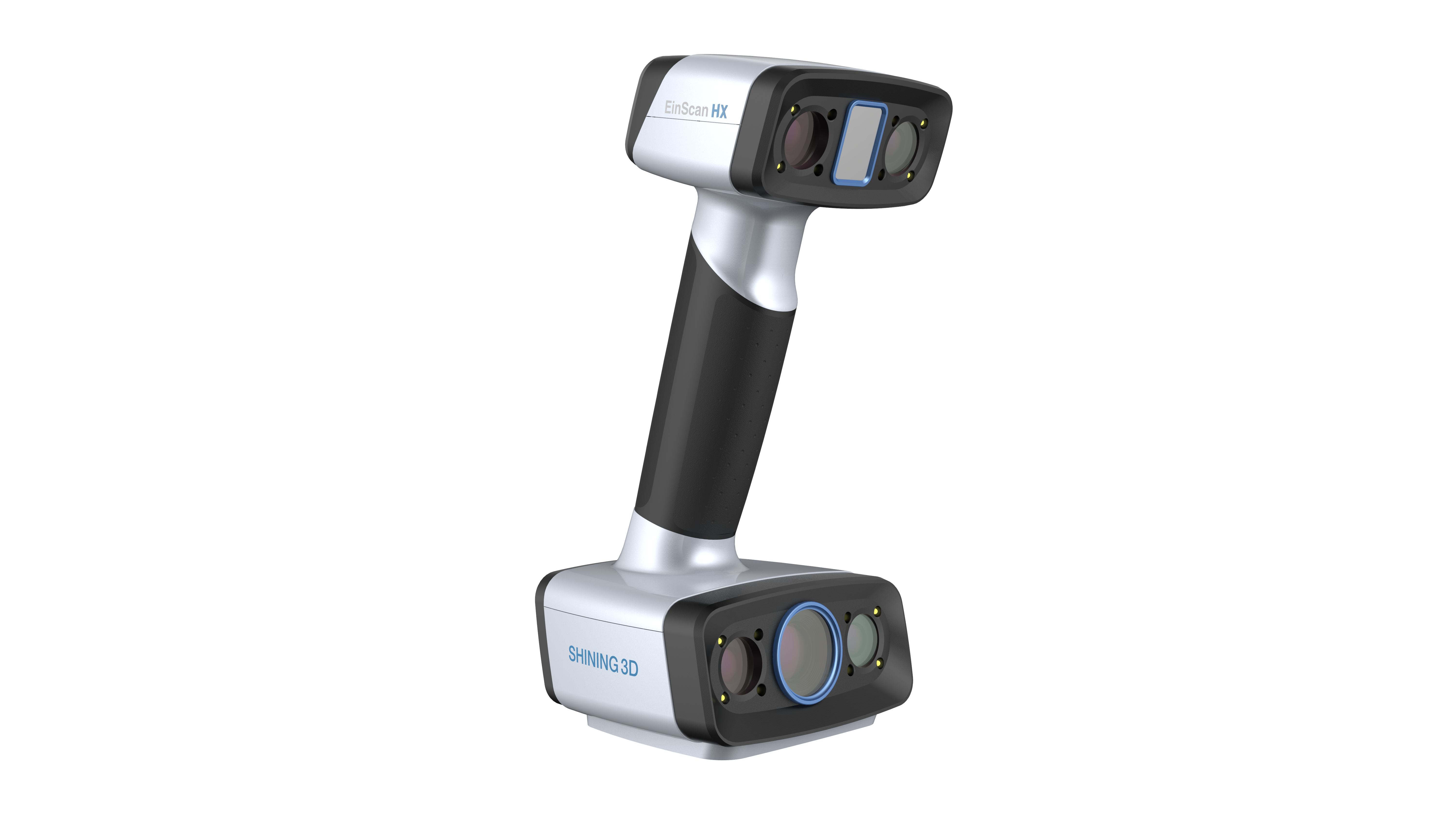

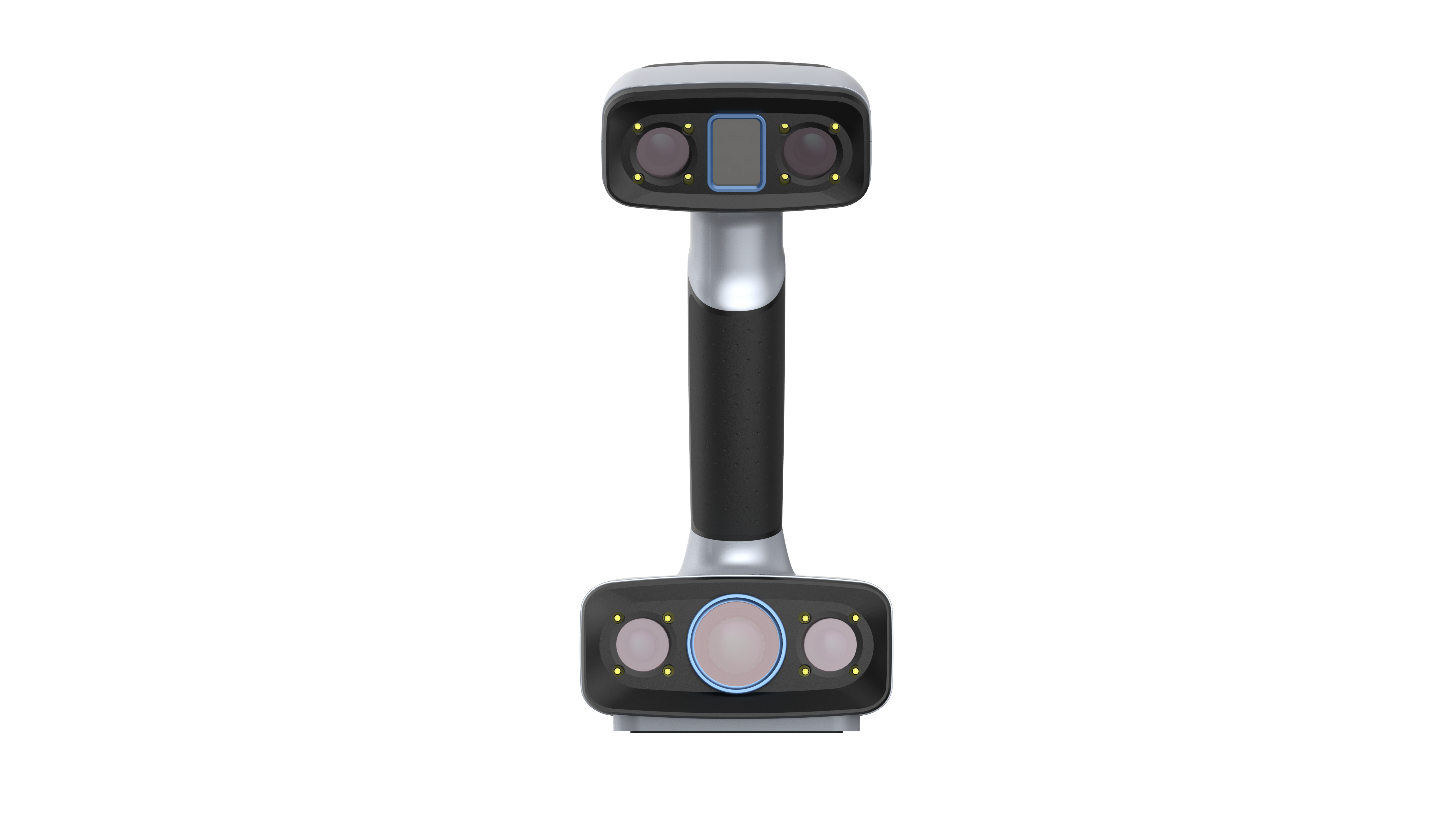

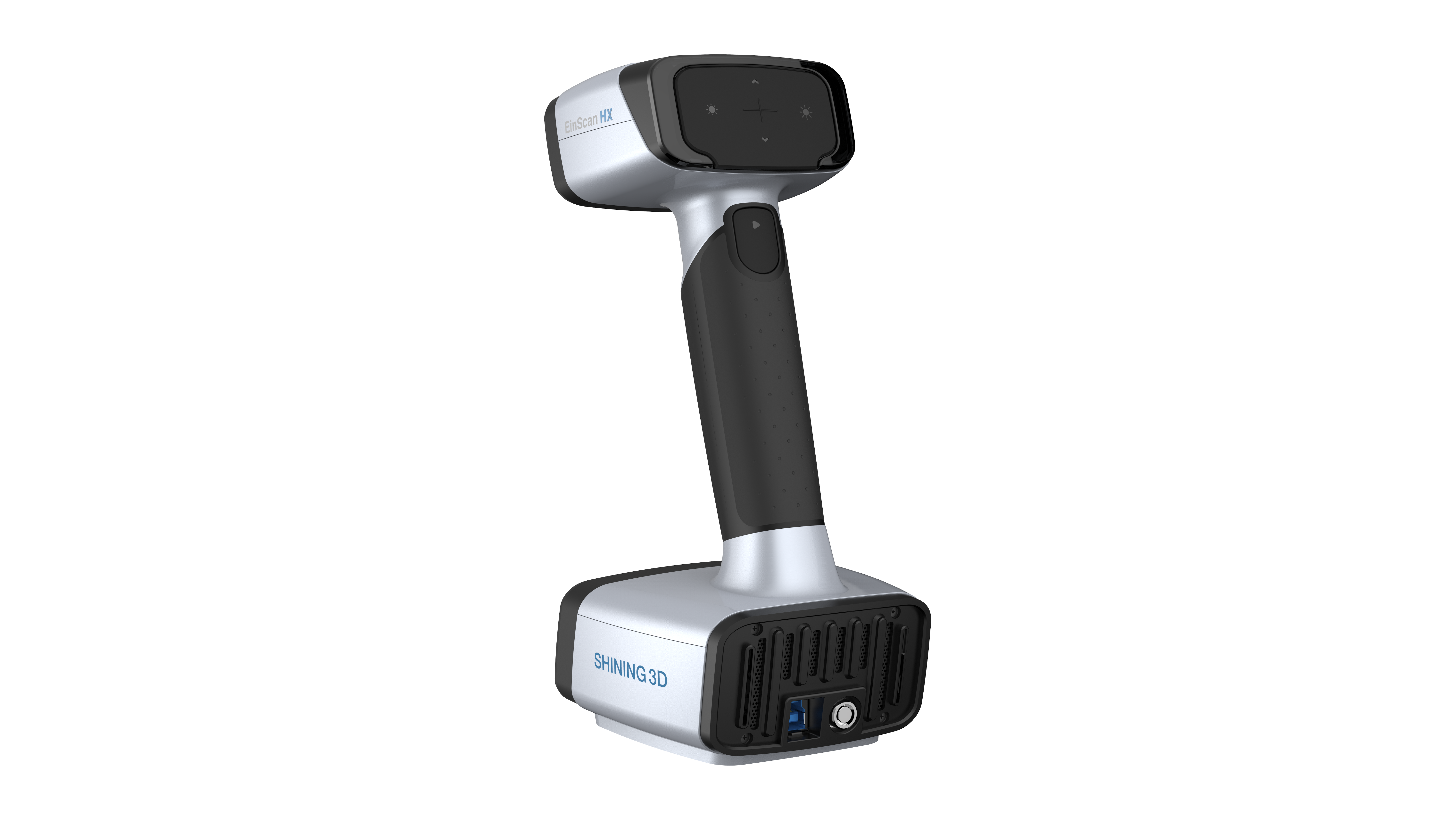

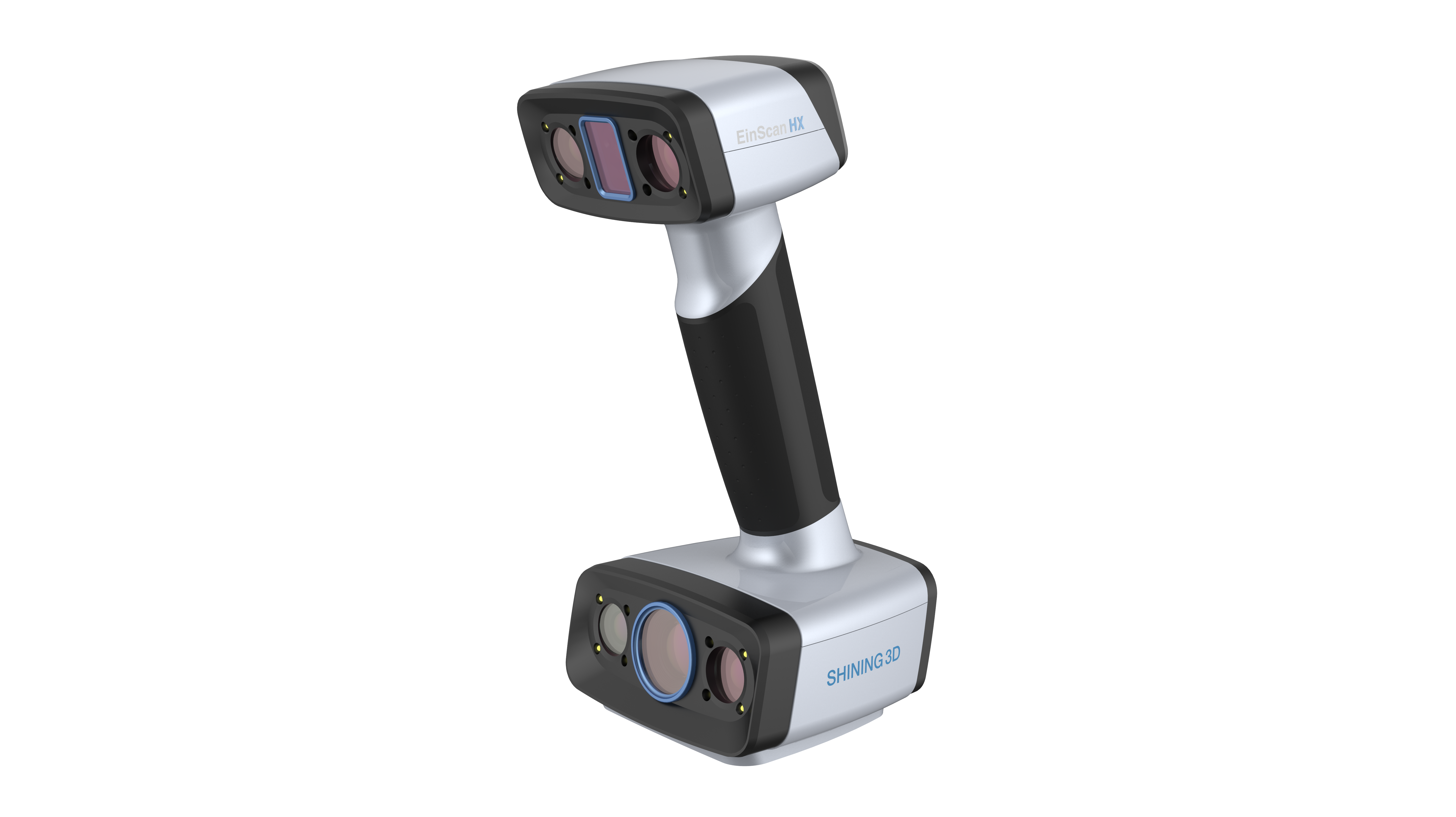

Handheld Shining 3D EinScan HX2
A handheld 3D body scanner that integrates blue LED and blue laser technologies.
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description

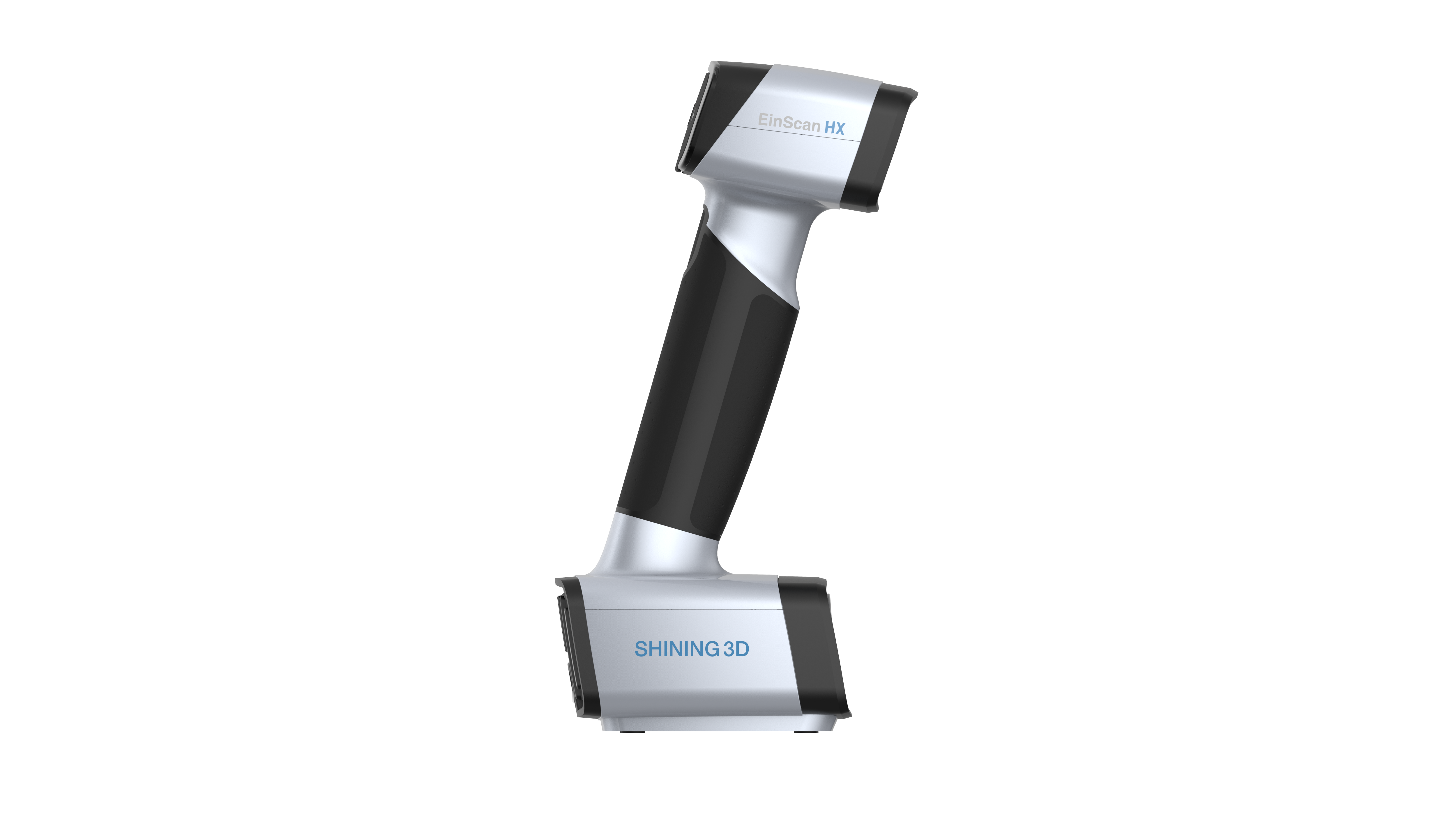

Einscan HX is a handheld 3D scanner that combines blue LED light and blue laser technology. This innovative integration allows the scanner to be compatible with a wider range of object sizes, making it suitable for various user needs. The hybrid laser and LED light sources also improve scanning adaptability and provide reliable results.
The scanner’s dual blue LED light enables rapid 3D scanning, while the blue laser scanning is less affected by ambient light, resulting in better performance on reflective and dark-colored surfaces. The high resolution and accuracy of the scanner make it suitable for industrial applications such as reverse engineering and measuring.
The scanner offers high efficiency with a processing speed of up to 1,200,000 points/s under Rapid Scan Mode. It can scan most objects within minutes, making it ideal for applications like reverse engineering, CAD/CAM, and 3D printing.
In terms of usability, the EinScan HX is portable and easy to operate. It comes with user-friendly software and can be used by both beginners and professionals in the field of 3D scanning. The scanner’s ergonomic design ensures a comfortable and efficient scanning experience.
The EinScan HX Reverse Engineering Design Bundle is a 3D scanner that features a built-in color camera, allowing it to capture full color textures and track them using texture mapping. This hybrid light source scanner is designed for reverse engineering and CAD applications, providing users with the ability to create accurate and detailed 3D models.
Advantages

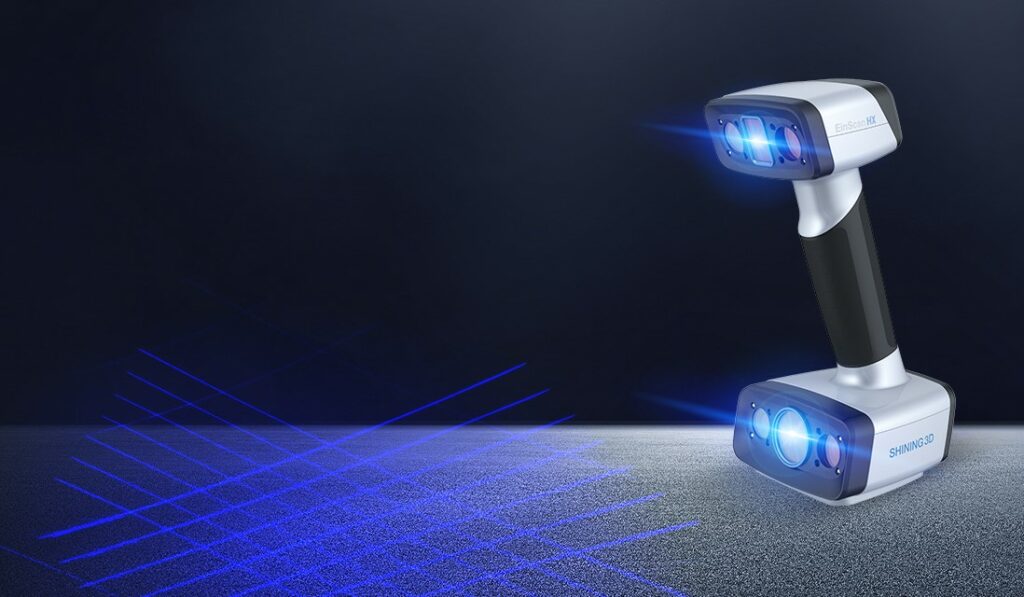

Hybrid Blue Laser & LED Light

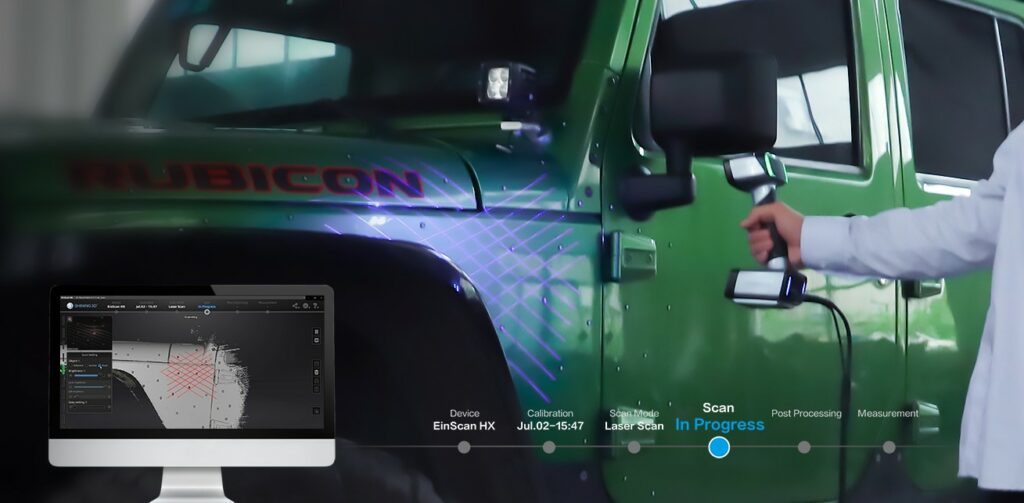

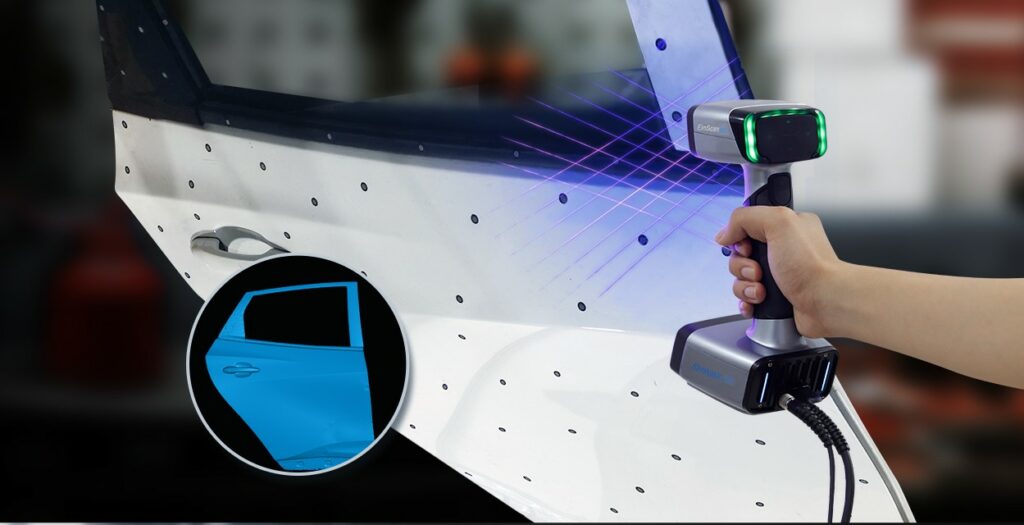

The EinScan HX handheld 3D scanner incorporates a unique combination of dual blue LED light and blue laser, enhancing its ability to scan different materials for a wide range of applications. The LED light scanning feature enables fast 3D scanning, while the laser scanning capability provides superior performance on reflective and dark-colored surfaces, as it is less affected by ambient light conditions. This innovative design by SHINING 3D addresses the specific needs of the market, ensuring high efficiency and accurate results for various scanning tasks.
EinScan HX 3D scanner combines in an innovative way, based on SHINING 3D’s extensive experience in 3D measurement and market demand. This hybrid light source makes the EinScan HX compatible with a wide range of object sizes, catering to the diverse needs of users. With its high efficiency and reliable results, the EinScan HX opens up numerous application possibilities.
High Efficiency

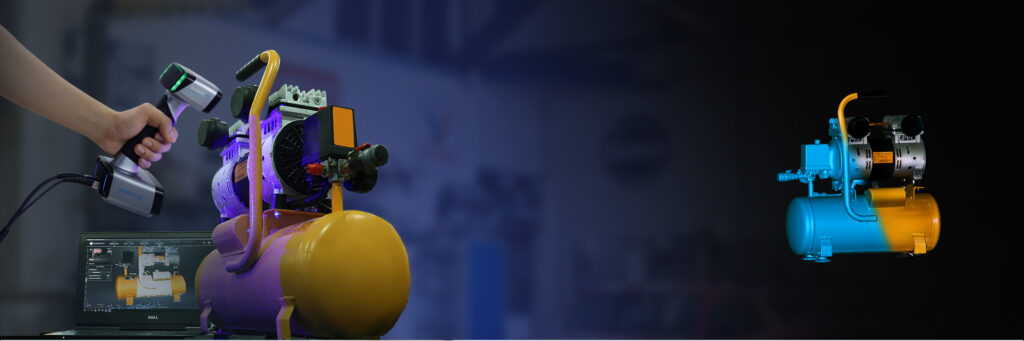

The EinScan HX has a rapid processing speed under the Rapid Scan Mode, reaching up to 1,200,000 points per second. Additionally, its Laser Scan Mode utilizes multiple blue laser lines, allowing for quick scanning of most objects in just a matter of minutes. This makes it ideal for applications such as reverse engineering, CAD/CAM, 3D printing, and more.
Reliable Results

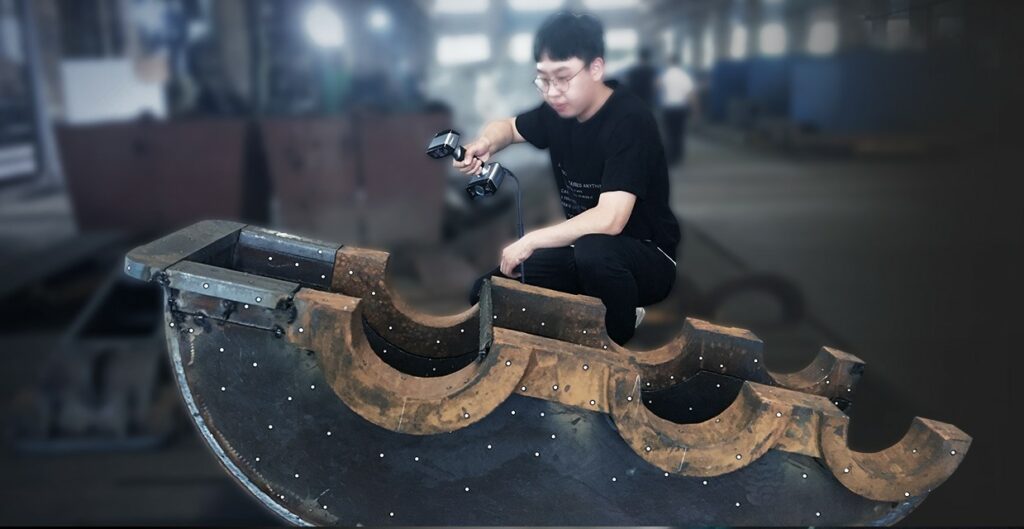

The EinScan HX provides reliable results with its high resolution and accuracy. It is suitable for a wide range of industrial applications, including reverse engineering and measuring. With a minimum point distance of 0.05mm and accuracy up to 0.04mm under laser mode, it ensures precise and detailed scans.
Portable & Easy Operation

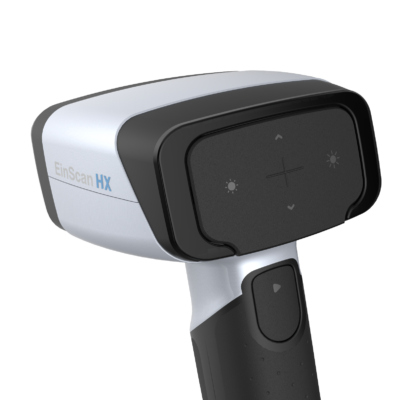

The EinScan HX offers a portable and user-friendly experience. Its plug and play functionality, along with easy-to-use software, makes it suitable for both beginners and experienced users in 3D scanning. The ergonomic design of the scanner ensures a comfortable and efficient scanning experience, enhancing its portability and flexibility.
Full Color
The EinScan HX is equipped with a built-in color camera that allows for the capturing and tracking of full color textures using texture-based methods.
- Scan Mode Rapid Scan I Laser Scan
- Scan Accuracy Up to 0.05mm I Up to 0.04mm
- Volumetric Accuracy 0.05+0.1mm/m I 0.04+0.06mm/m
- Scan Speed 1.200.000 points/s 20FPS I 1.600.000 points/s 55FPS
- Camera Frame Rate 55FPS I 55FPS
- Align Mode Feature Alignment I Markers Alignment Markers Alignment Texture Alignment Hybrid Alignment
- Working Distance 470mm I 470mm
- Depth of Field 200mm-700mm I 350mm-610mm
- MAX FOV 420mm*440mm I 380mm*400mm
- Point Distance 0.25mm-3mm I 0.05mm-3mm
- Light Source Blue LED I 13 Blue Laser Crosses
- Safety Eye-safe I Class I (Eye-safe)
- Built-in Color Camera Yes
- Texture Scan Yes I No

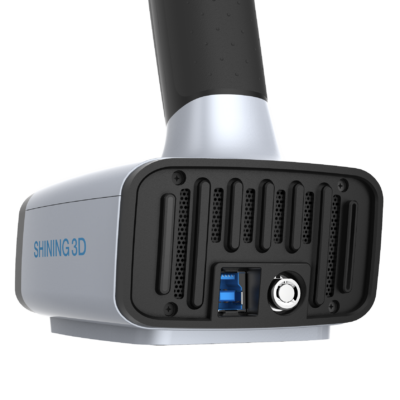

- Connection Standard USB3.0
- Output Formats OBJ, STL, ASC, PLY, P3, 3MF
- Dimensions 108x110x237mm
- Weight 745kg
- Operating Temperature Range 0-40℃
- Operating Humidity Range 10-90%
- Certifications CE, FCC, ROHS, WEEE, KC
- Recommended Configuration OS：Win10，64 bit；Graphics card：NVIDIA GTX/RTX series cards，higher or equal to GTX 1080； Video memory：≥4G；Processor：I7-8700；Memory：≥32GB
- Brand Shining 3D
