QETCH 1000

The Qetch 1000 is a fully automatic electrolytic polisher and etcher with intuitive touch-screen operation.

Request a quote
  • Description
  • Details
  • Materials
  • Documents
  • Videos
  • Review

Description

PRODUCT ADVANTAGES

• Automatic, electrolytic polishing & etching device
• Touch-screen display with QATM-software control
• Up to 200 programs with all parameters storable, protected per password
• Current & voltage diagram in real time
• Variable output voltage and process duration

qetch-1000-1

EASY OPERATION

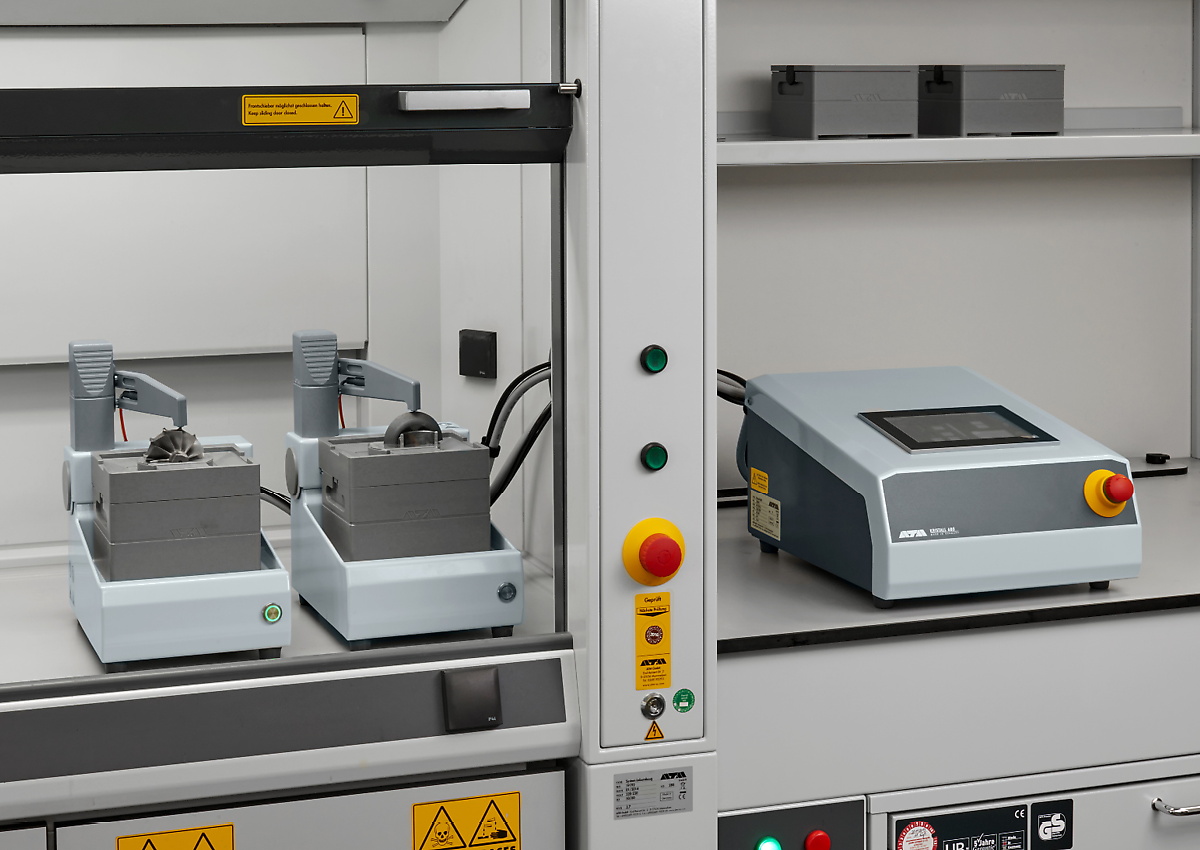

Qetch 1000 provides maximum safety and flexibility for the user during the polishing & etching process by intuitive touchscreen control. Separation of polishing & etching unit from control unit enables operation within a lab fume cupboard.
Option for connecting an additional and an external etching unit increases time saving applications. The chemical-resistant plastic vessels, also for storage of the electrolytes, are quick and easy to change.

TOUCHSCREEN-CONTROL
The QATM touchscreen surface allows intuitive operation even with gloves. Up to 200 programs with all parameters can be stored and protected with password (incl. labelling field).

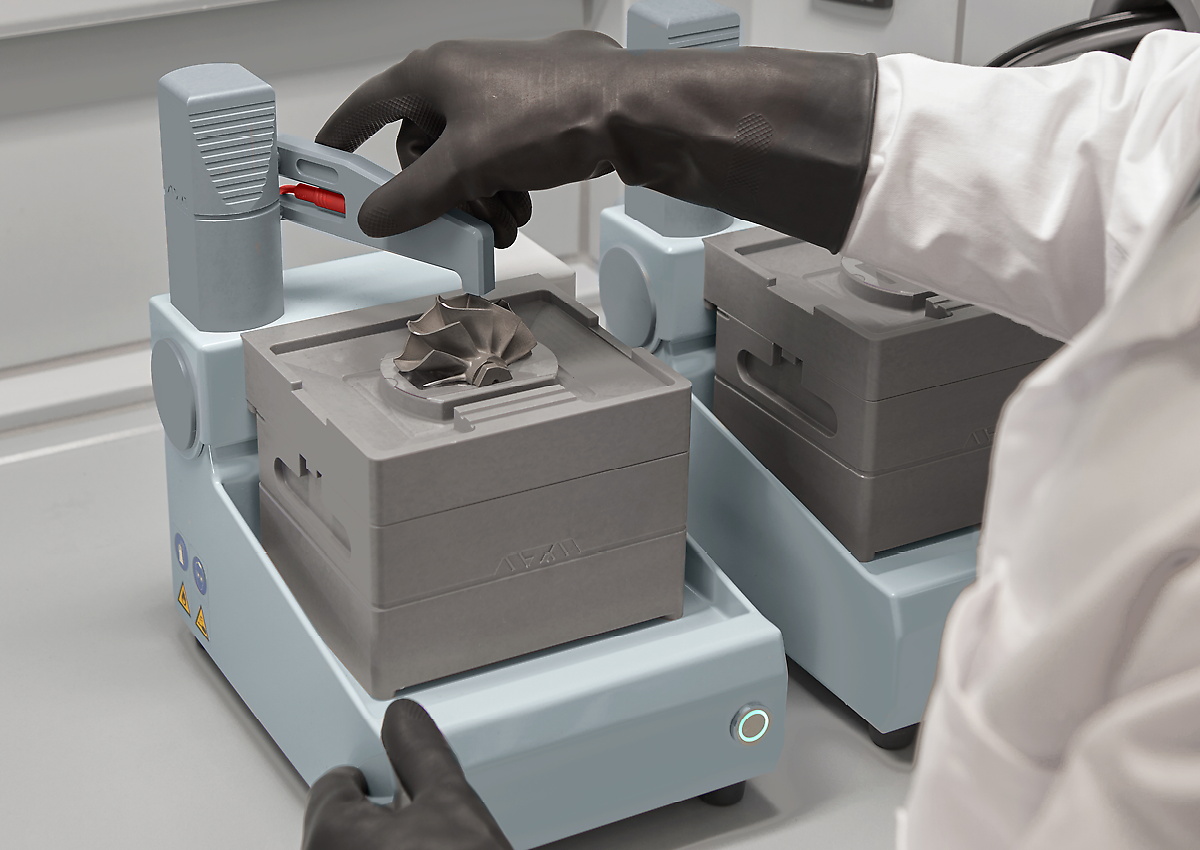

POLISHING AND ETCHING UNIT
The chemical resistant coated stainless steel housing has a large polishing table and can also be used separated from the control
unit, e.g. in a lab-fume cabinet.

1200x850px-vorlage-kristall-680-dimensions-1
  • Brand QATM
  • Connection power 2 kVA
  • Max. voltage 90 V DC
  • Max. current 14 A
  • Polishing duration 1 sec - 25 min
  • Etching duration 1 sec - 5 min

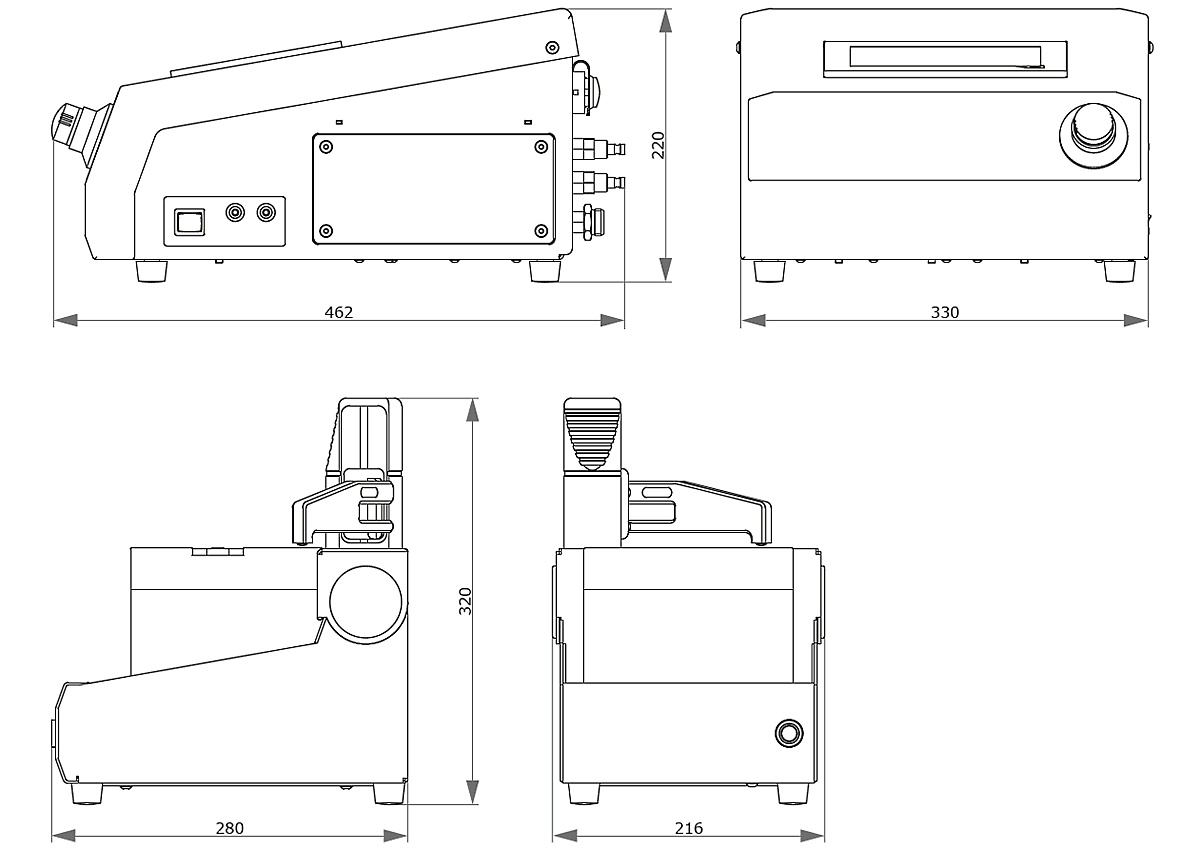

  • W x H x D 330 x 220 x 400mm / 12.99 x 8.66 x 15.75 in
  • Weight ~ 7 kg
