Nexa3D XiP Pro Industrial SLA 3D Printer
$69,995
XiP Pro is an industrial resin 3D printer delivering highest production throughput at the lowest cost of operation. Offering the largest build volume and fastest print speed in its class, its unrivaled productivity allows you to produce functional prototypes and final use parts at previously unattainable production economics. Its state of the art, LCD-based VAT photopolymerization process using the patented Lubricant Sublayer Photocuring (LSPc) technology delivers high accuracy, excellent dimensional stability, and superb surface quality.
-
Technology:
LSPc, SLA, XiP
-
Materials:
Resins
-
Categories:
3D printers, Business 3D Printers, Dental, DLP, DLP 3D Printers, Education, Engineering, Home 3D Printers, LSPc, Made in USA 3D Printers, Medical, Resin, XiP
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description

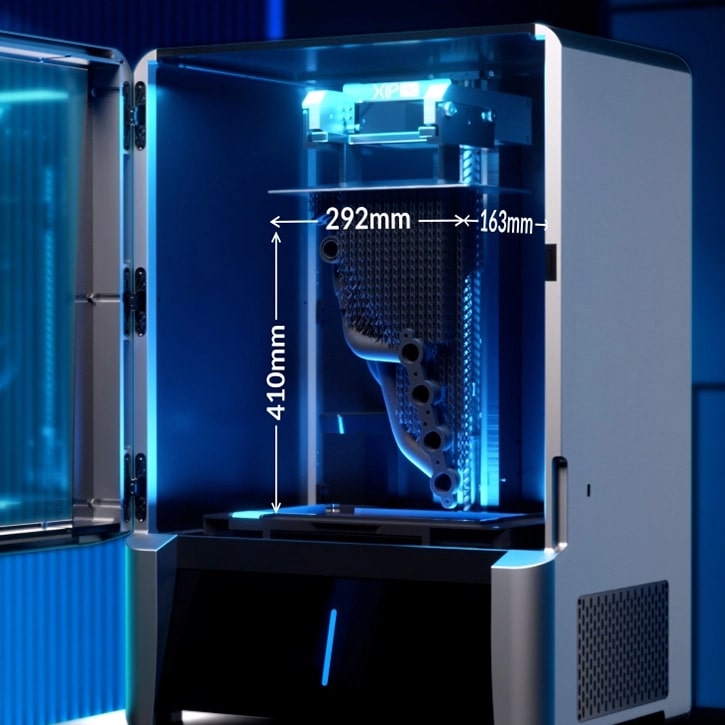

Large Build Volume

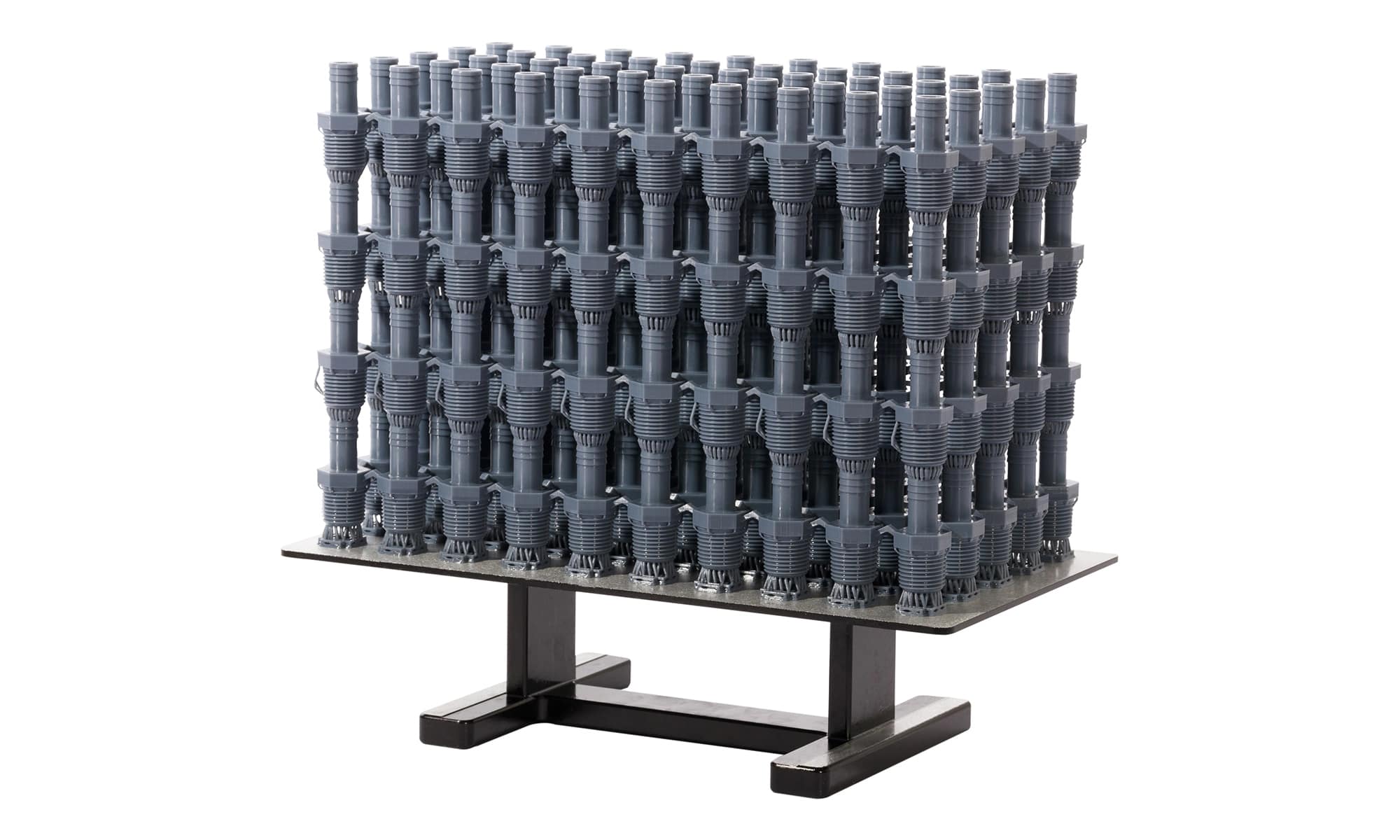

With a 19.5L build volume, XiP Pro delivers the daily throughput of 4+ other industrial resin-based printers, allowing you to dramatically change the economics of your 3D printing production, on top of reducing your investment in equipment. With its unique stacking ability you can optimize every build by easily stacking your smaller parts on top of one another to take full advantage of XiP Pro’s entire build volume. From extra large parts to many smaller parts, XiP Pro can do it all.
Blazing Fast Print Speed

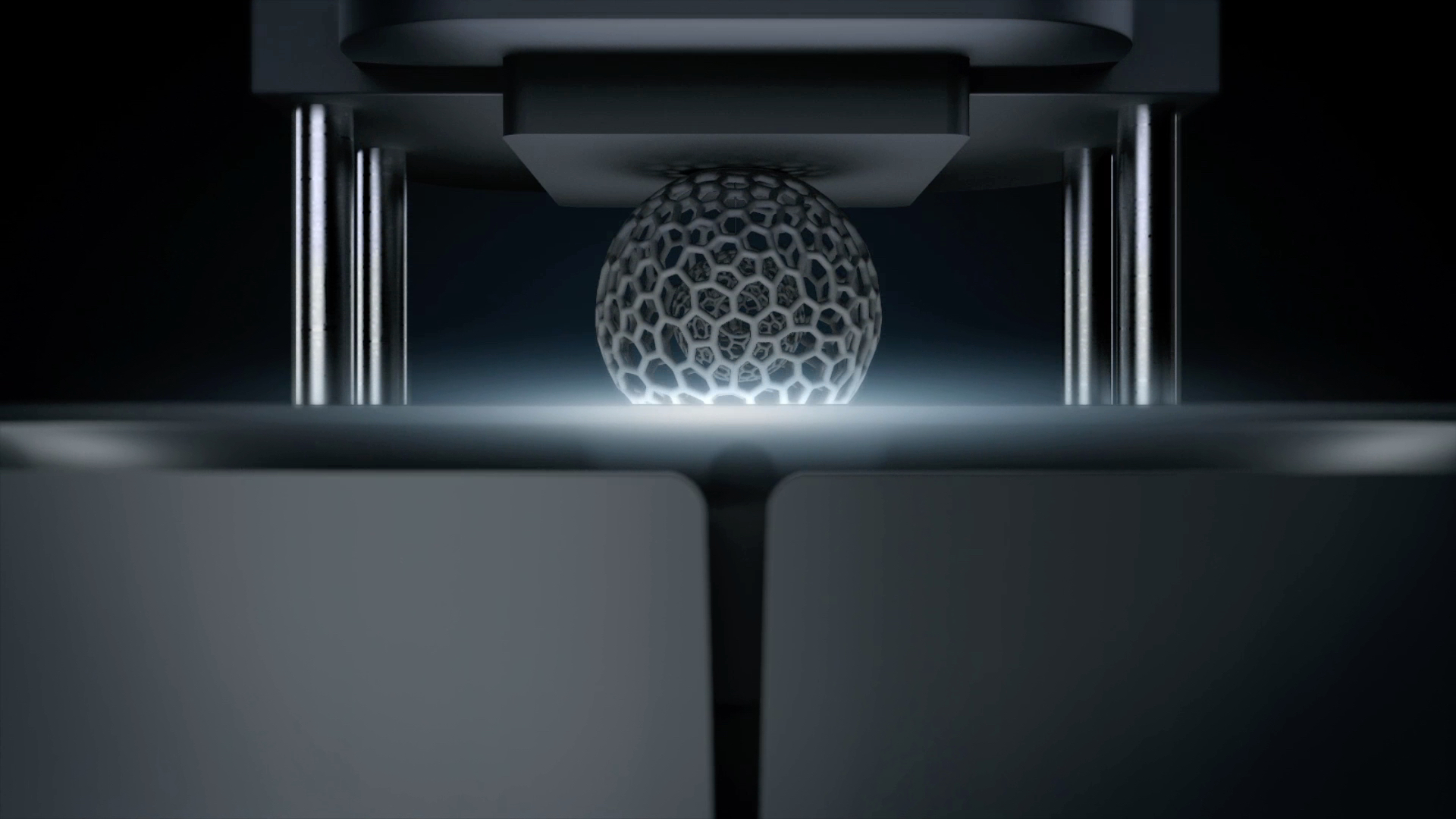

Tradeoffs have always been a key component of 3D printing – if you want speed, you have to compromise on quality. Not anymore. With industry leading print speed of up to 24 vertical centimeters per hour, XiP Pro can produce its entire build volume in under two hours. Its patented LCD-based LSPc print technology uses a self-lubricating membrane that enables lighting-fast print speed and unprecedented production value without sacrificing print quality or surface finish.

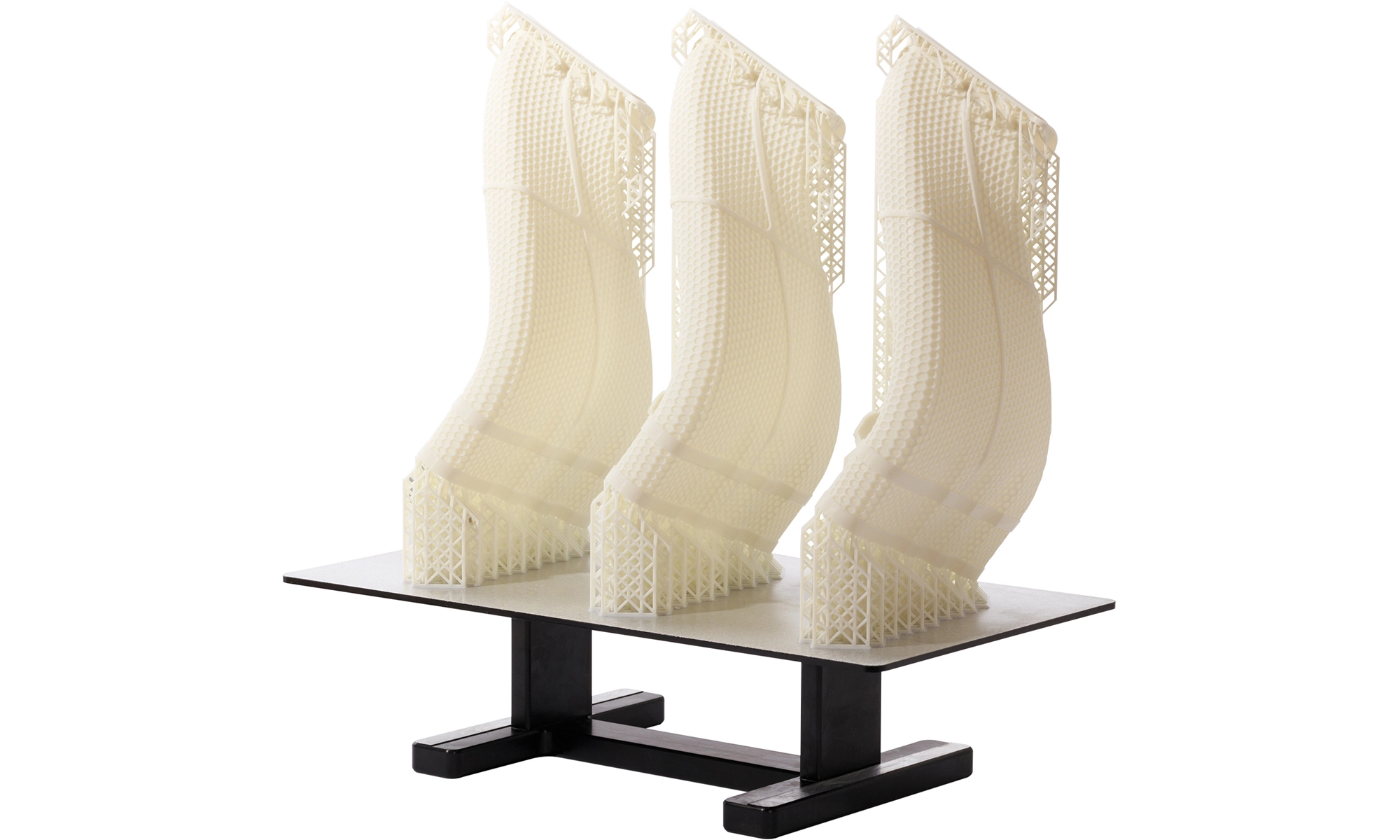

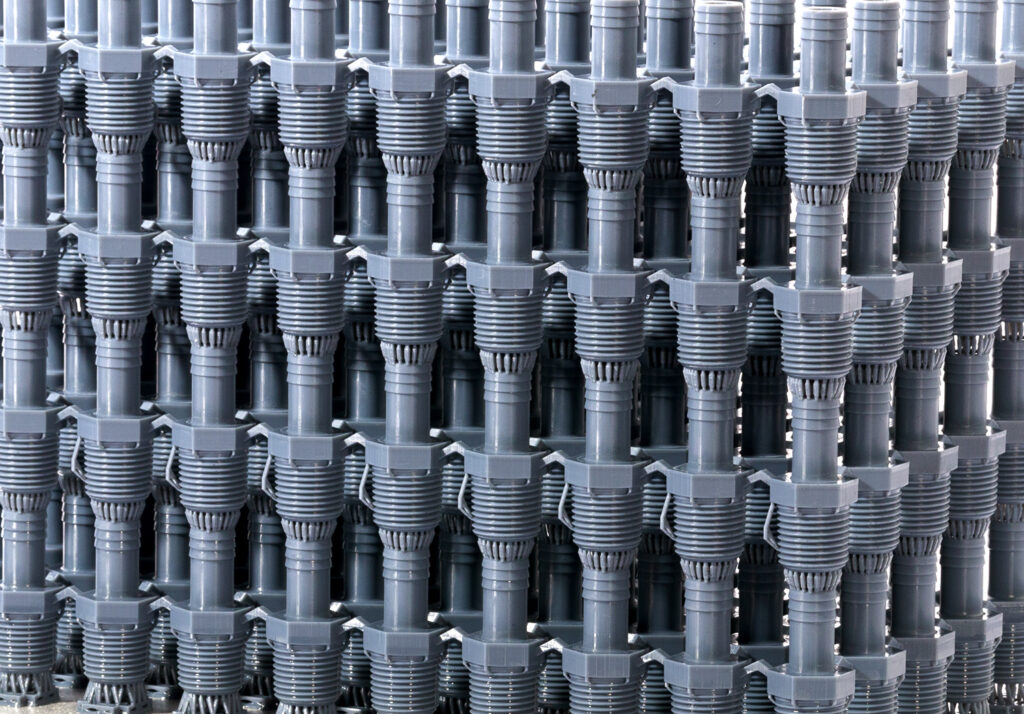

Superb Accuracy and Surface Quality
Not only does XiP Pro offer outstanding speed and throughput capabilities, it boasts a cutting-edge 7K resolution LCD screen with 46 µm pixel size and 23 µm sub-pixel resolution using antialiasing technology. Whether you are creating prototypes or production parts, every detail of your design is captured with unparalleled clarity and precision giving you a finished product that is both stunning and accurate. The enhanced printability and exceptional first-time build success rate are enabled by its advanced sensor package, adaptive layer-by-layer printing technology, and closed-loop z-stage with auto-homing and debris detection.

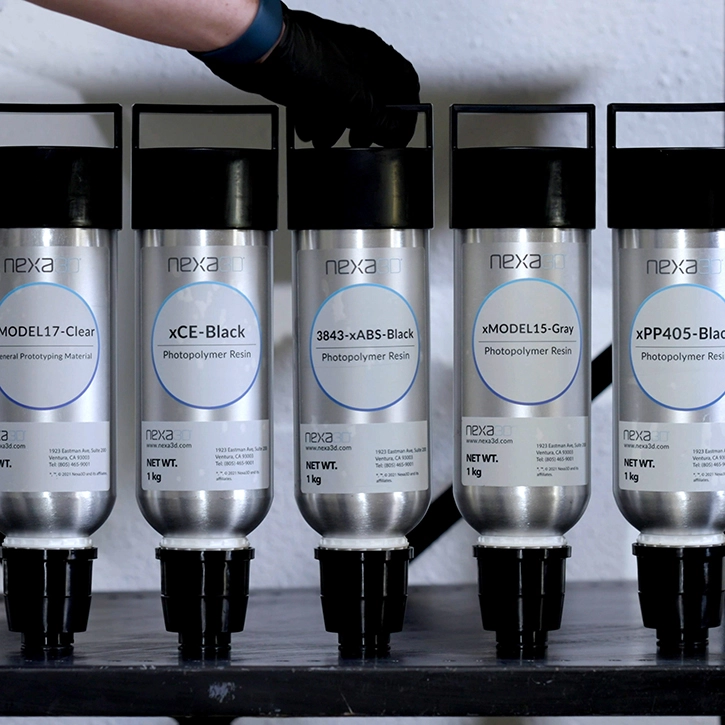

Material Versatility
Offering a broad range of high-performance manufacturing materials, ranging from strong and durable resins, like xABS, xPP, and xCE to elastomeric materials, like xFLEX475 and xFLEX405, XiP Pro is an open platform printer, meaning material options are virtually limitless. Whether you’re looking to build quick models in clear resins, prototype functional parts in engineering materials, or produce end-use components and 3D printed molds using heat-resistant resins, like xPEEK, xCERAMIC, or xMOLD you’ll find that XiP Pro is the most versatile industrial 3D printer on the market.
Additional Features
Industrial Capacity, Small Footprint
Solid billet aluminum unibody frame provides strength, durability, and z-stage stability for maximum precision and reliability, all packaged to fit in any setting.

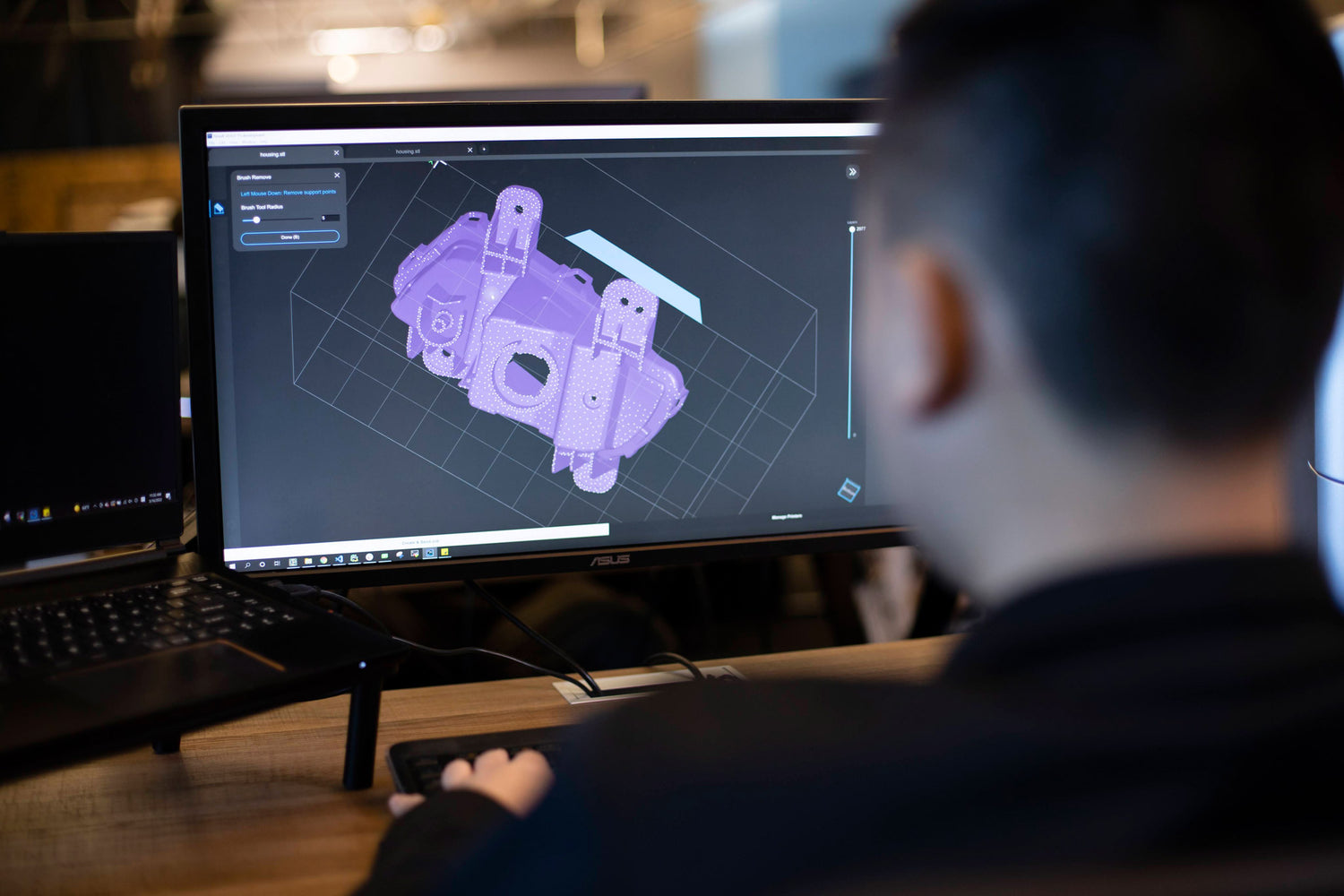

Intuitive NexaX Software
NexaX Pro is a powerful print-prep software that allows for easy file import, analysis, repair, and remote printing with fleet monitoring.
Smart Resin Delivery System
From smart resin cartridges, to a suite of on-board sensors that automatically optimize each print, to auto-homing, XiP Pro makes every print job a breeze.
PRINTING & POST PROCESSING
xWASH and xCURE provide a powerful one two post-processing punch for hassle free washing and post-curing of your large XiP Pro builds.
Modularity and Simple Serviceability
XiP Pro’s upgradable architecture and use of latest LSPc® technology make it a sustainable investment built to last.
Five Star Service Plan
Evercare is Nexa3D’s premium service plan that provides on-call experts for an added peace of mind and personalized 3D printing technical support.
Environmental Monitoring System
An advanced sensor suite including environmental monitoring to help ensure print to print consistency on the production floor.
Primary Applications

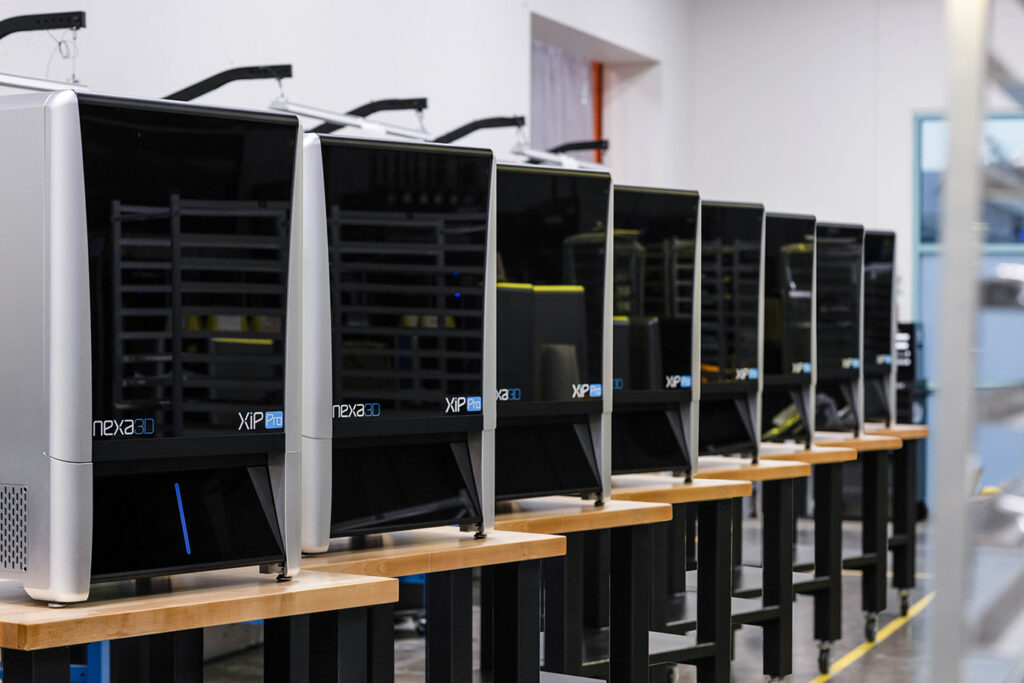

Manufacturing
Tooling, Jigs and Fixtures
Prototyping

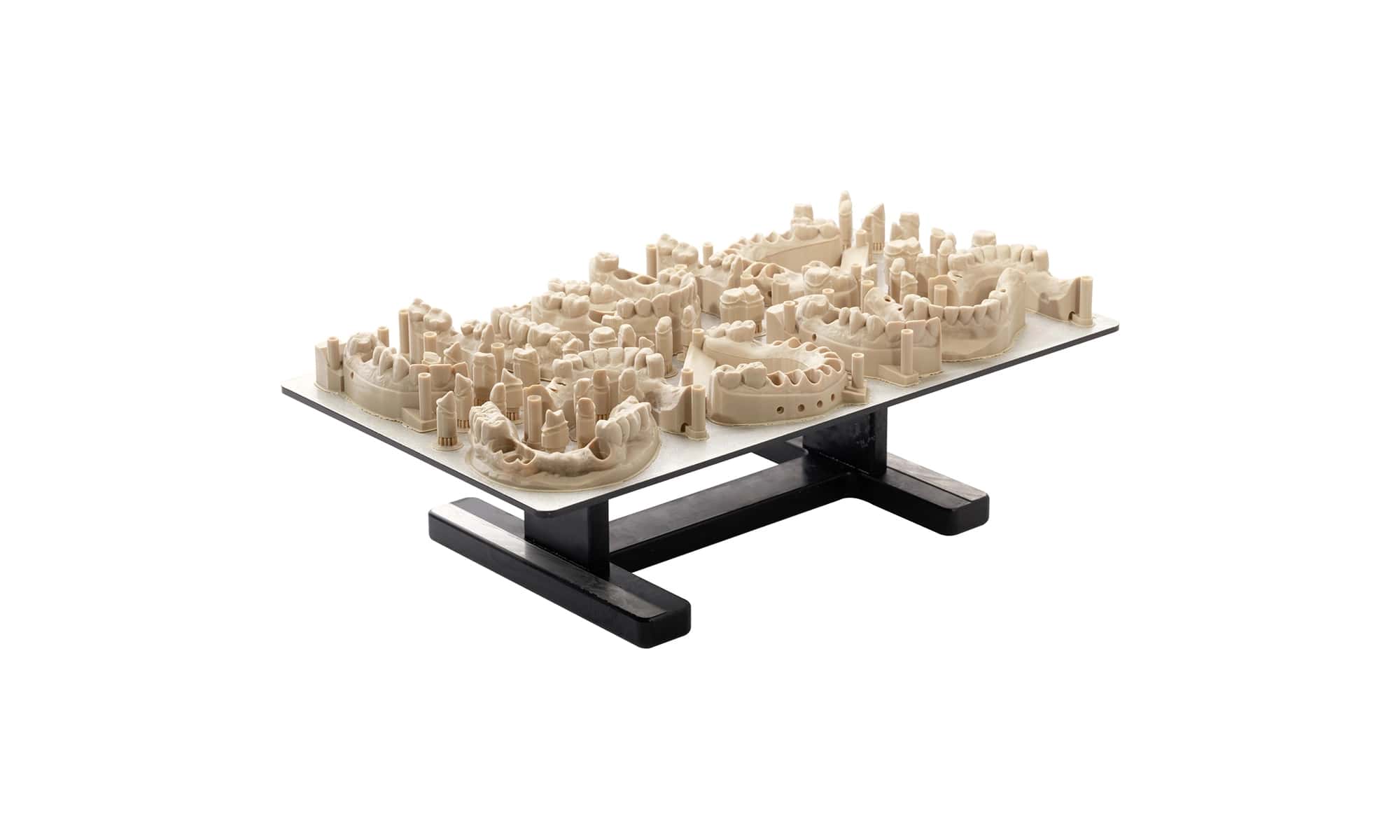

Digital Dentistry
- Technology LSPc, SLA, XiP
- Brand Nexa3D
- Country of origin USA
- Build Volume 292 x 163 x 410 mm (11.5 x 6.4 x 16.10 in)
- Resolution Pixel Size: 46µm Print Resolution: 25 µm – 200 µm
- Software NexaX Pro or NexaX Basic
- Interface 10″ High-Resolution LCD Touchscreen
- Printing Materials Resins
