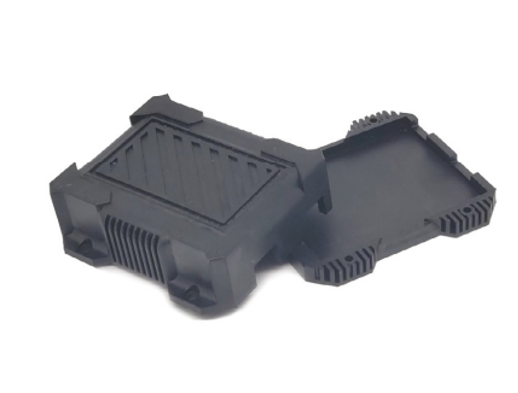

Nexa3D xESD 5kg Resin
$1,960
xESD is a black, rigid, static-dissipative photopolymer resin using a urethane dimethacrylate base that includes a stable dispersion of discrete functionalized carbon nanotubes to achieve consistent static dissipative properties.
-
Compatible platform:
LSPc, DLP, XiP
-
Type:
Resins
Request a quote
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
Unique Features
This dispersion does not settle in xESD resin, resulting in consistent ESD-capable parts. The discrete nature of xESD also produces parts that leave no carbon trails and improves key mechanical properties such as tensile strength, modulus, and impact resistance. xESD is designed for use with LSPc®Technology and allows for high resolution part fabrication with isotropic static dissipative and mechanical properties.
PHYSICAL AND MECHANICAL PROPERTIES
| Tensile Strength | ASTM D638 | 68 MPa |
| Tensile Modulus | ASTM D638 | 2.6 GPa |
| Flexural Strength | ASTM D790 | 97 MPa |
| Flexural Modulus | ISO 20795-2 | 1.8 GPa |
| Notched IZOD | ASTM D 256-10 | 24 J/m |
| Shore Hardness (0s, 3s) D scale | ASTM D2240 | 87 |
| HDT @1.8 MPa | ASTM D648 | 91.3°C |
| Water Absorption | ASTM D 570-98 | 0.9% |
downloads
- Brand Nexa3D
- Available colors Black
- Weight 5 kg
- Country of origin USA
- Printing Materials Resins
- Platform NX
- Technology LSPc, DLP, XiP
