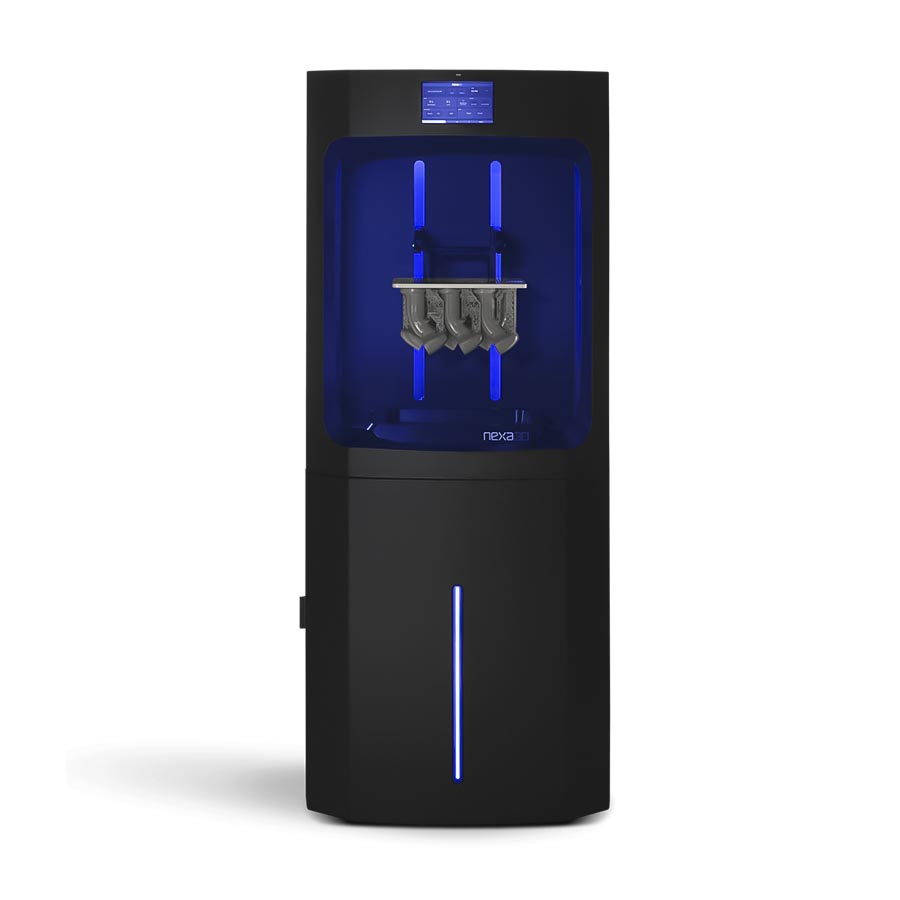

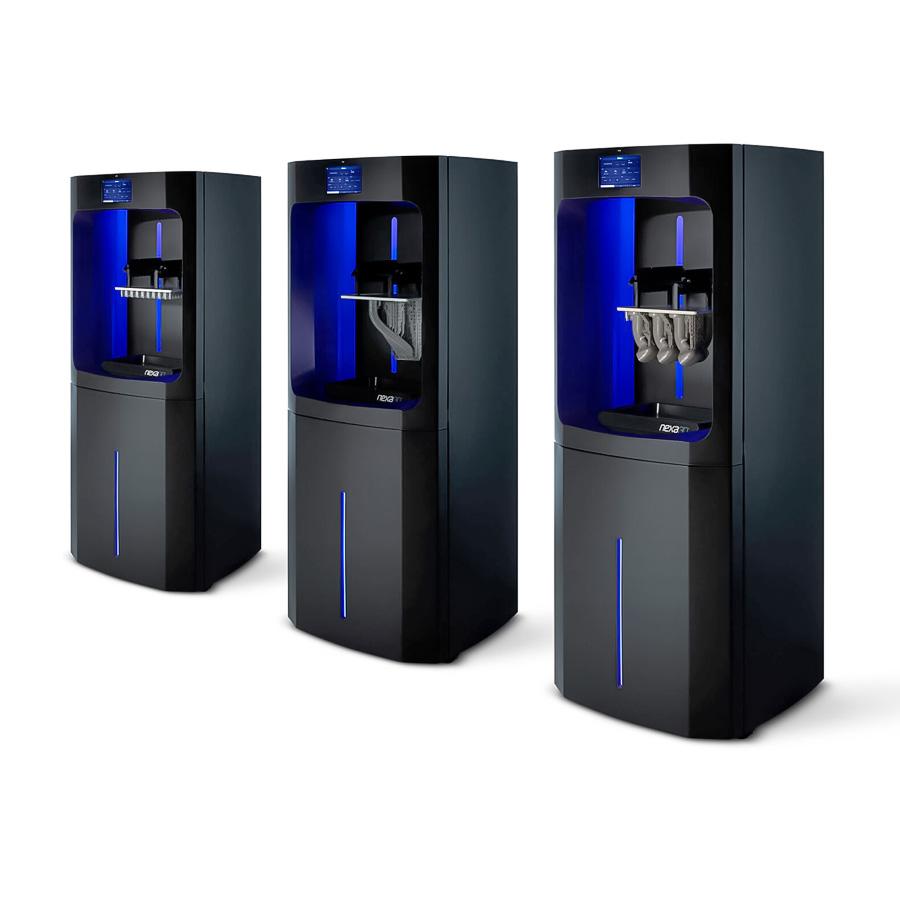

Nexa3D NXE400 – Fast, High-Precision Industrial SLA 3D Printer
$46,995
Remarkably fast 3D printer, capable of reaching up to 1Z centimeter build per minute. With its proprietary LSPc (Lubricant Sublayer Photo-curing) technology NXE400 prints at 6X the speed and 2.5X volume of all other comparable 3D printers on the market.
-
Technology:
LSPc, SLA
-
Materials:
Resins
Request a quote
-
Categories:
3D printers, Business 3D Printers, Dental, DLP, Education, Engineering, LSPc, Made in USA 3D Printers, Medical, Resin
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
Remarkably fast 3D printer, capable of reaching up to 1Z centimeter build per minute. With its proprietary LSPc (Lubricant Sublayer Photo-curing) technology NXE400 prints at 6X the speed and 2.5X volume of all other comparable 3D printers on the market.
Advantages
Sophisticated yet amazingly intuitive software is the core of NXE 400 uncompromising performance. Just download the part, select the resin and you are ready to print.
- Large 16-liter build volume allows printing sizeable parts and higher part throughput
- Modular design to ease replacement parts interchange and to allow seamless technology upgrades
- Remote printing job management and printer statistics with NexaX v1 Software
- Designed for complete factory automation
- Injection molding quality at unprecedented printing speed
Materials
- xCE-White – the fastest single cure polymer boasting higher flexural strength compared to those typically achieved only in dual cure cyanate ester resins.
- xCLEAN – effective and environmentally friendly washing solvent that is designed to work consistently with most photopolymer 3D printers and resin systems available on the market.
- xMED412 – polypropylene-like material that is ideal for manufacturing a variety of biocompatible, medical and wearable devices. xMED412 is based on Henkel’s Loctite® MED412 material and is covered by all of its associated clearances, tests and certifications.
- 3843-xABS Black – high performance, high modulus material that boasts excellent flexural and tensile physical properties with a relatively high degree of elongation.
- xABS-HT-Orange – ABS class, high temperature durable, low shrinkage resin for production of functional engineering parts requiring stronger durability.
- xGPP-Translucent – tough, accurate, fast printing material. Low shrinkage, high accuracy and no water absorption. Perfect for performance prototyping and functional end use parts.
- xGPP-Gray – prototyping resin with high detail and great surface finish material. Great applicational variety from form, fit and function analysis to industrial grade durability & assembly.
- xGPP- Blue – prototyping resin for ultrafast design iterations, rapid prototyping and form & fit testing. Delivers fully functional prototypes at the fastest printing speed in its class.
Ships with basic part finishing tools accessory kit
- Max build requires wash basin & cure chamber with 300 x 180 x 480mm (12 x 7 x 19 in) capacity
- Requires UV curing unit capable of > 2mW/cm2 and 60°C (ideal 20mW/cm2 and up to 120°C)
downloads
- Brand Nexa3D
- Country of origin USA
- Weight 160kg (350lb), 250 kg (550lb)
- Dimensions 710 x 710 x 1675 mm (28 x 28 x 66 inch), 710 × 710 × 1675 mm (28 × 28 × 66 inch)
- Build Volume 10.8x6.1x15.7 in, 275x155x400 mm
- Max Resolution 4K (3840 x 2160)
- Pixel Pitch 76.5 µm (0.0030 in)
- Wavelength 405 nm
- Build Materials UV Curable Plastics: xGPP-Blue, xGPP-Transparent, xGPP-Grey, xABS-HT-Orange, 3843-ABS-Black, xCE-Black, xMED, xCAST
- Material Packaging 5kg jerry can
- Air Temperature 20-25˚C (60-80˚F)
- Humidity RH below 70%
- Electrical NA Version : 100-120 VAC, 50/60 Hz, Single Phase, 8A (NEMA 15-5R) EU Version: 210-230 VAC, 50/60 Hz, Single Phase, 4A (CEE 7/7)
- 3D Printer crated 990 x 990 x 1905mm (39 x 39 x 75 inch)
- Materialise MagicsPrint for Nexa3D Software Full featured toolset including auto orientation and nesting, auto support generation, mesh repair wizard, and part editing
- NexaX v1 Software Easy build processing and Remote Printer Management: submission and queues, job statisitics.
- Connectivity GigaBit Ethernet RJ-45, WiFi Interface
- Client Hardware Recommendation - 3 GHz multiple core processor with 16+ GB RAM - NVIDEA GTX 1060 or AMD Radeon RX 480 or better graphics with 4+ GB RAM - 3 GB available HDD space, additional 10GB for files / cache
- Client Operating System Windows 10, 64bit
- Input Data File Formats Supported .stl, .3mf
- Post-Processing Ships with basic part finishing tools accessory kit
- Warranty 12 months
- Technology LSPc, SLA
- Platform NX
- Printing Materials Resins
