Microtrac CAMSIZER ONLINE XL Particle Size and Shape Analyzer
The CAMSIZER ONLINE XL by Microtrac is an on-line large particle size & shape analyzer used for process control.
-
Brand:
Microtrac
Request a quote
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
The CAMSIZER ONLINE XL is a large particle size and shape analyzer that can measure particles ranging in size from 160 to 135,000 µm. Microtrac uses patented on-line 3D analysis technology with the Camsizer ONLINE and Camsizer ONLINE XL. Over 25 years of experience with Microtrac helping quality control departments improve their product quality with Online Dynamic Image Analysis.
CAMSIZER ONLINE XL PARTICLE ANALYZER FEATURES
- By having the ability to measure more than 40 parameters including 15 size, 13 shape / form, 3 surface roughness, density, transparency, and 3D in one analysis, the CAMSIZER ONLINE XL provides users with superior analysis capability that enables quick and confident decision-making regarding product quality
- Characterizes 32 morphological parameters of your material including 3D
- Non-contact measurement of dry particles ranging in size from 160 – 135,000 µm
- Analyses 100 images per second with high-speed, high-resolution camera
- Enclosed optical system which reduces downtime for maintenance
- Explosion proof
- Clean integration with 3rd party sample delivery devices
- Optimized for control room use
- Customizable sample conditioning
CAMSIZER ONLINE XL PARTICLE ANALYZER TYPICAL APPLICATIONS
Used in various fields such as: aggregates , building materials, fertilizers, food, geology / mining, glass beads

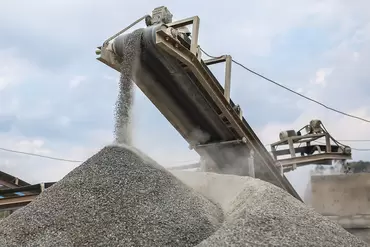

cement
fertilizers
wood chips
- Brand Microtrac
- Country of origin Germany
- Measurement range 160 µm - 135 mm
- Measurement principle Dynamic Image Analysis (ISO 13322-2 & 9276-6)
- Measuring time ~ 1 - 5 minutes (depending on application)
- Measurement rate > 100 images/s
- Sample amount > 2kg (depending on application)
- Physical specifications Aluminum and stainless steel
- Scale factor (µm/pixel) 160 µm / pixels
- Camera pixel layout 2560 x 2048 pixels, 62 fps at max resolution
- Light source Stroboscopic light
- Electrical 110-230 V / 50-60 Hz
- Power consumption Approx. < 100 Watt
- Dimensions (H x W x D) 15.74×48.38×64.52 in / 400×1229×1693 mm
- Weight approx. 154 lbs / 70 kg
