Loctite 3D IND405 Black 1 kg
$180
PP-like black resin: high elongation/impact for end-use jigs, housings & parts.
In stock
Request a quote
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description

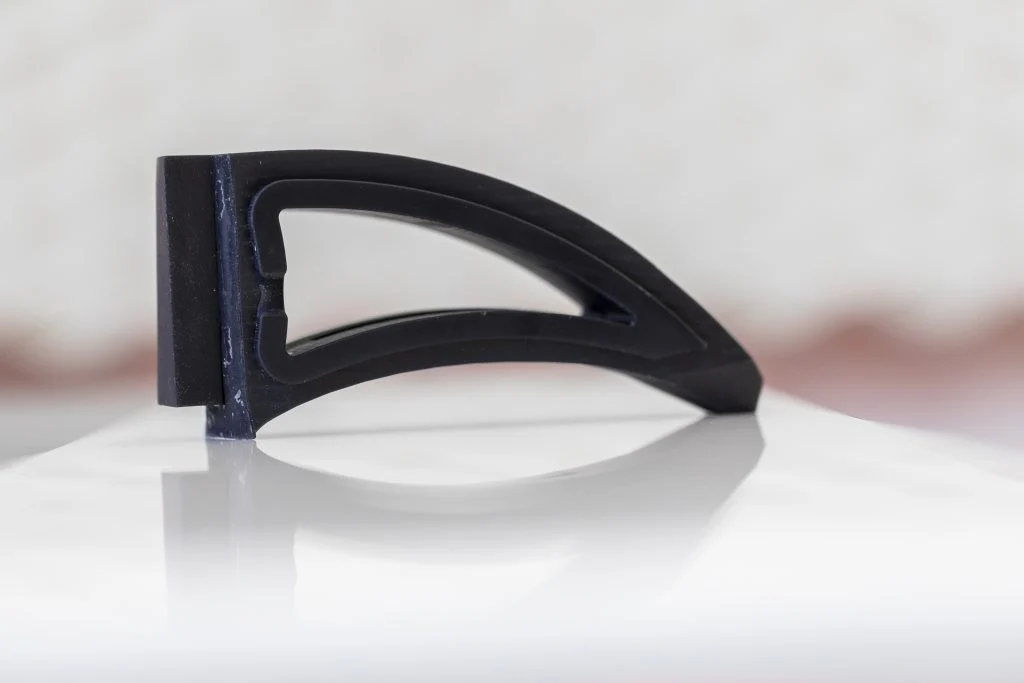

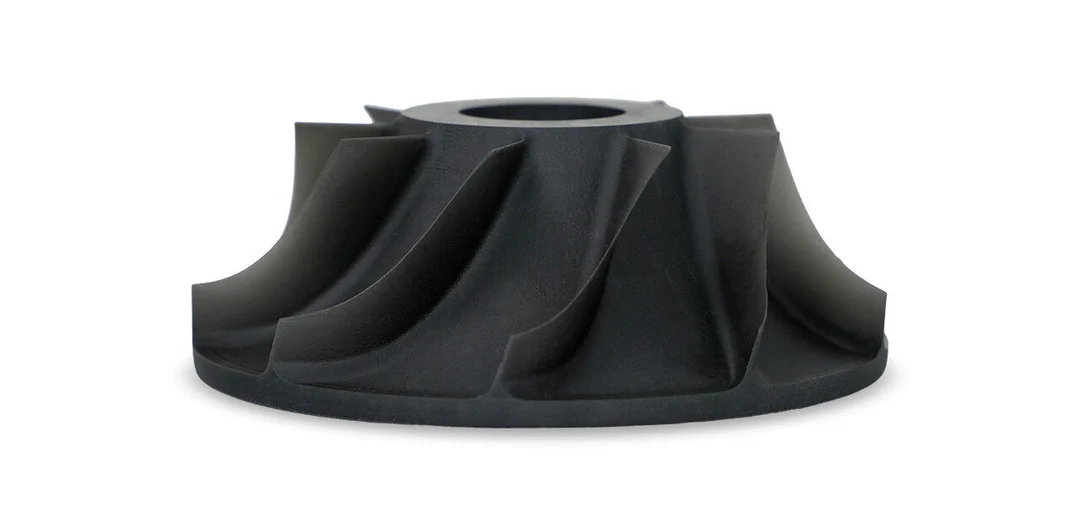

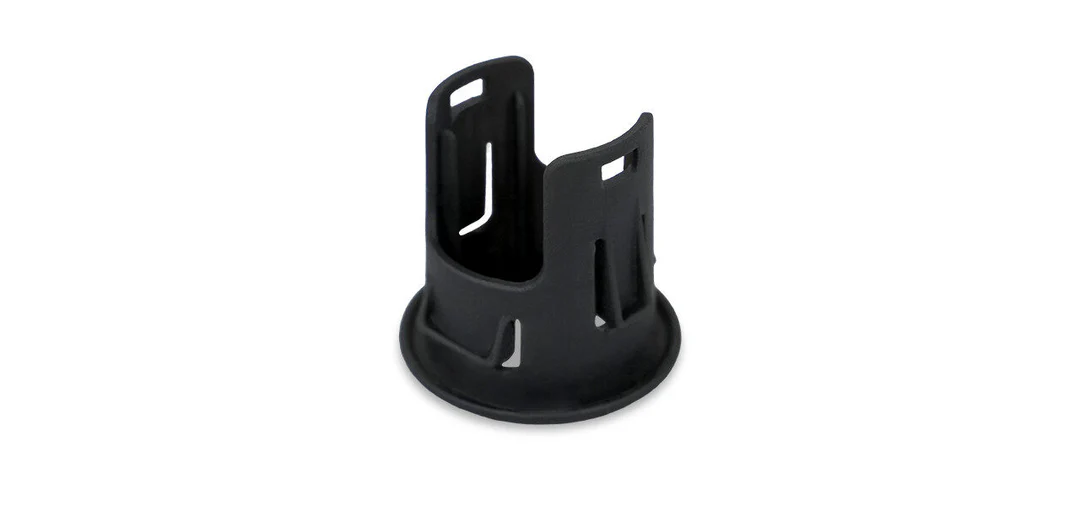

LOCTITE® 3D IND405™ is a high elongation and high toughness material with outstanding impact resistance and excellent surface finish. This stiff and durable high performance material is ideal for a wide variety of tools in the production floor, including manufacturing aids and final parts such as housings and consumer goods applications. The unique set of performance attributes makes it comparable to an unfilled thermoplastic like polypropylene. Parts can be machined, tapped, or polished for final finish.
- Tough
- Outstanding surface finish
- Superior strength and impact resistant
- Brand Henkel Loctite
- Available colors Black
- Print Feature Rigid
- Tensile Modulus (MPa) 897 ± 20 / 1,434 ± 80
- Tensile Stress at Yield (MPa) 25 + 1 / 44 + 1
- Elongation at Yield % 4.7 ± 0.2 / 5.0 ± 0.3
- Tensile Stress at Break (MPa) 24 ± 1 / 45 ± 2
- Elongation at Break (%) 89 ± 9 / 101 ± 11
- Flexural Modulus (MPa) 826 ± 27 / 1383 ± 63
- IZOD Impact (Notched, J/m) 51 ± 4
- Shore Hardness (3s) 76
- HDT@0.46 MPA (°C) 52.8
- HDT at 1.82 MPa 43.4
- Water Absorption (24hr) % 1.0
- Solid Density g/cm3
- Heat Capacity J/(g*K) 0.70 ± 0.07
- CTE (-30°C to 45°C) µm/(m·K) 98.47
- Tg °C 97.8
