KS408A UV SLA Resin Material: High-Precision Solution for 3D Printing
$670
KS408A UV Resin is a precise and durable ABS-like resin for SLA 3D printer providing perfect smoothness and details.
-
Compatible platform:
SLA
-
Type:
Resins
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
KS408A is the most popular SLA resin for accurate, detailed parts, perfect for testing model designs to ensure proper structure and function before full production. It produces white ABS-like parts with accurate, durable and moisture resistant features. It is ideal for prototyping and functional testing, saving time, money and material during product development. KS408A UV Resin is a precision and durable ABS-like lithography resin used in SLA 3D printers. It is a master model for the production of common 3D printing materials, automotive, medical, consumer electronics and other industrial fields, conceptual models, general components, functional components can be produced.The parts durability building with KS408A is over 6.5months.
typical features
- The medium viscosity of the liquid resin makes the re-coating as well as the machine and parts cleaning easier
- Improved strength and dimension retention in humid condition
- Need minimal part finishing
- Long shelf life in machine
typical benefits
- The medium viscosity of the liquid resin makes the re-coating as well as the machine and parts cleaning easier
- Improved strength and dimension retention in humid condition
- Need minimal part finishing
- Long shelf life in machine
INDUSTRIAL APPLICATIONS
Functional prototypes
Industrial parts

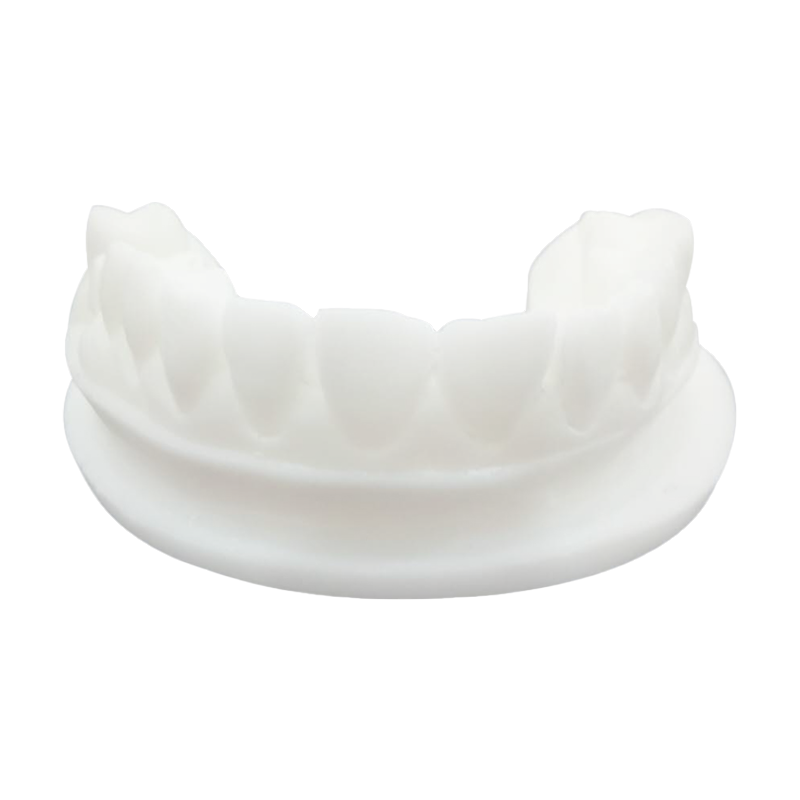

Medicine
Turbines

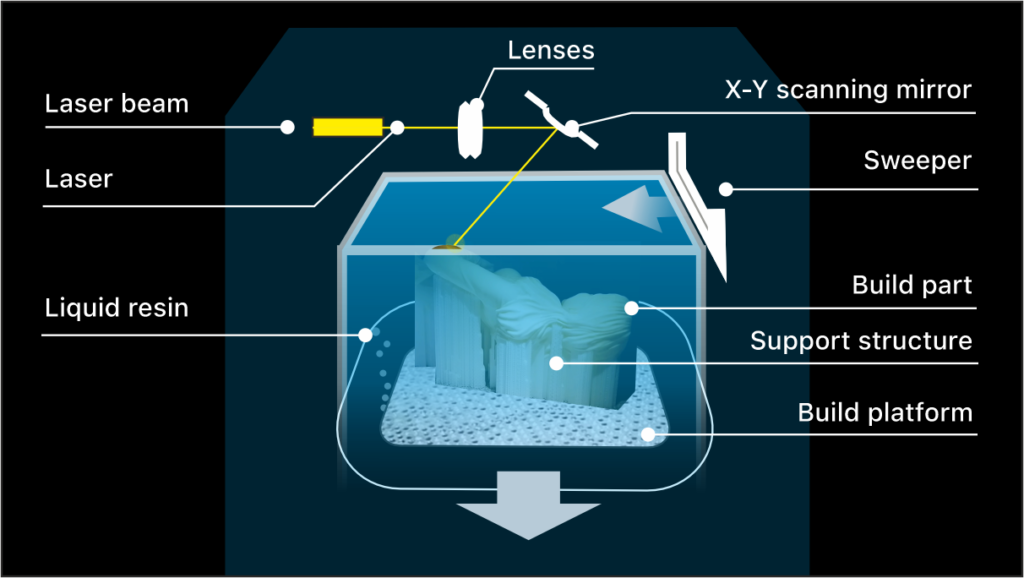

SLA 3D PRINTING TECHNOLOGY
Stereolithography (SLA) is an advanced method of 3D printing that allows for the creation of highly detailed and smooth parts. This technique is particularly beneficial for projects requiring complex geometries.
- A UV laser draws the object’s cross-section on the surface of a liquid resin, hardening it layer by layer.
- After solidifying each layer, the build platform lowers, allowing for a new layer of resin to flow in. This process continues until the complete resin object is formed.
- Once resin 3d printing is finished, the part is cleaned to remove any excess resin and UV light is used to fully cure it. The outcome is a high-resolution part that meets your project’s specifications.

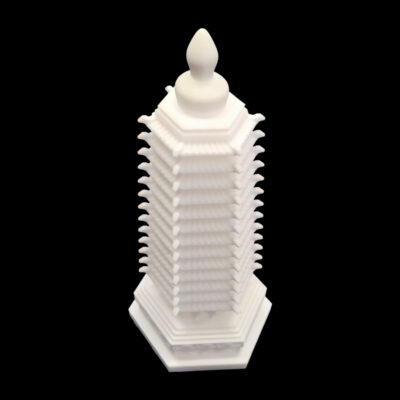

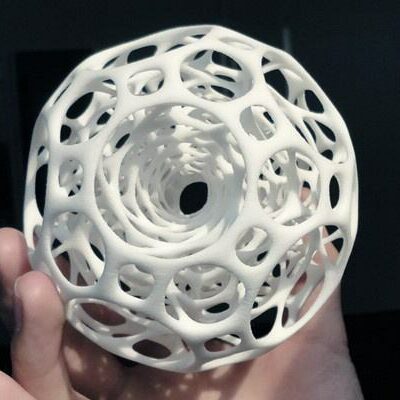

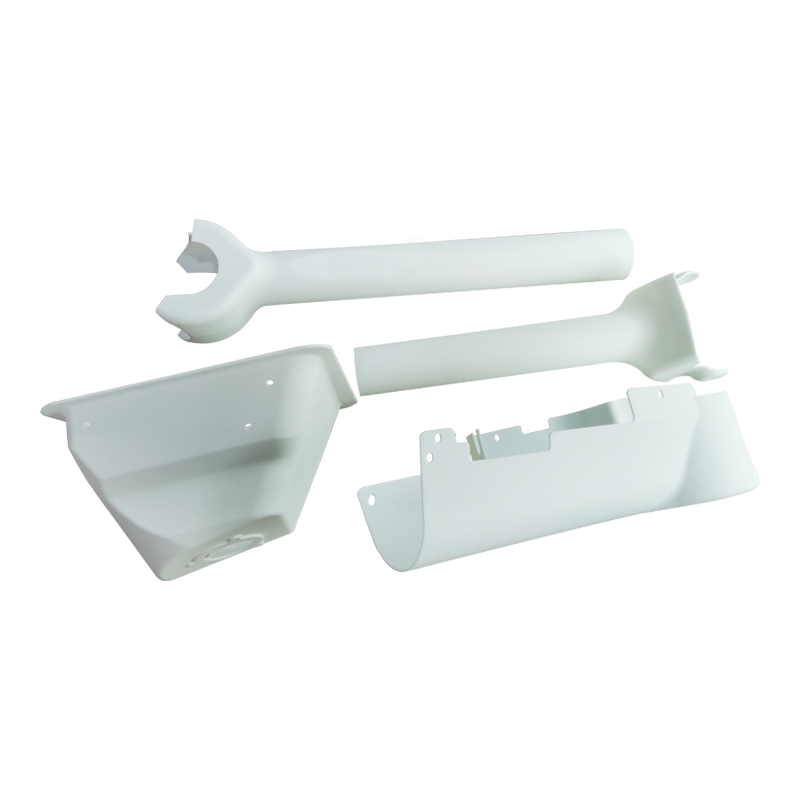

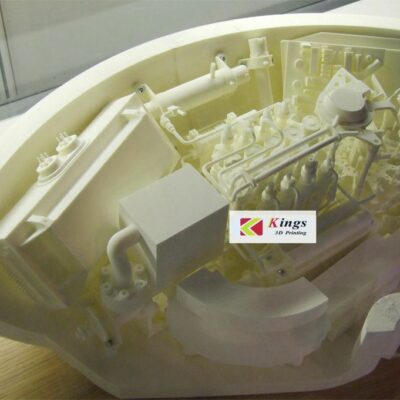

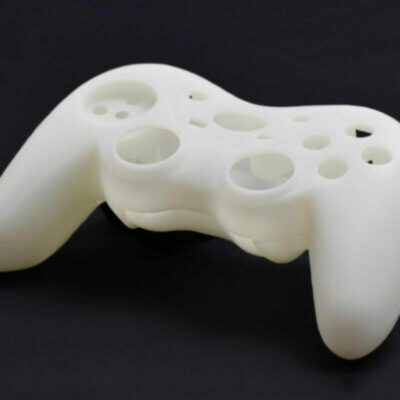

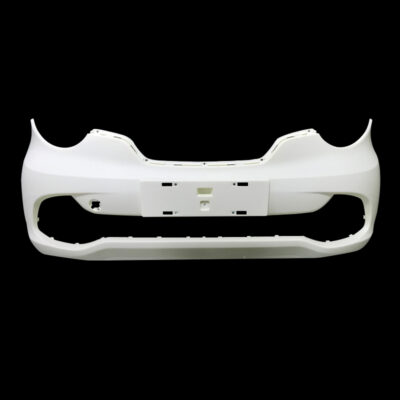

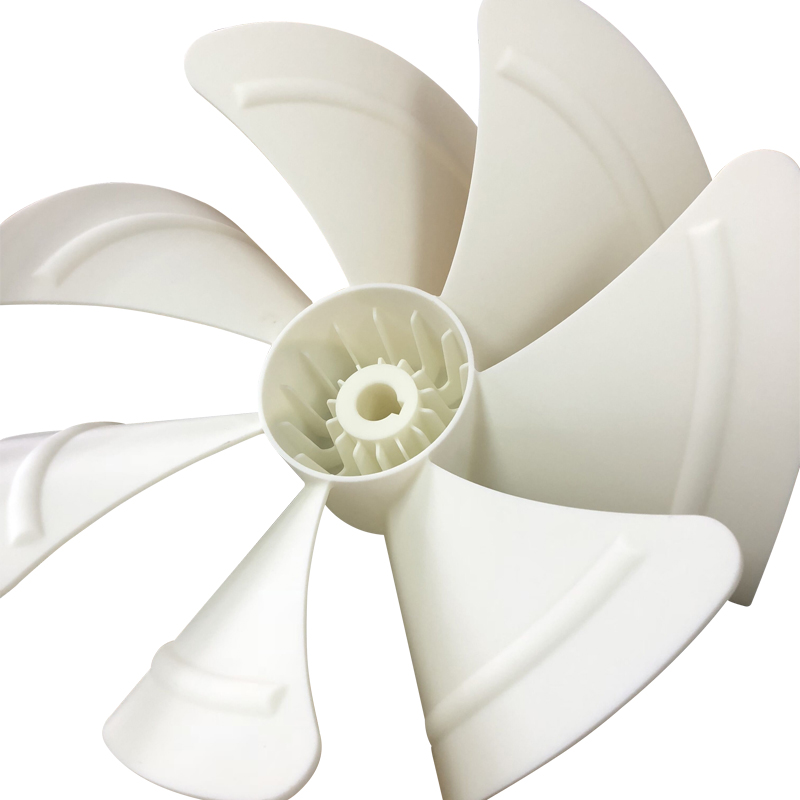

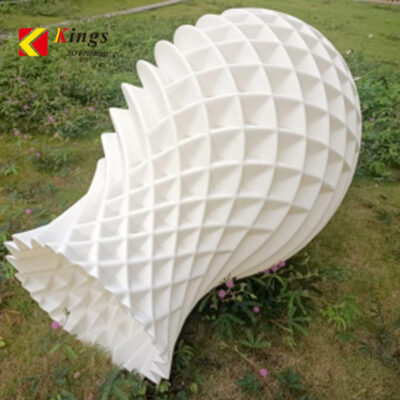

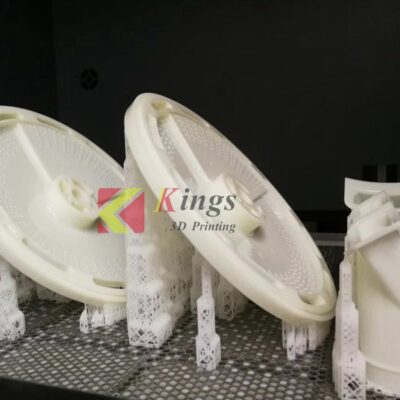

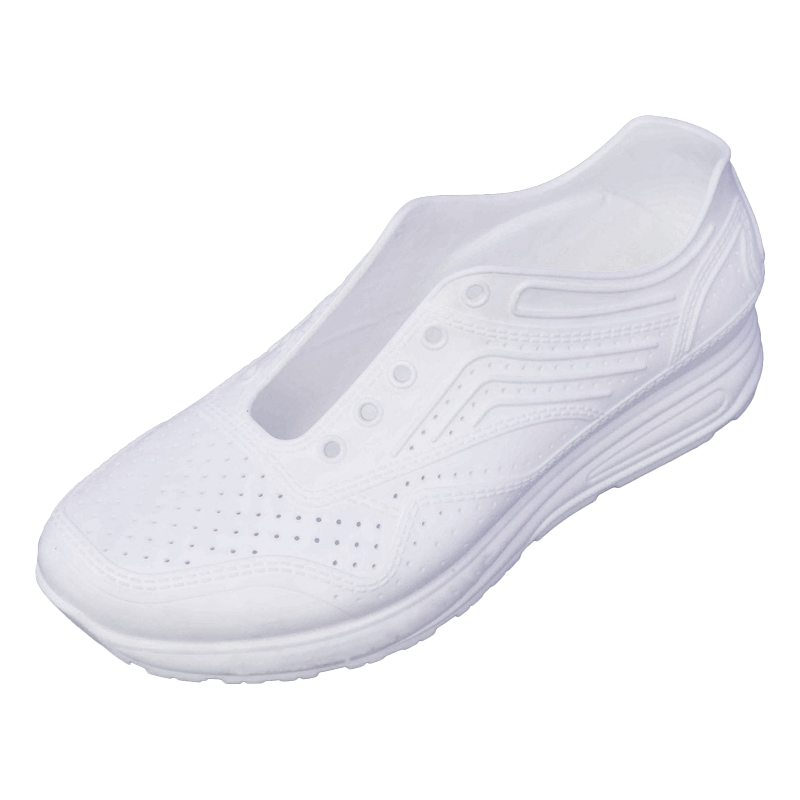

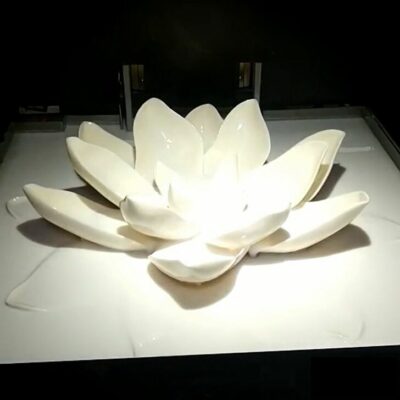

3D PRINTED PARTS
- Brand Kings3D
- Country of origin China
- Elongation at Break (%) 12-20
- Density 1.11-1.14g/cm³ at 25 ℃
- Viscosity 355-455 cps at 28 ℃
- Dp 0.0053-0.0061in / 0.135-0.155mm
- Ec 9-12 mJ/c㎡
- Building layer thickness 0.0019-0.0059in / 0.05-0.15mm
- Hardness, Shore D 76-82 (ASTM D 2240)
- Flexural modulus, Mpa 2,690-2,775 (ASTM D 790)
- Tensile modulus, MPa 2,180-2,395 (ASTM D 638)
- Tensile strength, MPa 27-31 (ASTM D 638)
- Impact strength, notched lzod, J/m 58 - 70 (ASTM D 256)
- Glass transition, Tg，℃ 55-70 (DMA，E”peak)
- Density, g/cm3 1.14-1.16 (UV Postcure)
- Printing Materials Resins
- Technology SLA
- Available colors ABS like Opaque White
- Flexural Strength (MPA) 68-75
- HDT@0.46 MPA (°C) 55-65
- Weight 10 kg, 22.04 lbs
