Farsoon FS121M
Accessible + Compact + Robust Industrial Metal 3D Printer.
-
Technology:
Metal LPBF
-
Materials:
Metal Powders
-
Categories:
3D printers, Business 3D Printers, Dental, Education, Engineering, Jigs&Fixtures, LPBF (DMLS), Medical, Metal, Powder
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
Introducing FS121M System. Farsoon FS121M is a robust yet accessible metal laser melting system designated to address quality, cost-efficiency, and operational ease. FS121M is offered with robust 500 or 300-watt fiber laser to suit a wide range of application from dental, medical to material development. Optimized for productivity targeting dental industry, the FS121M-E configuration has been a powerful manufacturing tool offering high value-proposition.

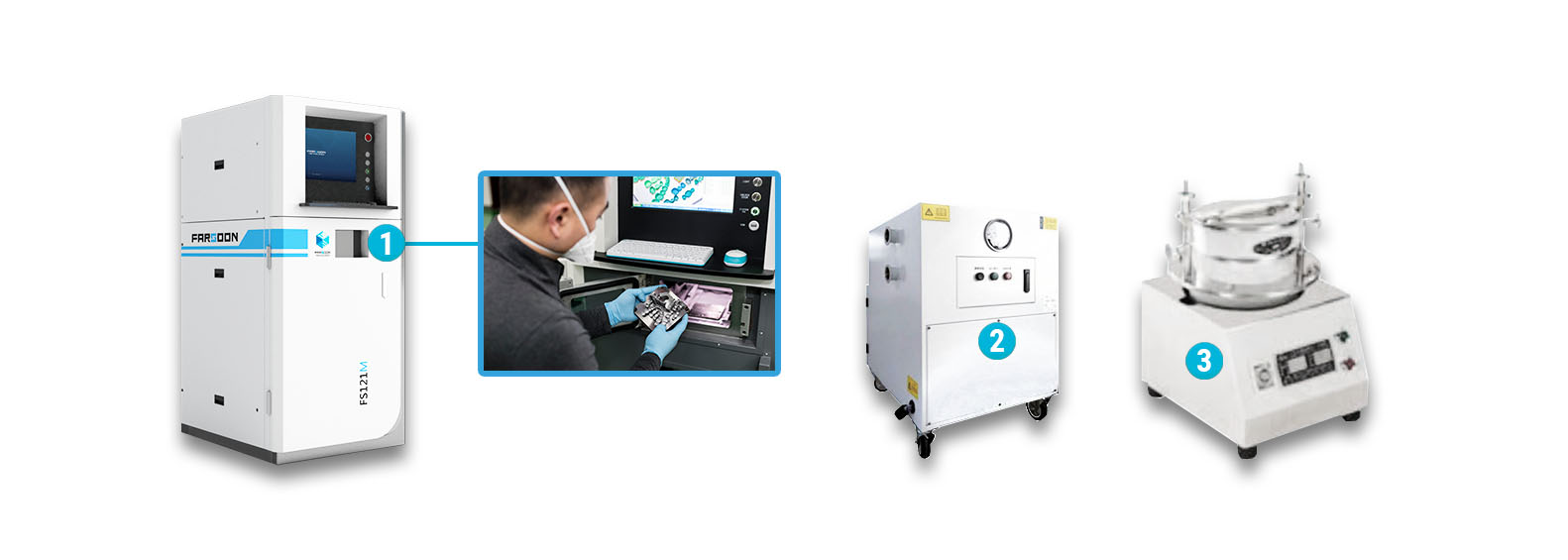

Discover FS121M System
1-Operation Access + Glove Box
2-Filtration System
3-Sieveing Unit

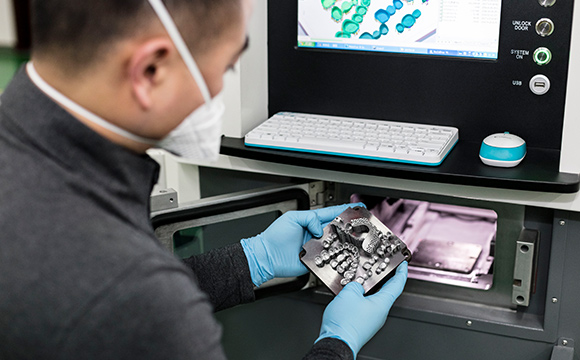

The operation access located in the front of the build chamber offers ease of observation and de-powdering when the build is finished. Optional glove box is available for user to operate with reactive materials ensuring a clean and safe breakout process.
The Recirculating Filter System offers efficient filtering of the smoke dust generated in the build chamber during the sintering process. Optional reactive material capable filter system is also available for application needs.
The powder sieving unit features a vibration screen offering efficient sieving of recycled metal powder from the material containers to filter out the large particles. The metal powder collected in the refreshed powder container can be re-used for powder supply.
Farsoon FS121M System Advantages
Robust
500 or 300-watt fiber laser
Versatile build envelope
of 4.7 x 4.7 x 3.9 in / 120 x 120 x 100 mm
Fine laser spot size
boost excellent part surface quality
Flexible Solution
The FS121M is an incredibly flexible system allowing the user to select between multiple spot sizes and recoating blades, this combined with a small footprint and reduced need for ancillary equipment allows the FS121M to match customer workspace, material and application requirements.
Price-performance
The FS121M features a 30QW or 500W Yb־fiber laser and a fully digital scanning system. These features along with a fine spot size allows for the creation of very detail and complex parts. Farsoon is dedicated to high quality utilizing premium parts for all key components and incorporates the latest safety systems with inert gas supply and over-sized protective filter systems all at a price that is accessible for any business.
Open Platform
Farsoon is the only laser sintering system producer that allows for complete freedom of operation of its machines. This means that machine parameters and powder choice are unlocked for the user allowing for previously* impossible levels of freedom and flexibility when it comes to MLS production.
Industrial Applications with FS121M
The FS121M is an accessible small frame system allowing the user to select between multiple spot sizes and recoating blades, this combined with a small footprint and reduced need for ancillary equipment allows the FS121M to match customer workspace, material and application requirements. The FS121M is ideal for a wide range of applications from rapid prototyping, low volume production, material development to institution research.

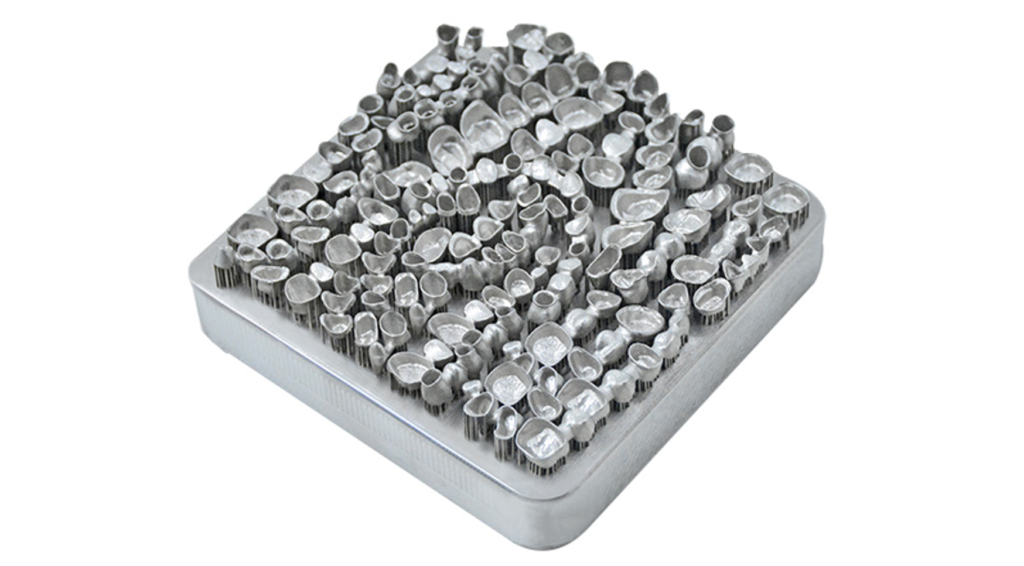

Dental Crown
Machine: FS121M
Industry: Denture
Material: CoCrMoW
Build time: 3 hours
Addressing a series of challenges in the traditional dental industry such as increasing labor cost, shorter lead time, and production yield, Upcera Dental adopted multiple FS121M systems for transforming into digital manufacturing. Farsoon’s advanced metal 3D printing is able to produce parts with excellent density, eliminating surface or structural defects which are often found in traditional casting process. The fully digital workflow from scanning, modeling to direct-manufacturing enables high efficiency and precise positioning for a greatly improved patient experience.

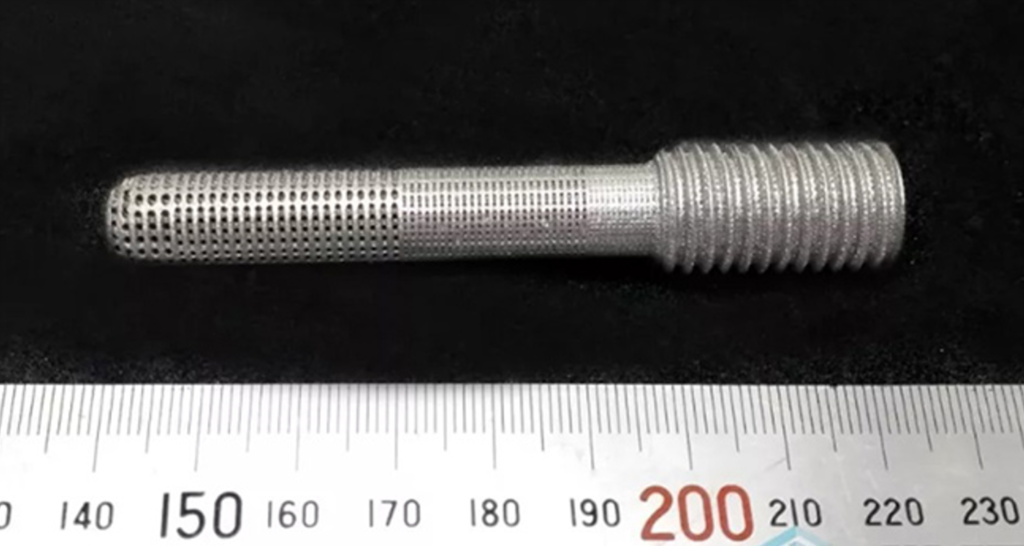

Hip Trabecular Implant
Machine: FS121M
Material: Tantalum
High relative density of the part: 99.3%
This Implant is a customized device for repairing the trabecular bone at the hip joint. The standard implant device are regular solid-surface structured with low fatigue tolerance; which is not suited for patient’s condition. Thanks to Farsoon metal additive technology, surgeons are able to fully customize porous structure that tailored-made for diagnosis, which features a design porosity of 68-75% and aperture diameter 250-500um. The implant is produced with optimal performance, high size accuracy to ensure the best fit for application and fast recovery.

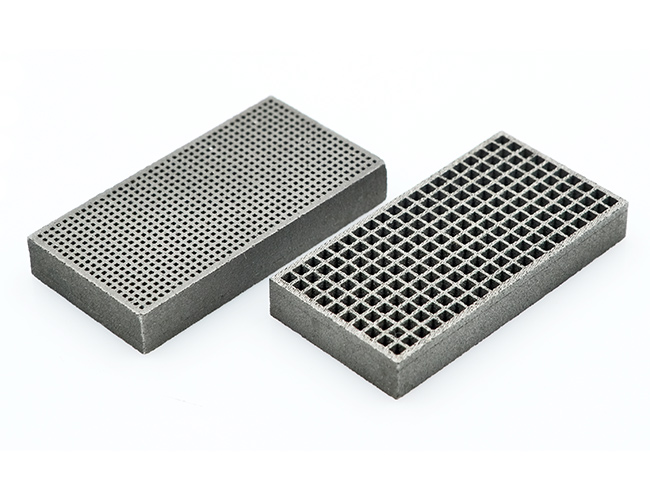

Radiator Housing
Machine: FS121M
Material: Tungsten
Pore size: 0.5-1.5 mm
Build Time: 4 Hours
This radiator Housing is developed to prevent deformation of the copper material during high temperature operations, thus extending life span of the chip radiator. Tungsten is selected for this application for high strength under extreme temperature; but it is also a challenging material to be proceed by laser sintering technology. Farsoon metal 3D printing can achieve a high part density, advanced porous structure without the need to be further processed.
FS121M Technical Data
| Technical Data | FS121M |
| External Dimensions （L×W×H） | 780×1000×1700 mm ( 30.7×39.4×66.9 in ) |
| Build Cylinder Size1（L×W×H） | 120×120×100 mm ( 4.7×4.7×3.9 in ) (Height incl. build plate) |
| Net Weight | Approx.700 kg ( 1543.2 lb ) |
| Laser Type | Fiber laser, 500W |
| Scanner | F theta lenses |
| Scanning Speed | Max. 10 m/s (32.8 ft/s) |
| Technical Data | FS121M-E |
| External Dimensions （L×W×H） | 780×1000×1700 mm ( 30.7×39.4×66.9 in ) |
| Build Cylinder Size1（L×W×H） | 120×120×100 mm ( 4.7×4.7×3.9 in ) (Height incl. build plate) |
| Net Weight | Approx.700 kg ( 1543.2 lb ) |
| Laser Type | Fiber laser, 300W |
| Scanner | F theta lenses |
| Scanning Speed | Max. 10 m/s (32.8 ft/s) |
1 The functional build volume depends on the parts/materials
- Brand Farsoon Technologies
- Country of origin China
- External Dimensions (L×W×H） 780×1000×1700 mm ( 30.7×39.4×66.9 in )
- Build Volume 120×120×100 mm, 4.7×4.7×3.9 in
- Net Weight Approx.700 kg ( 1543.2 lb )
- Layer thickness 0.02mm~0.03mm ( 0.0008-0.001 in ) (FS121M-E), 0.02mm~0.08mm ( 0.0008-0.0031 in ) (FS121M)
- Scanning Speed Max. 15.2 m/s ( 49.9 ft/s ) (FS121M), Max. 10m/s ( 32.8 ft/s ) (FS121M-E)
- Laser Type Fiber laser, 300W (FS121M-E), Fiber laser, 300W or 500W (FS121M)
- Scanner Dynamic focusing system (FS121M), F theta lenses (FS121M-E)
- Inert Gas Protection Argon/Nitrogen
- Average Inert Gas Consumption in Process 3-5 L / min
- Operating system 64 bit Windows 10
- Software BuildStar, MakeStar®
- Data File Format STL
- Key Software Features Open machine key parameters, real-time build parameter modification, three-dimensional visualization, diagnostic functions
- Power Supply EUR/China: 220V±10%, 1~/N/PE, 50Hz, 14A US: transformer sold with machine
- Operating Ambient Temperature 22-28°C (71.6-82.4℉)
- Materials (FS121M) 316L, 17-4PH, Ti6Al4V, AlSi10M, Maraging Steel Grade 300, HX, Cu, CuSn10, CoCrMoW, CoCrMo
- Materials (FS121M-E) 316L, 17-4PH, Cu, CuSn10, CoCrMoW, CoCrMo
- Technology Metal LPBF
- Printing Materials Metal Powders
