Farsoon Flight® 252P Series: High-Performance SLS 3D Printing for Polymers
A Powerful + Flexible Platform for Material Development And High-temperature Applications.
-
Technology:
SLS
-
Materials:
Plastic Nylon Powders
In stock
-
Categories:
3D printers, Business 3D Printers, Education, Engineering, Jigs&Fixtures, Manufacturing, Nylon, Plastic Powder, SLS
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
Introducing FLIGHT® 252P Series. The implementation of innovative FLIGHT® Technology on the 252P super-temperature capable platform offers a powerful and compact machine solution for material development, providing enhanced part features as well as an improved cost-performance ratio.

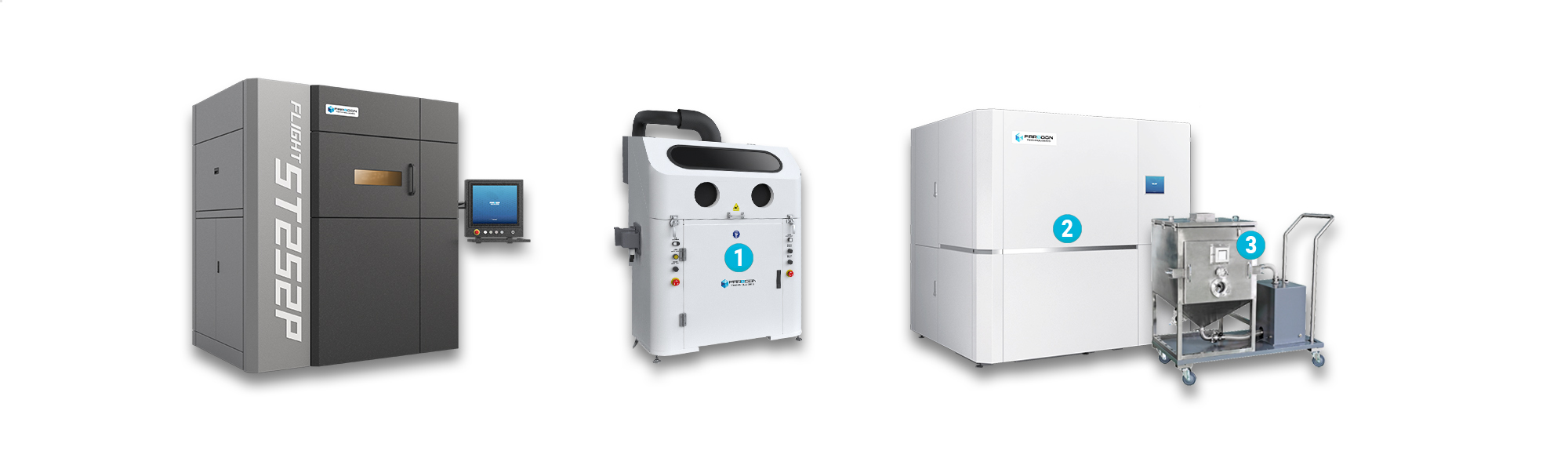

Discover FLIGHT® 252P Series System
1 – Breakout Station
2 – Powder Management System (PMS)
3 – Powder Delivery Unit (PDU)
The build cartridge is moved to the breakout station via the conveyor system. The Breakout Station is fully enclosed and is accessed through multiple glove boxes on the front and back of the station, allowing the capability of multiple operators while retaining a clean working environment. The built-in air-guns allow for gentle powder removal and detailed cleaning.
Integrated with multiple powder handling processes, including used powder recycling & storage, new powder supply, high-speed mixing, and powder sieving, the robust PMS system enables a streamlined material workflow with minimum downtime of the SLS 3D printer, improved throughput, and lower cost per part.
The PMS system can also be paired with a mobile Powder Delivery Unit (PDU), which transports the prepared powder directly to the SLS laser 3D printer. Once there, the PDU’s integrated pump transfers the powder into the printer’s powder feed cartridge.
Farsoon Flight® 252P Series Industrial 3D printer Advantages
Super Temperature capable up to 280°C
Versatile build envelope
9.8 × 9.8 × 12.5 in / 250 × 250 × 320 mm
Powerful 300-watt fiber laser
Powerful + Versatile
Equipped with an increased energy absorption fiber laser, paired with truly open parameters, the FLIGHT® 252P Series is capable of accessing a much wider range of processable materials and operational flexibility compared to standard laser sintering systems, allowing complete freedom of material and application development.
Fiber Laser
The SLS 3D printer is equipped with a powerful fiber laser instead of the standard CO2 laser. This enables the 3D printer polymer to deliver significantly increased power to the powder bed, thanks to the more robust and stable nature of the fiber laser. It also provides improved laser longevity, which is key when considering ROI for manufacturing applications. With the ultra-fine fiber laser spot size, the FLIGHT® 252P Series produces parts with improved feature detail compared to other standard plastic laser sintering technologies.
High Temperature
The FLIGHT® 252P Series offers two configurations capable of achieving processing chamber temperatures from up to 220°C (HT) to 280°C (ST). Enhanced thermal controls, temperature-shielded components, and enhanced parameters offer customers the ability to process high-performance polymer materials such as PEEK 3D printing, nylon 3D printer, and polypropylene 3D printer materials with excellent results.
Industrial Applications with Flight® 252P Series
The optimal performance of FLIGHT® 252P Series combining high-temperature capabilities and high feature resolution has opened up many potentials for new polymer materials development to expand new markets and applications.

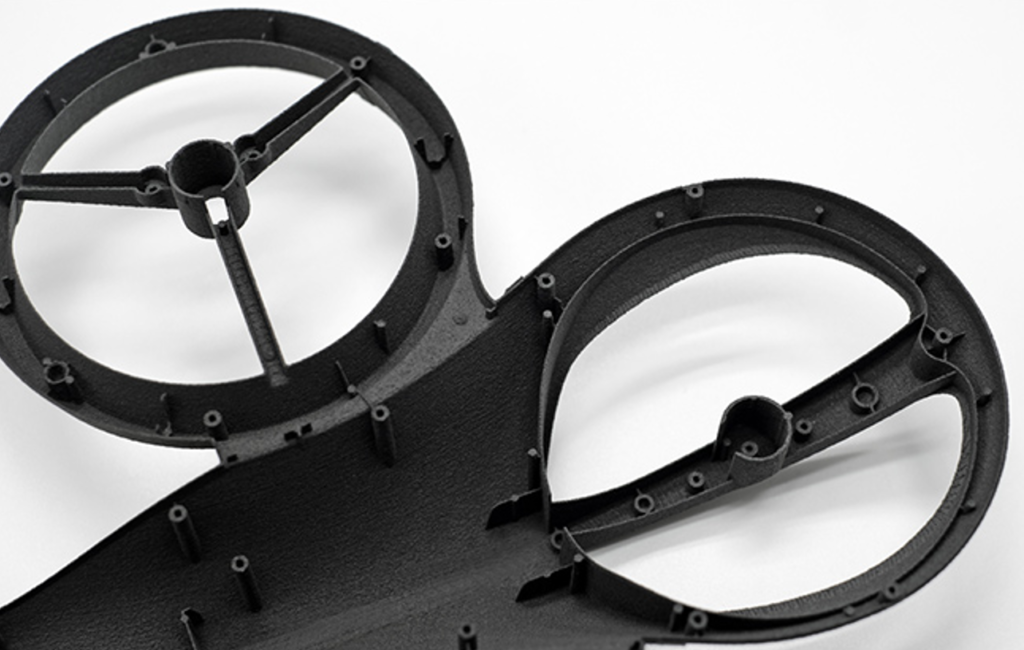

Mini-drone Components
Machine: FLIGHT® HT252P
Material: FS3300PA-F
Wall thickness: 0.3 mm
YZH is a professional part supplier for electronic designer models like RC cars and mini-drones. The parts usually involve intricate details which need to withstand extreme conditions, including collision and drops. This series produced end-use mini-drone frame part is fabricated with FS3300PA-F material on the FLIGHT® HT252P; it showcases high accuracy detail features for assembly and strong mechanical properties in operation.

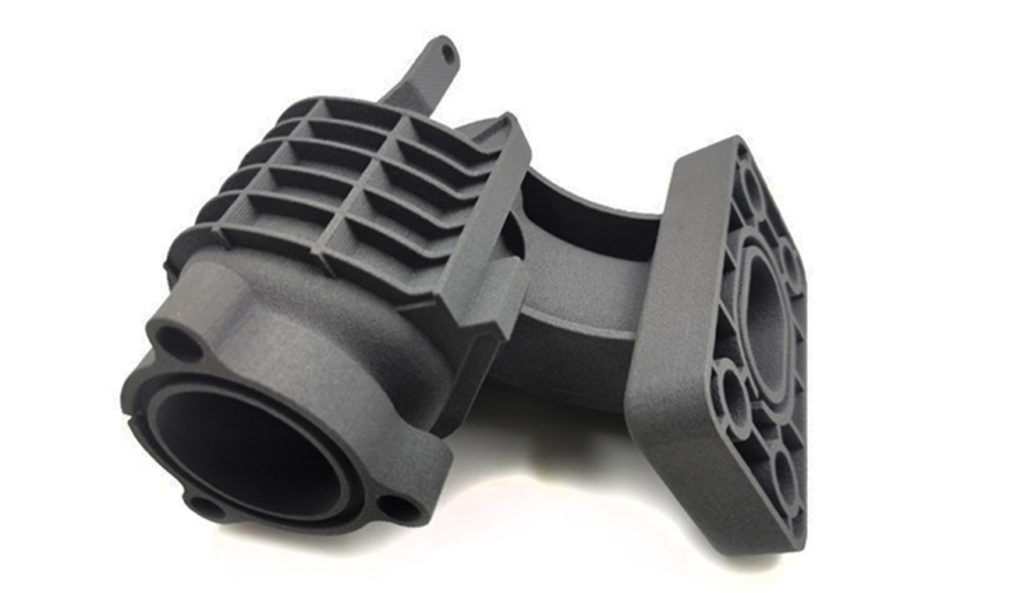

Engine Intake Manifold
Machine: FLIGHT® HT252P
Material: Customized PA6 material
Size: 170 × 140 × 90 mm
This intake manifold module is designed for functional testing on a passenger vehicle engine system. With advanced additive technology, engineers are able to create the new design according to the dynamic boundary conditions of the engine and fabricate in one piece without the need to split the part into multiple sections for production and assembly using conventional processes. Fabricated with customized PA6 with glass bead-filled material, the intake manifold module meets the high-temperature and pressure requirements.
FLIGHT® 252P Series Technical Data
| Technical Data | FLIGHT® ST252P |
| External Dimensions （L×W×H） | 1735×1225×1975 mm ( 68.3×48.2×77.8 in ) |
| Build Cylinder Size1（L×W×H） | 250×250×320 mm ( 9.8×9.8×12.6 in ) |
| Net Weight | Approx. 1700KG ( 3747.9 lb ) |
| Laser Type | Fiber laser, 1×300W |
| Scanner | High-precision three-axis galvo system |
| Scanning Speed | Max. 20 m/s ( 65.6 ft/s ) |
| Max. Chamber Temperature | 280°C ( 536℉ ) |
| Technical Data | FLIGHT® HT252P |
| External Dimensions （L×W×H） | 1735×1205×1975 mm ( 68.3×47.4×77.8 in ) |
| Build Cylinder Size1（L×W×H） | 250×250×320 mm ( 9.8×9.8×12.6 in ) |
| Net Weight | Approx. 1700KG ( 3747.9 lb ) |
| Laser Type | Fiber laser, 1×300W |
| Scanner | High-precision three-axis galvo system |
| Scanning Speed | Max. 20 m/s ( 65.6 ft/s ) |
| Max. Chamber Temperature | 220°C ( 428℉ ) |
1 The functional build volume depends on the parts/materials.
- Brand Farsoon Technologies
- External Dimensions (L×W×H） 1735×1225×1975 mm ( 68.3×48.2×77.8 in ), 1735×1205×1975 mm ( 68.3×47.4×77.8 in )
- Build Volume 9.8x9.8x12.6 in / 250x250x320 mm
- Net Weight Approx. 2100KG ( 4629.7 lb )
- Laser Type Fiber laser, 1×300W
- Scanner High-precision three-axis galvo system
- Layer thickness 0.06~0.3 mm (0.0024-0.0118 in)
- Scanning Speed Max. 20 m/s (65.6 ft/s)
- Max. Chamber Temperature 280°C ( 536℉ ), 220°C ( 428℉ )
- Thermal Field Control Eight-zone heater & Intelligent temperature control systems
- Temperature Regulation Continuous real-time build surface temperature monitoring & optimization
- Operating system 64 bit Windows 10
- Software BuildStar, MakeStar®
- Data File Format STL
- Key Software Features Open machine key parameters, real-time build parameter modification, three-dimensional visualization, diagnostic functions
- Power Supply EUR/China: 380-400V, 50/60Hz, three-phase, US: transformer sold with machine
- Operating Ambient Temperature 22-28°C (71.6-82.4℉)
- Material FS3201PA-F, FS3300PA-F, FS3401GB-F, LUVOSINT® TPU X92A-1064 WT
- UI Mode Real-time interchangeable expert mode and production mode
- Technology SLS
- Printing Materials Plastic Nylon Powders

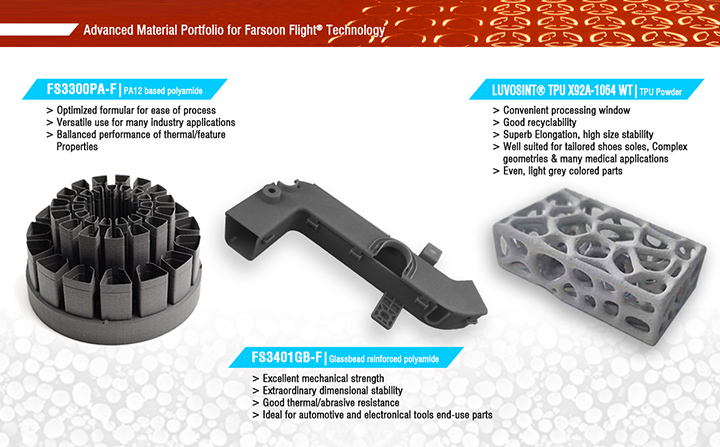

Materials
- FS3201PA-F
- FS3300PA-F
- FS3401GB-F
- LUVOSINT® TPU X92A-1064 WT
