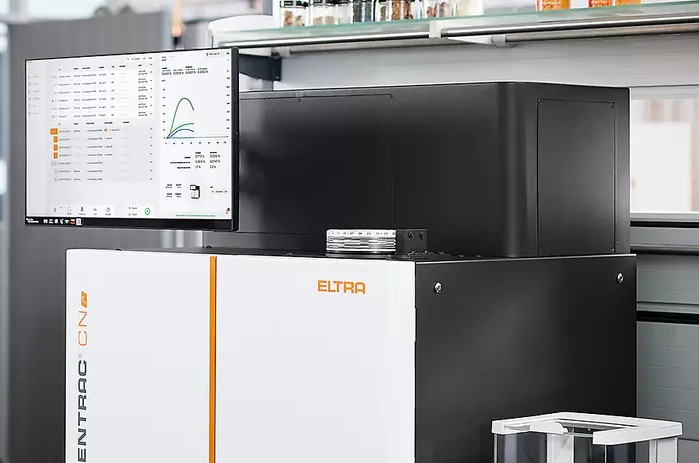

ELEMENTRAC CN-r

The ELEMENTRAC CN-r is the perfect solution for high-throughput laboratories needing fast and reliable nitrogen

Categories:
C-N-Analyzers

Description
Details
Materials
Documents
Videos
Review

Description

ROBUST AND RELIABLE DETERMINATION OF CARBON, NITROGEN, AND PROTEINS

• Automated nitrogen / protein and carbon determination using the Dumas method
• Reliable results in less than 3 minutes and at low cost per sample
• Ergonomic design with integrated PC and tiltable touchscreen
• Modern, cost-effective, time- and space-saving alternative to traditional Kjeldahl systems
• Optimized for high throughput, reliability, and cost efficiency
• Available in two configurations: carbon and nitrogen / protein analyzer, or nitrogen / protein analyzer only

ADVANTAGES FOR HIGH-THROUGHPUT LABORATORIES

ROBUST
Designed for high-throughput analysis and continuous operation, guaranteeing durability and reliability.

EFFICIENT
Fully automated and process-optimized total nitrogen and carbon determination using the Dumas method.

WIDE RANGE OF SAMPLES
The ELEMENTRAC CN-r delivers precise Dumas protein results for any sample matrix, whether solid or liquid. With the advanced features of the ELEMENTRAC CN-r, you get precise results for a wide range of samples.

HIGH PERFORMANCE
Analyze your samples in less than 3 minutes! Our intelligent processing allows simultaneous combustion of the current sample and analysis of the previous sample (so-called interleave analysis). Get results over 70 times faster than with the Kjeldahl method and benefit from unparalleled speed in your analysis workflow.

INTELLIGENT INTEGRATION

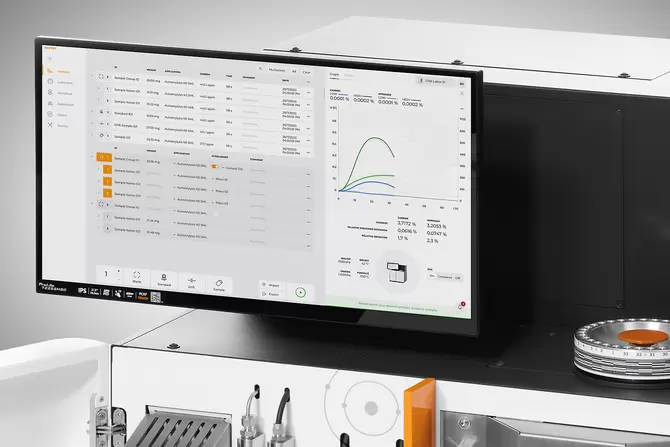

The built-in PC with touchscreen and network-capable data and process management ensures seamless operation and high comfort.

LOW OPERATING COSTS
Economical use of resources, intelligent gas-saving functions, and smart use of consumables lead to low costs per sample compared to other devices.

PRIORITIZED SAMPLES

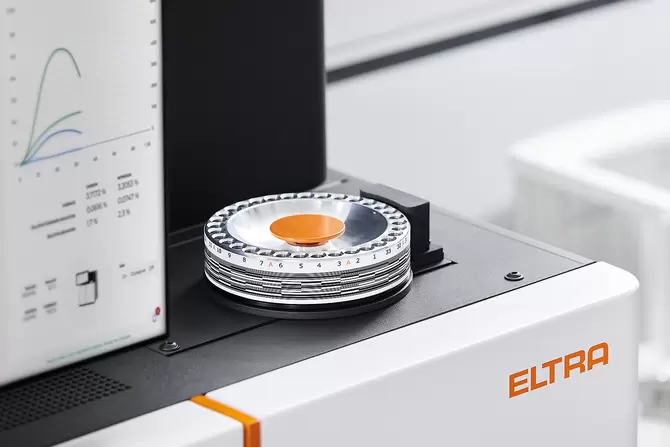

High-priority samples take precedence and are measured immediately without having to be re-sorted in the autoloader.

EFFORTLESS MAINTENANCE
All consumables can be replaced in less than 20 minutes, keeping your system always ready for use. An optimized workflow with quick and effortless maintenance ensures smooth operation with minimal downtime.

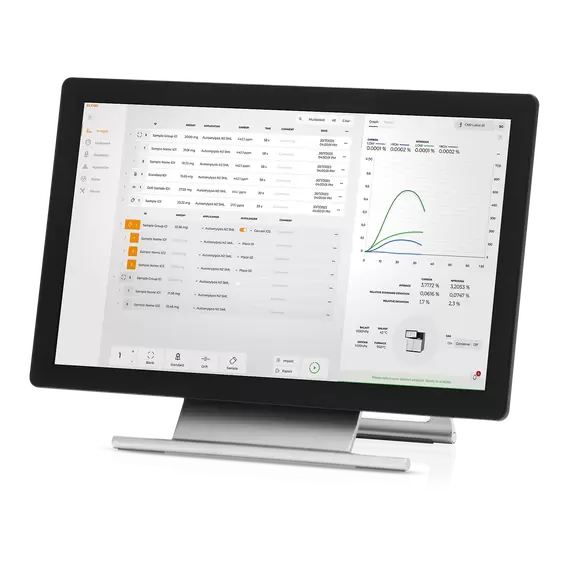

SOFTWARE

The comprehensive ELEMENTS software is an essential component of all elemental analyzers of the ELEMENTRAC generation.

A central window (analysis and results) is the starting point from which all functionalities required for the daily routine are easily accessible. From here it is possible to group and export analyzed samples or to register and analyze new samples. The user can access various subordinate functionalities such as application settings, calibration, diagnostics, audit trail, user group management or status and is FDA 21 CFR Part 11 compliant.

In addition, thanks to the network integrity and web browser architecture, you can access the device from any computer in the company network and have all data available at any time.

The Dumas method for protein and nitrogen determination is internationally recognized and validated by leading organizations such as AOAC, AACC, ISO, DIN, ASBC, AOCS, and OIV.

Typical Dumas protein applications include the analysis of:

• Foods to determine protein content, such as in grains, dairy products, and meat
• Animal feed to verify nutrient composition

Typical Dumas nitrogen applications include the analysis of:

• Soil samples to evaluate nitrogen availability for plants
• Fertilizers to determine nitrogen content and thereby fertilizer quality

Brand ELTRA
Model ELEMENTRAC CN-r
Measurement ranges Nitrogen: 0.03 mg to 300 mg Carbon: 0.02 mg to 175 mg
Typical weights Up to 1.0 g, 0.5 g nominal
Analysis time < 3 min
Detectors Thermal conductivity detector (N) NDIR (C)
Typical samples Food, feed stuff, fuels (coal and coke), environmental samples and fertilizers
Reagents Magnesium perchlorate, sodium hydroxide, copper, aluminum oxide
Power supply 230 VAC ±10%, 50/60 Hz
Required gas Oxygen (99.999% purity) Helium (99.996% purity) Compressed air (oil and water free)
Configurations CN-r, N-r
Weight 135 kg
Dimensions (W x H x D) 757 x 785 x 620 mm / 29.8 x 30.91 x 24.41 in

Documents

ELEMENTRAC CN-r
