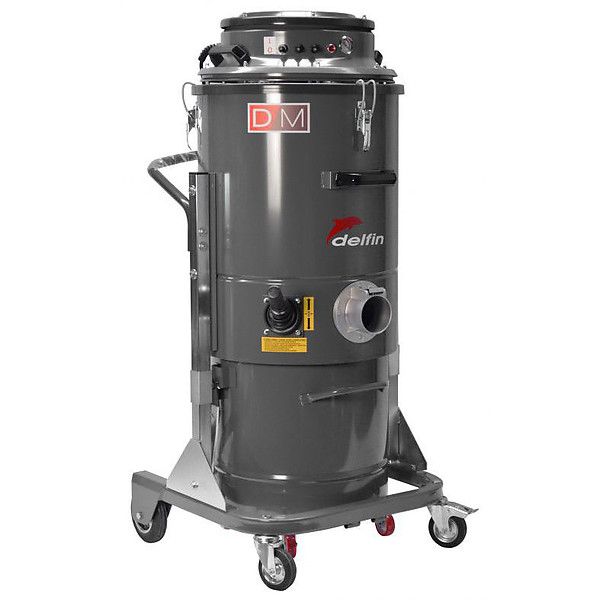

DM 3 EL

The DM 3 EL has the advantages and benefits of a DM3, but is more compact

Categories:
Industrial Vacuum Cleaners, Single-phase vacuum cleaners

Description
Details
Materials
Documents
Videos
Review

Description

FEATURES

• Largest surface filter in its category
• Integrated filter cleaning system
• Complete steel construction
• Three powerful by pass motors with independent cooling
• Compact and mobile
• Full customization for specific needs
• Easy to clean and to maintain
• Easy to handle

SUCTION UNIT

The suction is provided by three by-pass motors, using carbon brushes, operated by independent switches and placed inside a sturdy steel casing, filled with soundproofing material.

FILTER UNIT

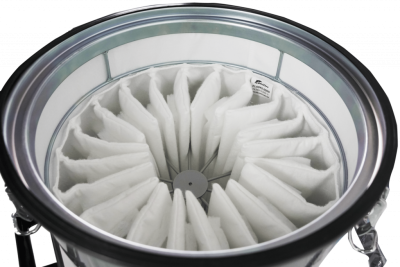

The large surface star filter, located inside the filter steel chamber, is made of polyester and provides high resistance against clogging and passage of fine dust.

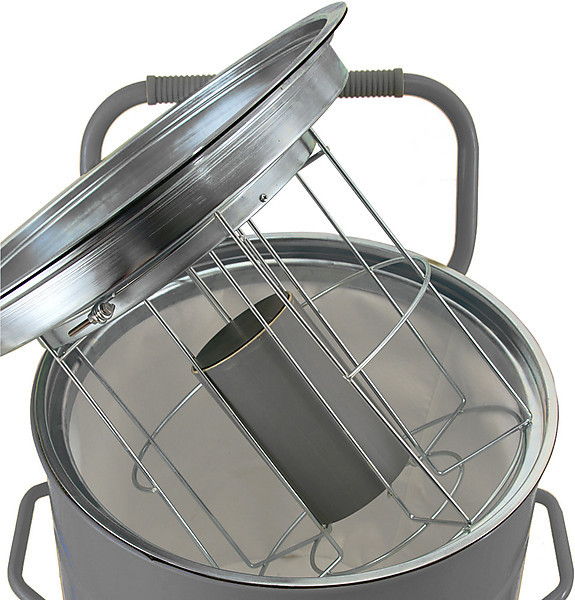

It is possible to clean the filter using an integrated mechanical system. An external lever shakes the filter vertically and enables cleaning the filter thoroughly and safely, maintaining constant suction performance and preventing any dispersion of dust in the environment.

COLLECTION UNIT

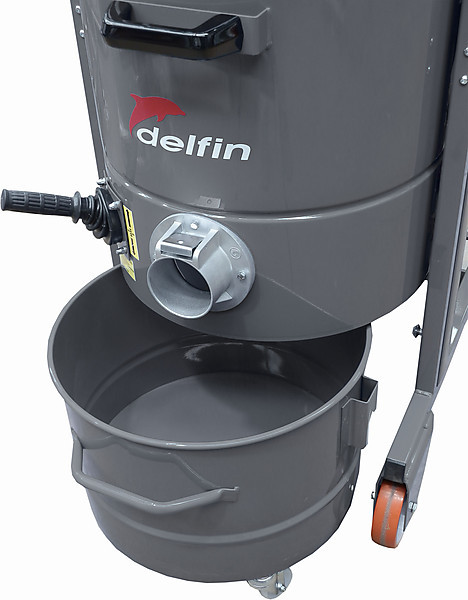

The vacuumed material is collected into a wheeled steel container, which can be extracted for easy disposal and can be used with optional disposable bags.
The unit is manufactured with thick powder coated steel for improved sturdiness and long-lasting lifetime.

INDUSTRIAL APPLICATIONS

• Compact and portable
• Constructed with powder coated steel
• Three powerful bypass motors with independent cooling
• Roll-out 16gal collection tank
• Integrated cleaning system
• Large filter surface
• Performance indicator light
• Versatile and user-friendly

Brand Delfin
Voltage 115 V – 60 Hz
Power 3 HP
Max Water Lift 81 inH20
Max Airflow 283 CFM

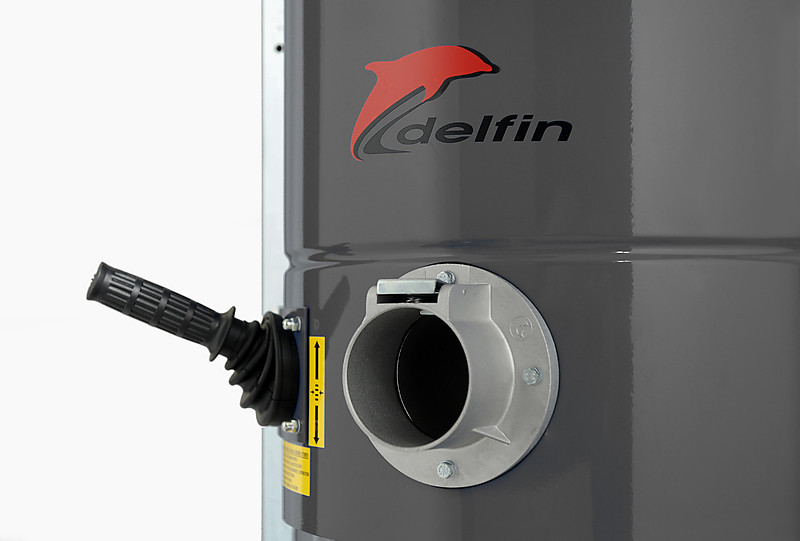

Suction Inlet 3 in
Capacity 16 gal
Dimensions (WxLxH) 67x66x134 cm / 26.5x26x53 in
Noise Level (EN ISO 3744) 76 dB(A)
Weight 170 lbs
Wet Primary Filter Type Star
Material – Efficiency Polyester – ANT M
Filter Surface Area 32 ft²
Air load on filter 9 ft/min

Documents

Download Brochure
