DG 70

The DG 70 industrial vacuum system is the ideal solution for picking up large quantities of solids, dusts and liquids

Categories:
Industrial Vacuum Cleaners, Additive Manufacturing Solutions, For Non Reactive Metal Powders

Description
Details
Materials
Documents
Videos
Review

Description

FEATURES

The DG 70 industrial vacuum system is the ideal solution for picking up large quantities of solids, dusts and liquids. Thanks to a powerful side channel blower, the DG 70 vacuum can remove any type of material safely and with extreme ease. Built-in manual filter shaker, roll outcontainer, large polyester filter (different classes of filtration available for specific applications) and pressure relief valve for motor protection are just some of the special features that make it one of the best sellers in Delfin’s industrial line. For more innovations associated with this model, see “related products” section below.

SUCTION UNIT

The suction unit is a side channel blower, with direct coupling between the motor and the impeller fan. It is designed without any transmission system, and is therefore quiet, totally maintenance-free and suitable for continuous duty operations. A pressure relief valve protects the motor, providing additional air for cooling.

FILTER UNIT

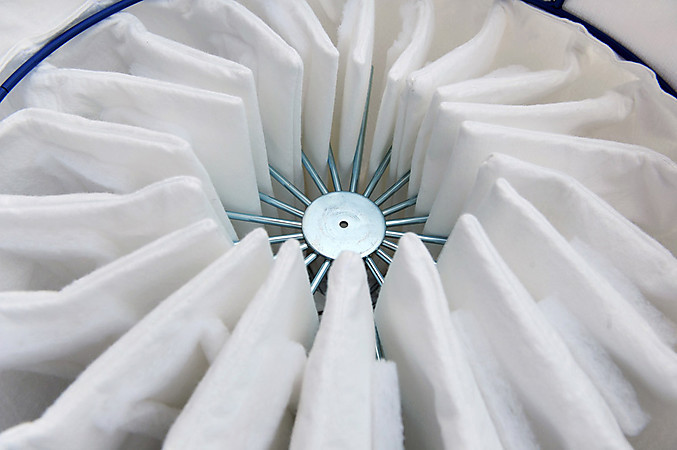

The large surface star antistatic filter, located inside the filter chamber, is made of polyester and provides high resistance against clogging and passage of fine dust.
It is possible to clean the filter using an integrated mechanical system; an external lever shakes the filter vertically and enables to clean the filter thoroughly and safely, maintaining constant suction performance and preventing any dispersion of dust in the environment.

COLLECTION UNIT

The unit is manufactured with thick painted steel for improved sturdiness and long-lasting lifetime

INDUSTRIAL APPLICATIONS

Constructed with powder coated steel
Side channel blower (continuous use / no maintenance up to 30,000 hours)
Removable collection tank with two-handed safety release
Large filter surface
Performance indicator light
Pressure relief valve
Integrated cleaning system

Brand Delfin
Voltage 460 – 60
Power 8.4 HP
Electrical Protection IP55
Max Airflow 353.1 CFM
Suction Inlet 3 in
Dimensions (WxLxH) 66x118x145 cm / 26x46x57 in
Noise Level (EN ISO 3744) 72 dB(A)
Weight 331 lbs
Filter Type Star
Material – Efficiency Polyester – Class L
Filter Surface Area 32 ft²
