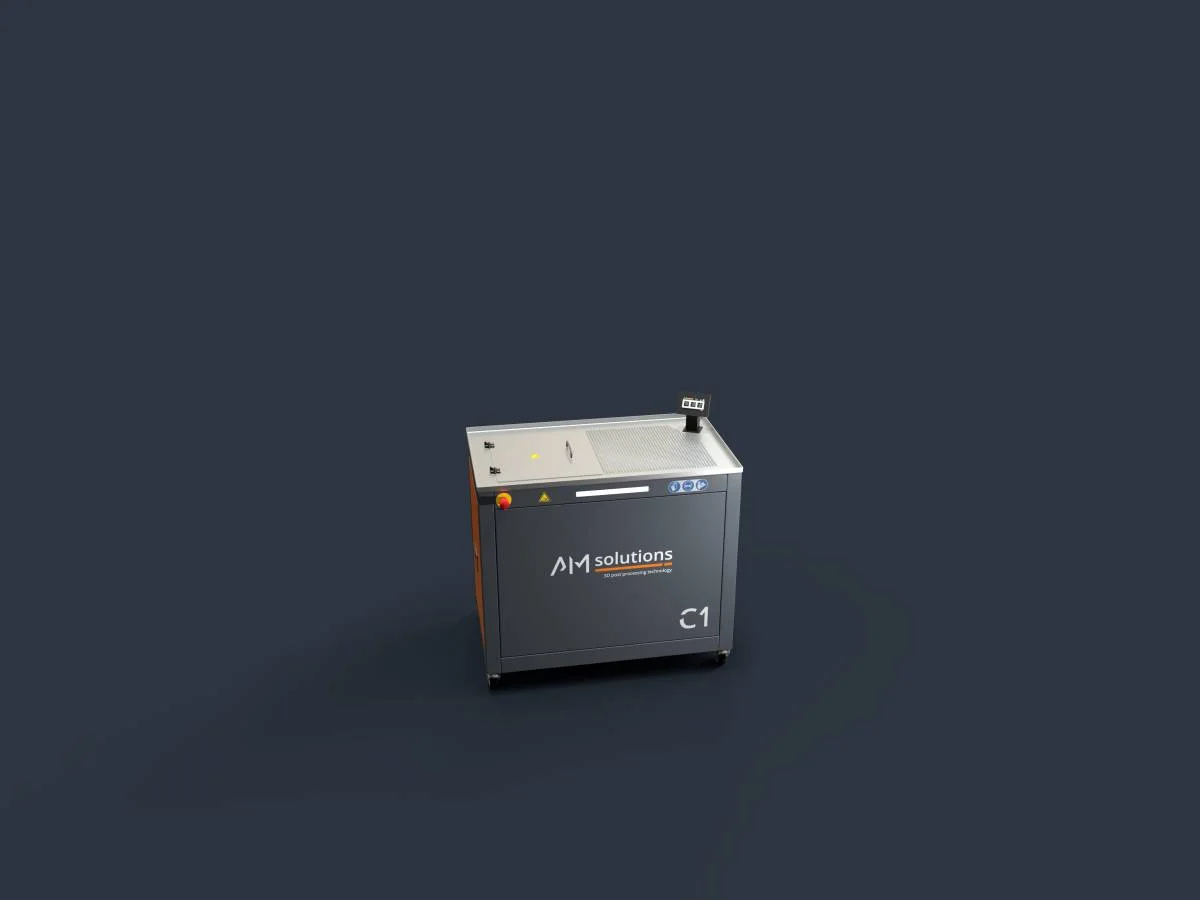

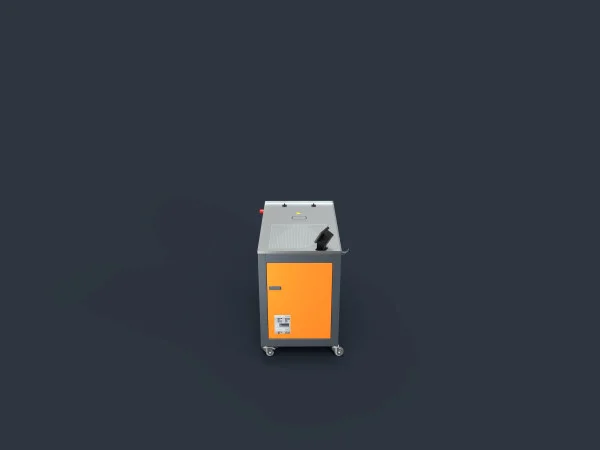

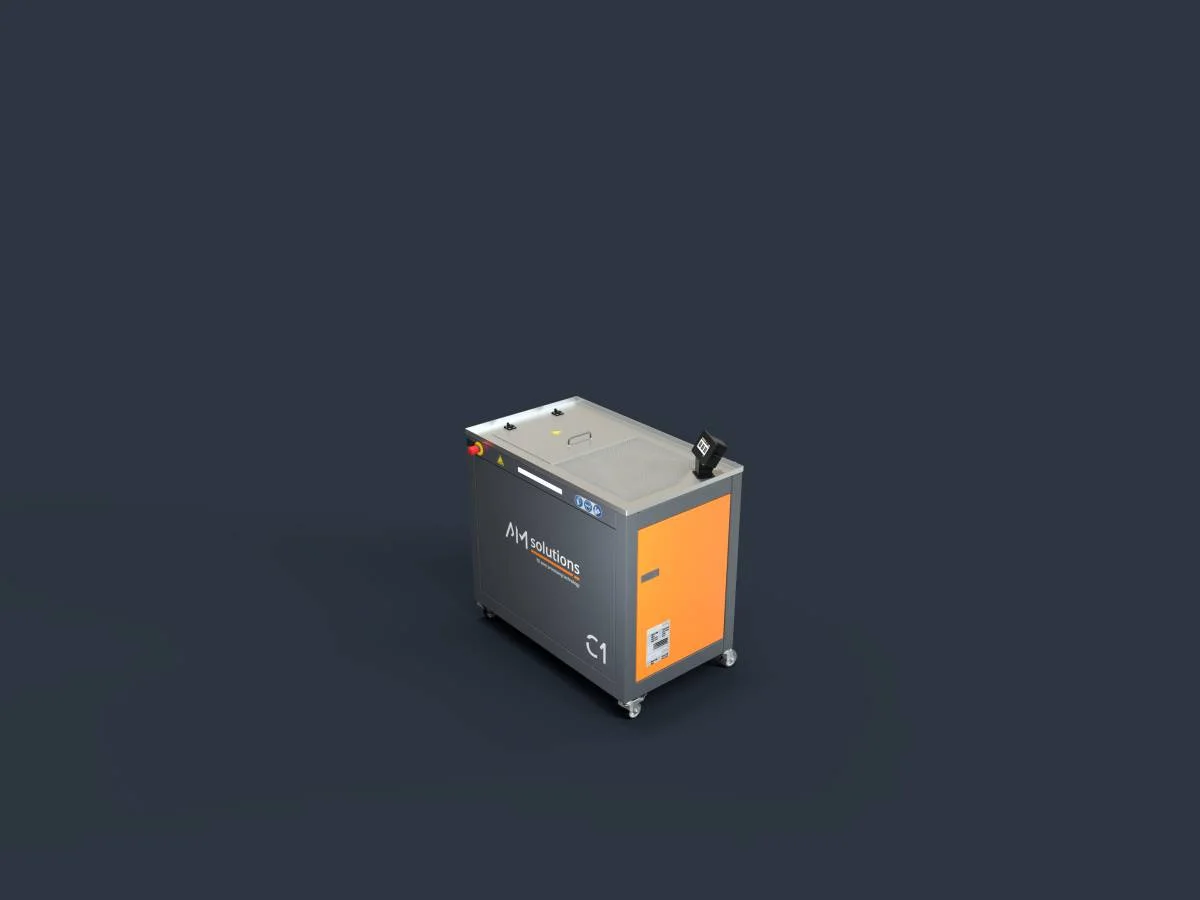

C1 Support Removal System
$24,900
Automated system for gentle, reliable support and resin removal from delicate 3D printed polymer components.
-
Brand:
AM Solutions, Rösler
-
Technology:
Support removal
In stock
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
Tired of damaging delicate parts during support removal? The C1 system delivers fully automated, precise removal of support structures and resin from 3D printed polymer components—without compromising intricate details or part integrity. Ideal for precision functional parts, complex prototypes, and design objects with fine features.
Using a patented combination of chemical, thermal, and mechanical actions, the C1 gently yet effectively cleans even the most complex geometries. With programmable recipes, continuous process monitoring, and automated media management, it guarantees consistent, repeatable results while reducing labor costs and eliminating manual errors.
Support Removal
.
Polymers
.
Key Features & Benefits
Gentle Yet Effective: Perfectly balanced chemical, thermal, and mechanical action removes supports without damaging delicate part structures.
Full Automation: Load the basket, select the recipe, and let the C1 handle the rest—dramatically reducing labor time and skill requirements.
Process Control & Traceability: Continuous monitoring of temperature, cycle time, and media saturation ensures consistent quality. All data is logged for full traceability.
Cost-Efficient Operation: Automated media replenishment and saturation monitoring minimize compound consumption and waste.
Plug-and-Play Simplicity: Easy to install and operate, with pre-loaded programs and an intuitive PLC controller.
Safe & Clean: Built-in grate, drip edge, and removable screen ensure a clean, safe working environment.
FAQs
What 3D printing technologies is the C1 compatible with?
The C1 is specifically designed for photopolymer-based technologies such as Polyjet and SLA. It effectively removes the support materials and resins used in these processes.
How does the C1 avoid damaging delicate parts?
The process relies on a carefully calibrated interplay of chemical, thermal, and gentle mechanical effects. This synergy dissolves and dislodges support material without applying excessive force that could break fine part features.
Can I create custom cleaning programs for different parts?
Yes. While the system comes with standard processing recipes, the special software package allows you to program, modify, and save custom process sequences tailored to specific part geometries and materials.
How does the system manage the processing compound?
The C1 features an automatic level sensor and replenishment system to maintain the optimal compound volume. An integrated saturation sensor monitors the compound’s condition, ensuring consistent cleaning performance and minimizing waste.
What are the dimensions of the processing basket?
The processing space measures 340 mm (W) x 440 mm (D) x 170 mm (H), suitable for a wide range of part sizes, from small detailed components to larger prototypes.
Is the process safe and clean?
Absolutely. The system includes a built-in grate with a drip edge and a removable screen for easy cleaning, containing the process and preventing spills, which ensures a safe and tidy workspace.
What kind of data logging and monitoring does the C1 offer?
Key parameters like temperature, cycle times, and the degree of compound saturation are continuously recorded by a data logger. This provides full traceability for quality control and ensures result consistency.
How is the C1 different from manual or ultrasonic cleaning?
Unlike manual methods (risk of breakage) or ultrasonic cleaning (which can be too aggressive), the C1 offers a controlled, gentle, and hands-off automated process. This guarantees higher throughput, perfect reproducibility, and no part damage
- Brand AM Solutions, Rösler
- Technology Support removal
- Country of origin Germany
- Dimensions of the processing space 340 x 440 x 170 mm, 13.4 x 17.3 x 6.7 in
- Fill volume 62.5 liters
- Subsequent dosing 25 Liter
- Recommended compound RAM-D1; RAM-D1M, RAM-D1R, RAM-D1C
- Transport stacker, movable by rollers
- Compressed air connection G1’’ 7 bars
- Control voltage 24 V DC
